In his production chain an American manufacturer will no longer use two machines for screening his plastic granulate, but only one: the Rhewum wafl with two screen decks. Pavement markings have been used since the beginning of the 20th century. Today they are part of the modern street scene and without them we would sometimes lose orientation. The line markings create a clear and safe traffic guidance. The products of the world’s leading North Carolina-based manufacturer are not only used on roads and highways, but also on taxiways, take-off and landing runways, parking lots, intersections and in all types of commercial, construction, government, industrial and architectural environments. So these markings help drivers, pilots and pedestrians to move safely in the right direction. The exact process of producing road markings will not be discussed in detail at this point, as it is quite complex. However, plastic granulate is processed in the production of road markings, that must be dewatered. With the help of the Rhewum wafl the water can be perfectly separated from the product and a low residual moisture of approx. 8 percent can

When a Round Vibro Screen Would be a Better Bet Vibration screening machines are among the most popular screening machines on the market. No wonder, as this type of screening can be used for almost any product, with the exception of easily breakable bulk solids. It is particularly effective as the screening movement for vibration screening machines is, unlike with linear screening machines, vertical as well as horizontal, meaning even small vibration screening machines can achieve large levels of output. Vibration screening machines are available in a variety of different sizes and designs, meaning that the shape of the screen – which influences many different aspects of the screening process – probably plays the biggest role when it comes to selecting an appropriate machine. Round vibration screening machines which have specific benefits, and are even the better choice for some applications. Round screening machines Small space, large screening surface area – the low amount of space required per

JEL Fix becomes JEL Fix II The JEL Fix round screen is now available in a new variant which is not only more hygienic, but also convinces with better usability. The popular JEL Fix round screen is predominantly used as a protective screen for the separation of coarse fractions. Thanks to its slim and compact design, the new vibration screening machine easily finds space even in cramped production halls and can be integrated directly into a system without the base frame if required. In order to meet the growing demand for high-quality and hygienic screening solutions, Engelsmann now offers the new JEL Fix II, which convinces with easier cleaning and complies with the usual hygienic design criteria. Avoiding surfaces where product may accumulate and dead spaces, as well as easy accessibility of all parts for cleaning purposes, was the top priority in the redesign of the screening machine. In order to meet this requirement, the oscillating frame of the JEL Fix II is made entirely from stainless

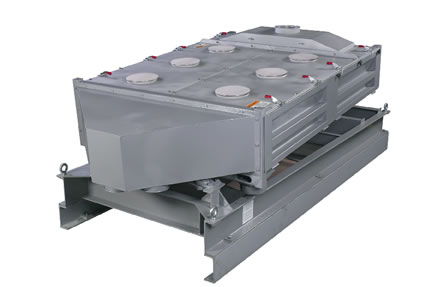

Following the successful launch of the MSizer extend in 2017, Allgaier Process Technology/Mogensen GmbH & Co. KG has expanded its MSizer portfolio and presented the new MSizer giant at Bauma 2019 in Munich. The new MSizer giant is the most powerful and flexible long-deck classifier machine based on the Sizer principle. With a throughput of over 80 t/h, e.g. when screening granulated sugar, the MSizer giant becomes the largest sizer in the world. So the machine offers an average throughput increase of up to 35 % compared to the MSizer extend. Similar to the MSizer extend, the screen coverings are set into defined linear movement by 2 vibration motors or exciters. The MSizer giant is built exclusively with 3 m working width and with a screen deck length of 3.35 m; optionally with 2 to 6 screen decks. Thus, the MSizer giant is suitable for all applications that require extra volume, such as sugar or building materials. This makes it possible to reduce the number of

5-deck tumbler screener for sorting into 6 fractions Allgaier TSM 2600/5 tumbler screening machine with 5 decks for 6 fractions, 5.3 m2 screen surface per deck, mesh openings installed screens 22 mm round/ 3.5 mm square/ 2x20 mm rectangle/ 2 mm square/ 0.7 mm square, 4 decks provided with bouncing ball cleaning (there is a perforated floor with balls under the screen fabric, the balls strike the screen fabric from below to keep it open), 2 perforated floors are damaged and need repair or replacement, 5.5 kW drive, net space requirement 6.76 m2, diameter ca. 2.65 m, height ca. 2.7 m, weight around 2600 kg Product no.: 2.47A2816 Visit our website for a complete overview of our used machinery in stock. Surplus Select is partner for the fluids and solids processing industry in CSR/re-use.

Allgaier VTS 1200 Allgaier VTS 1200 sieving machine with 1.1 m2 screen area and a screen insert with 0.125 mm mesh. Screening support with bouncing balls to minimize screen blinding. Cover hood for dust free operation. Product contact parts made of stainless steel AISI 316 Ti and glass-beaded. The sieving machine is mounted on a support frame of carbon steel. This sieving machine is nearly new. Product no.: 2.47A2758 Visit our website for a complete overview of our used machinery in stock. Surplus Select is partner for the fluids and solids processing industry in CSR/re-use.

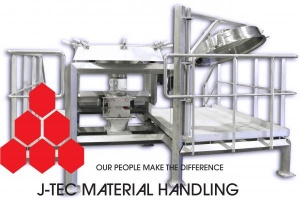

For over 40 years J-Tec is designing, installing and maintaining complete process installations in as well the chemical and the food industry. This acquired experience brings along the necessary know-how needed to provide tailor-made solutions for our customers. However every process challenge requires a customized approach, we dispose of a wide variety of standard developments which we can apply. Thanks to our numerous references in the food industry we understand that hygiene is a crucial element in every food installation. That is why J-Tec is continually looking for new technologies and innovative solutions in order to exclude any form of contamination. Whenever it comes to food installations we distinguish 3 different forms of contamination: •Bacteriological contamination •Contamination between different products •Contamination as a result of unwanted objects In order to avoid this last form of contamination, J-Tec has designed a combined sieve

for sale at Surplus Select Allgaier TSM 2600/4 tumbler screening machine. Made of stainless steel typ 316Ti. It is a 4-decks screening machine for separation into 5 fractions with 5.3 m2 screen surface per deck. Three screens are segmented and provided with bouncing ball cleaning system. There are spare screen inserts for each deck. The benefit is that when a screen is damaged only the affected segment needs to be changed rather than the entire screening insert. The fourth screen deck is a standard version. Two intermediate cylinders have double closable outlets. A mobile lifting device (significantly accelerates the process of screen changes and screen inspection) is included.

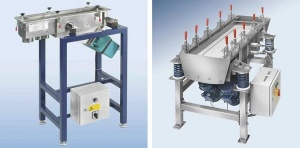

HAVER screening machines DMS and UMD. With more than 75 years of experience in the screening machine manufacture, mineral processing technology is not only a valuable part of the Haver & Boecker company history but also one of the technical cornerstones of the company. To this day, the name NIAGARA stands for quality, robustness, and performance. Three sites in Germany, Canada, and Brazil collaborated to form the Haver & Tyler Alliance for the sector of mineral processing technology. Haver & Tyler designs, produces, and provides support for premium stateof-the-art technologies in the field of screening, washing, and pelletising. For screening small production volumes and small single batches and for applications on laboratory and pilot plant scale, Haver & Boecker Wire Weaving Division offers two sleek screening machines. Both machines are available in one- and two-deck design. The HAVER DMS and the HAVER UMD are suitable for a large variety of bulk materials such as sand, gravel, ore, or coal, as

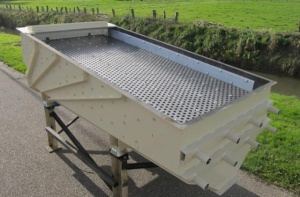

Bomatech, located in Wijk en Aalburg, the Netherlands, developed a vibrating sieve wherewith at the same time to large as well to small particles can be removed from the product flow. Special about this machine is that the double deck screens can be adjusted independently of each other in orifice so both, the size of the product by the upper deck as well the fineness of the product at the lower deck, can be accurately set the sizes of the passing product. For adjusting the orifice a specific mechanism is developed which is powered with electrical motors. This makes it possible to adjust the settings during operation of the machine. If desired, the machine can be provided with magnetic rulers so remote control of the orifice is possible. The sieve machine is available in different capacities and can be delivered both in steel as in stainless steel. For international trading the company and PRES International are co-operating so the machine is also within

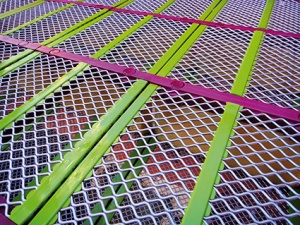

From MAJOR WIRE Industries Ltd and HAVER & BOECKER Self-cleaning screen media have become the ones to use especially for processing loose, bulk materials. With the FLEX-MAT from our partner company Major Wire, Haver & Boecker now offers a new screening media generation where the design significantly improves the self-cleaning effect. As opposed to the currently available products, the horizontally crimped warp wires are fixed not by weft wires in the FLEX-MAT screen media, but exclusively by recyclable PU connections. In doing so, each wire can individually vibrate throughout its entire length so that caked up material and jammed particles are more effectively prevented. In addition to the high flexibility of the wire, the smooth screen surface provides a considerably longer lifetime when compared to conventional screen sections. Clean: from very coarse to very fine: Self-cleaning screen media up to now have been available with opening sizes of 2 mm to 28 mm and are traditionally suited only for difficult to screen

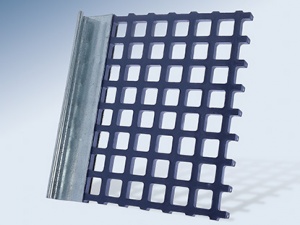

HAVER Industrial Wire Screens When screening loose, bulk materials, and especially when handling abrasives products such as stone, gravel or crushed stone, screen decks are subjected to extreme loads. This leads to more frequent replacement of the wire mesh, which in turn results in undesirable downtime. An alternative is using polyurethane screen decks. Although they have longer lifetimes, they also have less open screen area and so there’s a loss of screening capacity. To compensate for this an additional screening machine often has to be put into operation. One solution offers all the advantages: TY-WIRE Hybrid screening decks combine all the advantages of wire and polyurethane screening decks because TY-WIRE consists of wire mesh that is encapsulated in polyurethane using a special process. The result is a screening deck with a significantly greater open area when compared to conventional PU screening decks. At the same time, they have a lifetime that is 4 to 6 times longer than wire screen
