New pressure-resistant GKM screening machine KTS-VP2 600 for control screening in pneumatic conveying streams The majority of raw materials from various industries exist in the form of powder or granules, these are generally stored in transport or storage silos. As it is possible for the raw materials to contain impurities, agglomerates, or tramp material the unfortunate consequences of this are them finding their way into the process flow which in turn results in a loss of production due to machine & system emptying and clean down. The implication of this being – product rejection/recalls at the point when the impurities reach the end product. The use of check sifters/sieves is an effective way to police the powders & ultimately prevent these issues from occurring. As the typical transfer of such raw materials between silos or the loading and unloading of trucks is carried out by pneumatic conveying this can create an overpressure in the conveying system, this is why a gravity screening machine cannot be used for this purpose. In order to ensure smooth conveying,

In the Corona crisis, GKM is breaking new ground and offering customers the opportunity to participate in virt Due to the COVID-19 pandemic and the travel restrictions that apply as a result, GKM Siebtechnik organizes its daily business in virtual space. Since customers are currently not allowed to travel to the factory acceptance tests of their new screening machines in person, GKM Siebtechnik conducts the Factory Acceptance Tests (FAT) virtually instead. Nothing has changed in the course of the FAT, except that the customer is not physically present. In accordance with the FAT protocol, all production and safety-relevant tests are carried out together with the customer at the machine and are transmitted live via webcam. Also appointments / arrangements with customers are carried out digitally in order to remain in contact with the customers despite the difficult situation.

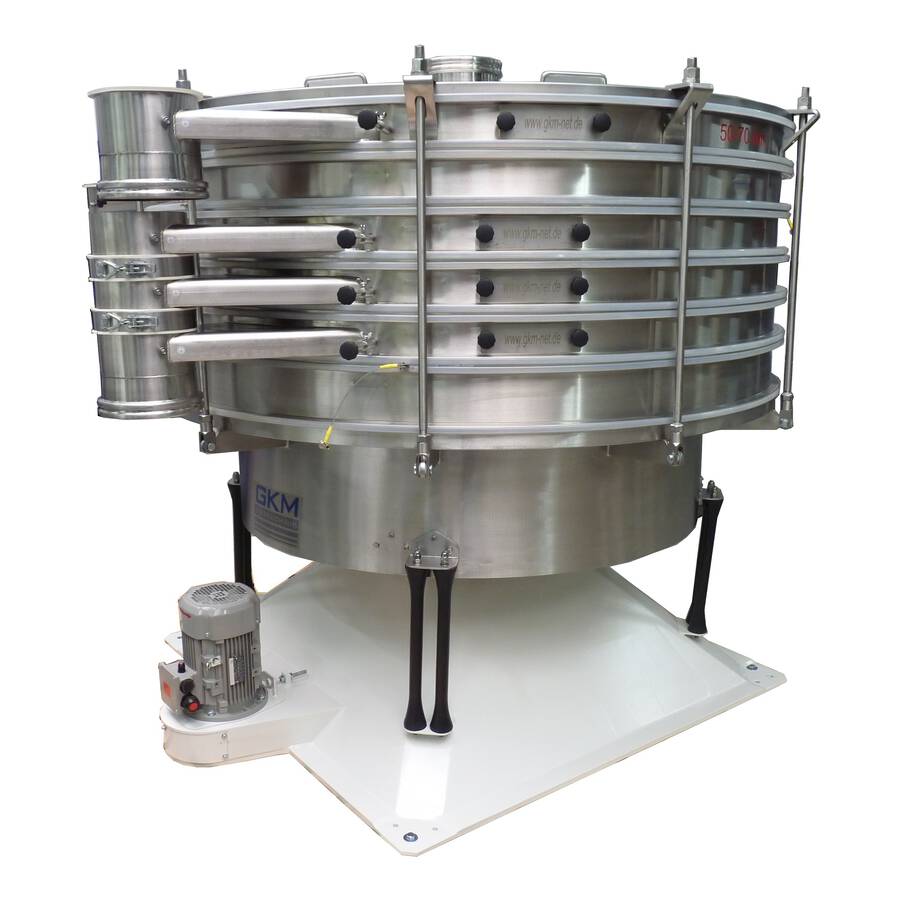

Tumbler screening machine for exact classification and Vibration control Screener for absolute product safety To produce very precise grain sizes within tight tolerances and special sugar types, the GKM tumbler screening machine is increasingly finding its way into sugar factories for a wide range of applications (fineness, throughput capacities, etc.). Depending on the requirements, the tumbler screening machines are equipped with up to six screen decks.During screening, the sugar is fed through the central inlet nozzle. Using the three-dimensional motion of the machine, the sugar is distributed evenly and spirally from the inside to the outside of the screen surface. Typical separation cuts for fractionations are between 2.0mm and 0.20mm. The throughput rates here vary from 10t/h to 50 t/h depending on the required grain size. In order to ensure the quality of the end product, e.g. when loading lorries or emptying silos, and to be able to comply with the highest food standards, the oversize particles or sugar nodes and impurities must be separated from the sugar. The GKM

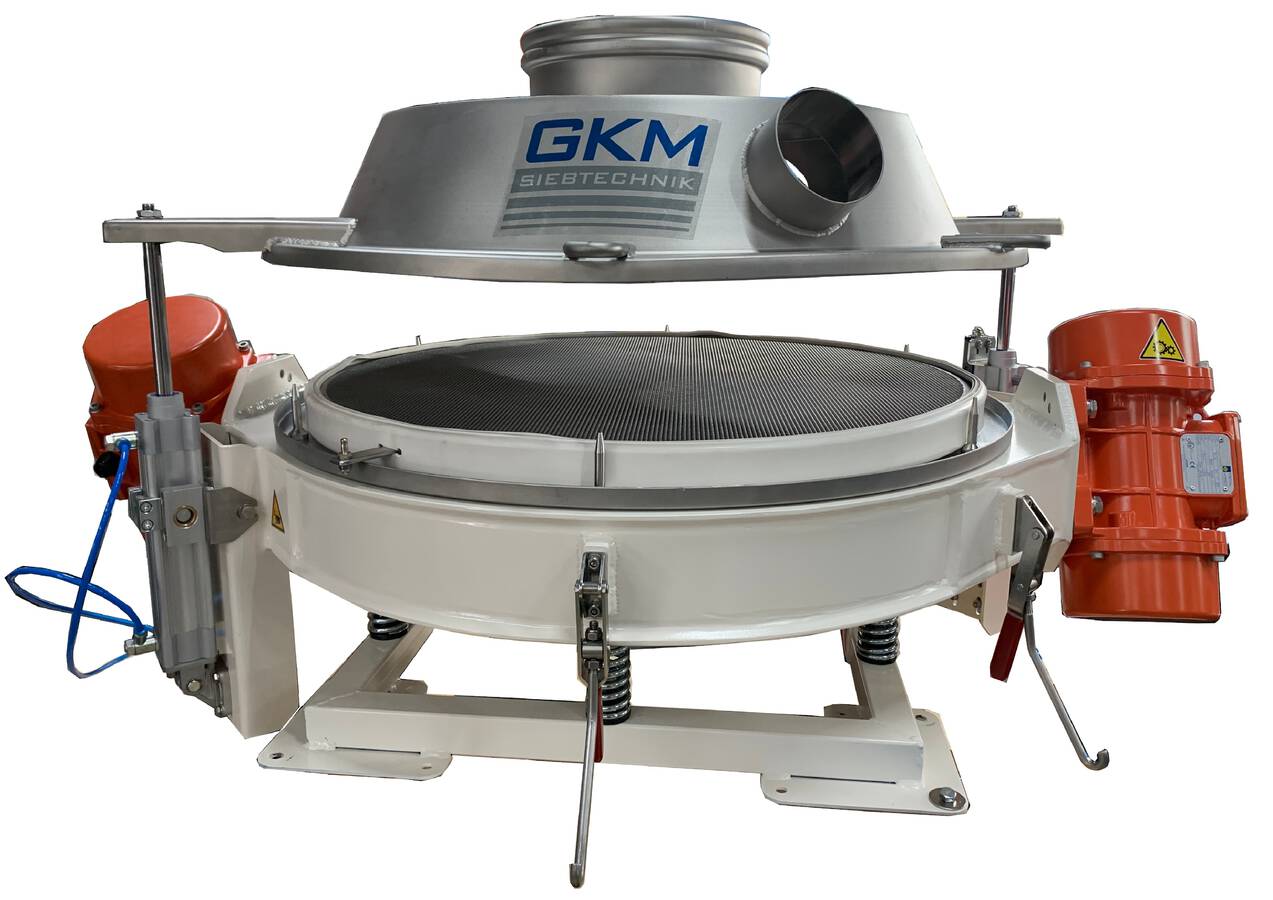

Optical Screen Control and thorough Screen Cleaning of Control Screening Machines with just one push of a Butt Screen exchange, checking and cleaning has never been faster, easier and safer than with the latest GKM innovation. The KTS-VS2 control screening machine is equipped with a pneumatic deck lifting system consisting of two pneumatic cylinders including a hand lever for lifting and lowering. In addition, our high-performance KTS-VS2 has Quick-Clamps for quick opening and closing. This means that all work can be carried out by just one operator in less than a minute. Since the cylinders are firmly attached to the machine, no additional space is required and downtimes, especially when changing screens and batches, are reduced to a minimum. Productivity & performance is increased as much as possible. The central infeed and fine material outlet also ensure a fast product flow with a minimum of dwell time and thus enables high throughput rates. The system can be used for machine sizes from 600 to 800 in a wide range of industries and application areas.

Ideal solution for little feed quantities or small batches Due to the sustained high demand for the screening machine type KTS-VS2, the models KTS-VS2 600 and KTS-VS2 800 complement the GKM`s established range and KTS-VS2 series models. These additional machine sizes provide the ideal solution for little feed quantities or small batches. The KTS-VS2 Control Screening Machine removes oversize or foreign contaminants from your final product. It is the optimum solution for control- and safety screening of powders and liquids. The KTS-VS2 is easy to integrate into production lines and ensures high throughput rates via central product in- and outlet. The KTS-VS2 is extremely flexible and is outstandingly suitable for meeting sector-specific requirements and the demands. The KTS-VS2 series are conceived for the most demanding applications in the pharma & food sectors like the screening of milk powder. Another typical application is the control screening of powder coatings where quick disassembly and easy cleaning is extremely important.

- New pneumatic Multi-Deck Lifting System - The current version of the pneumatic deck lifting system installed in tumbler screening machines, allows screen inserts to be changed one at a time. When used with multi-deck screening machines each deck has to be raised and changed separately. This is time and labour intensive, depending on the number of screen inserts to be changed. In order minimise downtime, GKM Siebtechnik has developed a new pneumatic multi-deck lifting system allowing multiple deck lifting and exchange in a single operation. By means of the pneumatic cylinders, all screening decks can be lifted simultaneously.

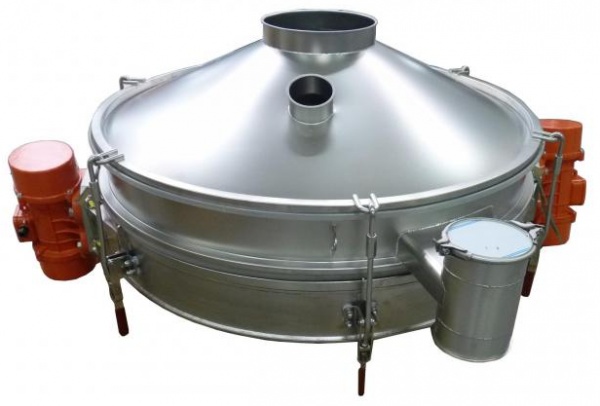

Typ KTS-VS2 The GKM Vibrating Control Screening machine KTS-VS2 has been specially adapted to the needs of the food and pharmaceutical industries and meets the highest hygiene standards. The central product in- and outlet connections enable high throughput while the modular design and the quick-clamp system ensure easy handling. The machine can be equipped with external pneumatic deck lifters and this system guarantees fast screen exchange and reduces set-up and downtimes. Using overhead pneumatic cylinders, individual screening decks can be raised for inspection or to change the screen inserts. Do you want to achieve higher screening throughput? By equipping the machine with the GKM Ultra-Vario-Sonic Cleaning system the machine performance can be significantly increased particularly for screen inserts with mesh sizes below 3,0 mm and for dry and fre-flowing products. The ultrasonic cleaning system is mounted on the outside of the machine, making it particularly suitable for

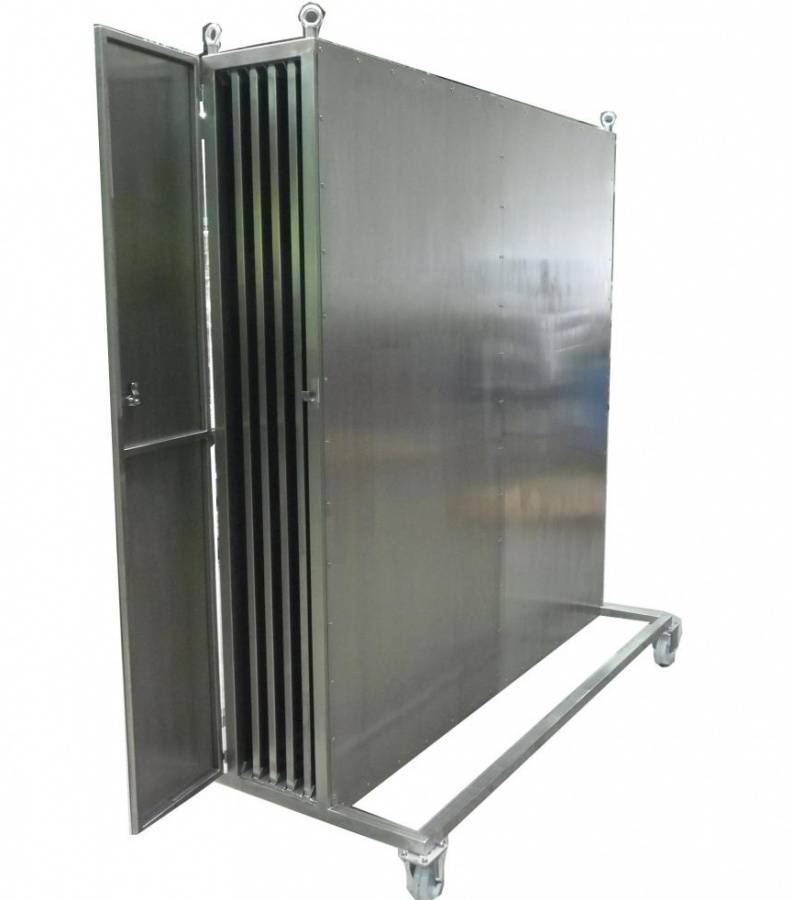

Order, Cleanliness and Safety Your benefits at a glance: - Protection against dirt and contamination after cleaning the sieves - Easily movable mobile frame - Suitable for all sieve sizes of all manufacturers - The Sieves are safely stored and will not be destroyed unintentionally - Sieve rack can be locked if required - Lifting lugs on the cabinets allow easy transport by crane

in combination with ball cleaning system When using screening machines in a production process, efficient and exact screening is very important for the downstream processing steps. To achieve this, the mesh cloth used in the machine must not clog with the material to be screened. The blocking and clogging of the meshes is a common problem that occurs especially with difficult to screen and fine powders. This can lead to outages and production loss. To prevent this and to keep the mesh cloth clear, GKM Siebtechnik offers different cleaning systems depending on the characteristics of the product. A mechanical and economical process is the ball cleaning system. This involves the use of balls under the screen which knock against the mesh cloth and thereby displace particles that adhere. Another option for the cleaning of the mesh cloth is the use of an Ultra-Vario-Sonic System. This system delivers a much more efficient sieving action especially with very fine mesh sizes. The throughput rate increases significantly

2017 was a good year with many successful trade fairs and highlights for GKM Siebtechnik GmbH. The good business activity and the high number of visitors characterised the positive mood. GKM Siebtechnik presented their products and services to the customers and interested parties on worldwide trade fairs. Particular attention was also given to the products for the food and pharmaceutical industry. Our trade fairs 2017: - Expomix, Russia - Khimia, Russia - Imarc, Australia - IsraChem, Israel - Mining Industries Iran - Mining World Asia - Mining Word Russia - Mining World Kasachstan - Mining World Ukraine - PPMA Show UK - Schüttgut, Germany - Solids Rotterdam - Symas, Poland - Vrac Tech, France - Powtech, Germany We are looking forward to taking part on some interesting trade fairs in 2018 and hope to meet you on some of our stands. Here is a small overview of our trade fairs in 2018: - Anuga Food Tech, Cologne, Germany - 20.-23.03.18 -

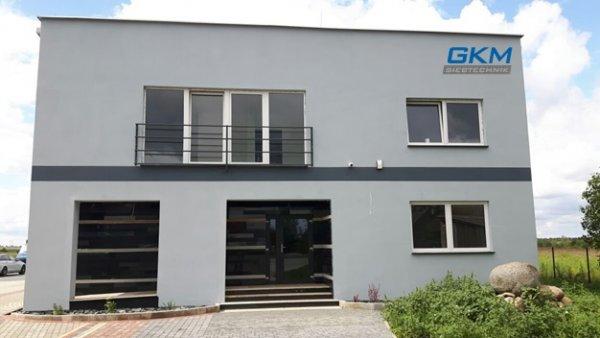

GKM Siebtechnik expands its business Due to the constant growing demand GKM Siebtechnik started the new subsidiary in Poland. The new company GKM Siebtechnik Poland Sp. z.o.o. is a 100% subsidiary of GKM Siebtechnik located in Wierzbica, Poland. *The company’s services with German know-how at a glance:* • Remeshing service for screen inserts of all brands • Spare parts from stock for all Tumbler screening machines • Service and Maintenance tecnicians The new local company will provide the customers and partners in the eastern european countries even better support and quick and flexible service.

For a quick and easy exchange of the screen inserts GKM Siebtechnik offers a new generation of pneumatic lifting devices. This new and easy system has already been successfully used by well-known customers on the market. Your main benefits include… - Ideal for vibrating screening machines - Very fast exchange of the screen inserts possible - Easy and fast control and cleaning of the screening machine - The pneumatic cylinders are mounted above the machine - Can be retrofitted at any time without great effort - Very competitively priced

This system prevents material adhering to pipes, silos and hopper walls This new technology prevents material adhering to pipes, silos and hopper walls. It is especially effective for very fine and dusty products as well as bulk materials with difficult flow characteristics. What is required? • An Ultra-sonic agitator with frequency sweep technology • One or more sound converters with angular wave guide • An optimal sheet metal wall thickness of 2-4 mm Your main benefits include… • No sticking and adhering of dry bulk materials to inner metal surfaces • The ultra-sonic system can be used continuously or intermittently without load and annoying noise • Finally clean pipes and containers • Little space requirements by using small sound converters • No reinforcements of the parts required • No sound protection required • Small power consumption

Designed especially for the pharma and food sector The newly developed Vibrating-Control-Screener KTS-VS 2 has been specially adapted to the needs of the pharmaceutical and food industry. An easy handling and the highest hygienic standards are achieved by the modular design and meets the highest hygienic standards. Optional is this machine available with the new ViwateQ® treatment which represents an entirely new way of surface finish. Optimal smoothness, so less dirt adhesion & better cleanability are just a few of the many advantages resulting from ViwateQ® treatment. It is mainly used for products like milk powder, cocoa powder, maltrodextrin, rice starch and sugar. The central in- and outlet for the product enables very high performances. This screening machine is fully designed in stainless steel and if necessary also the both vibrating motor housings. The product contact surfaces are polished and extrapolated (Ra «0,8µm). An optionally equipped ultra-sonic cleaning system effects the absolute contamination-free

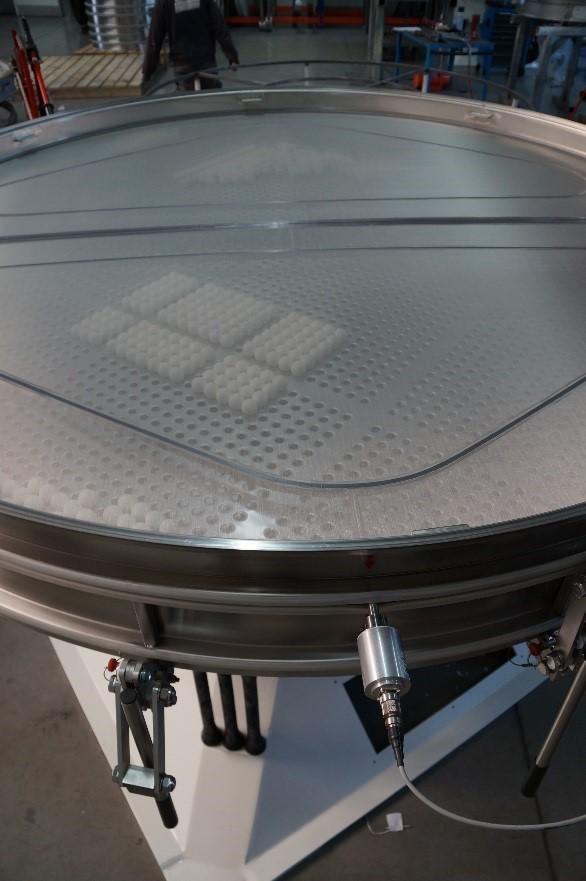

GKM Siebtechnik presents with the Ultra Vario Sonic System a new way of clean and efficient screening. This ultrasonic method is different because it is not operating with continuous resonance vibrations. The electronically controlled generator provides a permanently changing frequency through the transducer which is connected to a transducer ring on which the screen mesh is glued. This simple and patented system avoids the influence of permanently high resonance modes. They could be the reason for high temperatures (hot spots) and high stress to the transducer ring, its fixations to the screen frame and the mesh cloth. An innovation of GKM is the Ultrasonic product evacuation and dry cleaning of surfaces. This system prevents the sticking to the pipes of badly flowing bulk materials. Find more information: http://www.gkm-net.de/en/news.html#news17.

Ultra Vario Sonic system with frequency sweep technology Especially very fine, good as well as badly flowing bulk materials are sticking to the pipes, silos and container walls. Many customers in all industries are facing this problem when transporting or storing their products. The conventional solution of this problems are Vibrators, knockers, air canons, air nozzles and airation pads, air membranes and as well as the hammer in the hands of the operator. The diadvantages are the high noisel level, expensive noise protection measures ore damages on parts and buildings. GKM Siebtechnik offers the ultimate solution the ultra sonic vibrations with frequency sweep technology. The advantages of this system is that there is no sticking and adhering of dry bulk materials to the inner metal surfaces, the ultra-sonic system can be used continuously or pulsing without load and annoying noise and is simple to install and retro fitting by welding an angular waveguide to the critical parts. A one single generator can drive up to

Great presentation at the fair At the Powtech 2014 GKM presented the wide range of screening machines like tumbler Screening Machines, Vibrating Tumbler Screeners and Laboratory Screening Machines. GKM’s customers are to be found in all sectors with a widely varying range of products Here is a summary of the new products which have been presented: + The ultimate GKM Tumbler Screening Machine KTS 2000 with... ... ball cleaning for highest product throughputs and yields ... patented pneumatic deck lifter and spanner combination for highest user friendlyness ... quick fasteners with automatic torque control + Our single motor Vibrating Tumbler Screening Machine with our new Ultra Vario Sonic System + Twin motor vibrating Control Screeners + Our new range of lab screening equipment

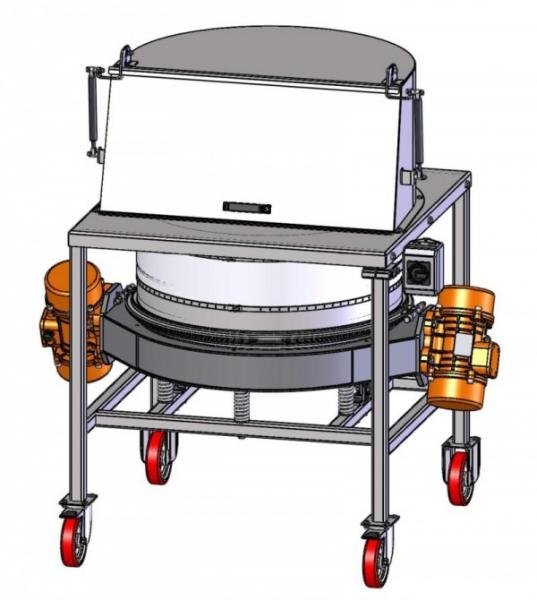

For sieving hand fed raw products from bag This version of the “GKM” Vibrating Control Screener KTS-V2 800 has been specifically developed to safety sieve hand fed products through low-level bag (up to 25 kg) emptying. With the comfortable tipping height is the operator protection and product quality the top priority of this control screener with bag intake station. Your main benefits include... + The Bag tipping platform has an integrated dust hood - it is possible to connect a dust extraction unit for quick removal of dusts + The machine is in a mobile design for a flexible product intake + Screens with twin-clamp rings for fast re-meshing on-site and easy dismantling + Optional designable for the food- and chemical industry with FDA or ATEX conformity

"The clean screening method" We proudly present our new ultimate ultrasonic anti blinding system. This ultrasonic method is ways different because it is not operating with continuous resonance vibrations. The electronically controlled generator provides a permanently changing frequency through the transducer which is connected to a transducer ring on which the screen mesh is glued. This simple and patented system avoids the influence of permanently high resonance modes. They could be the reason for high temperatures (hot spots) and high stress to the transducer ring, its fixations to the screen frame and the mesh cloth. Get all advantages at www.gkm-net.de/cms/41-1-Neuer-US.html

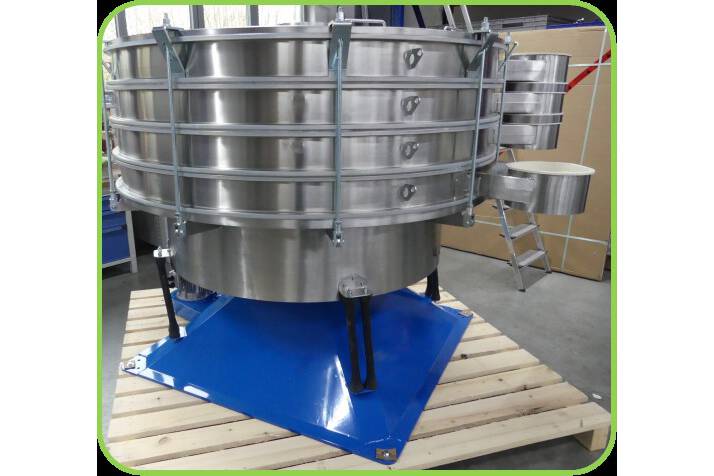

Tumbler screening machines KTS 2000/5 Most Important Advantages: Extremely high screening efficiency obtainable by means of individually adjustable retention time for any product and capacity. Delivered operationally ready and adjusted to each product. Up to 7 fractions simultaneously on each machine. Low acceleration, long service life of all parts, no product destruction. Up to 100% availability in 24h operation with few maintenance requirements. Tough modular design, no dead corners, low part weights. Heavy pyramid base to counterbalance the rotating body. 100% statically and dynamically balanced for vibration free installation in steel structures. Automatic centering of screening inserts and strong intermediate rings and covers for simple and fast assembly and screen changing. Low construction height by means of reduced intermediate ring heights of 80 mm for best screen results on all decks. 100% dustproof thanks to simple fast-mounting silicon clip gaskets on the intermediate rings,
