for sale at Surplus Select Rotary valve, RotaVal HD 300, blow-through execution with separate venturi for feeding powdered solids direct into a pneumatic conveying line, stainless steel open vane rotor with replaceable blades (soft plastic and stainless steel scraper), 0.75 kW SEW drive with chain gear, 300 mm inlet, 100 mm pipe connections, overall height valve 455 mm, overall height venturi 240 mm, air purge shaft seals

Conform ATEX zone 20 & DMT klasse St1, St2 en St3 The butterfly valves in the standard series DKZ 103 GS DN50 - 500 are flameproof against explosions of combustible gases, where their explosion behaviour does not exceed that of propane gas explosions, and flameproof against organic dusts in dust explosion classes St1 and St2, and metallic dusts in dust explosion class St3, where their explosion behaviour does not exceed that of aluminium dust explosions with a KSt value of 1000 bar x m/sec. The series DKZ 103 GS-ST3 DN50 - 200 was specially developed for metal dusts that do not exceed the explosion behaviour of aluminium dusts with a KSt value of up to 1000 bar x m/sec. Further application limits are characterised here by an explosion pressure shock resistance up to 14 bar and an ambient or product temperature of -20° to +150° C, dependent on the elastomers and components used. The series DKZ 103 GS-0.3-200°C DN50 to DN250 was designed for an ambient or product temperature of -20 to +200°C. The butterfly

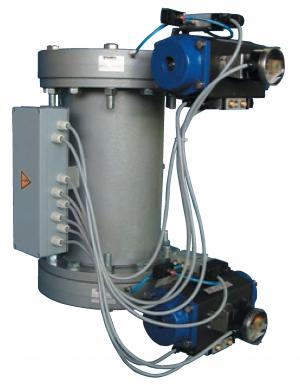

For discharging and dosing of bulk goods from silos or supply hoppers. Can be used in dust explosion-endangered systems by means of inlet/outlet-mounted shut-off valves with flameproof and pressure shock-proof design, and DMT certificate. Can be used as safety unit for dust-explosion proof decoupling, even for highly abrasive media, by means of inlet/outlet mounted shut-off valves with pneumatically actuated sealing elements APS ®. Logical sequence control ensures that only one shut-off valve is open while the other shut-off valve is gas-tight closed.

The new SPTD plug diverter has a single straight pipe and will be available in sizes from 150 mm (6”) up to 400 mm (16”). The straight pipe diverter is very suitable for applications in the food, pet food, plastics and petrochemical industries. DMN-Westinghouse will introduce the new SPTD on their stands at the Powtech in Nuremberg (H9-114) and the PTXi/Powdershow in Chicago (stand 1228). The design of the SPTD plug diverter conforms to all current legislation regarding safety in the workplace. Consequently there are no moving parts on the outside. The new SPTD has been designed to be user friendly, pressure shock resistant and with standard static seals suitable for pressures up to 3 bar g. All sizes are optionally available with inflatable seals. The DMN-Westinghouse sptd has been specially designed to route powders and pellets with minimum degradation in pneumatic conveying systems. A smooth passage of product is guaranteed by precision machining,

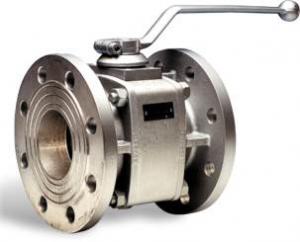

Complete program ball valve specially designed for shutting-off powered media and granules KGL 400-series ball valves use fewer individual parts, have space-saving elements, are based on a practical modular principle and are easy to switch. The free cylindrical pass reduces flow resistance to a minimum and the dual-sided bearing configuration of the ball ensures a uniformly low switching torque throughout the entire pressure region. Optional special design with aerodynamic jam-free discharge flange for use with media that easily clog the fitting. design with self-adjusting seal system for a permanent fitting seal. Design with strong seal system, developed specifically for use with powdered and granular goods and suitable for fluids such as mineral oils. Nominal size 50 to 150 available in several material combinations and flanges type`s` as DIN2501 or pipe thread per DIN 259

A full flow orifice provides unrestricted conveying with no disk or ledges The Vortex VAC-Slide Gate is specifically designed to handle dry bulk solids in gravity flow or vacuum conveying systems. A full flow orifice provides unrestricted conveying of material with no disk or ledges to impede flow or cause material bridging. The VAC-Slide Gate is designed to eliminate problems associated with typical butterfly valves and knife gates, increasing production, while decreasing labor and equipment costs. * Smooth, Unobstructed Bore for Unrestricted Flow of Material * Seal Protected from Abrasion * Access Ports for In-service Seal Adjustment * Easy Installation and Maintenance Available sizes: 75mm to 150mm (3 to 6 inch) Contact the ITS office for more information.

Vortex Valves Flex tube diverter The patented Vortex® Flex Tube DiverterTM is specifically engineered to handle dry bulk solids in vacuum or dilute phase pneumatic conveying systems with pressures up to 15 PSIG (1 bar). The unique design eliminates material cross contamination by a positive seal across the closed port and the elimination of internal ledges and pockets where material can lodge and remain trapped. The 3-Way Flex Tube DiverterTM is designed with seal plates that are shielded from blast abrasion allowing the diverter to positively seal air and material over its service life. Ordinary flapper-style diverter valves rely on soft elastomer seals, which are exposed to blast abrasion causing them to erode and tear away during service. Rotating tunnel style diverters typically have seals that are exposed to excessive wear upon actuation making them prone to seizing and binding due to material build-up between the housing. The Vortex® 3-Way Flex Tube DiverterTM has net-running “live

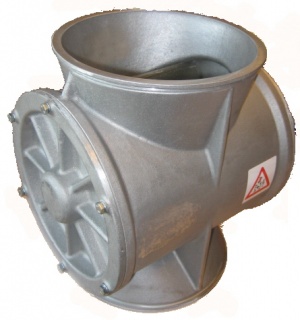

For use in vacuum systems Maximum differential pressure 0.2 bar The Dust Valve DV is designed using the modernist equipment to the practise of to day in the use of dust filtration.The round inlet and outlet with pull-ring connections are fit for use in flanged pipe systems.Due to the low weight the mounting of the valve can be done by 1 person. Low weight Quickfitting for easy mounting(Jacob system) To fit without hoisting equipment 8 Vane self cleaning Polyurethane rotor which has 2 vanes in a sealing position at all time Minimum air loss Available from stock Technical data: For use in vacuum systems Maximum differential pressure 0.2 bar Maximum temperature of the product 80°C Body and cover Aluminium Rotor wear resistant massive polyurethane Economical direct drive from 0.18kW up IP 55,F-isol. 230/400V 50Hz Rotorspeed 23 rpm./min

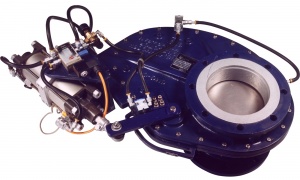

Swing valve for Pressure and vacuum applications For safe and reliable shut–off, metering, feeding anddischarging of all dry and free–flowing bulk solids,gases, fluids and fluid–solid mixtures. Absolute pressure and air tight in product flow areaand to the atmosphere through the use of the paten-ted Pressairmatic–PAM seal. In application as inletvalves on top of pressure vessels, especially withabrasive products (e.g ash) and also as inlet and di-scharge valve on vacuum drying drums, pressurefiltrations systems and elsewhere differential pres-sure, gas and vacuum tightening is required. Features: Enviroment friendly encapsuled housing Short opening and closing time (<2 sec) Pressure and vacuum tight in product flow areaand to the atmosphere till 6 bar abs. according toDIN 3230 Leckrate 1. As working valve usable also for high frequencyoperation Extra ordinary long life time also for abrasive solids such as flyash= minimum repairing and down time Material of Construction: Housing material from

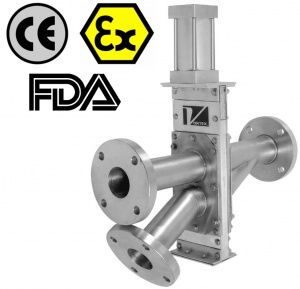

The 2-way WYE Line Diverter is specifically engineered to handle dry bulk solids in vacuum or dilute phase pneumatic conveying systems with pressures up to 1 bar. The 2-way WYE Line Diverter provides a number of significant advantages over traditional flapper and rotating tunnel style diverters. Trouble spots inherent in these conventional diverters are eliminated with the 2-way WYE Line Diverter, providing superior sealing, low installation weight, fast `in-line` maintenance, and an abrasion resistant design for long-term, reliable service. Adapting the 2-way WYE Line Diverter to your system requirements is made easy with a wide selection of actuators, position indication switches, flanges, and tube stubs and is available in 50mm through 200mm. The 2-way WYE Line Diverter also offers a wide variety of modifications to accommodate high or low temperatures, corrosive, humid, and hazardous environments. The 2-way WYE Line Diverter is versatile and well-suited for many
