Anval Rotary Feeders and Air sluice Valves, Anval Rotary Feeders and Air sluice Valves

Anval recently launched new Easy-Clean Rotary Airlock which is designed specifically for applications where frequent & quick cleaning of valve internals is necessary. The Easy-Clean Rotary Airlock valves can be used for contamination-sensitive applications where frequent disassembly and cleaning is required. All RE Series valves are specifically suited for Food, Mineral, Plastics and Chemical applications. Anval RE Series valve is available in fully Casted Single piece Stainless Steel construction, by Lost-wax process, with Mirror Finish internals and surfaces machined to high precision to prevent corrosion, rust or stain problems and free of dead spots to keep the material without contamination. The Mirror Finish internals helps the cleaning process easier, effective and convenience in cleaning, thus increasing operational efficiency while handling Sticky, Cloggy, and Hygroscopic applications. Safe & Tool-less removal of internals The RE Series Rotary valves permit Safe & Tool-less removal of the internal components as one single piece for quick and easy cleaning. This eliminates time-consuming steps during opening and reassembly

Gericke RotaVal rotary valves have an option that makes pressure wash cleaning of the exterior surfaces to IP X6K (Powerful water jets with increased pressure, DIN 40050) possible. Gericke RotaVal have launched an option for their class leading modular fast clean range of rotary valves which allows for the pressure wash cleaning of the exterior surfaces of the valve to IP X6K (Powerful water jets with increased pressure, DIN 40050). For many years Gericke RotaVal has continuously improved its modular range of valves. This latest option enhances the in-situ cleanability of rotary valves in demanding services and environments to enhance plant cleanliness, assist in improving maintenance processes, increasing reliability, and reducing downtime and operational costs. This function is available in addition to the current CIP internal cleaning option which is already well proven in service. This option is available for new manufacture valves and additionally as a bespoke retrofit kit that can be fitted in the field. The first systems have been delivered and are in full operation, protecting the process equipment and the products every day. As

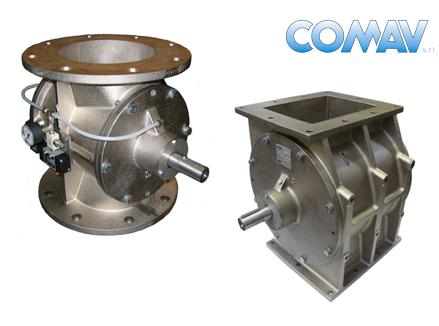

There are two types of rotary valve: - Vsd direct discharge rotary valve - Vsf through-Flow rotary valve The first type is commonly used: as a product-metering device in pneumatic transport systems, connected to a special unloading hopper. As a metering device when unloading a product from a storage bin. The second type is used solely as a metering device for pneumatic transport systems. Suitable for transport pressures of up to 2 bars or as a sealing and metering device under a decantagion cyclone. Available sizes: from 4.5 litres/turn to 65 litres /turn. The ideal configuration of the rotor and of the housing is normally defined at the time of ordering, on the basis of the product to be handled. Optional are the models of the quick-fitting. The SF range is normally supplied for production processes in which quick disassembly is required in order to carry out cleaning for decontamination purposes. The ideal configuration of the rotor and of the housing

stainless steel ”quick-clean” rotary valve for sale at Surplus Select product contact parts of stainless steel 316, ”quick-clean” valve execution, air purge shaft seals, the rotor can be easily and safely taken out of its housing and turned manually, this makes it simple to do an inspection or clean (wet) the rotor at all sides, inlet and outlet 250 mm, installation height 450 mm (flange/flange) Product no.: 23.192A2821 Visit our website for a complete overview of our used machinery in stock. Surplus Select is partner for the fluids and solids processing industry in CSR/re-use.

TBMA HAR-D 175 s/s type 316 Atex valve TBMA HAR-D 175 rotary valve in ”quick-clean” execution product contact parts of stainless steel 316 air purge shaft seals valve Atex Ex II 1D/3GD.cT3 max. Ex pressure 12.3 bar 0.37 kW SEW Ex direct drive, 19 rpm inlet and outlet DN 175 installation height 320 mm (flange/flange) Product no.: 23.192A2720 Visit our website for a complete overview of our used machinery in stock. Surplus Select is partner for the fluids and solids processing industry in CSR/re-use.

To meet the demand for rotary valves with a larger capacity, VDL Industrial Products has introduced the HT-450. This HT-450 Rotary Valve offers possibilities for applications under cyclones or for separators and is optimally applicable in situations in which in particular larger parts (for example, shredded particles from plastic or wood) should be transported. The HT-450 has a gross capacity of about 35 liters/revolution and combines simplicity and ease of maintenance with robustness. This valve has a cast iron housing and is equipped with a rotor with 8 chambers, ball bearing shaft and a direct-mounted flanged gear motor. By default, the HT-450 rotary valve is equipped with a steel rotor with steel or Vulkollan blades, a gear motor 1.1kw with 25 revolutions/minute, brand: NORD or SEW and is painted in the colour RAL 5009. Also in this new model, we offer tailor-made options and versions, such as various treatments of the housing and different drive possibilities.

for sale at Surplus Select Rotary valve, RotaVal HD 300, blow-through execution with separate venturi for feeding powdered solids direct into a pneumatic conveying line, stainless steel open vane rotor with replaceable blades (soft plastic and stainless steel scraper), 0.75 kW SEW drive with chain gear, 300 mm inlet, 100 mm pipe connections, overall height valve 455 mm, overall height venturi 240 mm, air purge shaft seals

The new SPTD plug diverter has a single straight pipe and will be available in sizes from 150 mm (6”) up to 400 mm (16”). The straight pipe diverter is very suitable for applications in the food, pet food, plastics and petrochemical industries. DMN-Westinghouse will introduce the new SPTD on their stands at the Powtech in Nuremberg (H9-114) and the PTXi/Powdershow in Chicago (stand 1228). The design of the SPTD plug diverter conforms to all current legislation regarding safety in the workplace. Consequently there are no moving parts on the outside. The new SPTD has been designed to be user friendly, pressure shock resistant and with standard static seals suitable for pressures up to 3 bar g. All sizes are optionally available with inflatable seals. The DMN-Westinghouse sptd has been specially designed to route powders and pellets with minimum degradation in pneumatic conveying systems. A smooth passage of product is guaranteed by precision machining,

For use in vacuum systems Maximum differential pressure 0.2 bar The Dust Valve DV is designed using the modernist equipment to the practise of to day in the use of dust filtration.The round inlet and outlet with pull-ring connections are fit for use in flanged pipe systems.Due to the low weight the mounting of the valve can be done by 1 person. Low weight Quickfitting for easy mounting(Jacob system) To fit without hoisting equipment 8 Vane self cleaning Polyurethane rotor which has 2 vanes in a sealing position at all time Minimum air loss Available from stock Technical data: For use in vacuum systems Maximum differential pressure 0.2 bar Maximum temperature of the product 80°C Body and cover Aluminium Rotor wear resistant massive polyurethane Economical direct drive from 0.18kW up IP 55,F-isol. 230/400V 50Hz Rotorspeed 23 rpm./min

The 2-way WYE Line Diverter is specifically engineered to handle dry bulk solids in vacuum or dilute phase pneumatic conveying systems with pressures up to 1 bar. The 2-way WYE Line Diverter provides a number of significant advantages over traditional flapper and rotating tunnel style diverters. Trouble spots inherent in these conventional diverters are eliminated with the 2-way WYE Line Diverter, providing superior sealing, low installation weight, fast `in-line` maintenance, and an abrasion resistant design for long-term, reliable service. Adapting the 2-way WYE Line Diverter to your system requirements is made easy with a wide selection of actuators, position indication switches, flanges, and tube stubs and is available in 50mm through 200mm. The 2-way WYE Line Diverter also offers a wide variety of modifications to accommodate high or low temperatures, corrosive, humid, and hazardous environments. The 2-way WYE Line Diverter is versatile and well-suited for many

The Blow Thru Sieve™ has been designed and certified for use in pneumatic conveying lines, enabling processors to screen and transport material simultaneously. Its development has come about as a result of a need to check-screen powder during dilute-phase positive pressure pneumatic conveying. The Blow Thru Sieve ensures that ingredients coming in or final products leaving a plant are free from contamination. By combining screening and transportation the sieve eliminates double handling, increasing efficiency. Its unique design allows the sieve to achieve phenomenal throughput rates, enabling processors to screen material as they load or unload tankers or silos without slowing the process.
