News items September 2005

Guarantee complete safety for your operators on the top of the tank Vehicle access protection The vehicle access protection offers integral protection to the operator working on top of the tanker. You can adjust the dimensions to the different tankers (6 to 13m).

We would cordially invite you to visit our stand. According to our motto Innovative Products request Innovative Technologies AZO shows numerous novelties and developments. Efficient handling of bags, barrels, big bags Pneumatic conveying even more gentle, with additional activators New AZODOS series, easy-to-clean for volumetric and gravimetric dosing Cyclone screening for safety, recent screening technology for bulk materials and liquids Automation solution for reconfiguration, feeding and central weighing in the pharmaceutical industy Fully automatic recipe preparation. Low-cost automation of minor ingredients with the DosiBox and contamination-free dosing and weighing without ground contact with the ShuttleDos Intelligently coordinated prozess technology and control. The subsidiary hsh - systeme für prozess-IT gmbh shows solutions for MES, plant-intelligence-systems, computer-aided weighing with ManDos as well as recent bar code and RFID

In various reference applications, Gericke Nibblers are used for the preparation of bulk material to ensure a reliable process. Nibbler reduce the size of agglomerates, lumps or hard blocks into the initial particle size without heating up the product. Dust creation is minimal. Nibbler work with low tip speed and can therefore be used for fragile and temperature sensitive products. The Gericke Nibbler is supplied into different ATEX zones. Typically, Nibblers are placed after sack tipping units, container or big bag emptying stations. Used for recycling of non-conform batches they help to reduce the material cost for production. Nibbler screens are available with holes varying from 1,5 up to 25 mm. Larger Nibblers with inlet sections from 300x450 up to 300x800 can be used after filter presses mounted on mobile frames in order to adjust the size of the filter cakes. New! NBS 250: The compact particle size reductor NBS 250 is designed for small throughput

The economic response to European Parliament Directive 2003/53/EC The above Directive specifies that as of the end of 2004 cement and cement-containing preparations must not contain more than 0.0002 % (2 ppm) soluble chrome-VI since that can cause severe allergic reactions when in contact with the skin for longer periods. Hence, over 350 cement plants throughout Europe had to be upgraded in a hurry. Iron-II and tin-II sulphates reduce the chrome content. With re-ducing agents and water chromate-VI is converted into antisoluble chromate-III hy-droxide harmless to the skin. 0.3 to 0.5 % tin/Fe(II) sulphates must be added. The MechaTron®, designed for 0.5 to 600 t/hr, offers all requisite properties. There are different MechaTron® variants available, depending on material properties and feed rates. For the sluggish Fe(II) sulphate there is the Coni-Flex® variant with flexible dis-charge hopper, for the even more difficult to handle tin sulphate Coni-Steel® with in-ternal agitator is the choice. MechaTronâ systems,

Quieter operation and more choice BOC Edwards has announced a new range of blower packages for industrial applications. Silent Flow Plus is a major development of the popular Silent Flow product line, offering compact design, quiet operation and compliance with the latest European directives. For easy selection of the optimum package for any application, the new range offers nearly twice as many blower sizes. The new packages are particularly suitable for aeration systems in waste water treatment plants and for pneumatic conveying systems for powder, granular and pelletised materials such as cement, sand, flyash, and plastics. They also have widespread applications throughout the food, chemical and energy sectors. Following feedback from customers, the new range offers a much wider choice of blower sizes and options. There are now thirteen high pressure models, offering maximum flow rates from 300 to 9000 m3/h at pressures up to 1000 mbar (pressure) or 500 mbar (vacuum). For medium pressure

Unattended bulk loading station Bienfait Filter- & Procestechniek is proud to announce its fully automatic, DCL unattended bulk loading station for high speed filling of dry, dusty materials into enclosed vehicles. The SmartLoader utilizes a patented vision system that scans the top of the vehicle. Any open hatch or series of open hatches are automatically located, measured, and qualified. The multispeed positioner provides a fast scanning speed to minimize loading cycle times. A unique articulating positioning arm is used to move the loading spout within a designed loading area. A single spout can cover a loading area of up to 60 feet (18,3m) by 6 feet (1,8m) for center and side hatch railcars. A typical truck loading station would cover a loading area of 36 feet (11m) by 2 feet (610mm). Dual direction positioners can also be utilized to keep costs down when semi truck trailers only are being used. For more detailed information regarding the SmartLoader please ask for our case story Technology

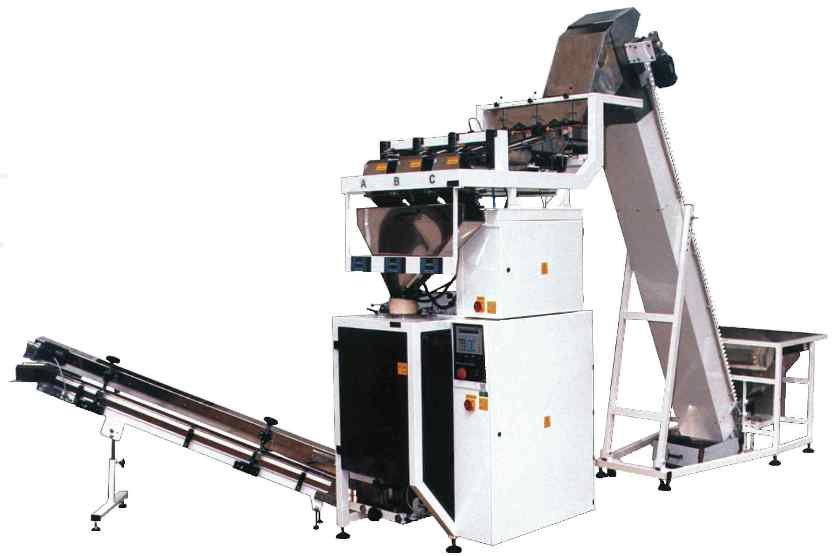

Priceworth quality Bienfait recently gained the representation of ASTRO form-, fill- and packagingmachines. This very priceworth packing equipement is available for sachets and bags in every shape and also suitable for the filling of buckets. On request we can sent you a short overview of the possibilities by Email.

Malvern launches new, high sensitivity particle image analyzer A new high sensitivity particle image analyzer from Malvern Instruments incorporates the latest Nikon CFI60 optics and a high resolution digital camera to deliver particle size and shape data and images. Based on digital image analysis and automated microscopy, the new Morphologi G2 measures particle size across a wide range from 0.5 to 1000 microns, using circle equivalent diameter, and employs a variety of parameters for particle shape analysis. This allows determination and quantification of even subtle differences between particles. Since every particle in a sample can be individually measured and recorded, the analyzer also has applications in counting and foreign particle detection. The Morphologi G2 particle image analyzer provides both microscope-quality images and statistically significant data through the rapid analysis of hundreds of thousands of particles. The ability to see and record images of all particles allows visual verification and detection of

Malvern launches new, high sensitivity particle image analyzer A new high sensitivity particle image analyzer from Malvern Instruments incorporates the latest Nikon CFI60 optics and a high resolution digital camera to deliver particle size and shape data and images. Based on digital image analysis and automated microscopy, the new Morphologi G2 measures particle size across a wide range from 0.5 to 1000 microns, using circle equivalent diameter, and employs a variety of parameters for particle shape analysis. This allows determination and quantification of even subtle differences between particles. Since every particle in a sample can be individually measured and recorded, the analyzer also has applications in counting and foreign particle detection. The Morphologi G2 particle image analyzer provides both microscope-quality images and statistically significant data through the rapid analysis of hundreds of thousands of particles. The ability to see and record images of all particles allows visual verification and detection of

Technology for high potential pharmaceuticals and chemicals By integrating the proven conical mill (BEXMILL) into an isolator, Hosokawa Bepex has succeeded in meeting the stringent demands of the pharmaceutical industry with respect to product and personal protection when processing high potential pharmaceuticals and chemicals. The BEXMILL is suitable for a wide range of applications: · Deagglomeration · Crushing of roller compacted flakes · Grinding of oversized particles · Sizing of product at the inlet of an air jet mill Various mill screens, round hole or rasp type are available to accomplish any process requirement. The minimal airflow does not require additional filter systems. For isolator purposes, two sizes are available which are also ideal for R&D work. All contact parts are made of stainless steel AISI 316 L (DIN 1.4404) with a surface quality of Ra <=0,8 µm respectively Ra <=0,4 µm depending on the user requirement specification. The mill is suitable for ATEX-Zone 1/21. The motor has protection

Pharmapaktor C 250 The new generation of the Pharmapaktor® offered now by Hosokawa Bepex considers all relevant and increased requirements of the pharmaceutical industry. An integrated parameterisation and full instrumentation is provided. The design of the mechanical parts considers easy assembly and reduced weight of the components to ensure easy and perfect cleaning. The cantilever shafts and the new roll fixing design allows simple assembly without special tools and is easy also for untrained staff. A roll cooling system is available; the water supply is effected from the rear and therefore, there are no rotary unions in the process area. The roll gap is adjustable under full load and in operation. Furthermore, the machine possesses an electronic and direct press force measurement without hydraulic components. The automation systems offers either the press force or the roll gap as command variables, all other operation parameters are automatically adjusted and ensure

Rotary valves are used as dosing and shutoff devices. For the employment in pharmaceutical processes and especially in glove boxes, Gericke developed the Hypergienic air-lock. It has a quick-release mechanism, can be dismantled without tools (in the glove box) completely. The gear motor can be attached outside of the insulator. - All surfaces are self-draining for CIP cleaning. - 10 bar pressure-shockproof - Certifies as flame barrier? - Construction and finish following to FDA and GMP guidelines Gericke`s Hypergienic rotary valve is something special and covers exactly the needs of the pharmaceutical processes. In the Gericke test lab, all Gericke devices can be tested and different production procedures with can be compared. The valve is exhibited at the Powtech in Nürnberg.

Gericke has added to its mixer range a new single shaft batch mixer! The GBM. This unique mixer combines many advantages like: - High mixing homogeneity due to improved bulk material flow within the mixing chamber - Easy and quick cleaning design due to the small number, oversized mixing paddles which are good accessible - Investment security and short pay back period offered by the versatile utility of the mixer - Simple but robust execution, hygienic surface finishes are available The mixer can be used for liquid injection, coating and heating processes. It offers therefore a versatile use and great flexibility in process design! Trials and comparisons to other types of mixers can be executed in one of the Gericke’s large test labs! Even a direct comparison between a batch and a continuous mixing process can be done here.

The DIWE 3 is an alternative gravimetric feeding concept that Gericke has developed for compact installation. Proven Gericke feeders are placed on 3 load cells in a solid frame. This design offers many benefits as: - easy installation in steel structures and buildings - various options to access the feeder for cleaning and inspection as turntable or hang down execution which leaves the floor free for spraying - modular scale up with different hopper sizes - excellent price quality ratio The loss-in-weight feeder DIWE 3 is operated with Gericke’s Easydos controller. It offers continuous gravimetric and also batch modus and can communicate to many types of PLC’s.

Particle size reduction In various reference applications, Gericke Nibblers are used for the preparation of bulk material to ensure a reliable process. Nibbler reduce the size of agglomerates, lumps or hard blocks into the initial particle size without heating up the product. Dust creation is minimal. Nibbler work with low tip speed and can therefore be used for fragile and temperature sensitive products. The Gericke Nibbler is supplied into different ATEX zones. Typically, Nibblers are placed after sack tipping units, container or big bag emptying stations. Used for recycling of non-conform batches they help to reduce the material cost for production. Nibbler screens are available with holes varying from 1,5 up to 25 mm. Larger Nibblers with inlet sections from 300x450 up to 300x800 can be used after filter presses mounted on mobile frames in order to adjust the size of the filter cakes. New! NBS 250: The compact particle size reductor NBS 250 is designed for small throughput

The Gericke group belongs to the oldest, independent enterprises for bulk material technology. For more than 111 years, Gericke develops and manufactures machines and plants for food industry, chemistry and Pharmacy. This year, the daughter company Gericke GmbH in Rielasingen is happy and proud to celebrate its 40 years anniversary! In more than 1000 production plants Gericke machines perform day and night reliably their services and contribute to the creation of value! Gericke GmbH manufactures volumetric and gravimetric feeding devices. As a reliable partner for turn key engineering, Gericke GmbH enjoys an excellent reputation in many countries. Beside of the feeding equipment the company is among the leaders for pneumatic conveying systems and mixers and completes its product range with size reduction and sieving machines. Gericke`s customers profit from the circumstance that all core components are developed and manufactured by a Gericke factory. The

Eliminate dust or convert liquids to free flowing solids PolyAd Services is a global organisation focused on solving incorporation problems associated with difficult to handle powders and liquids. PolyAd Services takes powders and liquids and uses it`s expertise to convert these to feedable forms. PolyAd Services has been operating in the plastics industry for over 15 years and now is offering it`s expertise to the wider chemical industry. Benefits of PolyAd blend products are: Eliminate dust that had caused Health & Safety and explosion risks Improve handling feeding and dispersion Improve productivity Optimise the production process

GEPPERT conveyors in stainless steel GEPPERT-Band is one of the few manufacturers in Europe offering a complete range of stainless steel conveyors. But not only that: with CleanTec, the patented hygienic technology, all the strict requirements of chemical, pharmaceutical and food industry are met or exceeded. These superb conveyors are available within 4 to 14 days, depending on the model. To comply with highest hygienic standards, all Geppert stainless steel conveyors are equipped with CleanTec. Along with many years of experience in this field of application, the thorough exchange of ideas with customers demanding perfect solutions for “clean” production was a key factor for this successful redesign. The CleanTec adjustment mechanisms on both driving and deflecting roller, effectively prevent any accumulation of dirt because all moving parts are well covered inside -the structure. Therefore the conveyors can be cleaned very easily and are extremely robust. In addition -, the conveyors can

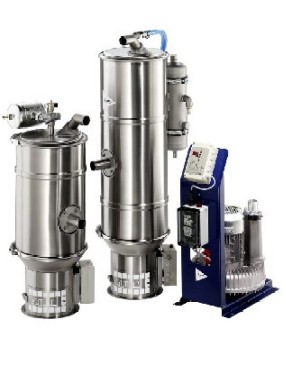

For the plastic processing, chemical or food industries These high quality hopper loaders are designed for material like plastic powder, PVC-Compound, Coffee powder, Tea or instant Powder and are equipped with a 1,2 m², 1,6m² filter or a 2 m² Jet-Filter. With the different size of vacuum pumps they can be used for a wide range of conveying capacities. In the high class stainless steel design they can be used also for more sensitive products!

better ventilation, Boxon has developed a new type of Big-Bag (FIBC) for all kinds of product requiring a sufficient ventilation. These are mainly agriculture products but also products that need to dry after filling. By the special performance of the new net-fabric Boxon developed this type of FIBC can also be used for new applications, e.g. as a filter for wet granulate, for washing of products … etc. For further information please contact Oliver Grüters.

Level detection in Silica Acids A specially demanding task concerning the sensitivity of measuring equipment, is level detection in silica acids. The material changes its density very much according to how it is handled. The density of around 500 g/l when in a passive state can easily turn to less than 5 g/l when operated, e.g. during metering, pneumatic conveyance, emptying of containers etc. - the surface of the silica acid can suddenly resemble a seething cloud. The new electronic module developed by UWT is so sensitive that the material is detected absolutely reliably, in spite of the very low dampening effect caused by the silica acid on the vibrating fingers of the probe. An immediate output of the level limit signal is guaranteed. From the well proven VIBRANIVO model range of units UWT is offering two additional models: the Vibrasilâ70 and Vibrasilâ90, which are also available with PFA-coated oscillator, depending on the area of application. UWT Level control – simply working

Measuring Particles More Precisely The use of digital image processing in particle analysis has made significant progress with the availability of new algorithms from Retsch Technology. New developments in their particle analysis system CAMSIZER® make particle size and shape analysis easier and more efficient. The device covers a measuring range of 30 µm to 30 mm. Digital Image Processing for Grain Size and Grain Shape Analysis Only since the introduction of digital image processing into a particle measuring device, has it become possible to precisely measure the shape of particles, thus achieving fast and reliable characterisation of powders and bulk materials for quality assurance. With the new software upgrade it is now possible to compensate for the differences between various measuring techniques and the CAMSIZER® principle. In this way, it is possible to perfectly match the results of the traditional screen analysis, which is often used as a basis for a variety of standards used in digital

Raw material costs save, quality increase, productivity increase by exact dosages with OPDWIN The recent development is an ‘intelligent dosing control’ (OPDSPEEDUP®) which optimises automatically the speed of your plants according to the customer/product-specific requirements, in adaptation to the respective component. Using this dosing control, also existing plants can process up to 3 % higher capacities at the same tolerance. Raw material costs save, quality increase, productivity increase by exact dosages with OPDWIN

HERBOLD Meckesheim has designed a compact line for the treatment of toner cartridges. This system has been built and recently delivered to a company in Southern Germany. Using a belt conveyor with a hydraulic pushing device the material is transported to a first shredder where the material is coarsely size-reduced. If necessary, metals can be discharged at this step. Afterwards the material is fed to a slow-running HERBOLD granulator of the SML-LS series which, due to a low circumferential speed, will provide the final granular size of the material. With the help of a spiral conveyor the material is transported to a screening machine where the toner dust developed during size-reduction will be separated from the ground material. Since toner can provoke dust explosions, the machine has been equipped with a corresponding surveillance device. The received size-reduced material can easily be reused for injection moulding applications. The advantages of the plant: All

Magnetic characterization of powders, thin films, solid bodies + Maximum flux density in the air gap: Bmax = 2 T + Sample temperature: RT ... 1000°C + Maximum sample size: powders, solid bodies : 6,35 mm x 3 mm thin films : 6,35 mm + Lowest measurable magnetic moment: Mmin = 5x 10-6 emu

HERBOLD Meckesheim has designed a compact line for the treatment of toner cartridges. This system has been built and recently delivered to a company in Southern Germany. Using a belt conveyor with a hydraulic pushing device the material is transported to a first shredder where the material is coarsely size-reduced. If necessary, metals can be discharged at this step. Afterwards the material is fed to a slow-running HERBOLD granulator of the SML-LS series which, due to a low circumferential speed, will provide the final granular size of the material. With the help of a spiral conveyor the material is transported to a screening machine where the toner dust developed during size-reduction will be separated from the ground material. Since toner can provoke dust explosions, the machine has been equipped with a corresponding surveillance device. The received size-reduced material can easily be reused for injection moulding applications. The advantages of the plant: All

Press Agglomeration of Corrosive and Abrasive Materials Fine dispersed bulk materials are processed with roller compactors to hard flakes and briquettes. Extremely abrasive and corrosive Products cannot be processed with usual materials of construction. Wear and corrosion create metal removal at the press rolls and other contact parts and result in high process cost and contamination of the products to be processed. In order to improve the service life of the equipment but also to work with low or totally without contamination, new materials of construction have been developed and are now successfully used in production plants. Conventional protections against wear can bring the cost to a reasonable level, but contamination in the range of ppm is still a problem. The efficiency of semiconductors and refractories can be considerably reduced. A matrix for the selection of the most adequate materials of construction is now available. Some examples are hydrocarbon coatings, plasma surface coatings and ceramic materials. These

The end of pick and shovel work as we know it! Emptying BigBags, Bulk bags and Oktabins by means of suction from above – a method never considered possible before – is now enabled with this new system! The Helios OKTOMAT with fluidisation system masters the art of 100% automatically emptying non free flowing bulk materials such as pressed screen waste, foils to be ground and pure glass fibre. Helios’ latest development now enables the automatic emptying and subsequent conveying of the problematic bulk material whereas, once, this task could only be performed by means of “pick and shovel work”. The profession is delighted. This innovation will be on display at the Fakuma 2005, hall A3, booth 3215.
