The Inventory Blind Spot

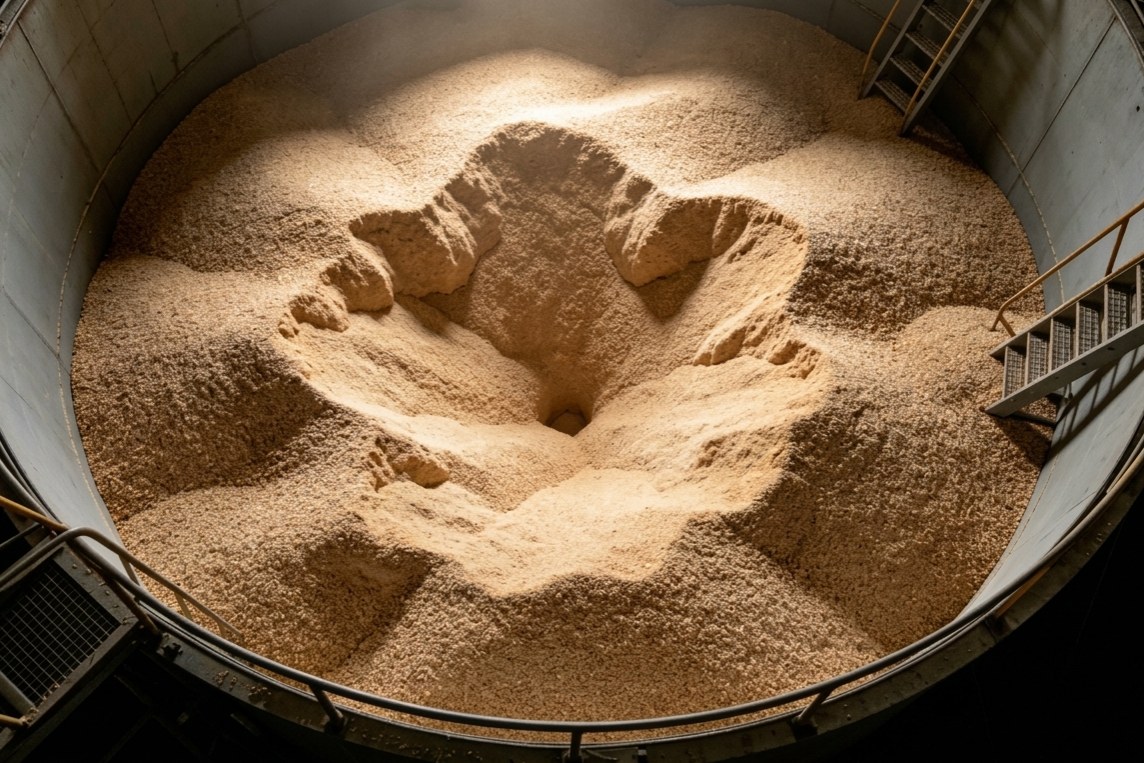

In bulk solid storage across process industries, inventory tracking remains a persistent operational blind spot. When bulk materials enter a storage silo, they do not settle into a predictable, flat liquid surface. The formation of variable angles of repose, surface peaks and valleys, asymmetric piling, rat-holing, and material adhesion to silo sidewalls creates a highly complex topography.
While traditional inventory tracking methods such as mass extrapolation and single-point measurement are widely utilized and foundational to many operations, relying on them exclusively for complex bulk solids may introduce certain uncertainties. For instance, calculating inventory solely based on inbound and outbound flow can occasionally lead to cumulative variances between recorded and physical stock over time due to natural material compaction or moisture changes. Similarly, single-point level sensors provide reliable, localized distance metrics. However, extrapolating a full 3D volumetric model from a single coordinate might not fully capture irregular surface topographies, such as asymmetric piling or localized sidewall build-up. To offset these informational gaps, facilities sometimes employ manual visual estimations, which can introduce operational lag and safety considerations. Recognizing these practical variables naturally highlights the industry's evolving need for enhanced spatial visualization technologies.
The New Paradigm: 3D Volumetric Surface & Silo Transparency
Eliminating the operational "black box" requires transitioning from linear distance measurement to complete spatial topography mapping. Modern 3D volumetric mapping performs high-resolution scanning across the entire internal silo space, converting raw reflections into intuitive, three-dimensional spatial coordinates.
Hardware Architecture & Technical Specifications
The 3DPro2300 Radar Scanner delivers a "CT scan" equivalent for industrial storage vessels through an advanced hardware and software architecture:
360° x 180° FMCW Scanning Mechanism: Utilizing Terahertz Frequency-Modulated Continuous-Wave (FMCW) radar technology, an internal dual-axis mechanism drives the transceiver through a full 360° horizontal by 180° pitch rotation, capturing microwave reflections across the entire vessel interior without blind spots.
80GHz Signal Precision: Powered by a 80GHz high-frequency radar transceiver module, the system collects up to 16,200 detection points per scan in as fast as 10 seconds.
Metrological Accuracy: Delivers a single-point measurement accuracy of ±2 mm and maintains full 3D volumetric modeling accuracy within ±0.5% FS to ±2% FS.
High-Dust Environmental Penetration: Unlike optical devices that fail under heavy airborne dust, millimeter-wave radar easily penetrates dense dust clouds. The scanner operates continuously even when covered by a 1 cm layer of dust accumulation, functioning 24/7 during active filling and discharging in extreme dust, humidity, steam, corrosion, or severe ambient weather.

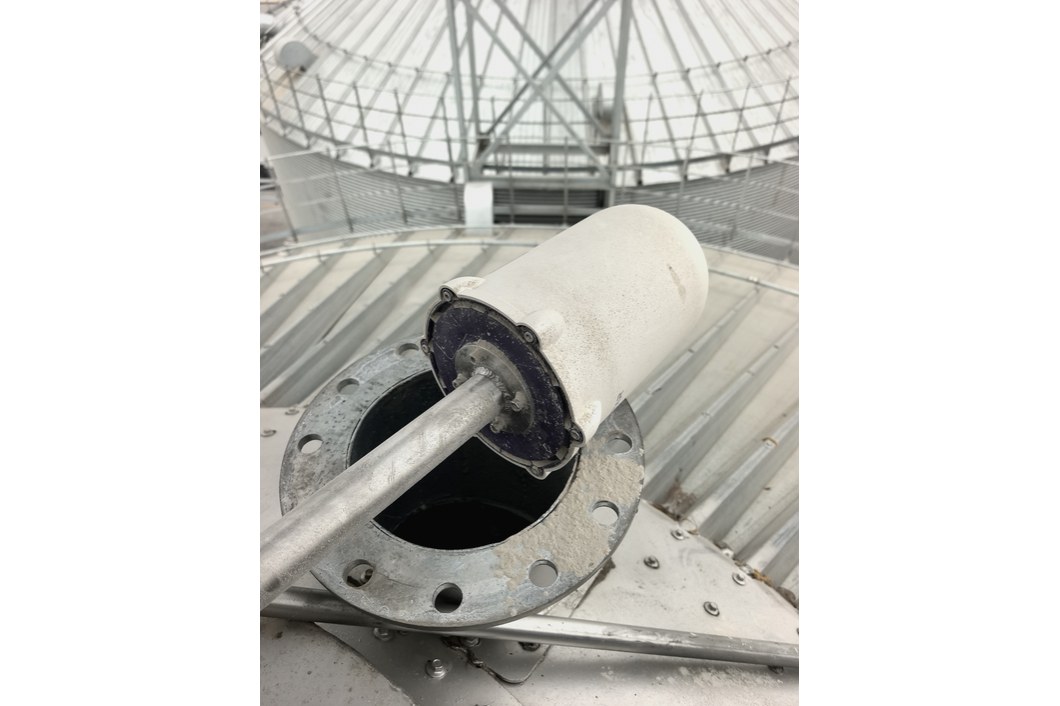

Compact Installation & Self-Calibration: Features a compact 185 mm enclosure diameter requiring an installation aperture of only 190 mm, minimizing silo structural modification. An integrated 6-axis gyroscope automatically senses inclination angles across X, Y, and Z axes, dynamically correcting mounting alignment errors without requiring complex manual field calibration.
Industrial-Grade Redundancy: Hardware reliability is reinforced with dual-power and dual-network redundancy. The host software supports both Windows and Linux operating environments for seamless enterprise IT integration.
3D Inventory Scanner Applications Across Bulk Material Industries
3DPro2300 is engineered for industrial storage assets across a broad range of sectors:

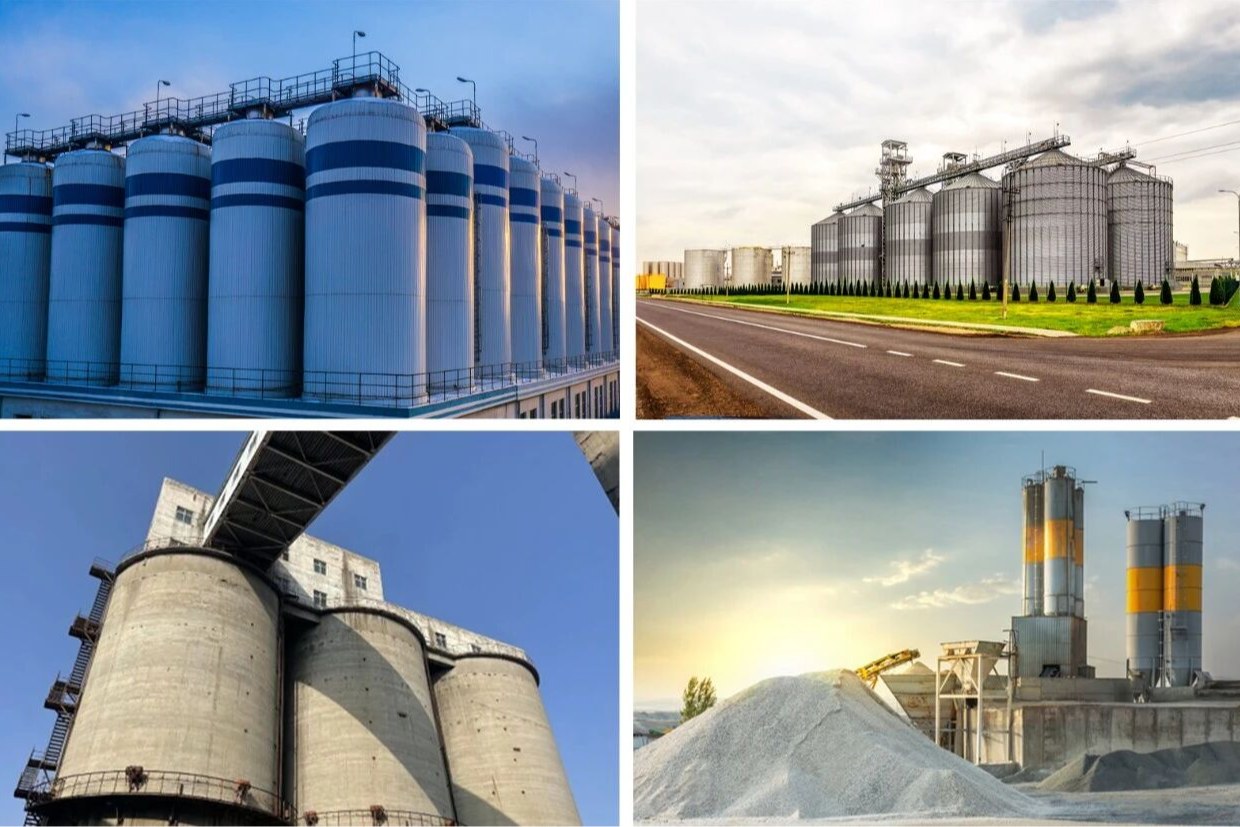

- Coal Processing & Energy: Real-time 3D dynamic scanning of coal bunkers, raw coal silos, and power plant material sheds.
- Cement & Building Materials: Continuous volumetric tracking in high-dust clinker silos, homogenization silos, and raw material storage yards.
- Mining & Minerals: Automated inventory auditing in fine ore bins, buffer ore bins, and raw mineral stockpiles.
- Power Generation: Bulk inventory management for fuel yards, fly ash silos, and raw coal hoppers.
- Metallurgy: Precise volume and shape mapping across raw material yards, flux storage, and metallurgy silos.
- Grain & Feed: Accurate stock control in grain silos, feed bins, and flat bulk storage warehouses.
- Food & Pharmaceuticals: Non-contact volumetric inventory monitoring in sanitary powder and bulk granular vessel storage.
Enterprise Impact: Data Transparency Across the Organization
Beyond field measurement, 3D volumetric mapping serves as a foundational enterprise data asset. Rather than returning a single distance value, 3DPro2300 calculates comprehensive operational metrics:
- Minimum Level, Maximum Level, and Average Level
- Total Material Volume and Calculated Mass

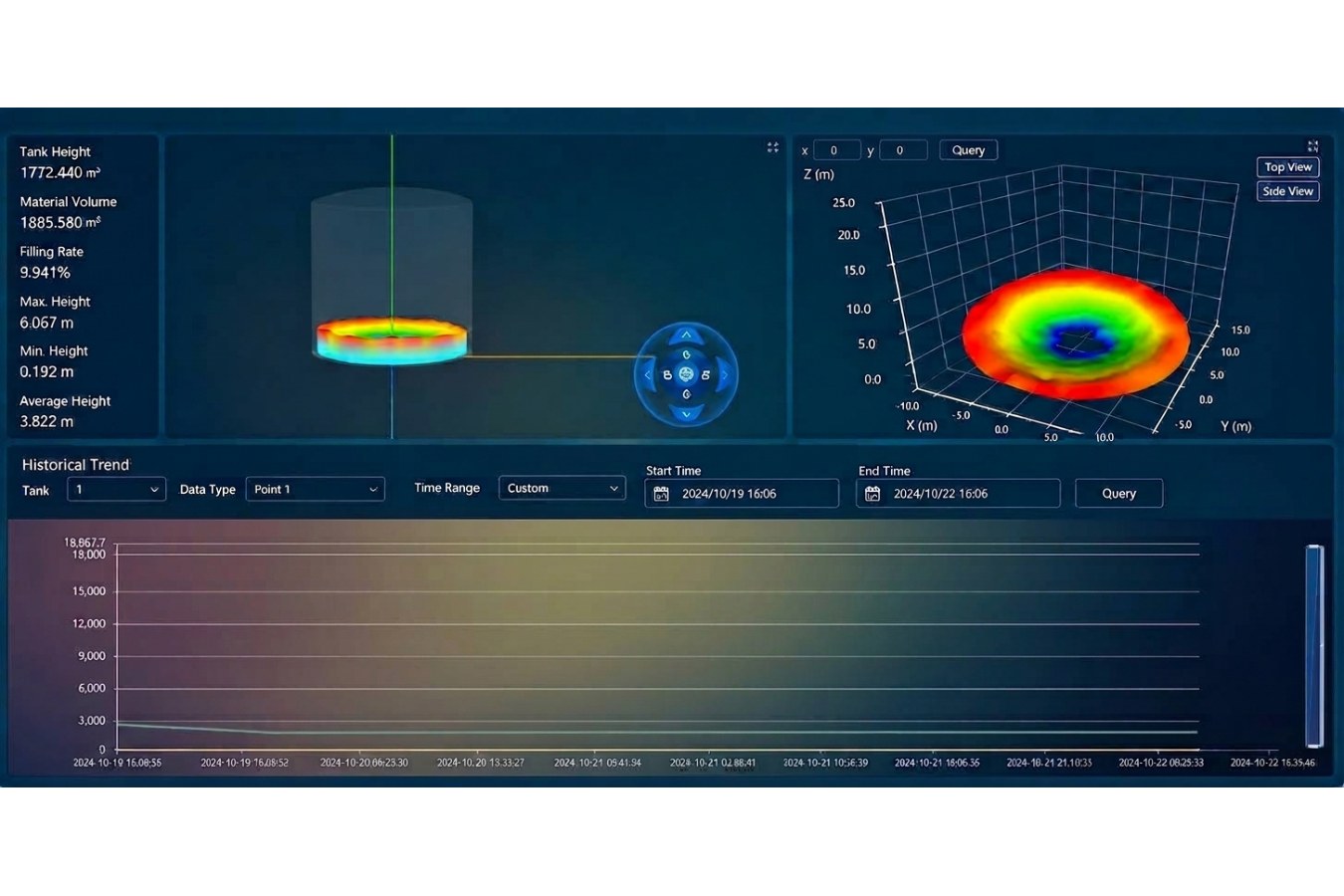

- 3D Surface Topography Distribution Profiles
Synchronizing these real-time metrics directly into ERP architectures breaks down data silos across key organizational departments:
Finance & CFO (Asset Transparency): Eliminates unexpected inventory write-downs and audit discrepancies. Real-time volumetric mapping provides auditable, accurate inventory data that directly aligns balance sheets with physical material assets.
Supply Chain & Logistics (Capacity Optimization): Grants logistics managers exact visibility into true remaining storage capacity. This prevents costly logistics bottlenecks, avoids overfilling, and optimizes bulk material dispatch and procurement scheduling.
Operations & Safety (Risk Mitigation): Real-time rendering of asymmetric cones and bridging allows plant operators to rebalance material distribution proactively, preventing structural fatigue, side-wall damage, or catastrophic silo failure. Furthermore, automated scanning achieves complete ESG "Zero-Climb" compliance, eliminating hazardous elevated manual work and removing the need for production shutdowns during inventory audits.
Key Takeaways for Industry Leaders
The transition from traditional inventory management to digital, data-driven monitoring provides bulk material facilities with better visibility into storage conditions and inventory changes. By combining 3D radar scanning with advanced level measurement technologies, operators can improve inventory planning, optimize material handling, and support safer daily operations.
