Waste-to-energy (WtE) plants handle a variety of materials, including incoming waste, combustion residues, flue gas treatment reagents, and leachate. These materials can create different measurement challenges, such as dust, fog, high humidity, material buildup, corrosion, and irregular material surfaces.
For this reason, WtE plants often require different monitoring technologies for different process areas. 3D radar scanning, radar level measurement, laser scanning, and point-level switches can be selected according to the material, operating conditions, and monitoring requirements.

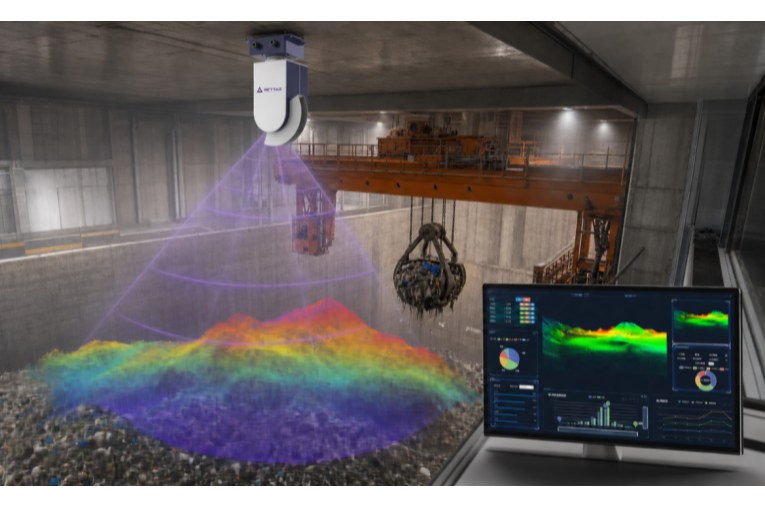

Waste Storage Pits
Waste storage pits contain mixed and irregular materials that are constantly changing. Moisture, fog, dust, and odors can also make visual inspection difficult.
A 3DPro2300 Radar Scanner can scan the material surface and generate a three-dimensional model, providing information about material height, surface distribution, and estimated volume.
This information can support waste inventory monitoring, crane operations, feeding planning, and inventory tracking.

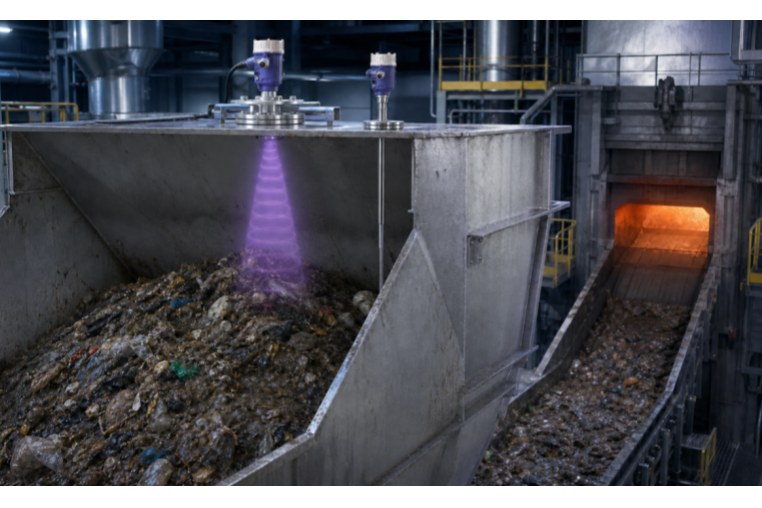

Feeding Hoppers and Chutes
Wet, sticky, or irregular waste can sometimes contribute to bridging, unstable material flow, or temporary empty conditions in feeding systems.
CPR series high-frequency radar level sensors can provide continuous, non-contact level measurement in suitable hopper applications. Vibrating rod level switches can complement radar measurement by providing high- and low-level alarms for conditions such as material shortage or overfill.

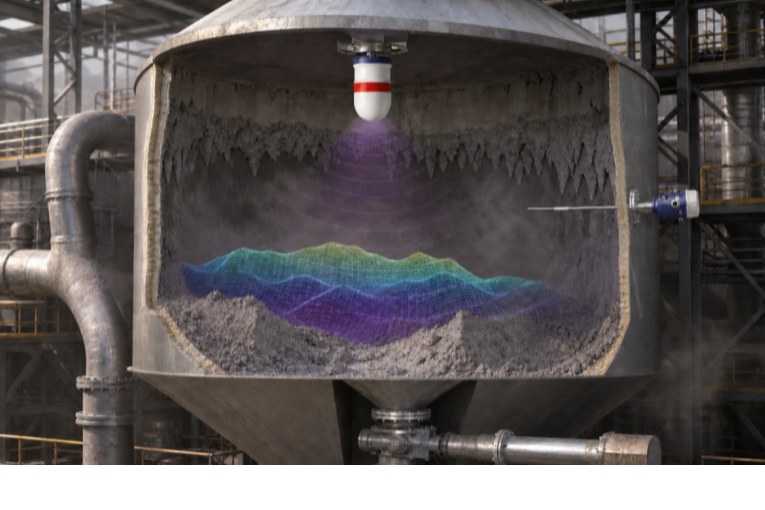

Fly Ash and Slag Silos
Fly ash and slag can generate fine dust and may accumulate on silo walls or form uneven material surfaces. A single-point measurement may not fully describe the stored material.
For suitable ash-handling applications, a 3D radar scanner can map the material surface and calculate an estimated stored volume. Radar level sensors and vibrating rod switches can also be used when continuous level measurement and point-level alarms are the main requirements.
Flue Gas Treatment Reagent Bins
Materials such as lime and activated carbon are used in flue gas treatment processes. These dry powders can generate dust and may have uneven discharge characteristics.
Radar level measurement can provide continuous information about reagent levels, while 3D scanning can provide additional information about the overall material surface and estimated inventory in larger storage areas. This data can support replenishment planning and material management.
Leachate and Wastewater Tanks
Leachate and wastewater present different challenges from dry bulk materials. Corrosive media, foam, and water vapor can affect the suitability of some measurement technologies.
80GHz high-frequency radar can provide non-contact continuous level measurement for suitable liquid applications. Tuning fork or other point-level switches can provide additional high- or low-level protection.
The appropriate technology should be selected according to the liquid properties, tank design, temperature, foam conditions, and required measurement performance.
Outdoor Storage Areas and Material Sheds
Outdoor storage areas can be affected by rain, fog, dust, and changing environmental conditions. Large storage spaces can also make manual inventory measurement time-consuming.
3D inventory scanning with radar or laser technology can provide automated information about the material surface and estimated inventory. Depending on the system configuration, scans can be performed periodically or continuously, reducing the need for routine manual measurements in difficult-to-access areas.
Smart Monitoring Technologies for Material Inventory
Different sensing technologies provide different types of information, so they are often used as complementary tools rather than alternatives to one another.
- 3D Radar Scanners: Measure thousands of spatial points across broad material topographies to generate true volumetric models. Essential for large storage yards, waste pits, and high-dust silos.
- 80GHz Radar Level Sensors: Deliver narrow-beam, continuous point-level measurement in tight hoppers, reagent bins, and corrosive liquid tanks.
- Point-Level Switches: Vibrating rod and tuning fork switches function as secondary safety interlocks, preventing overfill catastrophes and pump dry-runs.
- 3D Laser Scanners: Ideal for open yards or dry storage sheds requiring high-density spatial point resolution under clear optical conditions.
For larger WtE facilities, these technologies can be connected with Pro Inventory management systems or plant control systems where compatible communication interfaces are available. The resulting data can support inventory tracking, material scheduling, feeding, ash discharge, and reagent replenishment.
The objective is not simply to install more sensors, but to select the appropriate measurement method for each material and process area.
Key Benefits of Automated Material Monitoring
Automated material monitoring can provide operators with more frequent and consistent information about material conditions while reducing dependence on routine manual measurements.
For waste pits and large storage areas, 3D inventory monitoring solutions can provide a broader view of material distribution and estimated volume than a single measurement point. For hoppers, silos, and tanks, continuous radar measurement can provide ongoing level information, while point-level switches can provide additional high- and low-level alarms.
This information can help operators identify changes in material conditions, support inventory planning, and reduce the need for personnel to enter difficult-to-access areas for routine checks.
When measurement data is integrated with inventory software or plant systems, it can also contribute to a more data-based approach to material management and daily plant operation.
