Grain and feed facilities need reliable storage management to protect inventory and running efficiency. Traditional silos face measurement errors, safety risks from manual checks, and slow data flow. Modern grain operators turn to a Smart Manufacturing Solution to upgrade standard inventory checks. The deployment of the Rettar 3DPro2300 Easy Radar Scanner in multi-silo storage facilities provides clear 3D inventory scanning across corn, wheat, and soybean stocks, helping plant managers oversee bulk stock and ensure grain safety.
Pitfalls in Grain Storage Silos

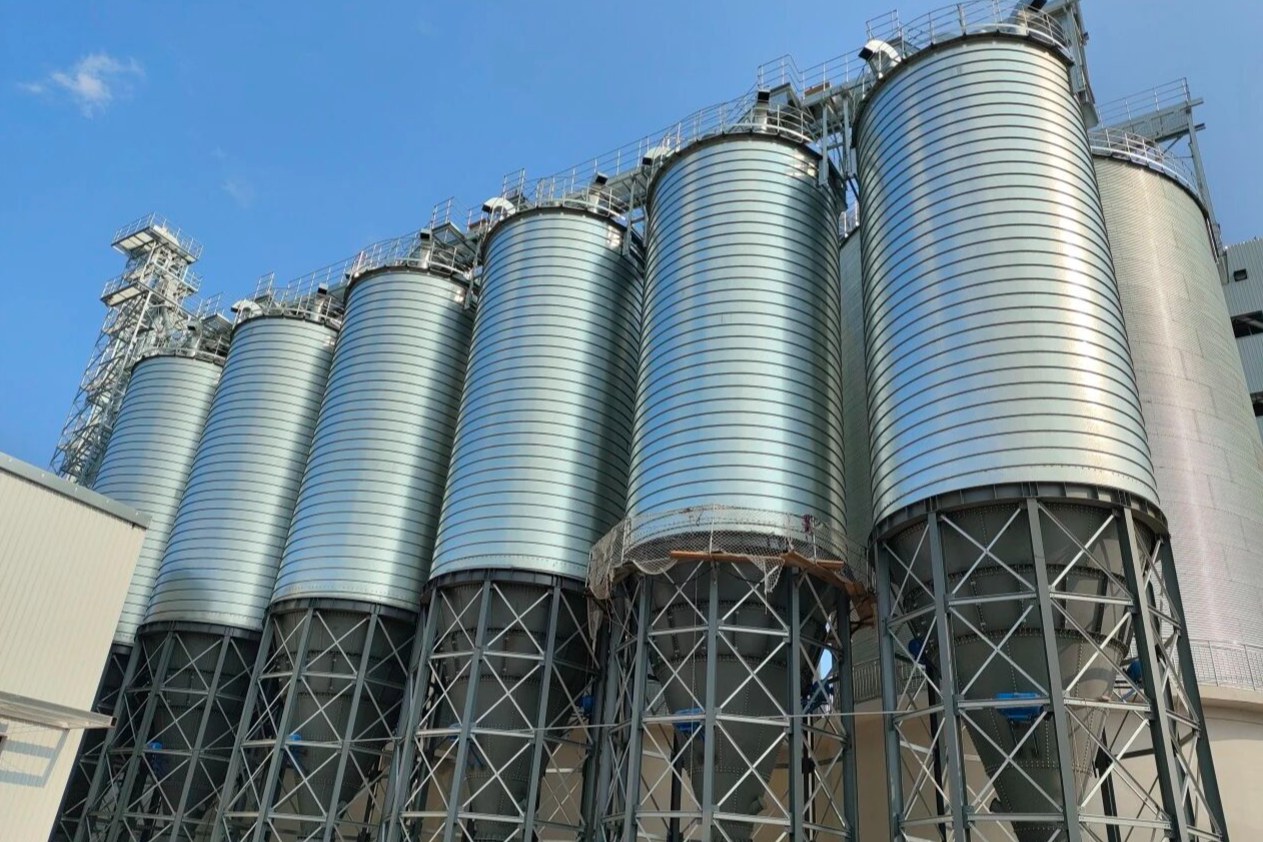

Modern grain facilities handle large volumes of corn, wheat, and soybean meal daily. Frequent loading creates high airborne dust and irregular surface profiles inside enclosed bins. Basic types of sensors measure only one point on the grain surface, leaving huge blind spots.
Manual inventory checks make workers into dangerous high-altitude spaces with hazardous dust. Traditional estimation methods result in inaccurate bulk calculations, delayed reports, and operational friction between floor operations and executive offices.
Field-Proven 3D Inventory Scanner Technology

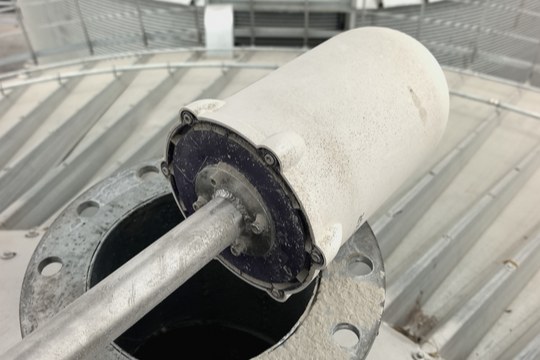

To address these harsh working conditions, facilities install a 3D inventory scanner atop each grain silo. The Rettar 3DPro2300 Easy Radar Scanner uses a high-frequency 80GHz FMCW signal that passes directly through heavy dust clouds.

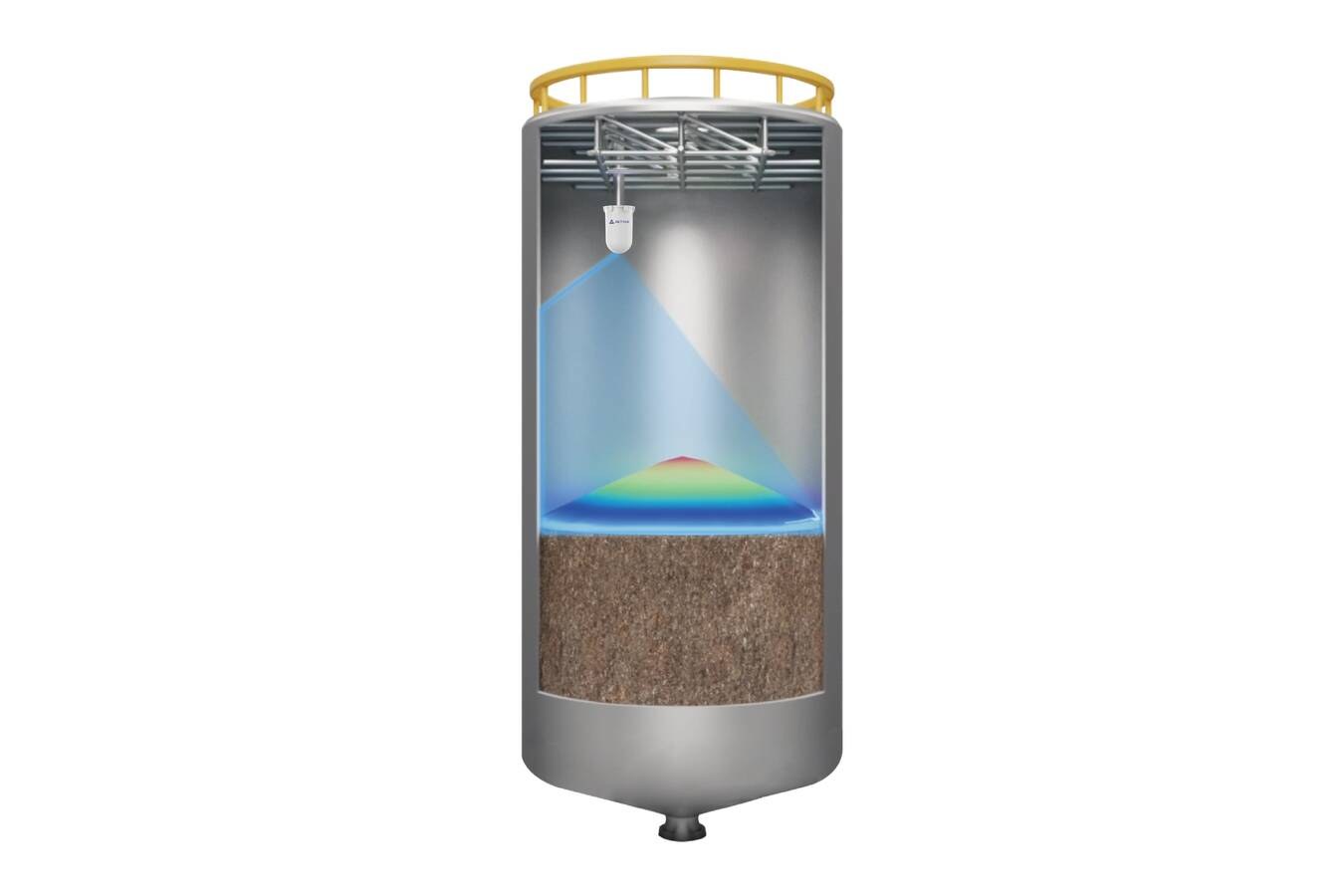

Equipped with a 360° horizontal rotation and ±90° vertical tilt movement, the device captures thousands of measurement points every cycle. This automated scan forms an accurate 3D volumetric reconstruction of the material surface without physical contact.
The unit supports various industrial output options including RS 485, Ethernet, Modbus TCP, and OPC UA. These features make it easy to integrate with existing control systems without changing the physical silo structure.
Versatile Application Across Diverse Bulk Materials
Industrial storage facilities process materials with vastly different physical characteristics, from heavy granular corn and smooth wheat to fluffy, sticky soybean meal. The Rettar 3DPro2300 Easy adapts automatically to these distinct surface profiles:
- Corn Storage: Handles high-volume dumping peaks and steep material repose angles without signal scattering.
- Wheat Silos: Corrects measurement errors caused by fine grain dust and flat-surface shifting during discharging.
- Soybean Meal Bins: Overcomes severe material bridging, wall-sticking, and fluffy piling contours through AI material compensation algorithms.
By deploying a standardized unit across multiple storage zones, facilities establish a flexible, low-maintenance monitoring grid capable of handling diverse grain categories seamlessly.
Realizing Full Silo and Data Transparency
Deploying a multiple point level sensor system delivers clear operational results:

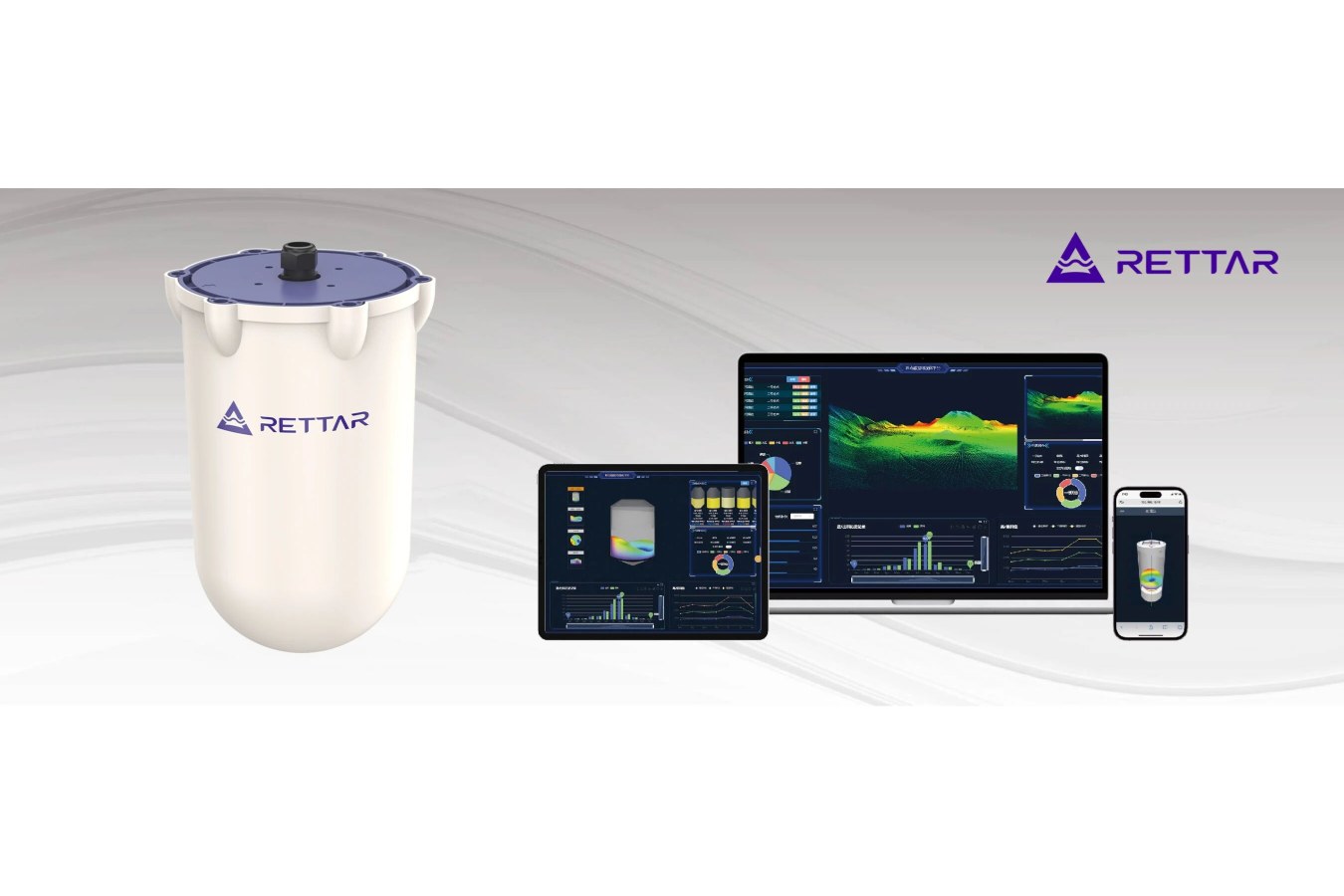

- Complete Silo Transparency: The system generates dynamic 3D surface maps of uneven grain piles. Plant managers track precise volumetric data for corn, wheat, and soybean meal, reducing the impact of unexpected empty silos or structural overfills.
- Enterprise Data Transparency: Point cloud calculations feed directly into central management platforms through RS 485 or Ethernet networks. Inventory figures flow automatically to accounting and procurement teams, breaking down information blocks between field staff and management.
- Lower Maintenance Costs: Built with an IP68 protection rating, the scanner resists dust and moisture inside harsh silos. The durable hardware runs automated scans continuously with low maintenance needs.
- Improved Site Safety: Automated remote tracking keeps workers off silo roofs and out of hazardous dust spaces.
Ready to improve your inventory control and bulk material monitoring? Visit the official Rettar website to explore our radar level sensor solutions or download the latest 3DPro2300 Easy product catalog.
