Summer Silo Audits: Beat Dust Risks with 80GHz 3D Radar Sensing
Summer heat makes bulk solids cling to silo walls and distorts inventory figures. Rettar measures the surface without contact using the 80 GHz 3DPro2300 radar scanner, 16,200 points per sweep, ATEX and IECEx certified.
Rising seasonal temperatures introduce serious operational challenges across bulk material handling facilities. In agricultural grain silos and industrial coal storage, intense ambient heat combined with fine airborne dust elevates thermal buildup and static explosion risks. Passing strict summer safety audits requires accurate, continuous monitoring without exposing operators to hazardous conditions. Implementing an 80GHz 3DPro2300 Radar Scanner for coal silos and grain processing provides a 3D surface mapping solution that eliminates static risks while ensuring precise bulk inventory tracking.
Unseen Hazards Under Extreme Summer Heat
Hot summer days change how bulk materials behave inside storage silos. Direct sun bakes steel silo roofs, trapping heat and moisture inside closed spaces. In these conditions, dry grain, starch, and coal dust stick to smooth silo walls. This material clinging forms hidden bridges, holes, and thick crusts that nobody can see from the outside.
Traditional level measurement tools usually check height along a single straight beam. While these tools give quick basic readings, they can miss uneven piles or wall buildup. When material sits unevenly, traditional meters might give wrong overall volumes, making accurate inventory control difficult during busy summer seasons. Sending workers onto hot silo roofs for manual checks also brings serious fall and dust explosion risks.
Rettar 3DPro2300: Engineered for High Thermal and Heavy Dust Loadings

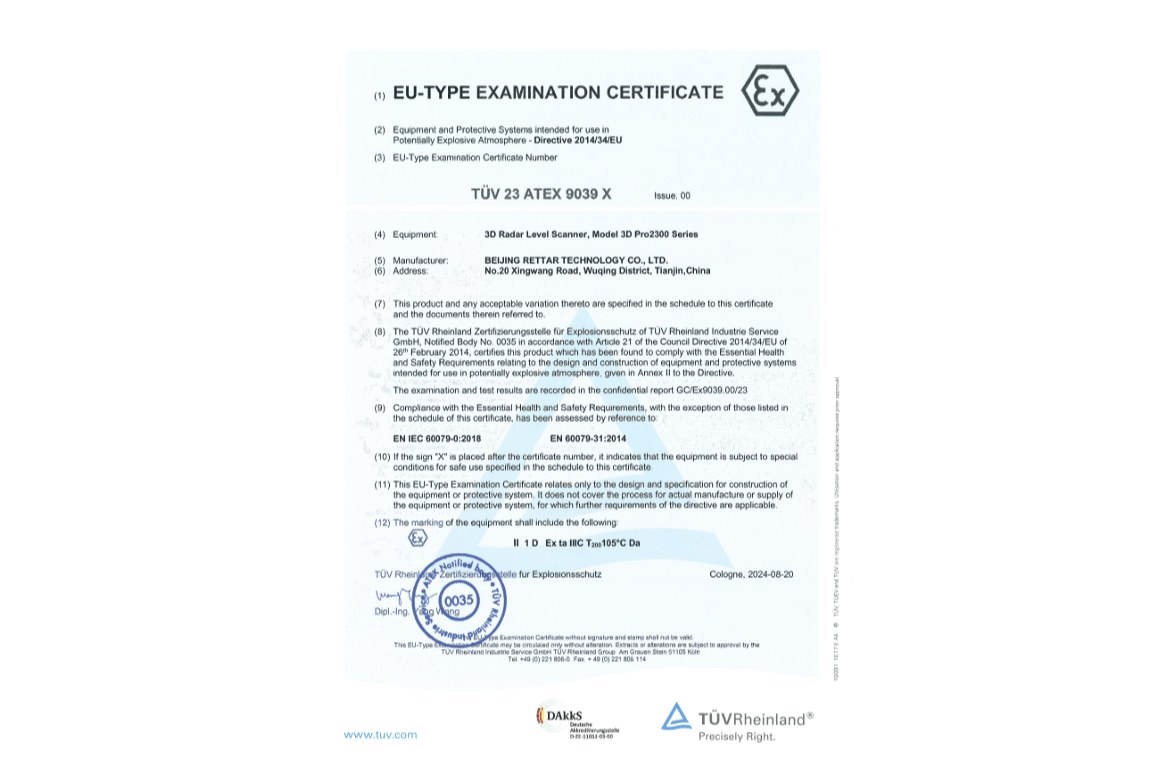

To keep tracking accurate under direct summer sun, industrial plants mount the 3DPro2300 Radar Scanner on silo roofs. The unit runs smoothly in outdoor temperatures up to 60°C without slowing down or dropping data. Holding TUV-certified ATEX and IECEx dust explosion-proof ratings alongside an IP68 enclosure rating, the scanner helps plants meet strict safety standards during summer inspections.

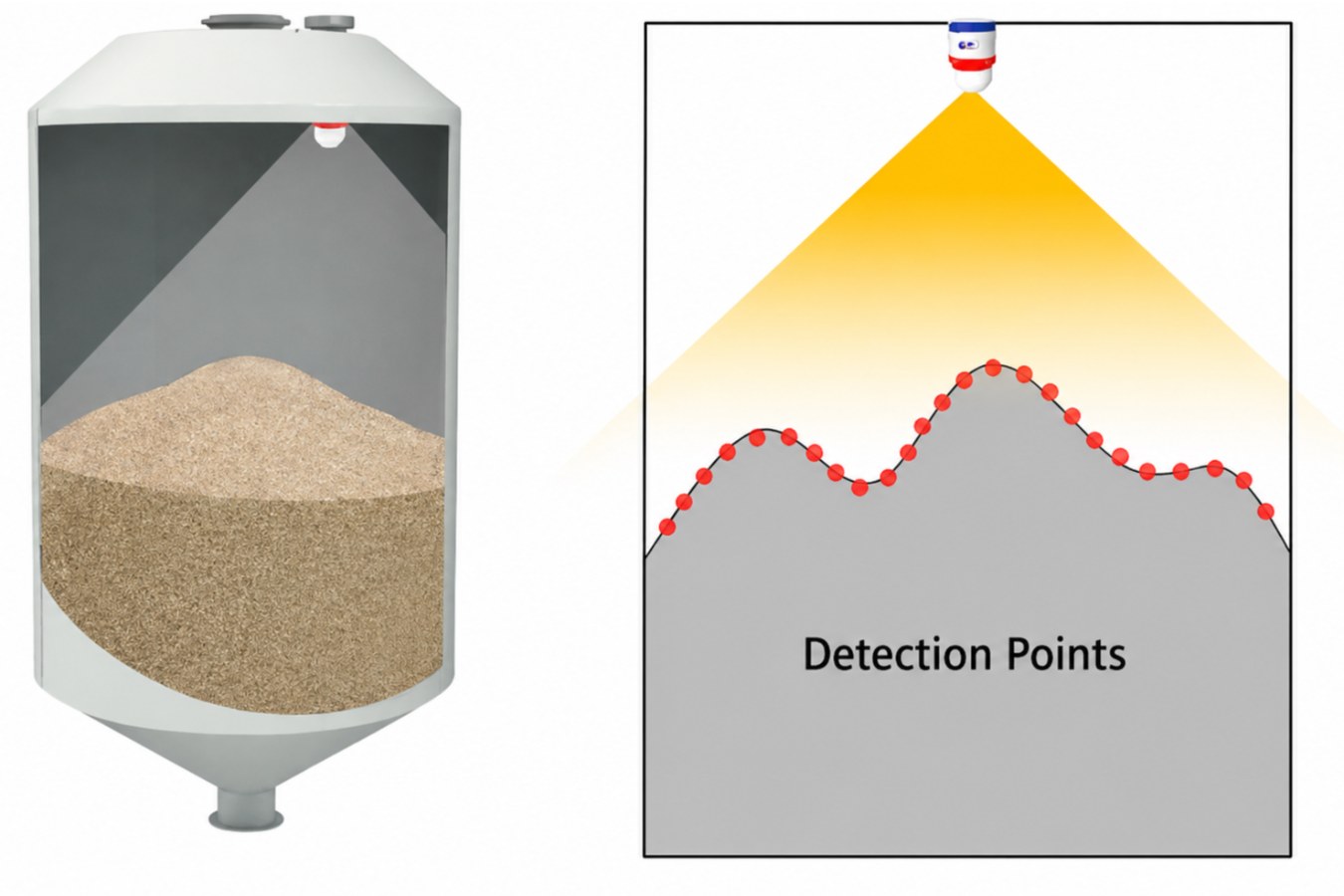

The scanner uses an 80GHz non-contact radar beam with a tight 1.5° focus. It records 16,200 measurement points in a full 360° sweep each cycle. This dense scan cuts through heavy airborne dust without losing signal strength. The system uses these points for real-time 3D volumetric reconstruction, giving ±0.5 % to ±2 % FS volume accuracy even on rough material surfaces.
Simplified Mechanical Installation for Structural Integrity
Deploying heavy instrumentation on aging or highly stressed silo roofs often presents mechanical challenges. Large process cutouts can compromise structural integrity and increase the risk of water ingress during severe summer storms. The Rettar 3DPro2300 addresses these retrofitting concerns by requiring only a 190 mm process mounting opening for standard flange installation. This compact footprint preserves the original mechanical strength of the vessel roof while significantly reducing installation downtime.
In addition to its compact mechanical footprint, the scanner integrates intelligent condition self-monitoring. An embedded high-precision thermal sensor continually evaluates internal operating temperatures. Combined with a dynamic status indicator, the self-diagnostic system alerts control operators if internal electronics approach thermal thresholds, ensuring long-term hardware reliability without requiring physical on-site maintenance during extreme heat waves.
Connecting Silo Conditions Directly to Enterprise Systems
Good bulk material handling needs clear physical views and smooth data flow across the company. Continuous 3D surface mapping gives operators clear visual maps of grain and coal inside the silo. Control room teams can see uneven piles early, helping them balance wall pressure and stop material blockages.
Measurement data moves directly across plant networks using standard industrial setups like OPC UA, Modbus TCP, and MQTT. Sending live volume numbers straight to plant PLC, DCS, MES, and ERP systems creates a complete smart manufacturing solution. This automatic data setup makes stock reporting easier, improves buying schedules, and helps companies pass official audits. Rettar configures the radar mapping for the silo geometry and the bulk material of each individual facility.
