Large storage sheds and raw coal silos require safer and more efficient monitoring solutions. Heavy coal dust clouds, wide temperature variations, and strict explosion-proof requirements frequently challenge field sensors. In these environments, highly irregular material surfaces make precise inventory control extremely difficult to maintain through basic measurement methods. To address these complex physical formations, field-proven radar technology offers an integrated sensing network to transform bulk inventory control from rough approximations into real-time, visual data.
Inside massive bulk storage yards, material handling presents a distinct set of operational challenges:
Critical Challenges in Inventory Management
- Dense Airborne Dust: High dust concentration and wide temperature fluctuations often disrupt optical or acoustic measurement tracking.
- Irregular Material Profiles: Different coal types create complex pile formations with unpredictable peaks, valleys, and sloped contours.
- Extreme Structural Dimensions: Storage sheds can span over one hundred meters, creating vast areas prone to tracking blind spots.
- Isolated Data Blocks: When material tracking remains incomplete, local silo transparency drops, preventing vital volumetric metrics from flowing smoothly across organizational channels. This leads maintenance teams to climb high for manual checks, introducing unnecessary safety risks.
FMCW Signal Networks:
Multi-Dimensional Scanning Across Diverse Silos. To address these rigid site demands, industrial facilities are deploying the RETTAR 3DPro2300 Radar Scanner directly within active storage environments. Across expansive storage sheds and raw material silos, these devices operate as part of a coordinated scanning network. The system utilizes 80GHz FMCW distance-measurement technology, emitting dense microwave signals that easily penetrate thick, high-concentration dust layers.
Inside each unit, a high-precision internal structure executes a 360° horizontal rotation paired with a 90° pitch tilt movement. This mechanical agility allows the scanner to capture tens of thousands of measuring signals per cycle, creating a high-density 3D point cloud. The sensor provides highly precise distance tracking up to 120 meters, spanning from low to high thresholds to clear out blind spots. In wide storage sheds, multi-sensor data streams are seamlessly stitched into a unified surface map. In deep silos and tall loading bins, the 90° vertical tilt allows full top-to-bottom cross-sectional profiling, adjusting easily to any structure’s specific width or height.
Minimal Maintenance of 3DPro2300 Radar
The 3DPro2300 Radar Scanner features high structural resilience to adapt effortlessly to harsh industrial environments through several key design advantages:
- Harsh Environment Adaptation: Operating reliably across a wide temperature range from -40°C to 75°C, the scanner features a robust IP68-rated protective enclosure alongside built-in high-temperature safety tools and continuous self-diagnostic functions.
- Fully Redundant Engineering: To guarantee uninterrupted data transmission and structural safety on-site, the instrument incorporates dual power supplies and dual network communication ports.
- Automatic Angle Correction: The system self-adjusts for minor installation offsets to maintain long-term, high-precision performance with minimal field maintenance.
Automated Data Streams

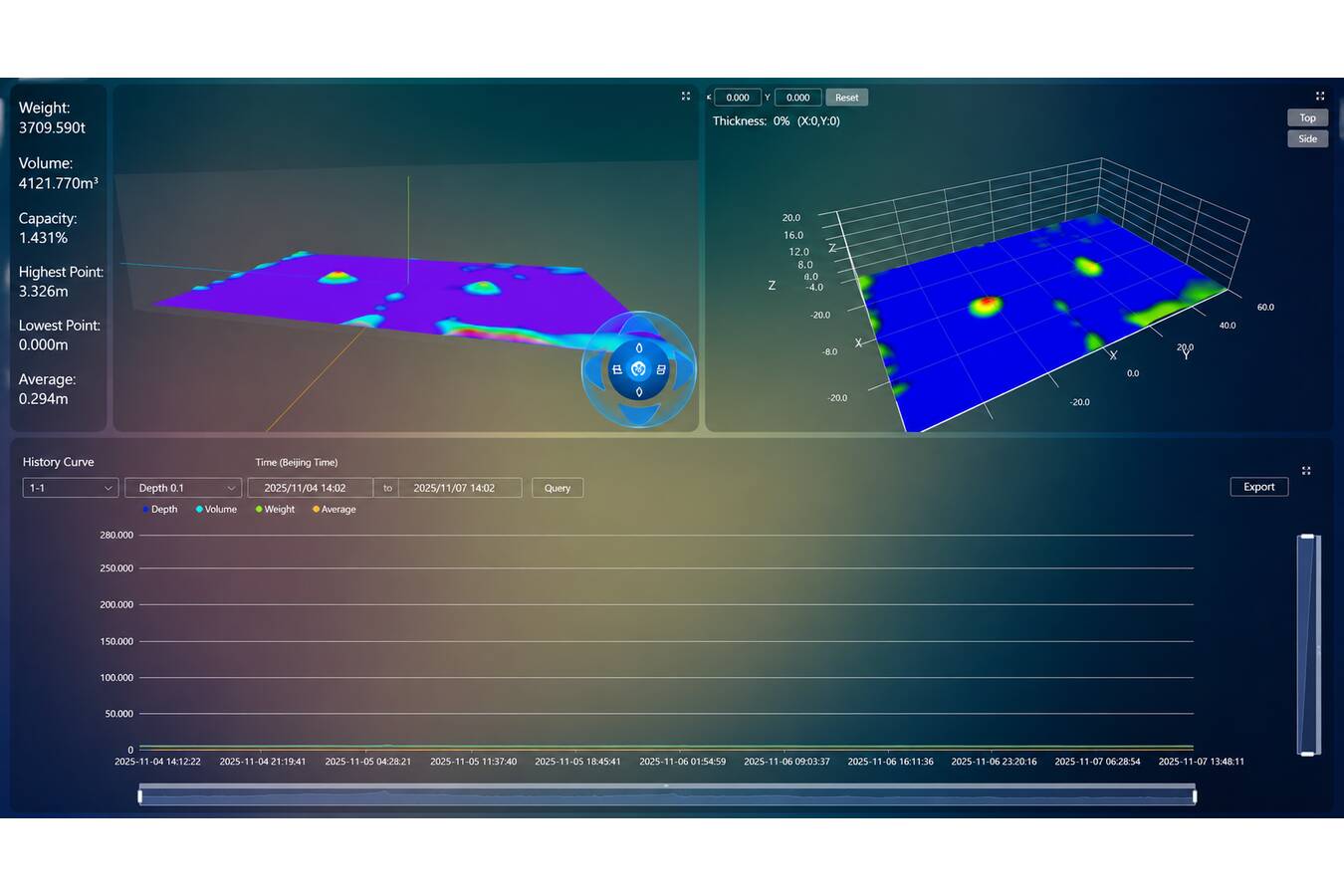

This comprehensive sensing method establishes complete silo transparency by transforming physical piles into an automated real-time 3D Volume Visualization for Smart Mining Applications. Advanced software algorithms process the dense point clouds to calculate exact volume, mass, and level parameters, eliminating manual guesswork. During a recent large-scale bulk storage and transport project, dozens of these scanners were deployed simultaneously across various raw material silos and storage yards. Operating with continuous stability, the devices successfully integrated high-precision data with the central integrated control platform. This unified stream allows logistics teams to view detailed charts from a single screen, achieving precise tracking, lower operational overhead, and complete data transparency across enterprise ERP architectures. This field-proven system drives sustainable data flows to support safe, green, and highly efficient smart factory infrastructure.
Absolute Inventory Transparency
Stop relying on fragmented estimates and let accurate data drive your facility’s operational chain. Request RETTAR product brochure to explore 3D point-cloud volume management solutions that deliver true real-time data transparency.
