Why 3D Sensing Is Becoming Essential for Smart BulkMaterial Management
Modern industrial storage facilities increasingly face strict requirements for high inventory accuracy, larger silo structures, and improved workplace safety. Traditional single-point level transmitters lead to up to 15% inventory discrepancies due to material cones and slumps. To address these limitations, 3D sensing technology offers a critical automated approach to modern bulk material handling. By replacing guesswork with real-time 3D volumetric reconstruction, this technology provides the accurate tracking and enhanced safety required for smart factory infrastructure.
Bulk Material Challenges: Blind Spots and Hidden Inventory Risks
Without reliable inventory metrics, automated data transparency between plant floors and executive decision-makers drops. This lack of clear data frequently forces operational teams to conduct hazardous manual inspections on high catwalks, demonstrating why advanced 3D sensing is becoming essential for modern operations. At a cement plant facility in Japan, the traditional silo cleaning process required maintenance personnel to physically enter the deep storage units. Workers had to inspect severe material build-up on the walls and perform manual risk assessments for potential wall-clinging hazards. By deploying an advanced 3D sensing system, the facility successfully achieved comprehensive silo transparency without putting human lives at risk. The automated data profile completely eliminated the need for manual inspection, fully meeting strict Environment, Health, and Safety (EHS) standards for Zero Confined Space Entry.
3D Radar Scanner Technology: Dust Penetration and Multi-Dimensional Scanning
Industrial facilities can mitigate these tracking blind spots by implementing advanced systems powered by the RETTAR 3DPro2300 Radar Scanner. Operating via non-contact FMCW radar technology, this scanning system emits dense microwave signals with the 80GHz frequency range to cut through heavy airborne dust. The device features an internal 360°horizontal rotation and ±90°tilt structure. This multi-dimensional mechanism moves the radar sensor across a series of predetermined angles during a single scanning cycle. By directing the narrow 1.5°beam angle across thousands of positions, the system maps the entire material topology. This precise scanning ensures thorough surface coverage even within highly volatile bulk material handling environments.
Smart Inventory Management: 3D Visualization and Enterprise Data Flows

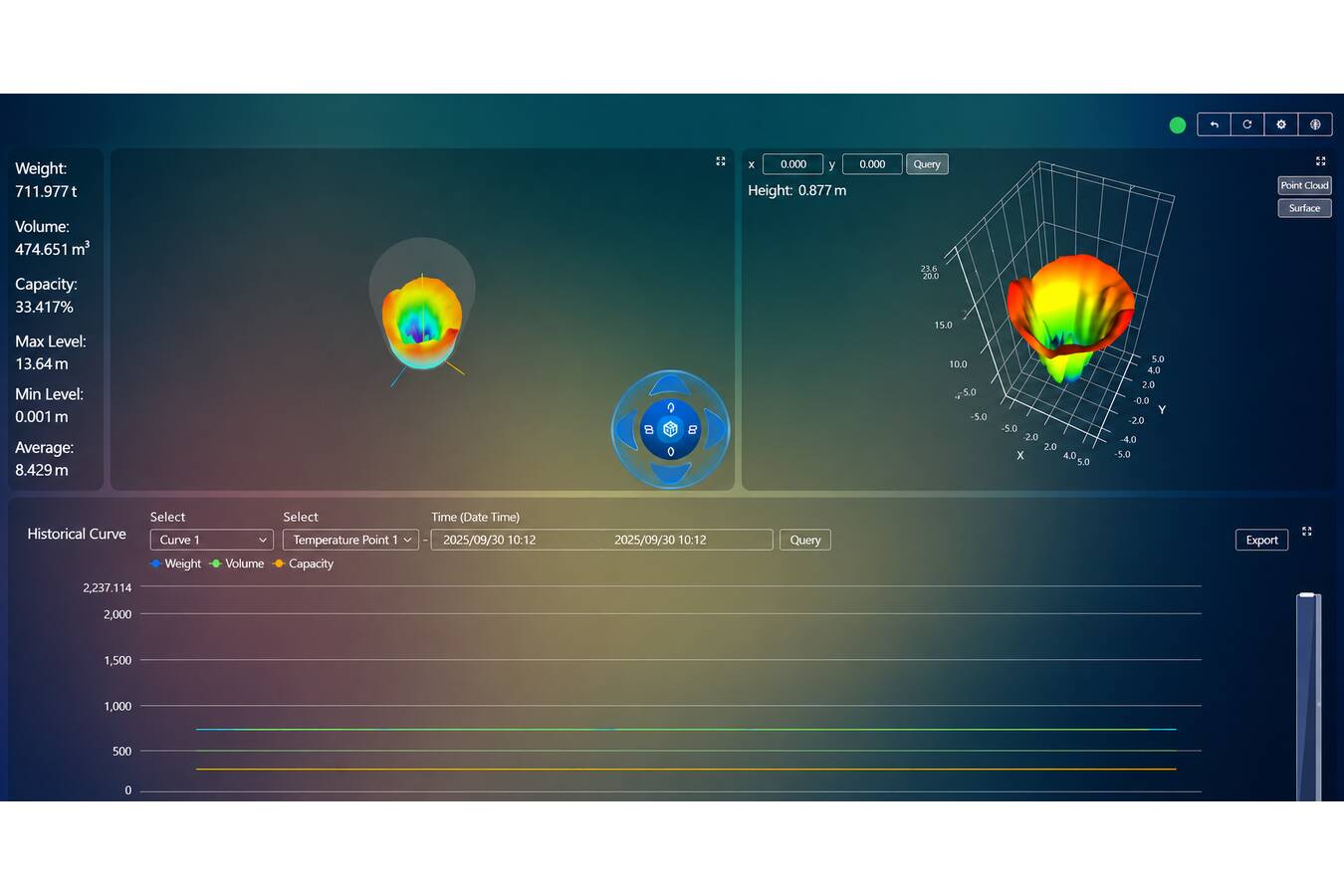

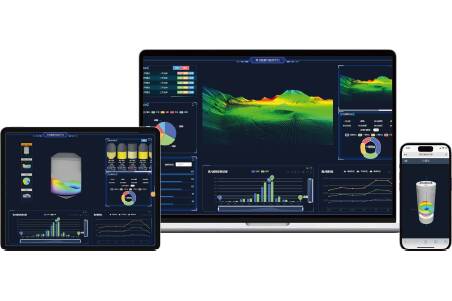

This field-proven application successfully establishes complete silo transparency by enabling real-time operational visibility. The system processes the gathered angular coordinate points and level measurements through advanced software algorithms. By integrating image processing and 3D point cloud conversion, it generates a detailed 3D volume visualization that represents the physical material shape remotely. A material analysis system calculates real-time volume and mass metrics based on this 3D volumetric reconstruction, supporting smart inventory management. This stable information streams continuously to central control rooms and allows seamless integration into enterprise ERP systems, driving data transparency across the entire organization. Built for harsh environments, the scanner features CE certification, dust explosion-proof qualifications, and robust IP68-rated protection to ensure long-term reliability. This engineering rigor is why RETTAR has been officially recognized by Control Magazine in their prestigious ’Leaders in Automation’ showcase.
Access RETTAR’s professional 3D sensing plans for bulk material handling. Click to explore how RETTAR solutions enable silo transparency and consistent data transparency within your business.
