3D Radar Scanner Optimizes Grain Inventory in Large Flour Mills
The RETTAR 3DPro2300 Radar Scanner overcomes heavy dust and irregular surfaces in flour mill silos. Using 80GHz high-frequency radar and a dual-axis servo, it maps 3D material contours to achieve up to 98% inventory tracking accuracy.
In large flour processing mills, grain silo tracking directly impacts production scheduling, cost accounting, and food safety. However, massive dimensions, irregular surfaces, and heavy dust have long restricted measurement efficiency and precision. RETTAR 3DPro2300 Radar Scanner uses radar technology to deliver an efficient, precise, and safe silo bulk material handling solution for modern flour mills.
Bulk Material Measurement Dilemma of Large Flour Mill Silos

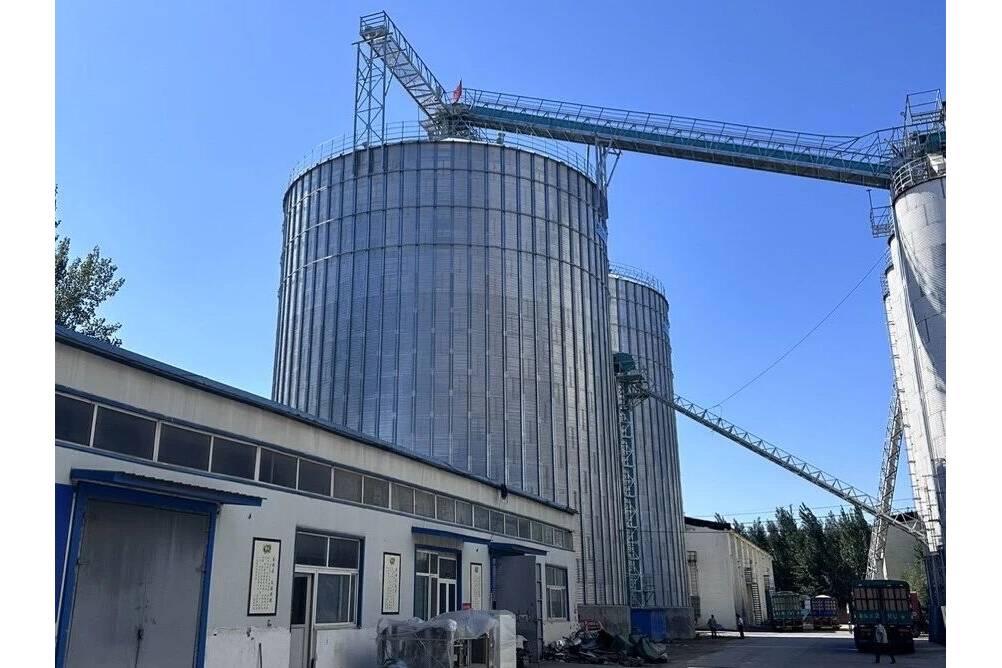

At a high-capacity flour mill, multiple large wheat storage silos serve as vital infrastructure to sustain daily output. However, the complex physical conditions inside these deep structures introduce constant inventory control challenges:
● Massive Silo Dimensions: The wide structural spans and extreme heights prevent traditional sensors from achieving comprehensive area coverage.
● Irregular Surface Contours: Wheat naturally forms unpredictable peaks and deep slopes during loading, causing massive calculation errors for traditional manual estimation.
● Heavy Environmental Dust: High-speed grain movement generates dense, airborne particle clouds that block standard optical devices, resulting in frequent system failures.
Inventory Control Upgrades via Automated Radar Technology

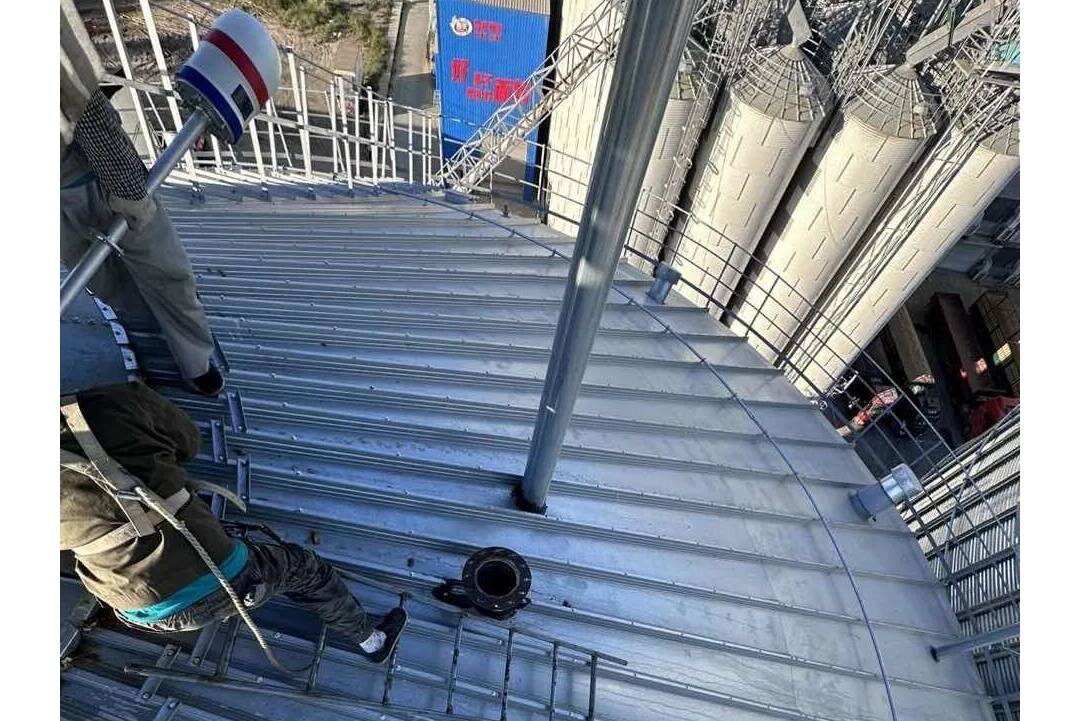

To resolve these tracking limits safely, RETTAR engineering teams tailored a single-device scanning inventory solution to achieve total volumetric coverage across the entire silo. One RETTAR 3DPro2300 Radar Scanner is mounted through a small opening at the top center of each concrete bin without altering the existing structure.
The rugged 3D radar level transmitter uses a mechanical dual-axis servo structure to run a continuous 360° horizontal sweep paired with ±90°wide vertical pitch tilt. Capturing thousands of distinct coordinate points per cycle, this automated process tracks shifting material peaks and deep discharge valleys. This non-contact approach builds an accurate view of true material contours, keeping technical crews safely on the ground.
What Core Radar Technologies Achieve Accurate Bulk Material Inventory Control?
The reliable execution of this automated inventory mapping relies on four distinct hardware and software capabilities:
● 80GHz High-Frequency Radar: The 3D radar level transmitter uses high-frequency signals to penetrate thick airborne dust, operating continuously with a distance measurement precision of up to ±2mm.
● Dual-Axis Servo Mechanism: The 3D Solids Scanner System captures up to 259,200 distinct coordinate measurements per cycle, performing dense, high-speed tracking to map irregular material contours.

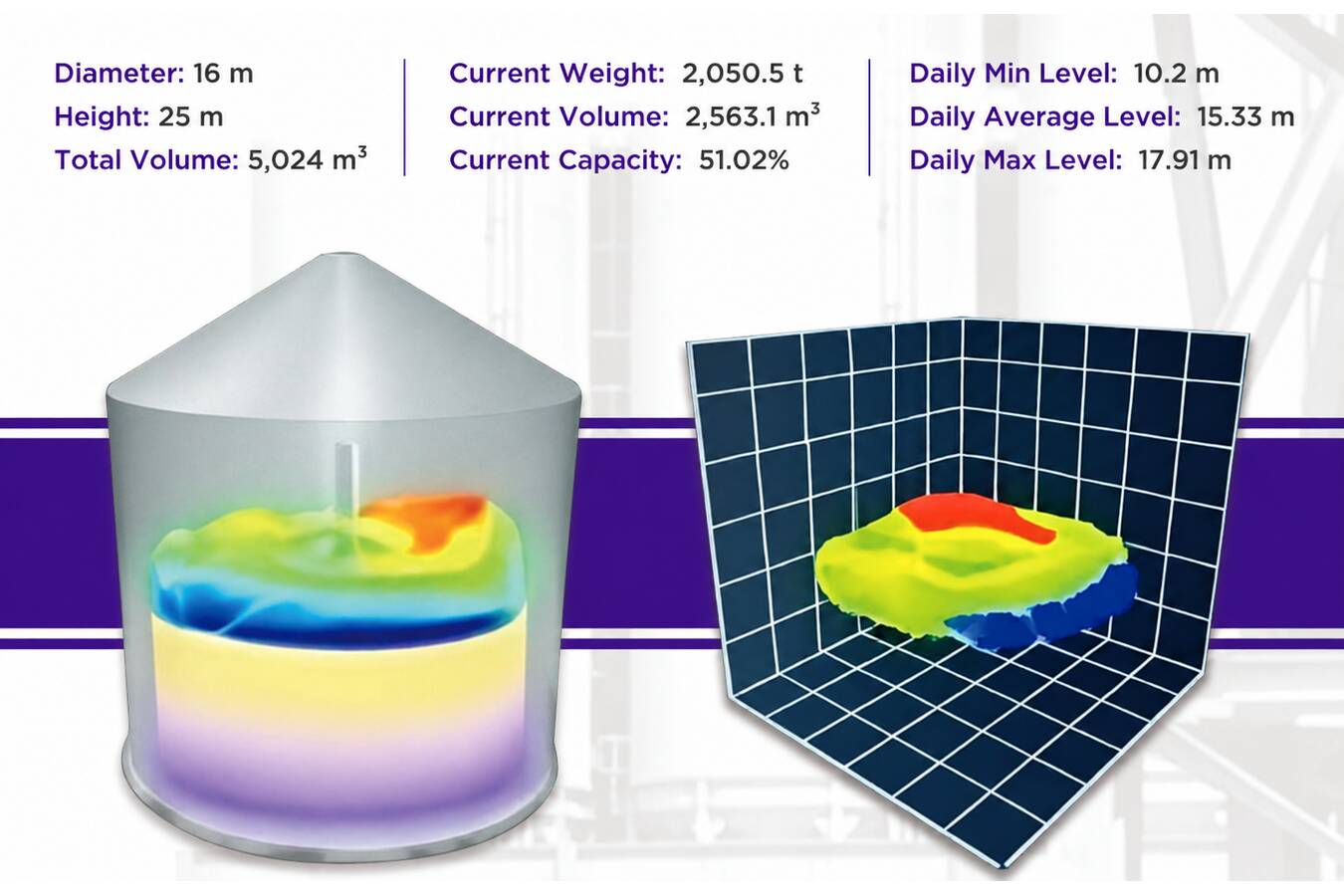

● Point-Cloud Processing Algorithms: The automated software processes massive cloud datasets rapidly to generate a 3D Volumetric Reconstruction, calculating real-time inventory mass, volume, and material levels.
● Remote Digital Connection: The device supports stable data transmission over 4G or standard Ethernet cables, transferring live inventory records into existing ERP and WMS platforms to drive enterprise data transparency.
Field-Proven Performance and Application Results
Since deploying the 3D radar scanning system, the facility has replaced traditional manual checks with automated real-time monitoring, achieving clear operational upgrades:
● Fast Inventory Cycles: The scanner completes a full volumetric calculation in a few minutes, updating stock figures rapidly to support daily flour production schedules.
● Minimized Measurement Errors: By mapping the entire uneven material topography (peaks and valleys), the system achieves up to 98% tracking accuracy, giving purchasing teams reliable data records.
● Low Maintenance Overhead: The dust-resistant design operates smoothly over long periods without face buildup, lowering routine maintenance costs in high-dust milling environments.
Bring Clear Visual Data to Your Silo Management
Every processing facility deals with unique silo shapes, material densities, and structural setups. Visit the official RETTAR platform to view our comprehensive 3D solids measurement solutions; send us a message with your specific silo dimensions to find a suitable setup for your site.
