Warex Butterfly Valve DKZ 103 Warex Butterfly Valve Series 103 are absolutely air-tight (DIN EN 12266 Leak Rate A). The housing is one-piece, and the sealing sleeve comes in two designs.

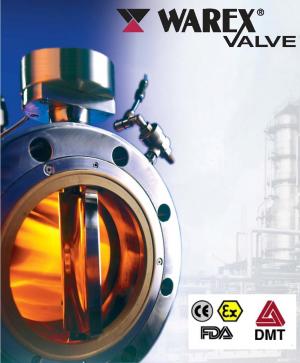

Warex Butterfly Valve DKZ 103
Warex Butterfly Valve Series 103 are absolutely air-tight (DIN EN 12266 Leak Rate A). The housing is one-piece, and the sealing sleeve comes in two designs. The Warex Butterfly Valve Series 103 is a tight-seal interposed flange Valve for flanges as per DIN EN 1092.The Valves are absolutely air-tight in line with DIN EN 12266 Leak Rate A. The housing is one-piece, and the sealing sleeve comes in two designs – replaceable or fix vulcanized. The ShutOff Valve is suitable for solid, liquid and gaseous media and the temperature range is from – 40 to + 200°C. This series is also available as a throttle Valve (metal seal closure) for hot gases with a temperature over 200°C. Features * maintenance-free design * largely self-supporting housing * centrally-positioned valve disk designed to promote a good flow, with special shaft connection, giving an absolute seal in both directions of flow * seals with lateral overlap and an additional sealing rim give a perfect seal between the flanges without any extra flange seals * Also available in Ex version for the application in zone 0/20 incl. EC-type examination * The shaft
17.02.2021  |  848x  |  Product description  |
Tecofi Bi-directional Knife gate valve New in our productrange

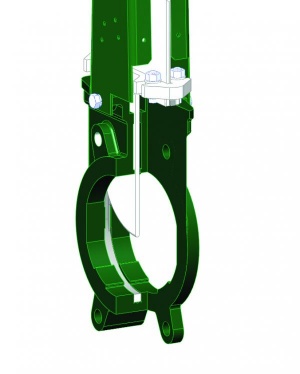

Tecofi Bi-directional Knife gate valve
New in our productrange For several years now, Bijl & de Jong is the distributor for Tecofi in the Netherlands. Tecofi is a French manufacturer of butterfly valves, knife gate valves, gate valves, filters and ball check valves. Since this year they also supply the bidirectional knife gate valve. The cast iron bidirectional valve has a stainless steel knife that seals on both sides of the knife and can be supplied from DN50 to DN400. The valves are mounted between PN10 flanges and can withstand a maximum working pressure of 10 to 4 bars, depending on the diameter. Temperature ranges ut to +180° Celsius. The valves can be equipped with a handwheel with non-rising stem, as well as with an electric or pneumatic actuator. Knife gate valves are widely used in water treatment, sewage and waste water plants, pulp production, chemical industry, pneumatic transport of granules, powders, crystallizing and sludge products.
03.07.2014  |  5536x  |  Product news  |
EBRO Vibration Valve Type ViDos Product Range for Materials Handling enhanced

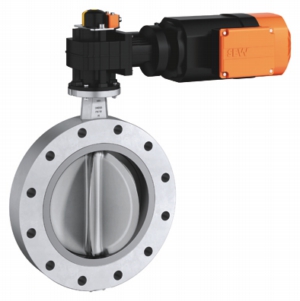

EBRO Vibration Valve Type ViDos
Product Range for Materials Handling enhanced When a valve which is used to shut off the discharge volume of a medium with challenging flow characteristics is operated infrequently, a bridging effect often results. This initially tends to occur between valve disc and liner, but often progresses so far that the material flow is blocked through to the silo. The valve disc and liner are then exposed to disproportionately high frictional forces when the valve opens. Time-consuming countermeasures can be avoided in advance in many cases by using a ViDos valve: a vibrator mounted on the lower shaft causes a light linear vibration of the valve disc. The frequency of the vibration is controlled via the air pressure. The vibrations keep the medium in motion and effectively reduce bridging. Substances that are already compressed or have adhered to the disc are loosened and detached. A mounted positioner enables different coarse/fine dosing positions to be reached, so that the medium can still be discharged with high precision
30.04.2014  |  10305x  |  Product news  |
Inflatable Seat INFLAS Resilient seated butterfly valve type Z 011-A with inflatable liner.

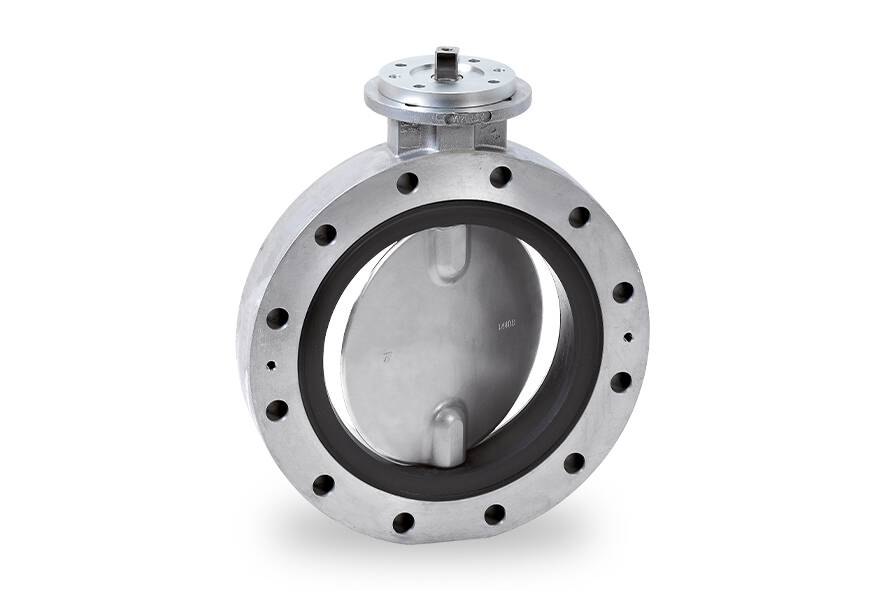

Inflatable Seat INFLAS
Resilient seated butterfly valve type Z 011-A with inflatable liner. TECHNICAL DATA The sealing system `INFLAS` was developed for highly abrasive or very sensitive media. It is available for all resilient seated EBRO butterfly valves with interchangeable seat. In closed position, the liner will be pressed against the disc using low air pressure.The media is sealed off securely. Before opening the disc, the chamber is vented behind the liner. This creates an air gap between the liner and the disc, hence low torque is required to open the valve. GENERAL APPLICATIONS - Bulk goods - Food industry - Pneumatic conveying systems - Weighing technology ADVANTAGES Extremely low wear of parts even in contact with abrasive media Low sized actuators due to reduced torques Low grinding/-clamping of sensitive media between disc and liner
11.04.2012  |  8384x  |  Product news  |
Impeller Valve FS-M Safe and uniform discharge of bulk solids
Impeller Valve FS-M
Safe and uniform discharge of bulk solids EBRO ARMATUREN Gebr. Bröer GmbH (Hagen, Germany) will firstly present their modified impeller valve FS-M, during the POWTECH 2011 exhibition in Nuremberg. Rotating impeller valves aer used in bulk solid processes in order to ensure a uniform discharge of materials, e.g. from silos, bunkers or from weighing containers. Due to the frequency-controlled rotational speed the impeller valves can also be used as a dosing unit, working volumetrically and preventing overfilling of downstream processes effectively. Screw or oscillating conveyors can therefore be uniformly fed, without clogging. For quick floating materials, a pair of blades interrups the material flow in short consecutive intervals, hence allowing a safe and effective discharge of the material. The deploying of the impeller valves into pneumatic feed pipes homogenies and aerates the product flow. The fitting dimensions comply with the face-to-face diameter of butterfly valves with according overall height.
22.08.2011  |  8015x  |  Product news  |
Warex Valves ATEX & DMT butterfly valves Conform ATEX zone 20  & DMT klasse St1, St2 en St3

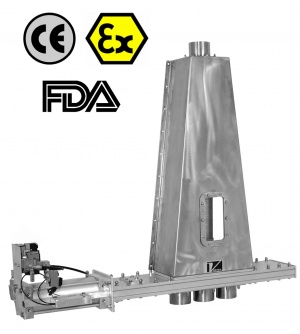

Warex Valves ATEX & DMT butterfly valves
Conform ATEX zone 20 & DMT klasse St1, St2 en St3 The butterfly valves in the standard series DKZ 103 GS DN50 - 500 are flameproof against explosions of combustible gases, where their explosion behaviour does not exceed that of propane gas explosions, and flameproof against organic dusts in dust explosion classes St1 and St2, and metallic dusts in dust explosion class St3, where their explosion behaviour does not exceed that of aluminium dust explosions with a KSt value of 1000 bar x m/sec. The series DKZ 103 GS-ST3 DN50 - 200 was specially developed for metal dusts that do not exceed the explosion behaviour of aluminium dusts with a KSt value of up to 1000 bar x m/sec. Further application limits are characterised here by an explosion pressure shock resistance up to 14 bar and an ambient or product temperature of -20° to +150° C, dependent on the elastomers and components used. The series DKZ 103 GS-0.3-200°C DN50 to DN250 was designed for an ambient or product temperature of -20 to +200°C. The butterfly
11.11.2010  |  1134x  |  Product news  |
2- and 3way flex tube diverter Vortex Valves Flex tube diverter
2- and 3way flex tube diverter
Vortex Valves Flex tube diverter The patented Vortex® Flex Tube DiverterTM is specifically engineered to handle dry bulk solids in vacuum or dilute phase pneumatic conveying systems with pressures up to 15 PSIG (1 bar). The unique design eliminates material cross contamination by a positive seal across the closed port and the elimination of internal ledges and pockets where material can lodge and remain trapped. The 3-Way Flex Tube DiverterTM is designed with seal plates that are shielded from blast abrasion allowing the diverter to positively seal air and material over its service life. Ordinary flapper-style diverter valves rely on soft elastomer seals, which are exposed to blast abrasion causing them to erode and tear away during service. Rotating tunnel style diverters typically have seals that are exposed to excessive wear upon actuation making them prone to seizing and binding due to material build-up between the housing. The Vortex® 3-Way Flex Tube DiverterTM has net-running “live
25.04.2008  |  1402x  |  Product news  |
Vortex  Quick Clean Orifice Gate
Vortex Quick Clean Orifice Gate
The Vortex Quick Clean Orifice Gate valve is ideal for industries handling dry products requiring a valve that needs to be cleaned often (pigments, sticky materials, dry foods, dry dairy products, and pharmaceuticals). It is an excellent choice for applications requiring daily sanitation of equipment to eliminate potential growth of bacteria and micro organisms. Other slide gate valves cannot be readily disassembled and cleaned. They allow cross-contamination, material build up and spoilage. The Vortex Quick Clean Orifice Gate valve features an all-stainless-steel weather-resistant design offering improved sealing performance, higher durability, easier maintenance and utilizes ferrule-type fittings for quick removal and press lock latches for quick disassembly and cleaning. The patent Vortex Quick Clean Orifice Gate valve is versatile and well suited for many dry-material-handling applications. It can be applied to control, shut off, or meter the flow of nonabrasive
01.11.2007  |  1343x  |  Product news  |
