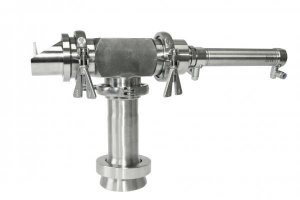

Simple device for sampling powdery or granular bulk materials from pipelines, containers, chutes, etc. Material: Stainless steel 1.4301, POM (food-safe) including bottle connection for laboratory bottles. The ”all-rounder”: The sampler for almost all bulk materials up to a particle size of 8 mm. ”Keep It Simple Stupid” applied to the development, design and selection of materials. For carefree operation, simple maintenance and a favourable ”total cost of ownership”. Drive: Pneumatic or manual Sample volume: approx. 50ml per actuation. Material: Stainless steel 1.4301, POM (food-safe) including bottle connection for laboratory bottles GL45 and weld-on nozzle DN60

For applications with critical (abrasive) bulk solids, we have developed the new VacFlow, which has no mechanical components. The VacFlow system enables the sampling of bulk materials (powder or granules) from containers and silos without mechanical components and moving parts. Pressureless storage containers above bagging plants and sending vessels are typical plant components in which the VacFlow can be used. The resting product is sucked in and conveyed by a blast of air via a cyclone into a sample bottle. The VacFlow is particularly suitable for bulk materials that are abrasive and whenever other mechanical systems do not work. It has no mechanical moving parts that could block and is characterised by its uncomplicated installation and reliable operation.

The JetSampler is a mobile device for sampling bulk materials in BigBags, containers, Octabins and other containers. With the device you get representative cross-sectional samples in seconds. Features * Fast and representative sampling of many containers in a short time. * Gentle sampling no mechanical stress on the bulk material, no heating. * Effortless and force-saving penetration into the bulk material even with highly compacted products and containers. * Representative cross-section samples from top to bottom. * Can be used horizontally or vertically. * Modular design, various lance and hose lengths, * Easily exchangeable sample container

WEMO technique supplies a complete package of equipment and the know-how to obtain representative samples - automatically or otherwise - in order to guarantee the quality of production processes. Based on its decades of experience with worldwide projects in the feed, food and chemical industry, WEMO-techniek is in a position to recommend the optimum solution for every sampling challenge. Whether it is a fine powder or coarse grain, a raw material or end product, one or more positions; the systems of WEMO-techniek ensure representative samples. The programme varies from manual or air-operated sampling at one position to fully automated sampling at several positions, including transport, collection, packaging and labelling. Sampler With a range of standard samplers, most customers can be served directly. For a special application, it is possible to adapt a standard sampler or design a customised solution from a blank sheet. Automation In easily accessible places, a sampler can be operated manually, whereby the material is collected via a hand slide in a bag or container, or in a screwed-on sample container. It is a small step to automate sampling from this

The new autosampler by Bettersize fully automatically dispenses up to 60 samples, whether in the form of a powder or as a pre-dispersed liquid dispersion. 3P Instruments, with over 30 years of expertise in particle characterization, now offers all customers a time-saving way to sample for particle size determination (wet or dry) using laser diffraction. The autosampler can be connected to Bettersizer S3 series models and Bettersizer 2600 and dispenses up to 60 samples. The included barcode printer ensures that results are stored to the appropriate, correct sample. The sampler is cleaned ultrasonically to prevent contamination.

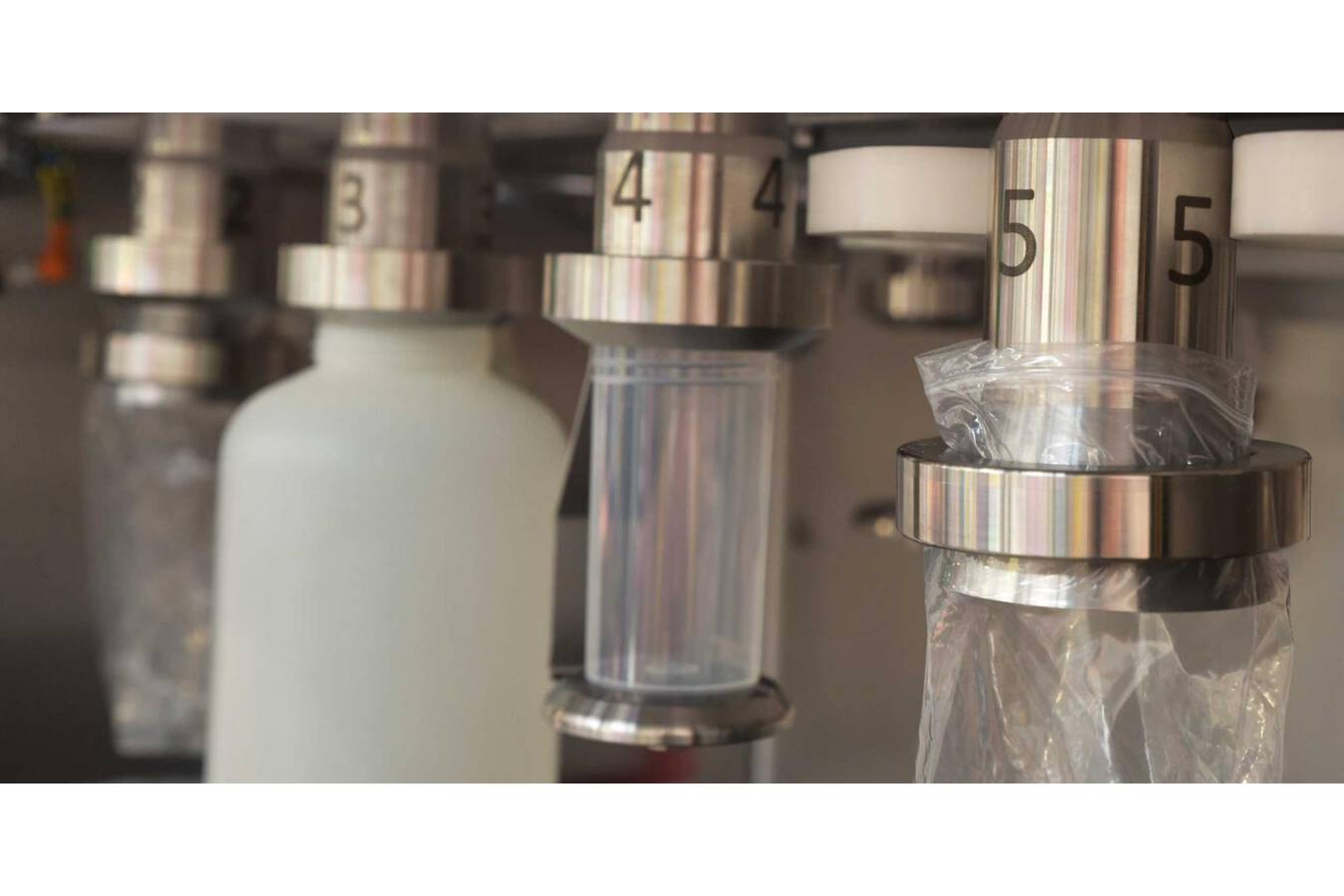

The Multisize Sample Carousel by Dinnissen makes it possible to collect samples in different sizes or frequencies in one automated sampling process. More output per hour and fewer operators needed. The Multisize Sample Carousel makes it possible to collect different sample sizes in one automated sampling process. Producers can now determine the order and frequency per sample size. Samples for various purposes (start sample, chemical sample, bacteriological sample, hour sample, batch sample) can now be collected in series fully automated. With exactly the right amount of product per sample. Advantages * More output per hour and fewer operators needed. * Less error-prone and less product waste * Automatic sampling of different sample sizes * Possible to determine your own frequency, order, and sample size Downtime reduced with the Multisize Sample Carousel Every second that our customers’ production lines standstill is one too many. Together with our customers, we innovate production processes to maximize output and minimize downtime. Recently, a valued customer challenged us to reduce downtime per hour to a maximum of five minutes. In the sampling

Consistent and accurate sampling increases value Dinnissen Process Technology has developed a completely new automatic sampling system specifically for companies in the food industry that want to organise the process of taking samples efficiently, accurately and reliably. The system complies with the current criteria of the EHEDG (European Hygienic Engineering & Design Group) and can be used as an automatic sampling system for incoming, in-process or outgoing product flows. Companies in the food industry both want and have to comply with increasingly strict requirements in terms of food safety and quality. Microbiological or quality samples of incoming ingredients, products in preparation and outgoing products are therefore fundamental to the process. The added value of the samples also increases if they can be taken consistently and accurately. This need has prompted Dinnissen Process Technology to develop an automatic sampling system, which complies with all these requirements. The system can be used in continuous

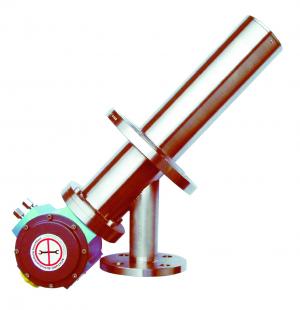

Rotating Pipe Powder Sampler Sampling is done with a single rotating movement of max. 120°. In a fixed guide tube rotates a high polished internal tube. During sampling the inlets of the two pipes lay on top of each other. The sample freely drops out by gravity. The whole way of discharge the powder keeps moving on nad the product will protected from mechanical stress and grounding. An additional advantage is that the sampler has large free cross-sections for discharge. The quantity of sample collected can be varied as a function of the speed of the rotating movement. The system can automated for representative proportional sampling for a long period of time. The process connections and the construction materials will designed according to customer wishes.

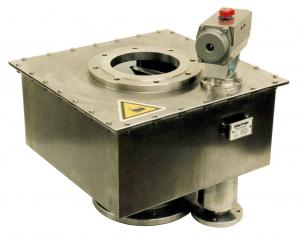

powder sampler If samples for the analysis of cornsizedistribution are required, it is not enough to take a controlled section from the solid stream. In order to get a convincing evaluation of the overall product, we recommend to capture the complete product stream and to take a representative cross cut. Our cross cut sampler for verticle gravity chutes is well suited for this type of sample taking. Increments of powder or lumps of solids are taken out and delivered by gravity to a sample bottle or fall into a chute. When activated a cutter pivots through the full product stream, sweeping 90° arc, collecting a true cross-section sample. The cutter inlet is shaped so that all particles from any part of the cross-section have the same probability of being sampled independent of speed of movement. The collected sample quantity can be varied in proportion to the speed of the movement. In order to take samples proportionally over a longer period of time the cross-cut sampler can also be fully automated.
