Latest update: 13.04.2022
Sinfimasa
TEL: +34 973 550 092
Sinfines y maquinaria S.A.
Carrer del Tint, 25
ES-25210   Guissona, Lleida
Spain
Contact
+34 973 980 112
Mr. Pablo Garcia
Export Manager
Website
sinfimasa.com
Company video

Experience and Commitment

The main business of Sinfines y Maquinaria S.A. (Sinfimasa) is to understand the customer and design and manufacture conveyors according to project requirements and the specifications of the solid material to be handled.

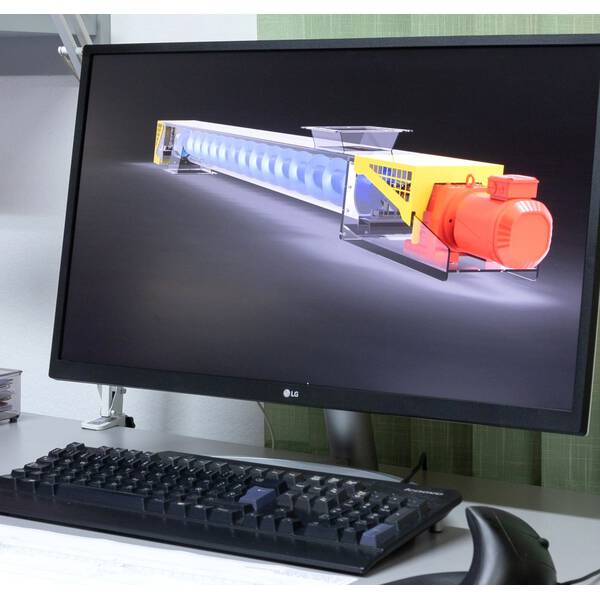

At our facilities in Guissona (Spain), we have our own engineering department with over 35 years’ experience, where we design machines that meet our customers’ technical specifications and make our commitment to their engineering project. We offer solutions for conveying and lifting bulk solids with uncompromising quality and precision, and we ensure equipment reliability in every situation in the processing plant.

Safe, Robust, Reliable

In our production plant we manufacture products with all types of finishes as required: pickled and passivated, electro-polished, lacquered, sandblasted and food-grade, etc. We work with different materials such as carbon steel, stainless steel and anti-wear steel. We use high quality and universally available components such as SEW gearmotors or SKF bearings. Our suppliers are also key to our success and we make a commitment to them.

We have a test bench where, based on product samples from our customers, we research the best solution for the requirements of each project. We are committed to our customers and engineering companies to offer machines with guaranteed reliability.

Sinfimasa has welding procedures and welders approved according to ASME Section IX (QW-484).

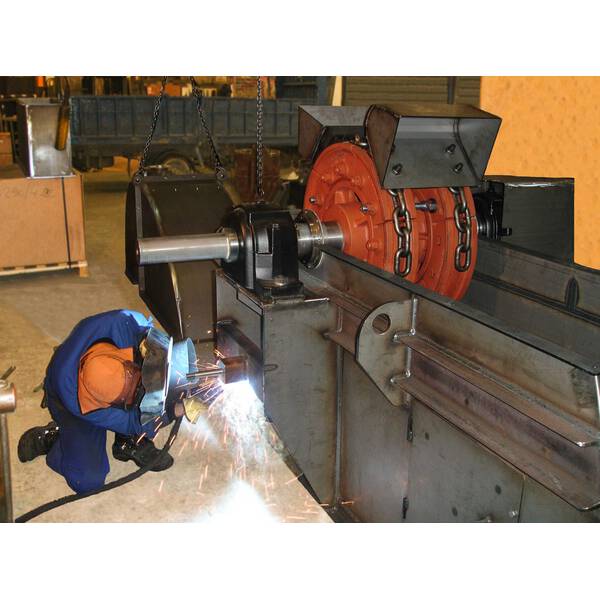

We use an automated welding system to ensure that the entire length of the conveyors are welded evenly and are free from voids.
At Sinfimasa we are rigorous and demanding, with numerous references in several countries on all five continents as our guarantee. Please ask us for more information as you require.

Consult us about your project on no obligation. We will make you a reliable technical proposal that is 100% adapted to your requirements.
Meet us at
Customized Conveyors Systems
Products, services
 Screw conveyors,  Bucket elevators,  Chain conveyors,
Show more
Products, services

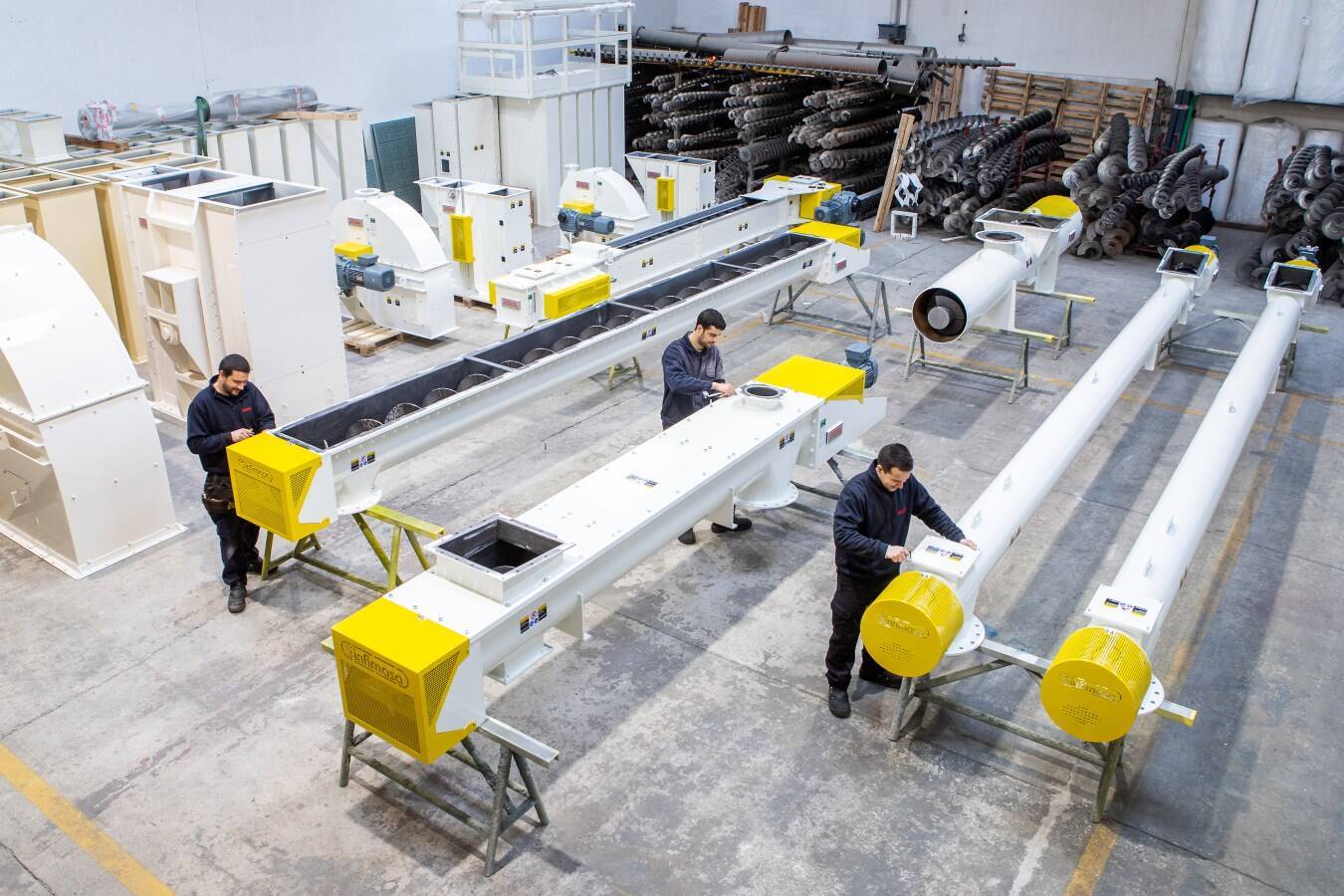

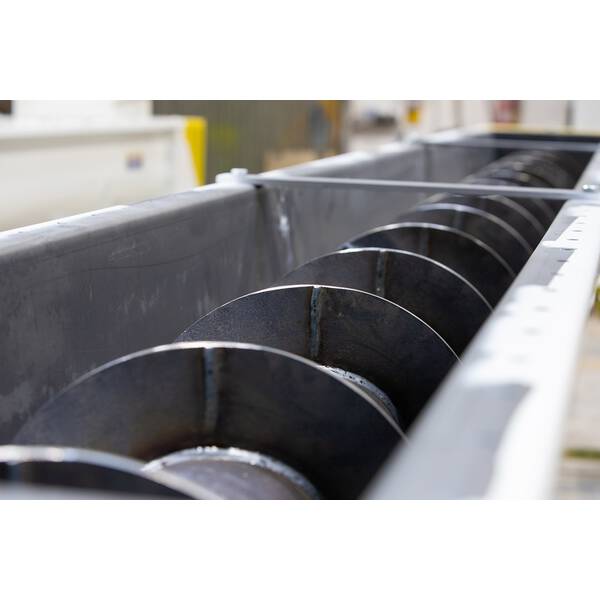

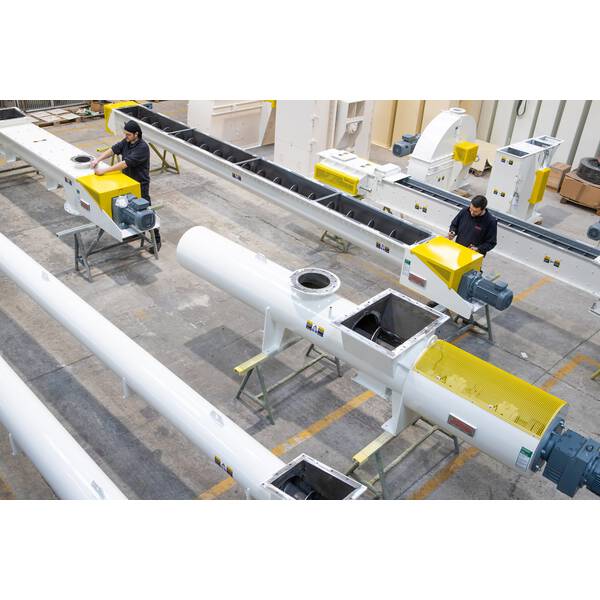

 Screw conveyors - Screw conveyors (Archimedes screws), augers, are specifically designed for each project; heavy-duty build, reliable.

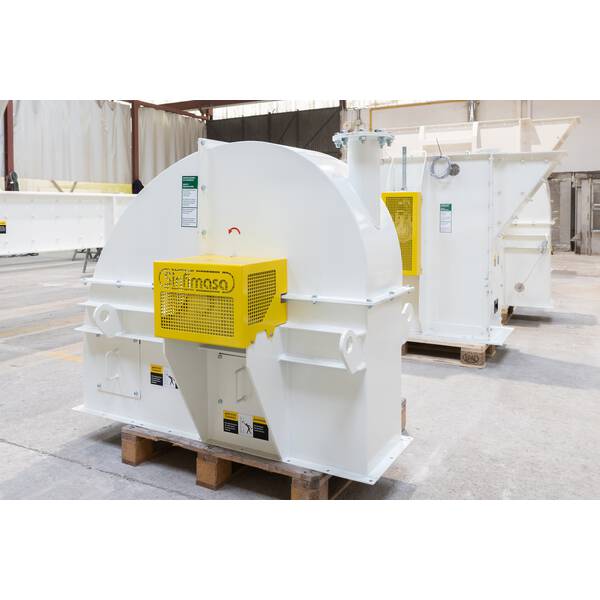

 Bucket elevators - Industrial bucket elevators for productions of up to 500 tonnes per hour.

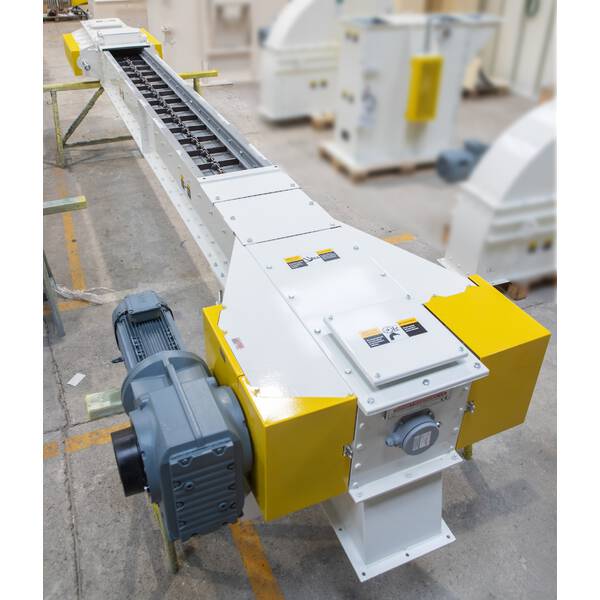

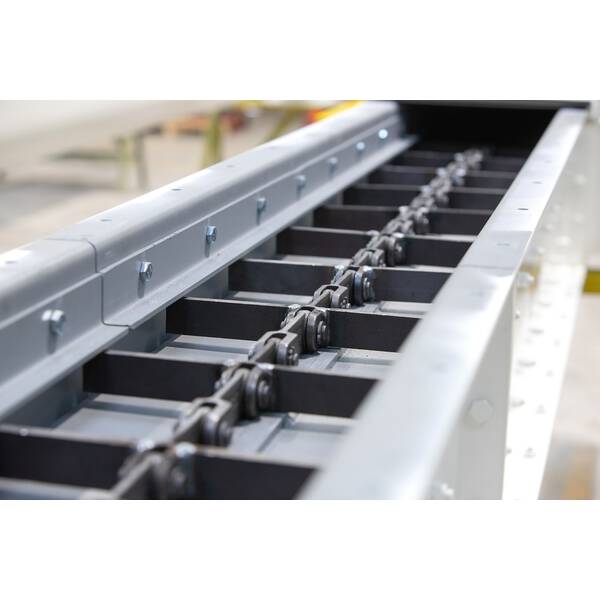

 Chain conveyors - Chain conveyors (aka Redlers) for the high-performance transport of bulk solids over long distances. Reliable and safe.
Categories
Conveyors - Chain conveyors
Conveyors - Elevators
Conveyors - Screw conveyors >>

Posts

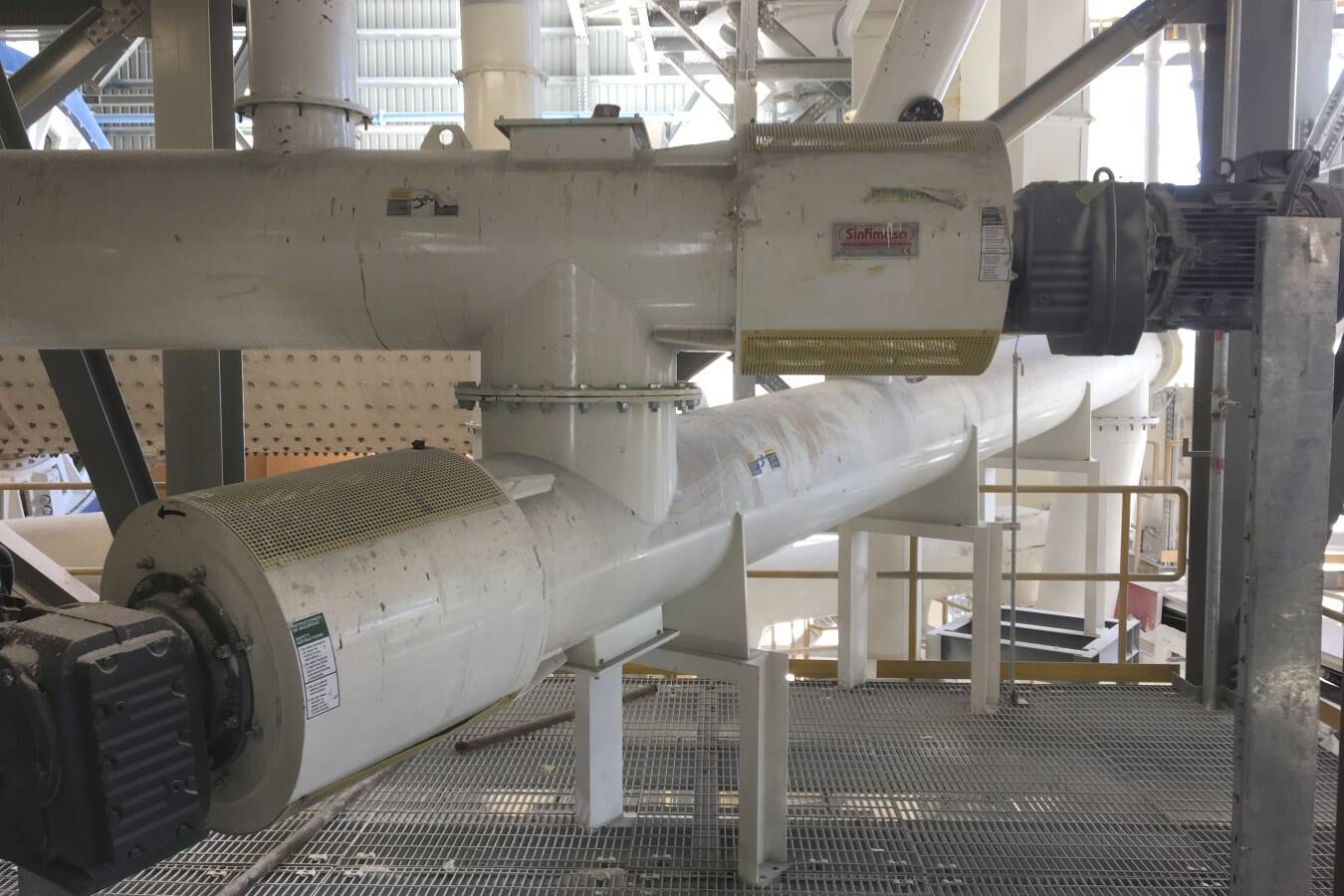

Sinfimasa supplies several screws for sugar in ATEX design
Sinfimasa supplies several screws for sugar in ATEX design

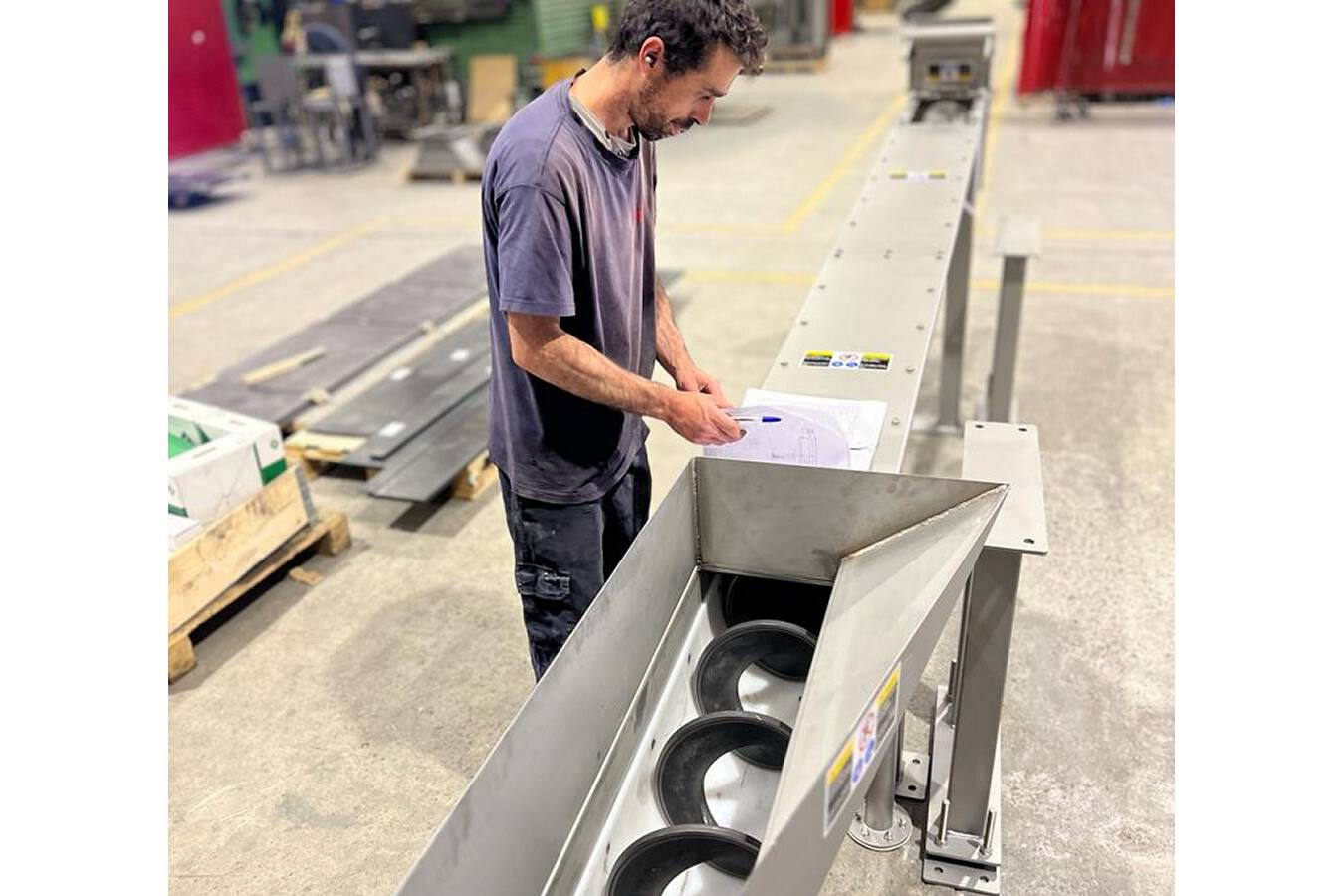

A major manufacturer of soft drinks, both sweetened and light and zero, required several screw conveyors for conveying sugar. The challenge in this case was that the screws would be located in an ATEX 22 (3D) zone and had to have a food-grade finish according to FDA regulations. The project also included several extraction screws for unloading silos and big-bags, and conveyor screws for transport with throughputs ranging from 9 to 36 tons per hour. Some of these screw conveyors would be mounted under inclinations of up to 35º. The design of the screws therefore had to take into account the function of each conveyor. The pitch, power and speed of the drives were calculated specifically for each screw. Since the sugar was very fine, a mechanical air sealing system was chosen to close and seal the conveyors. In addition, hygienic production criteria were considered in the design to reduce or eliminate the risk of the screw conveyor being a source of contamination
27.07.2022  |  164x  |  Product news  |

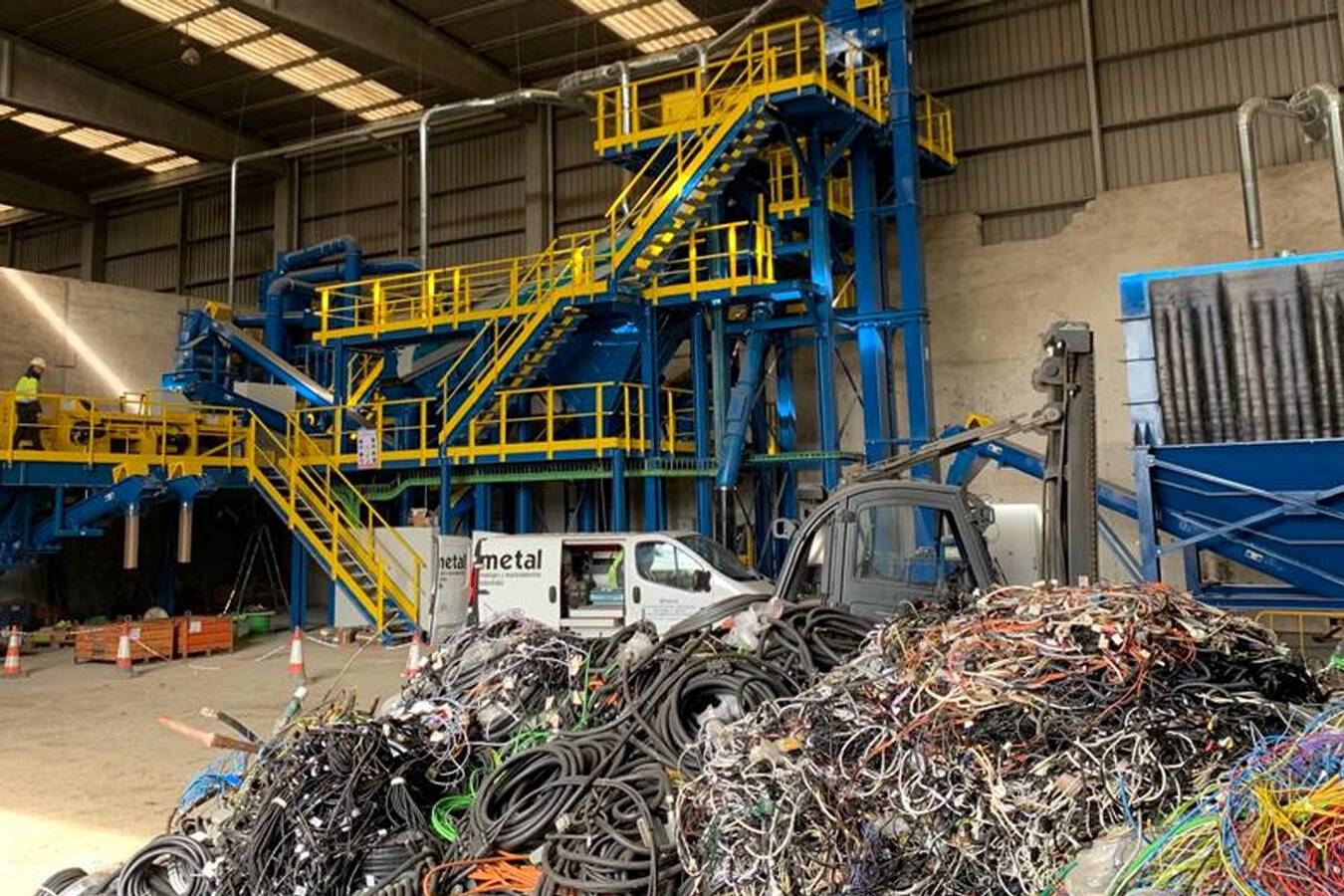

Auger screws and bucket elevators in an fluff waste recycling line Sinfimasa designed a double auger with screw conveyors and a bucket elevator for a difficult material, consisting of very different fractions.
Auger screws and bucket elevators in an fluff waste recycling line

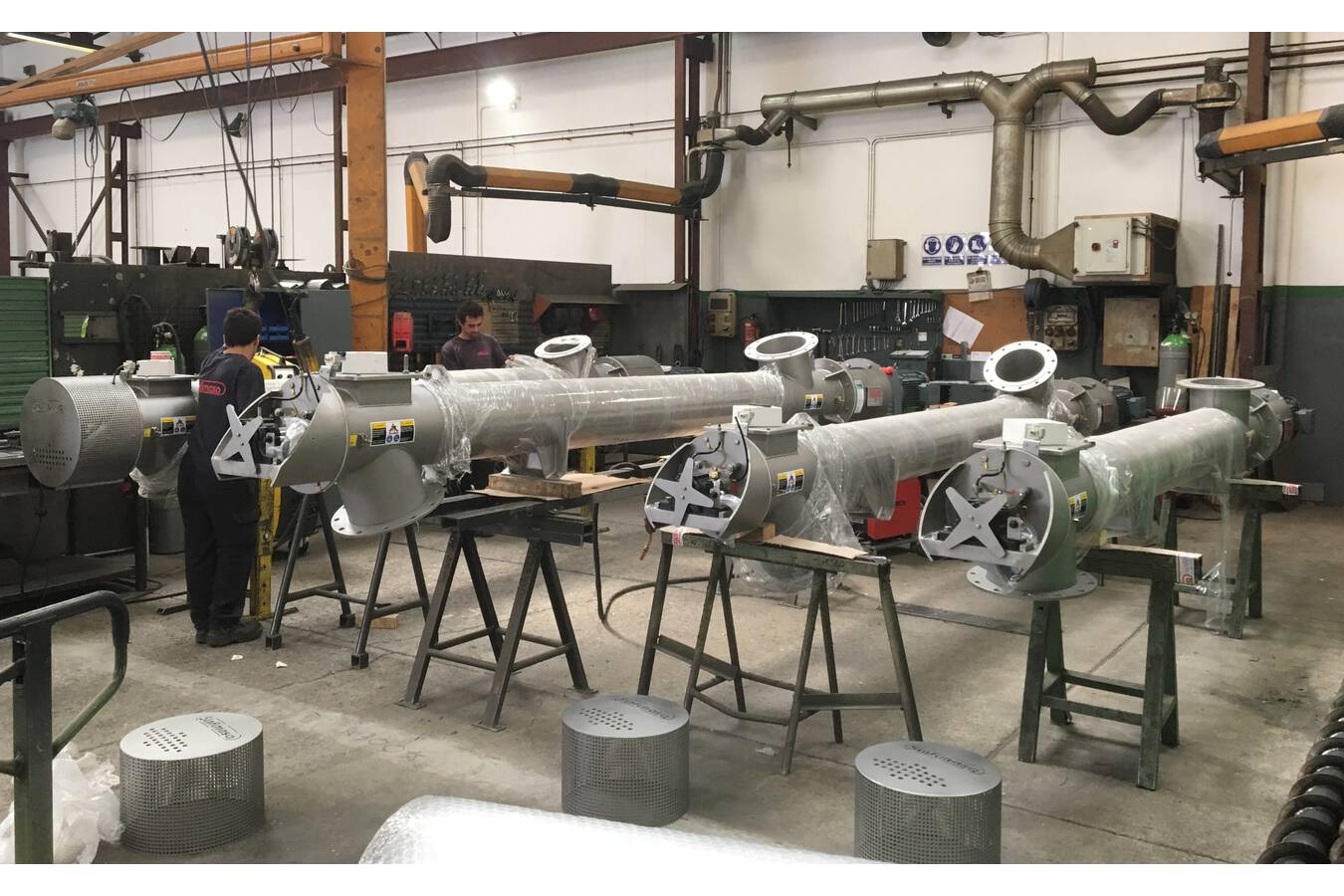

Sinfimasa designed a double auger with screw conveyors and a bucket elevator for a difficult material, consisting of very different fractions. Heterogenous material On this occasion, our client is a waste treatment plant that needed to transport fine particles from a shredding machine. The bulk material to be transported was very heterogenous: it consisted of 60% rubber and plastics, 15% glass, soil and minerals, 10% textiles and wood, 10% paints and oxides, and 5% metals. The material flow was 7 tonnes per hour, with a grain size of 0 to 20 mm, a density of 600 kg/m3, and a moisture content of 10 to 15%. Closed screw conveyors A conveyor belt was difficult to use, as spillage of material would cause an environmental problem. The solution was to design a system of closed screw conveyors that prevent the spillage of product. In addition, it also avoids manpower in the route and possible accidents with rollers and drums of a conveyor belt. Robust and maintenance friendly To ensure efficient extraction from the hopper that stores the material to be processed and to prevent product accumulation, Sinfimasa
08.06.2022  |  372x  |  Product news  |
Hygienic bucket elevator for salt for hygienic cleaning  SINFIMASA has manufactured two 316L stainless steel bucket elevators for a large mining company according to the principles of hygienic design.
Hygienic bucket elevator for salt for hygienic cleaning
SINFIMASA has manufactured two 316L stainless steel bucket elevators for a large mining company according to the principles of hygienic design. Common salt (NaCl) is considered a neutral powder and is used for dry cleaning of hygienically designed equipment and installations. The handling and treatment of this salt requires equipment that is equally hygienically designed to prevent contamination during the cleaning process. In addition, the characteristics of the product - highly corrosive and hygroscopic - must be taken into account. When designing an elevator for handling this salt, a number of specifications must be taken into account to reduce or eliminate the risk of the conveyor being a direct or indirect source of contamination. This is achieved by ensuring that the elevator can be easily cleaned, inspected and maintained, and by preventing the accumulation of dirt in the elevator. All materials that come into contact with the salt must be stable and inert. Since it concerns a belt elevator, the choice of belt must comply with FDA regulations, as must the rubber of the drive pulley, pulley blocks,
21.04.2022  |  510x  |  Product news  |

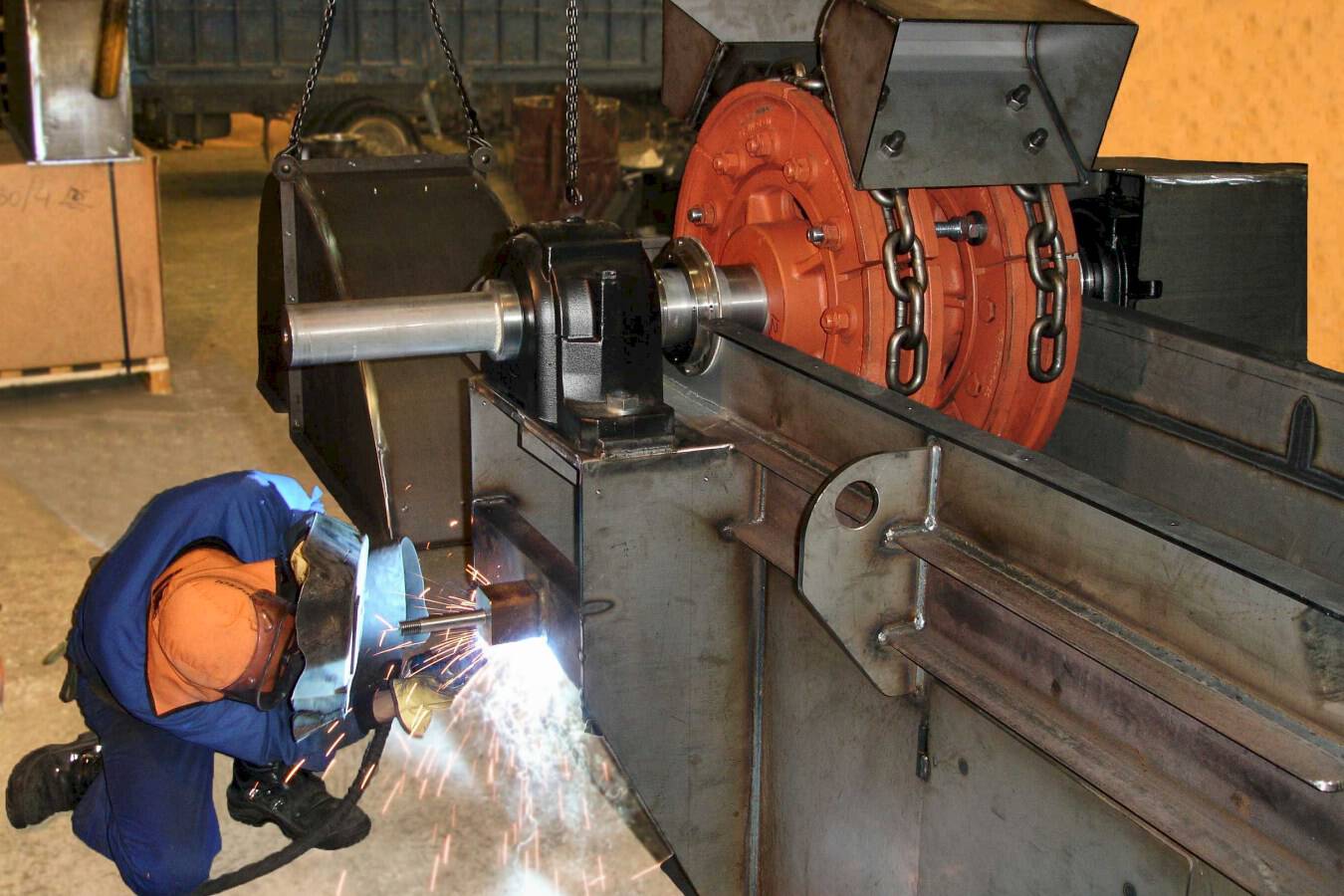

Wear and temperature resistant chain elevator for foundry sand Sinfimasa designs and manufactures tailor-made elevators, such as this case: a robust and wear-resistant elavator for temperatures up to 500ºC
Wear and temperature resistant chain elevator for foundry sand
Sinfimasa designs and manufactures tailor-made elevators, such as this case: a robust and wear-resistant elavator for temperatures up to 500ºC Elevator for foundry sand Sinfimasa designs and manufactures tailor-made elevators. Each elevator is individually adapted to the specific project. We want to share publicly how we solve the problems posed by the market. Our customer is an important foundry that needed to recover the sand used in its manufacturing process in order to reuse it for the filling of its moulds. Wear and temperature resistant The difficulties in this project are that this type of sand is very abrasive and that the working temperature at the inlet of the elevator is 200ºC with peaks of up to 500ºC. Therefore, we designed a chain bucket elevator. We used a round steel chain, as the high abrasiveness of the sand would cause unacceptable wear on the bushings. The chain alloy contains a high percentage of manganese, which makes it wear resistant. The buckets are also reinforced with anti-wear steel. Robust construction The coating used for both primer and finish is anti-caloric,
18.03.2022  |  626x  |  Product news  |
Screw feeder with ATEX certification and FDA approval Sinfimasa presents a solution for dosing very fine, explosive bulk solids, in this case active ingredients of medicines.
Screw feeder with ATEX certification and FDA approval

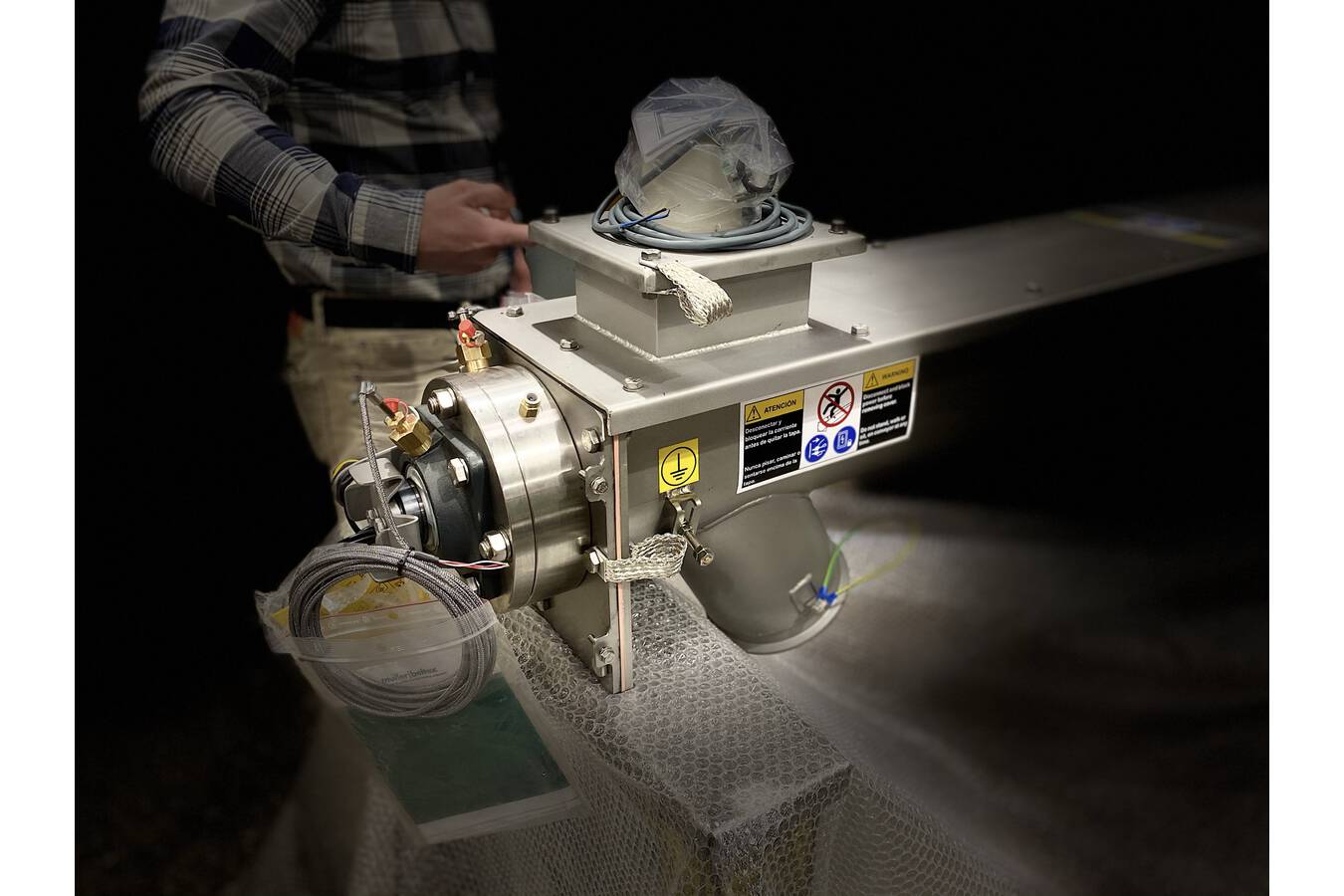

Sinfimasa presents a solution for dosing very fine, explosive bulk solids, in this case active ingredients of medicines. In a practical situation, dosing of 300 litres per hour of micronised bulk product (active ingredients of medicines) was required. As the substance was explosive, a machine with ATEX GAS 1 certification was provided. Sinfimasa designed a stainless steel 316 tube screw feeder, suitable for ATEX zone 1 (2G). A screw of 70 mm and a tube of 80 mm were chosen, so that there is a large clearance. The screw is driven by a 0.75 kW ATEX certified motor gearbox. All parts that may come into contact with the product, such as seals, plastics, grease, etc., are FDA-compliant thanks to the hygienic, easy-to-clean design. The product itself is a sticky product, so the tube is manufactured with a glossy polished (g220) inner surface and an industrial satin matt outer surface. In accordance with directive 2014/34/EU, equipment and protective systems intended for use in potentially explosive atmospheres must be designed with a view to integrating explosion protection. These
23.02.2022  |  1408x  |  Product news  |
Case: Conveying of chemical powder in ATEX Zone 1/21  SINFIMASA designed and manufactured a 3.5 m screw conveyor,
 completely in 316L stainless steel with satin polish, ATEX certified for zone 1/21 to extract chemical powder.
Case: Conveying of chemical powder in ATEX Zone 1/21
SINFIMASA designed and manufactured a 3.5 m screw conveyor, completely in 316L stainless steel with satin polish, ATEX certified for zone 1/21 to extract chemical powder. Our client in the pharmaceutical sector needed a conveyor to extract chemical powder from a tank in a closed room with a nitrogen stream inertisation system. The machine needed to be ATEX Zone 1/21 certified and approved for this type of location. Other requirements were a flow rate of 3m3/h and an inclination of 29º. The main difficulty of this project was the working conditions in a highly explosive area. SINFIMASA has designed and manufactured a TS-150/170 screw conveyor model 3.470 mm length between inlet and outlet with ATEX certification, all in 316L stainless steel (trough, cover and screw), finished in satin polish. The conveyor is equipped with a 3 kW SEW gear motor. Sinfimasa has carried out the following markings: * Ex II 2 G Ex h IIB T3 Gb (zone 1 - GAS) * Ex II 2 D Ex h IIIC T160ºC Db (zone 21 - DUST) These will be send with the documentation of use and warnings in the language of the country of destination.
26.11.2021  |  946x  |  Product description  |
The importance of custom manufacturing in solids handling The handling of bulk solids, especially aggregates and other hard minerals requires highly robust and reliable conveyor equipment. Sinfimasa designs equipment based on product properties.
The importance of custom manufacturing in solids handling
The handling of bulk solids, especially aggregates and other hard minerals requires highly robust and reliable conveyor equipment. Sinfimasa designs equipment based on product properties. Robust equipment The handling of bulk solids, especially aggregates and other hard minerals requires highly robust and reliable conveyor equipment. Its 100% tailor-made manufacturing is the most recommended in this sector to offer to the engineering companies the most suitable components and features for the user’s working conditions and ensure maximum performance and return on investment. Maximum reliability Total adaptation to customer needs means, not only maximum reliability conveyors to reduce facilities downtime, but also the maintenance costs by assembling top quality brands preferred by the user which are freely accessible in the market, as is the case of motor-reducers, bearings, or instrumentation (motion, temperature, deviations sensors). Proven technology Having proven experience and references, as well as a test bench for testing the behavior of the client’s material, will help the success in the design of the conveyor to be manufactured. At
30.09.2021  |  984x  |  Product news  |
