Traditional manual auditing in silos, which can stand dozens of meters high and hold thousands of tons, presents severe safety risks, including dust explosions, oxygen deprivation, and grain entrapment.
The Challenge: Accuracy in High-Dust, High-Volume Storage
Grain storage environments are characterized by high dust concentrations and fluctuating temperatures. For plant managers, the primary hurdles are twofold:
- Safety Compliance: Eliminating the need for personnel to enter hazardous confined spaces.
- Data Fidelity: Moving away from ”estimated” volumes toward a ”digital twin” that reflects the actual shape of the grain pile.
The Solution: 3DPro2300 Radar Scanner
To address these industrial bottlenecks, RETTAR introduced the 3DPro2300 Radar Scanner, a high-frequency sensing system designed to unlock the ”digital code” of smart grain storage.
- 80GHz FMCW Technology for Dust Penetration; The 3DPro2300 utilizes 80GHz Frequency Modulated Continuous Wave (FMCW) technology. The short wavelength and high resolution allow the radar to penetrate thick dust and steam, ensuring that signal integrity remains unaffected by lighting or humidity. This provides a stable foundation for distance measurement.
- Dual-Axis Robotic Panoramic Scanning; Unlike static sensors, the 3DPro2300 features an integrated high-precision servo system. It supports 360° horizontal rotation and a ±90° vertical pitch. A single scan captures over 16,000 independent measurement points, creating a dense grid that maps the entire grain surface. This eliminates blind spots and accurately accounts for cone formations or ”bridging” within the silo.
- AI-Driven 3D Volumetric Modeling; The massive point cloud data is processed via RETTAR’s proprietary AI algorithms to generate a high-fidelity 3D model of the grain surface. This achieves a volume accuracy of up to ±0.5% FS. The system integrates seamlessly with ERP and WMS via 4-20mA, RS485, or Ethernet, enabling fully automated inventory logs.
Value Realization: Safety and Operational Efficiency
- Zero-Climb Safety: Achieving a truly ”unmanned” audit process, removing workers from high-risk environments.
- Operational Speed: Inventory cycles are reduced from hours to under 10 minutes, improving silo turnover rates by over 30%.

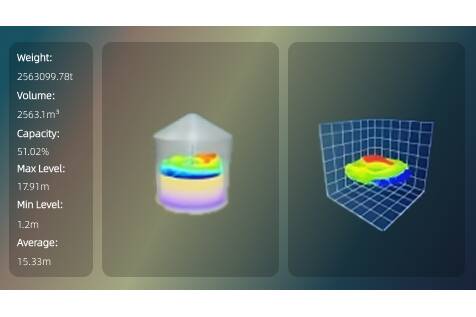

- Data-Driven Decisions: Real-time 3D visualizations and historical trend curves allow managers to predict potential blockage or overflow, optimizing production scheduling.
- Regulatory Compliance: Provides unalterable inventory logs that meet strict food safety and government oversight requirements.
The implementation of the 3DPro2300 transitions grain facilities into a new era of management.
