Engineering for abrasion in soybean processing

Large-scale soybean handling exposes equipment to constant wear from seed and meal flowing at high volumes. Although individual particles are small, cumulative impact and friction at transfer points can rapidly degrade conventional components, driving downtime and maintenance costs.
Vortex Global was engaged to design a gravity-flow solution capable of sustaining long-term operation in a demanding agricultural environment. The objective was to protect critical infrastructure while supporting the throughput required by modern soybean processing lines.

Custom heavy-duty diverters for high throughput

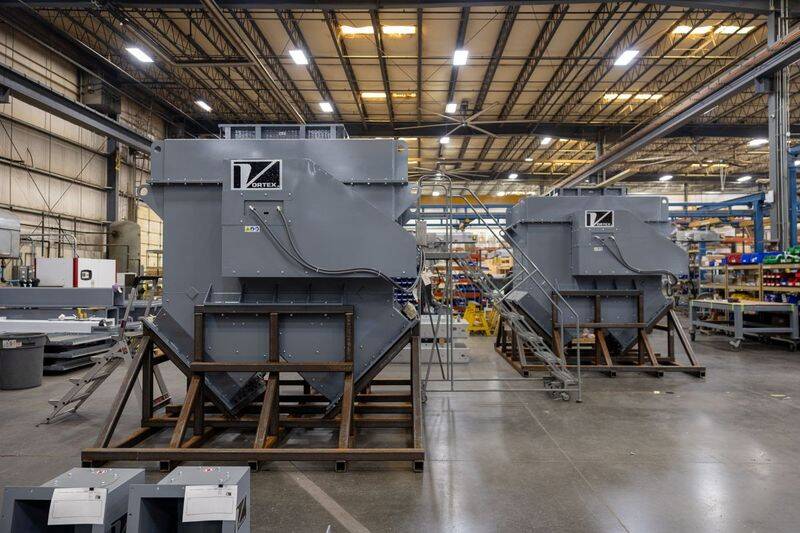

The project centered on the installation of two pivoting chute diverters engineered specifically for this application. With a nominal size of 1000 mm, the units were designed to manage large material volumes while maintaining structural rigidity and precise flow control.
Key design priorities included long service life, mechanical stability under load and straightforward access for inspection and liner replacement, reducing the need for extended shutdowns.

Wear-resistant materials extend service life

To address abrasion, Vortex selected materials typically used in severe-duty industrial environments. While the external valve body provides strength and alignment, all product-contact areas were engineered for wear resistance and replaceability.

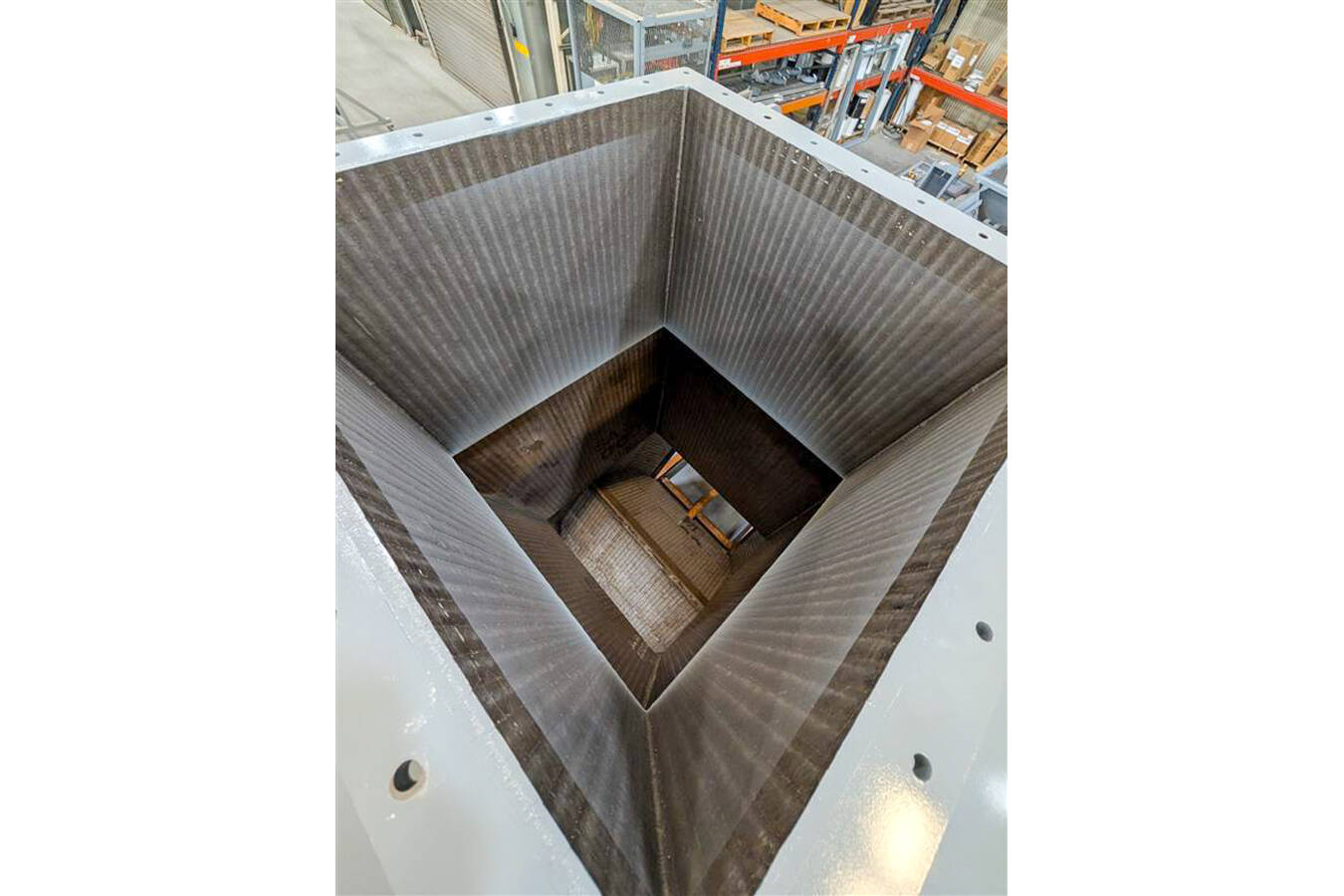

Chromium carbide liners protect inlet, outlet and internal chute surfaces
Replaceable liners concentrate wear where material velocity and friction are highest
Reinforced containment at split points reduces localized erosion

By isolating wear to sacrificial components, the system preserves the core structure over decades of service while simplifying maintenance planning.

Designed for reliability in bulk solids operations

The solution reflects a growing focus in bulk solids handling on engineered durability rather than short-term cost savings. For soybean processors operating at scale, robust flow control components can play a critical role in protecting uptime, product quality and overall plant profitability.
