Storage and loading of protein-containing meals
Jansen&Heuning designed a logistic system for the processing of blood meal, meat meal and feather meal. Contamination was an important issue. For abattoir waste processor Noblesse, our engineers studied the processing of blood meal, meat meal and feather meal. In this process, contamination, among other things, had to be taken into account. How did they do this?
At Noblesse proteins the existing production site had to be improved in terms of storage and loading. The available height is 11,000 mm at the ridge and 9,500 mm at the wall, the width of tents is 45,000 mm.
The main challenge for our engineers was that it had to be possible to mix from all of the silos. In addition, we had to ensure two completely separate lines to prevent contamination. Finally, all silos had to be placed on load cells for the correct dosage.
Objectives
* Storage capacity: feather meal 300 tons; meat meal 600 tons; blood meal 60 tons
* Loading with movable conveyor above the cars with loading bellows
* loading with a capacity of 60-80 tons/hour
The system consists of:

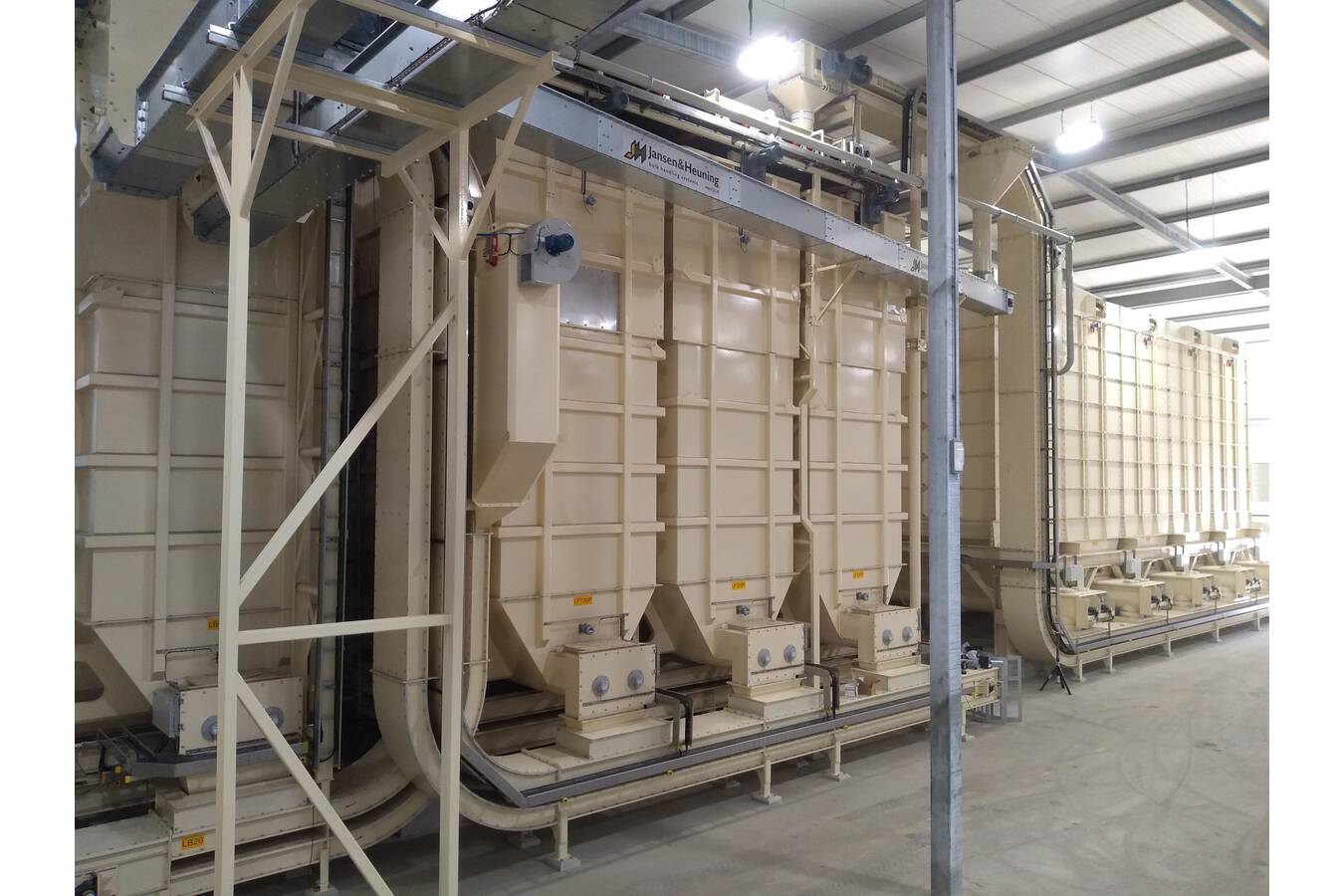

* new silo block consisting of five silos of over
