Jansen & Heuning modifies transport system in Western Port Area

Jansen&Heuning has been manufacturing installations for storage and bulk handling since 1901. Creative solutions for bulk handling are designed and built in The Netherlands and installed all over the world. Key success factors are our in-house engineering, dedicated employees and down-to-earth approach. We think along with our customers and come up with reliable standard products and professional, custom-made solutions.

Diameter 800 mm; capacity 150 tonnes/hour; length 13 meter; rotating around its central inlet point. A unique screw conveyor. Jansen&Heuning designed a screw conveyor to transport sugar for sugar beet company Cosun in Hoogkerk. Cosun Beet Company aims to be the greenest and the most innovative sugar beet processor in the world and our engineers got a chance to contribute to this goal. The sugar is transported to the silos with a transportation system. All sugar is stored in four large silos where each silo is divided into 3 compartments: the core, the inner ring and the outer ring. These compartments are filled evenly. Formerly, the silos were filled using a mobile conveyor belt, however, such a system is never 100% clean and is sensitive to errors. Therefore, our engineers designed a rotating screw conveyor. The screw rests on a slewing ring and a wheelset in the middle, that moves the machine around. The screw conveyor has a diameter of 800 mm and is completely made of stainless steel 304. The filling capacity is approximately 150 tonnes/hour. With a length of 13 meter, this is a…

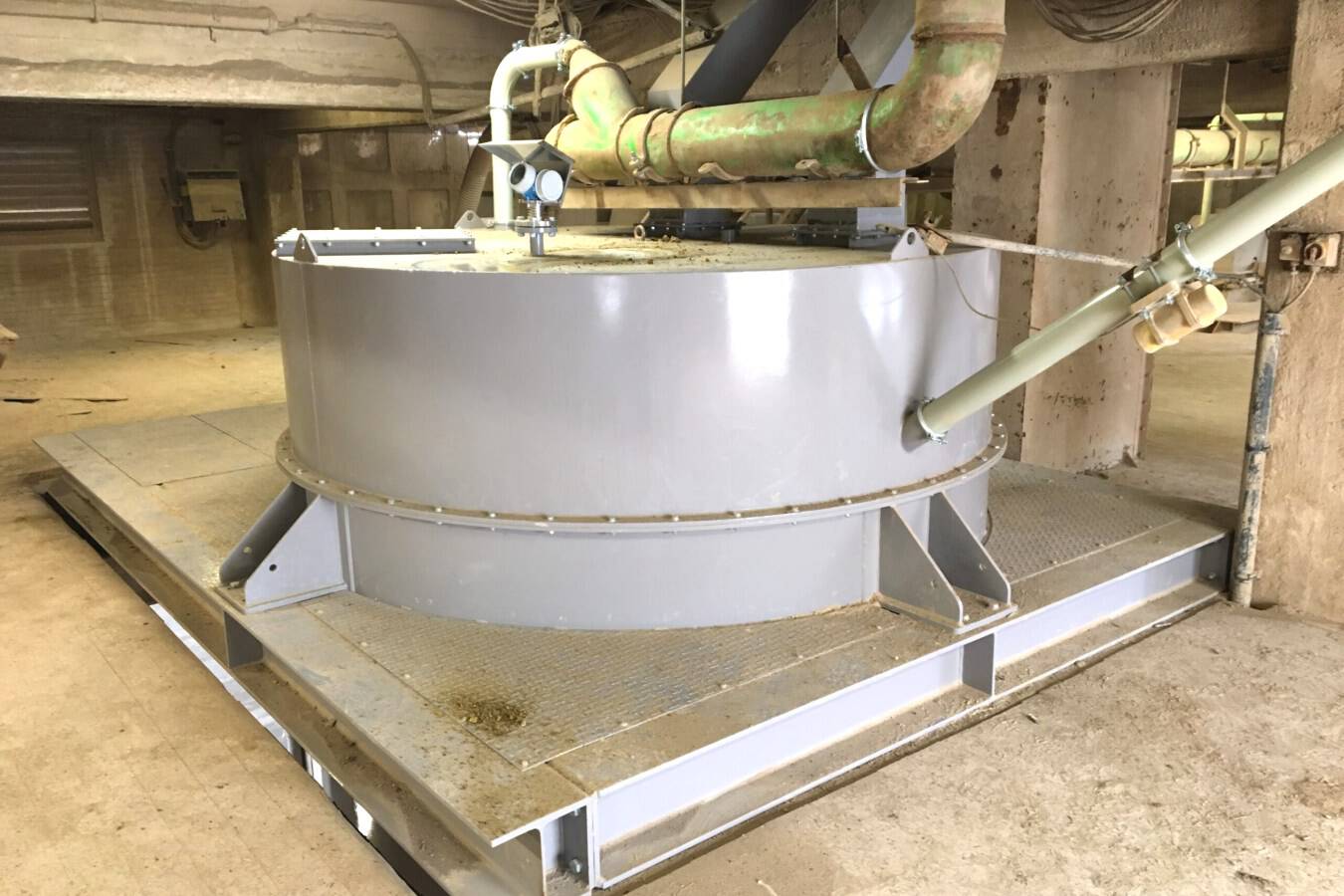

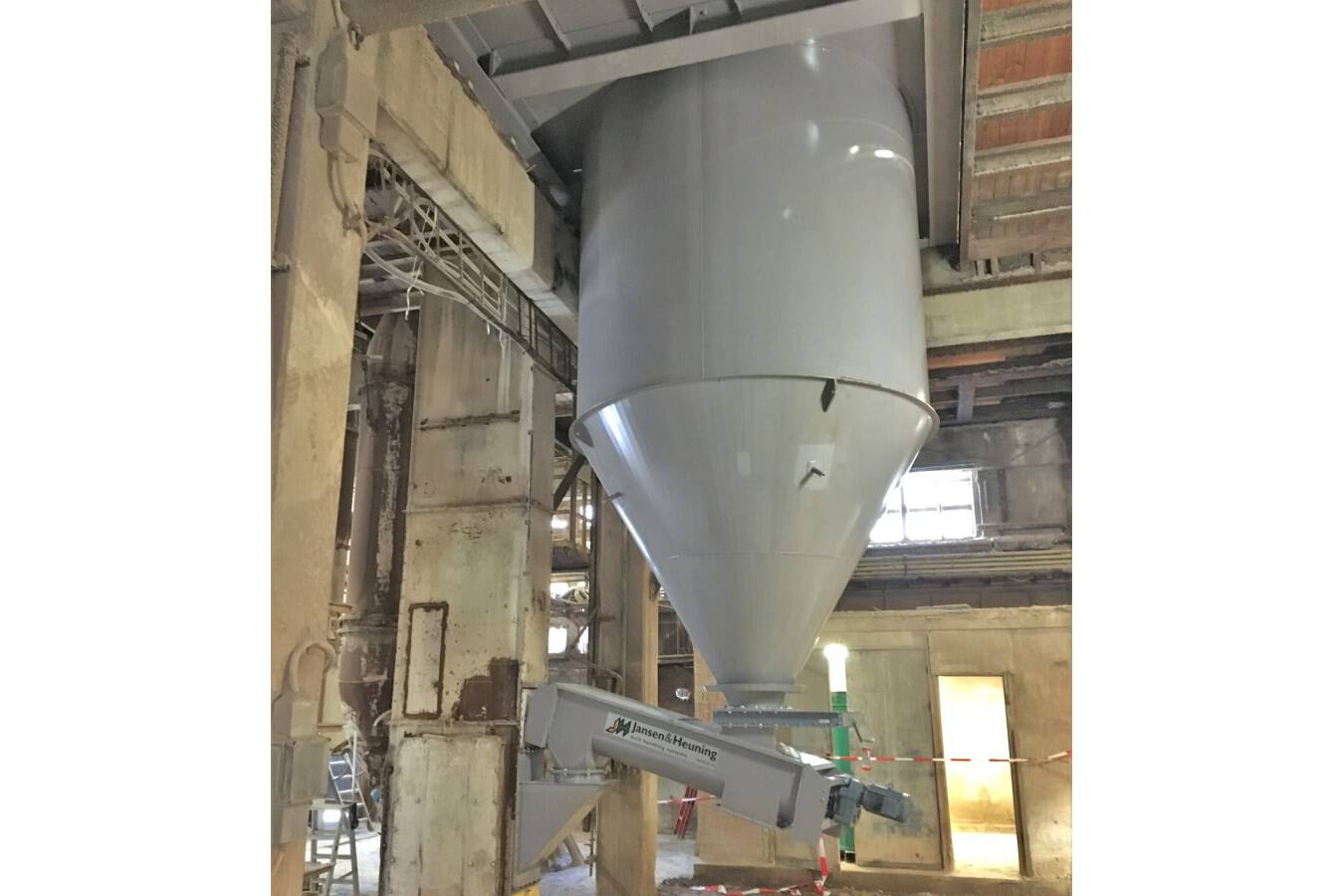

Jansen&Heuning installed a pre-cleaner with cyclone installation for plastic recycling and compounding company REK Europe B.V. in Oosterhout (NL). REK Europe uses plastic waste which they process into high-quality raw materials for plastics processing companies, by grinding, homogenizing and compounding the plastic waste. After installing the pre-cleaner, the existing frame had to be modified. Therefore, Jansen&Heuning made a separate frame for the cyclone with accompanying filter bags, so that a big bag could be placed under the cyclone and the filter bags could be easily unloaded. The hard particles from the extracted product can be loaded into big bags and the remaining air is filtered with filter bags. The pre-cleaner works well and removes about 99% of the angel hair from the plastic granule: a successful project.
