Innovative spreading cabinets for precision castings

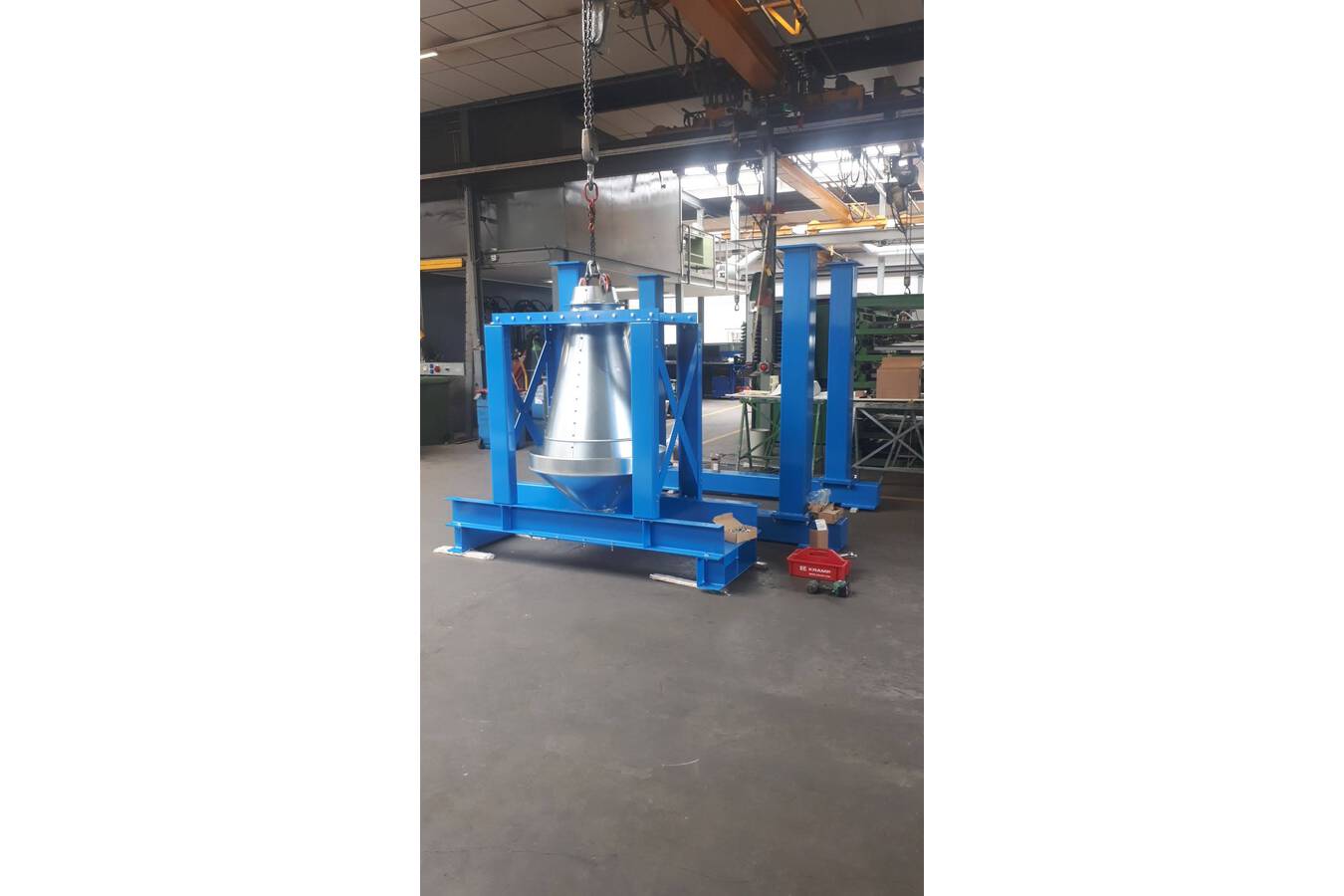

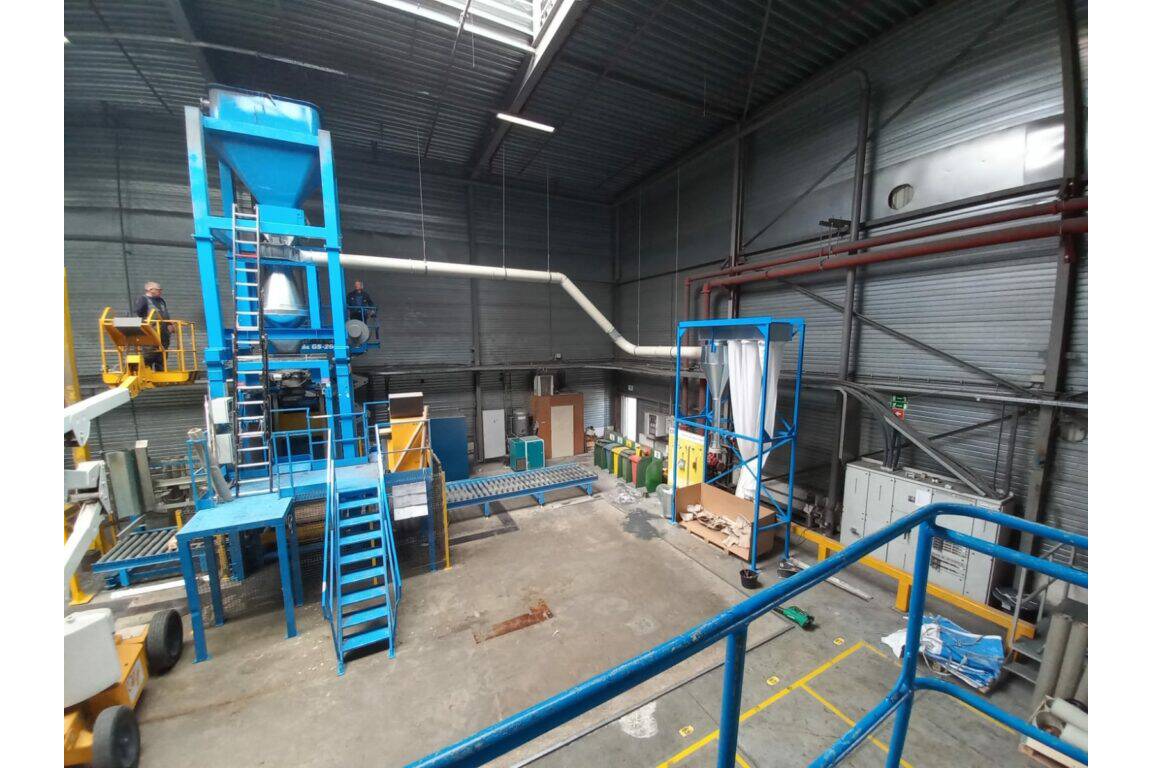

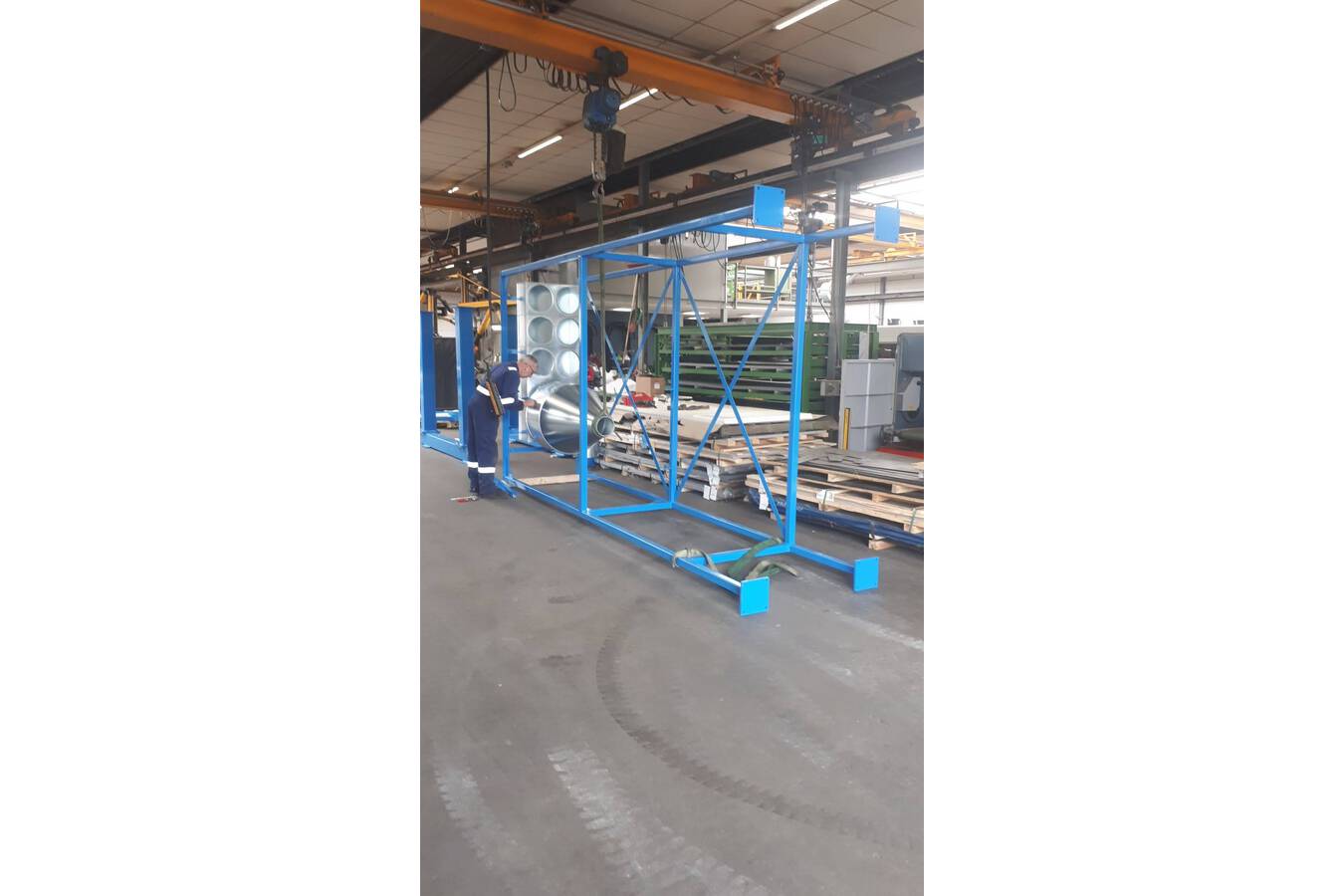

Jansen&Heuning have developed a series of spreading boxes for CIREX, to evenly spread ceramic powders on a wax model. The innovative installations contribute to optimizing the production process and improving the quality of the cast, steel and metal components.
Steel and metal foundry CIREX bv manufactures complex components for global industry; from knife heads and pump parts to transport wheels and sensor housing. These are often high-tech components that must comply with class D3 tolerances, as laid down in the internationally recognized German standard VDG-P690. CIREX uses the ‘lost wax model’ method to produce the precision castings.
Wax Tree
One of the many process steps in the ‘lost wax model’ method is that a ‘wax tree’ -which consists of a series of wax molds-is coated with a ceramic layer, to eventually arrive at a cast result. The wax tree is imersed in a slurry, raised and then dusted with a ceramic powder (a type of sand), followed by a drying process. This is a cycle that repeats itself seven to nine times. Finally a refractory, ceramic mantle is formed
