Latest update: 12.07.2023
HS Umformtechnik GmbH
TEL: +49 9346 92 99 - 0
FAX: +49 9346 92 99 -200
Gewerbestrasse 1
D-97947    Grünsfeld-Paimar
Germany
Contact
Company video
Allow (tracking) cookies from YouTube and Vimeo to watch videos
Company brochure
Company brochure
HS Umformtechnik produces components for pneumatic conveying systems.

stainless steel pipe bends, HVA NIRO® pipe bends (= highly wear-resistant pipe bends), pipe couplings DVK 6 und DVK-HD® ,pipe connectors, branch pipes, reducers, coupling stations, suction pipes

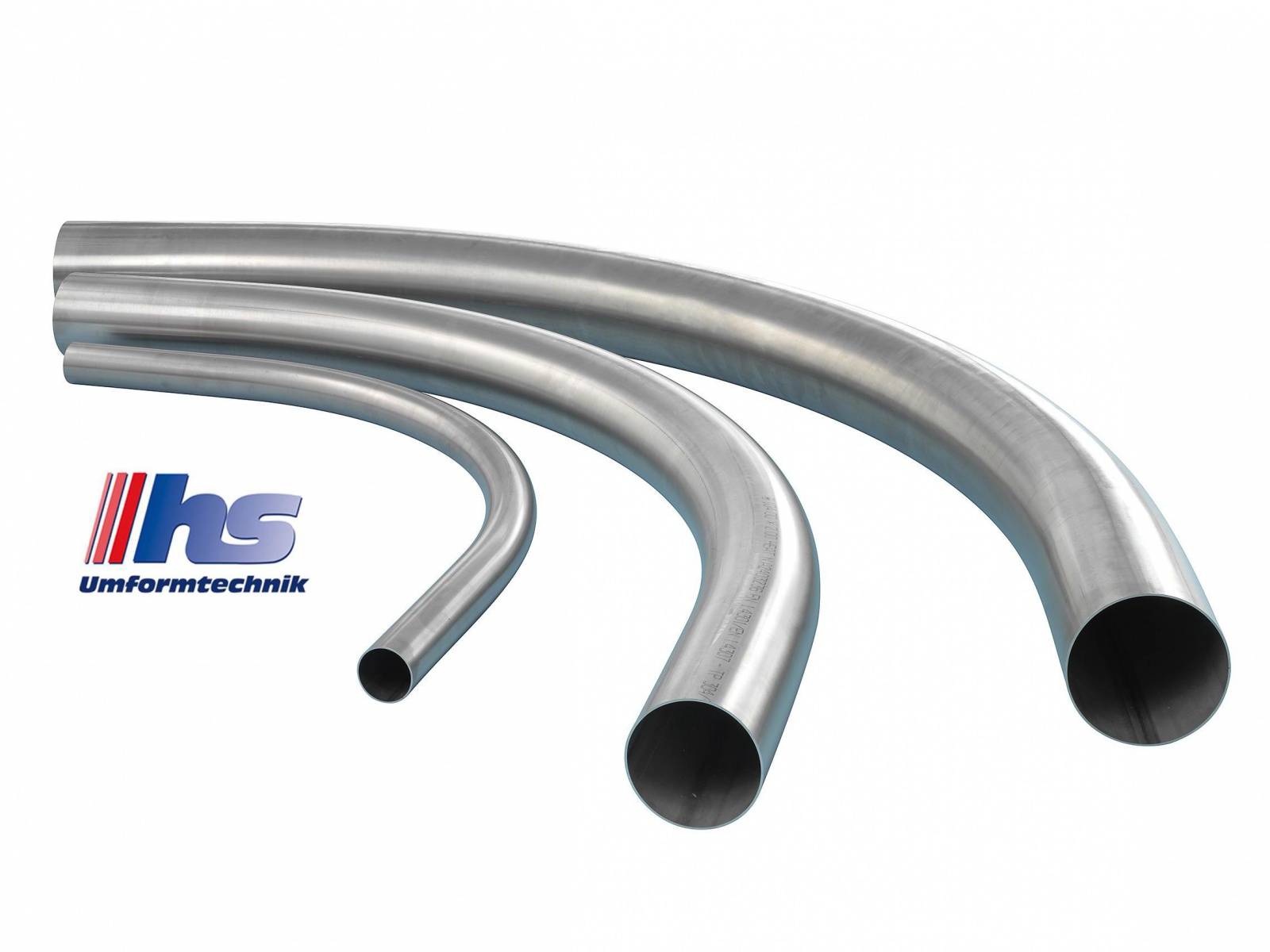

We are specialised in production of thin-walled stainless steel pipe bends from diameter 38.0 mm - 206.0 mm with large radii till R = 1500 mm.
Meet us at
Categories
Conveyors - Pneumatic transport - Components, accessories - Clamp couplings
Conveyors - Pneumatic transport - Piping for pneumatic transport - Large radius bends for pneumatic transport
Conveyors - Pneumatic transport - Piping for pneumatic transport - Small radius bends for pneumatic transport
Conveyors - Pneumatic transport - Piping for pneumatic transport - Stainless steel piping
Conveyors - Pneumatic transport - Components, accessories - Wear bends

Posts

Pipe systems for pneumatic conveying systems - ordering via webshop HS Umformtechnik GmbH offers comfortable ordering via B2B Webshop
Pipe systems for pneumatic conveying systems - ordering via webshop
HS Umformtechnik GmbH offers comfortable ordering via B2B Webshop Features The following features are available to you after you register as a customer: from the real-time availability display of our current stock to typical webshop features such as previous order histories to the view of list and customer-specific purchase prices - all this and more can be found easily at #Customerservice Search Using the search function, you can search through our entire product range with one click. You can either search for product names or specific article numbers. Filter A filter function makes it possible to additionally filter the search results according to relevant characteristics such as diameters, wall thicknesses or materials. Compare You can add products to a comparison list in order to directly compare the product properties of two or more parts. By the way: As a registered customer, you can even search for your own article numbers when logged in. If you have not yet registered, you can do so at any time on our website. Availability
05.09.2024  |  427x  |  Press release  |
Highly wear-resistant pipe bends HS Umformtechnik GmbH presents several products with special wear protection:  HVA NIRO stainless steel pipe bend; DWR double-skin pipe bend and glass pipe bends.
Highly wear-resistant pipe bends
HS Umformtechnik GmbH presents several products with special wear protection: HVA NIRO stainless steel pipe bend; DWR double-skin pipe bend and glass pipe bends. HS Umformtechnik GmbH - Your reliable partner for production of stainless steel pipe bends and components for pneumatic conveying systems in plastic-, recycling- and chemical industry. Products with special wear protection are: - HVA NIRO® stainless steel pipe bends - HVA NIRO® stainless steel branch pipes - HVA NIRO® stainless steel reducers Specifications * material AISI 304 / AISI 304 L * diameter from 38.0 till 168.3 mm * wall thickness from 1.5 mm till 2.0 mm * radii 75 / 100 / 150 / 250 / 300 / 500 / 800 / 1000 mm Advantages of HVA NIRO® products: - service life 10 to 20 times longer than stainless steel pipe bends - easy installation - no stepped pipe couplings and no flange connections required - safe for use with food DWR double-skin pipe bend The DWR double-skin pipe bend is made of stainless steel, and can be supplied in different versions: # ”Product-on-product”: In this variant, the double skin comes
18.07.2023  |  1474x  |  Product description  |   |
Stainless steel pipe systems for pneumatic conveying systems and more... HS Umformtechnik GmbH
Stainless steel pipe systems for pneumatic conveying systems and more...

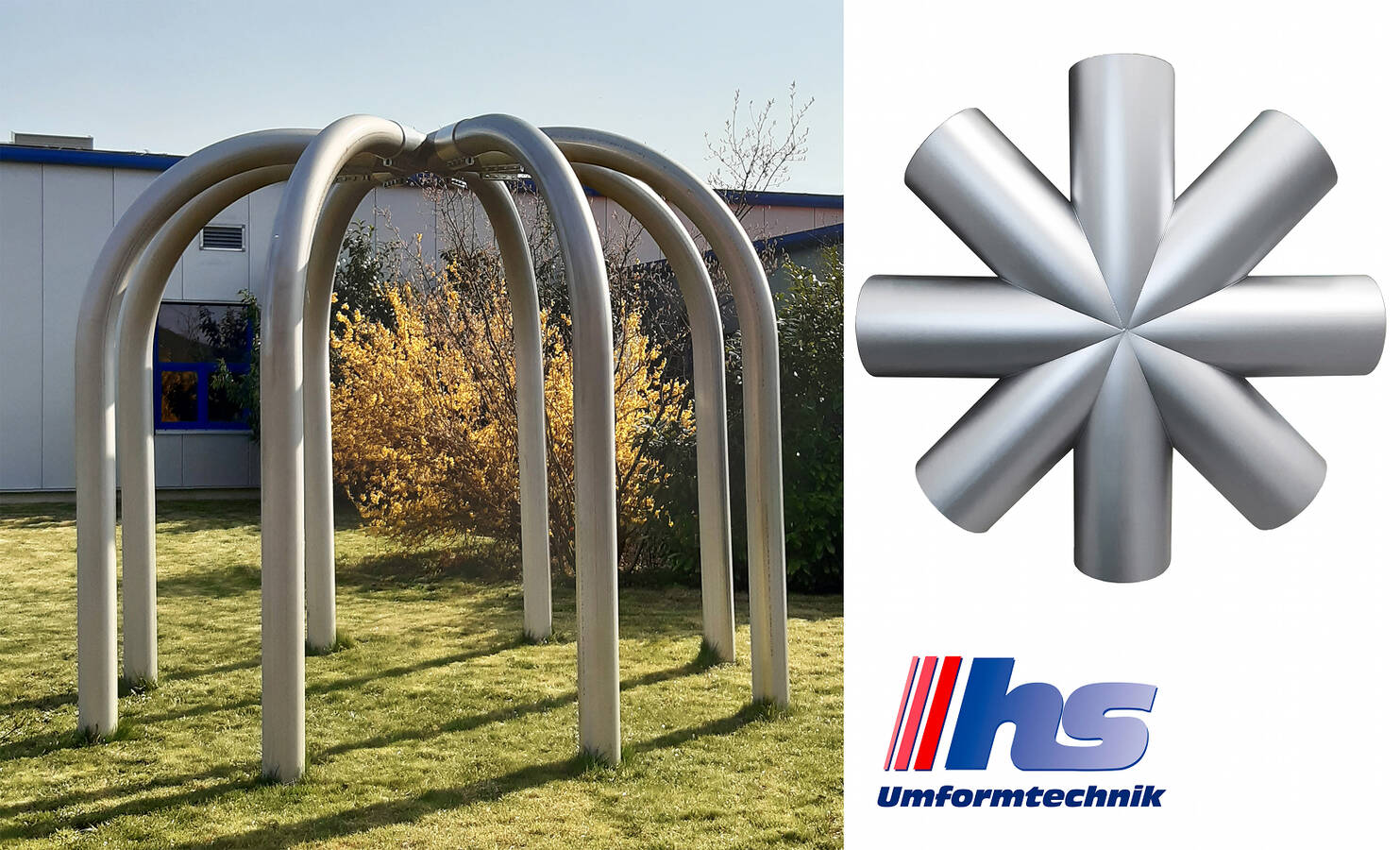

HS Umformtechnik GmbH Detail - sculpture HS Umformtechnik GmbH made of stainless steel pipe bends, outer diameter 168.3 mm x 2.0 mm, radius 1000 mm, bending angle 90°, one side with 1500 mm leg extension other side with 200 mm, , Details - connecting part lasered on TRUMPF TruLaser Tube 7000, welded and blasted, Detail - sculpture HS Umformtechnik GmbH made of stainless steel pipe bends, outer diameter 168.3 mm x 2.0 mm, radius 1000 mm, bending angle 90°, one side with 1500 mm leg extension other side with 200 mm
18.05.2020  |  7441x  |  Photo reportage  |
Special parts for stainless steel pipe systems for pneumatic conveying systems
Special parts for stainless steel pipe systems

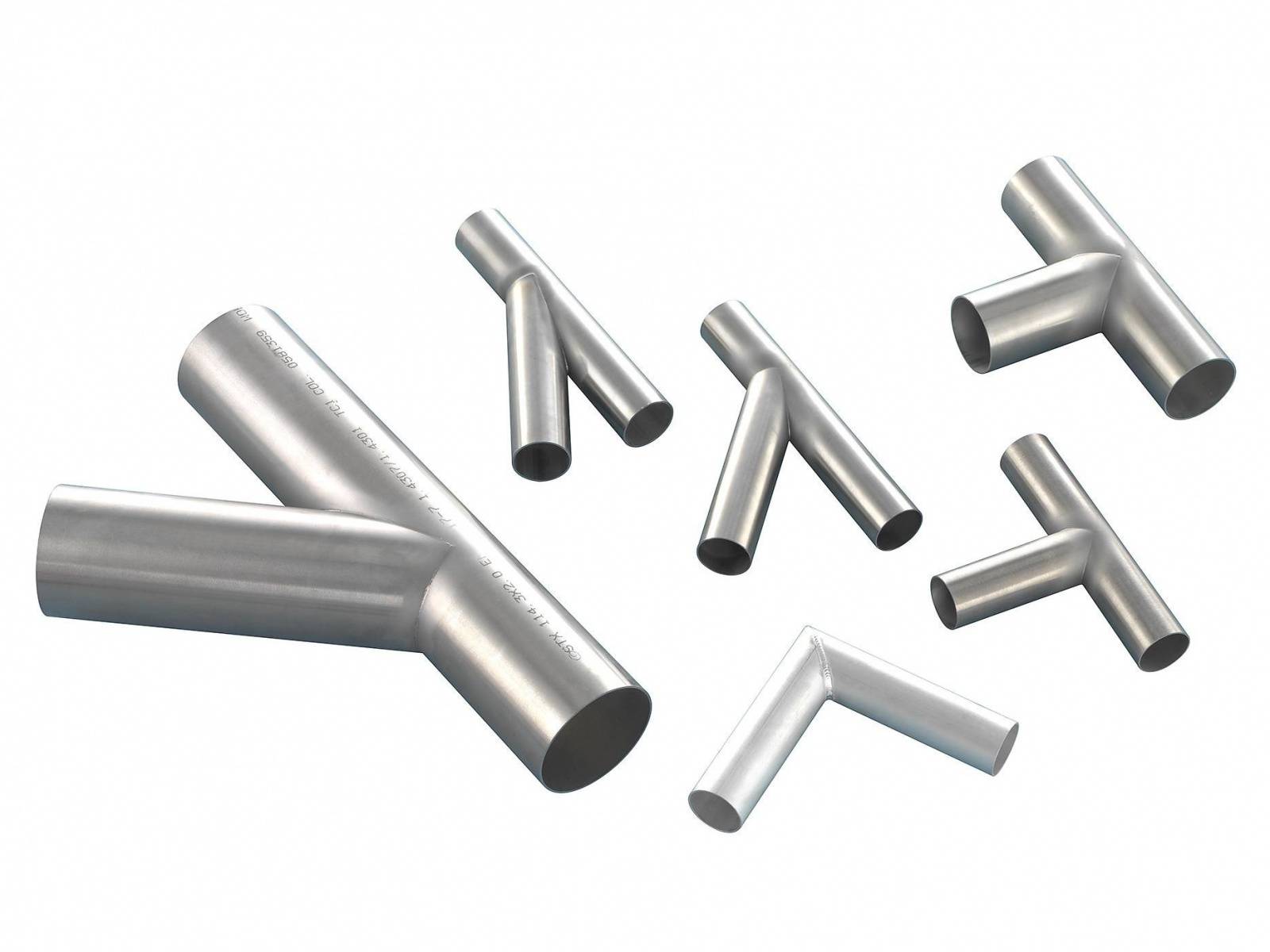

for pneumatic conveying systems extension bends: stainless steel (also aluminium), special bends according to your drawing, sample or sketch, stud with flange, branch pipe with flange, branch pipe with parallel outlets, branch pipe with reduced outlet, stud end, fork, T-piece with extended outlet, extension bends, angle piece
15.10.2019  |  7655x  |  Photo reportage  |
Stainless steel pipe systems - direct from the manufacturer Pipe bends, Pipe Couplings, Branch Parts, Reducers, Coupling Stations
Stainless steel pipe systems - direct from the manufacturer
Pipe bends, Pipe Couplings, Branch Parts, Reducers, Coupling Stations HS Umformtechnik produces with state-of-the-art machinery, in total: * 9 CNC mandrel bending machines * 2 trumpf tube lasers * 1 welding robot * 1 cutting robot Production according to the highest quality requirements of: * Standard dimensions in large numbers - as well as: * Custom made according to your drawing / sample eg. This means for your purchase: - fast delivery, from stock - at a good price-performance ratio - no minimum order quantity Stainless steel pipe bends - Material: AISI 304 / 1.4301 - also in highly wear-resistant version - Diameter 38.0 mm - 206.0 mm - Radii: 75 mm - 1500 mm Pipe couplings type DVK 6 - for suction conveying - Diameter: 33.7 mm - 110.0 mm Pipe Couplings Type DVK-HD® - for pressure conveying - Diameter: 60.3 mm - 206.0 mm Stainless steel branch pipes, 30 °, 45 °, 90 ° - Material: AISI 304 / 1.4301 - also in highly wear-resistant version - Diameter: 38.0 mm - 206.0 mm Stainless steel reducers - Material: AISI 304 / 1.4301 -
18.06.2019  |  11898x  |  Product description  |   |
Coupling stations / Material distributors manufactured to your individual specifications
Coupling stations / Material distributors
manufactured to your individual specifications Coupling station - manufactured by HS Umformtechnik GmbH, stainless steel bends, branch parts, pipes with vacuum coplings DVK 6, Highly wear-resistant coupling stations produced by HS Umformtechnik GmbH
14.05.2019  |  10261x  |  Photo reportage  |
Show more (5)
