Stainless steel pipe systems for pneumatic conveying systems and more...

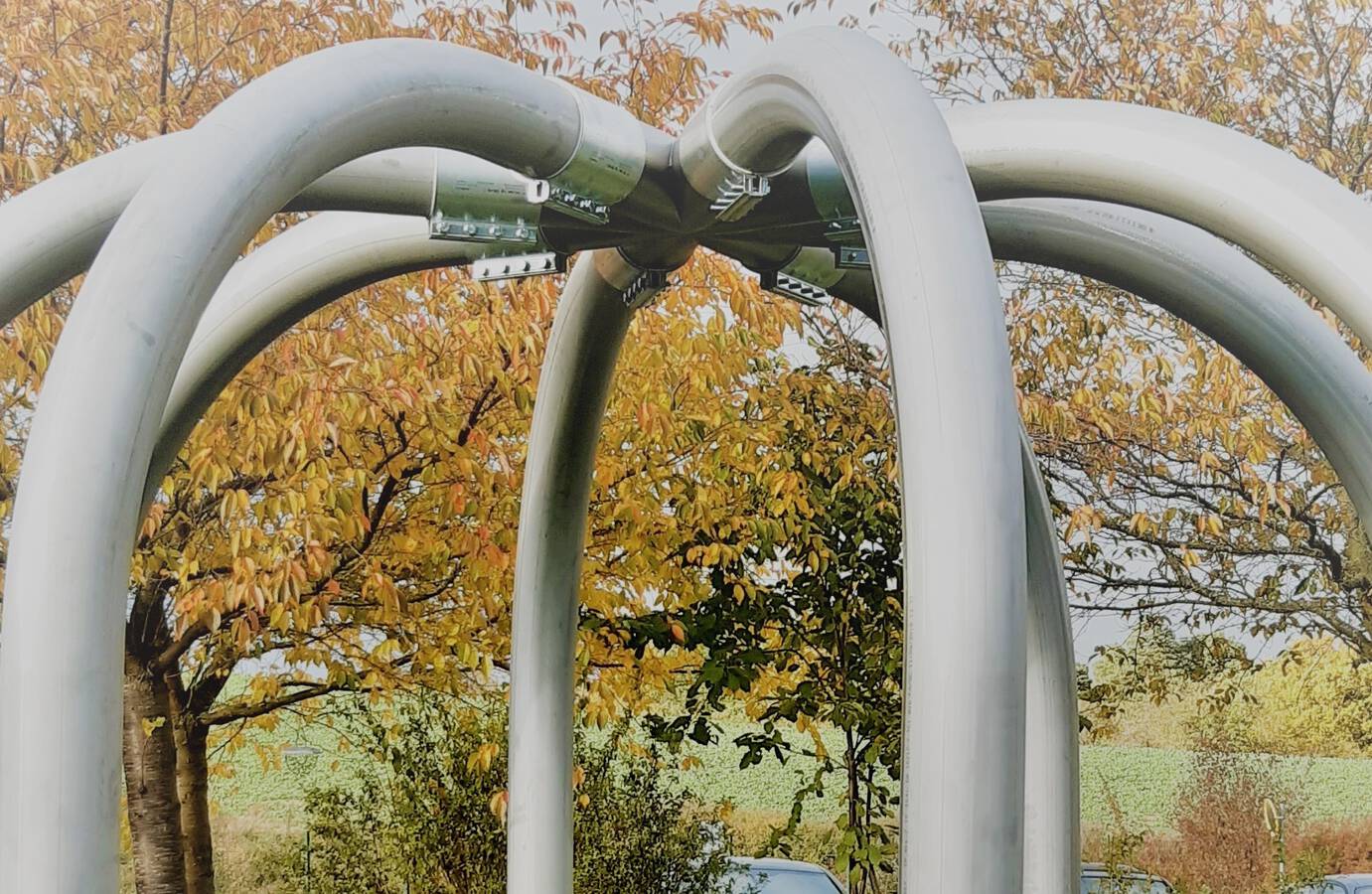

HS Umformtechnik produces components for pneumatic conveying systems. stainless steel pipe bends, HVA NIRO® pipe bends (= highly wear-resistant pipe bends), pipe couplings DVK 6 und DVK-HD® ,pipe connectors, branch pipes, reducers, coupling stations, suction pipes We are specialised in production of thin-walled stainless steel pipe bends from diameter 38.0 mm - 206.0 mm with large radii till R = 1500 mm.

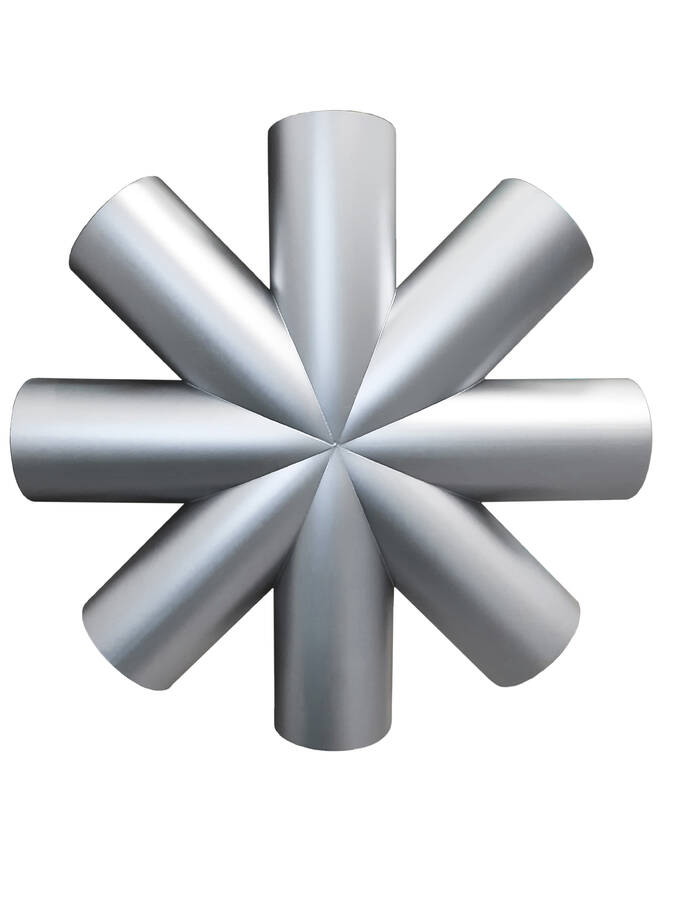

Pipe bends, Pipe Couplings, Branch Parts, Reducers, Coupling Stations HS Umformtechnik produces with state-of-the-art machinery, in total: * 9 CNC mandrel bending machines * 2 trumpf tube lasers * 1 welding robot * 1 cutting robot Production according to the highest quality requirements of: * Standard dimensions in large numbers - as well as: * Custom made according to your drawing / sample eg. This means for your purchase: - fast delivery, from stock - at a good price-performance ratio - no minimum order quantity Stainless steel pipe bends - Material: AISI 304 / 1.4301 - also in highly wear-resistant version - Diameter 38.0 mm - 206.0 mm - Radii: 75 mm - 1500 mm Pipe couplings type DVK 6 - for suction conveying - Diameter: 33.7 mm - 110.0 mm Pipe Couplings Type DVK-HD® - for pressure conveying - Diameter: 60.3 mm - 206.0 mm Stainless steel branch pipes, 30 °, 45 °, 90 ° - Material: AISI 304 / 1.4301 - also in highly wear-resistant version - Diameter: 38.0 mm - 206.0 mm Stainless steel reducers - Material: AISI 304 / 1.4301 -…
