Product description
18.06.2019  |  10425x
Share this item
Allow (tracking) cookies from YouTube and Vimeo to watch videos

Stainless steel pipe systems - direct from the manufacturer

Pipe bends, Pipe Couplings, Branch Parts, Reducers, Coupling Stations

HS Umformtechnik produces with state-of-the-art machinery, in total:

* 9 CNC mandrel bending machines
* 2 trumpf tube lasers
* 1 welding robot
* 1 cutting robot

Production according to the highest quality requirements of:
  • Standard dimensions in large numbers - as well as:
  • Custom made according to your drawing / sample eg.

This means for your purchase:

  • fast delivery, from stock
  • at a good price-performance ratio
  • no minimum order quantity

Stainless steel pipe bends

  • Material: AISI 304 / 1.4301
  • also in highly wear-resistant version
  • Diameter 38.0 mm - 206.0 mm
  • Radii: 75 mm - 1500 mm

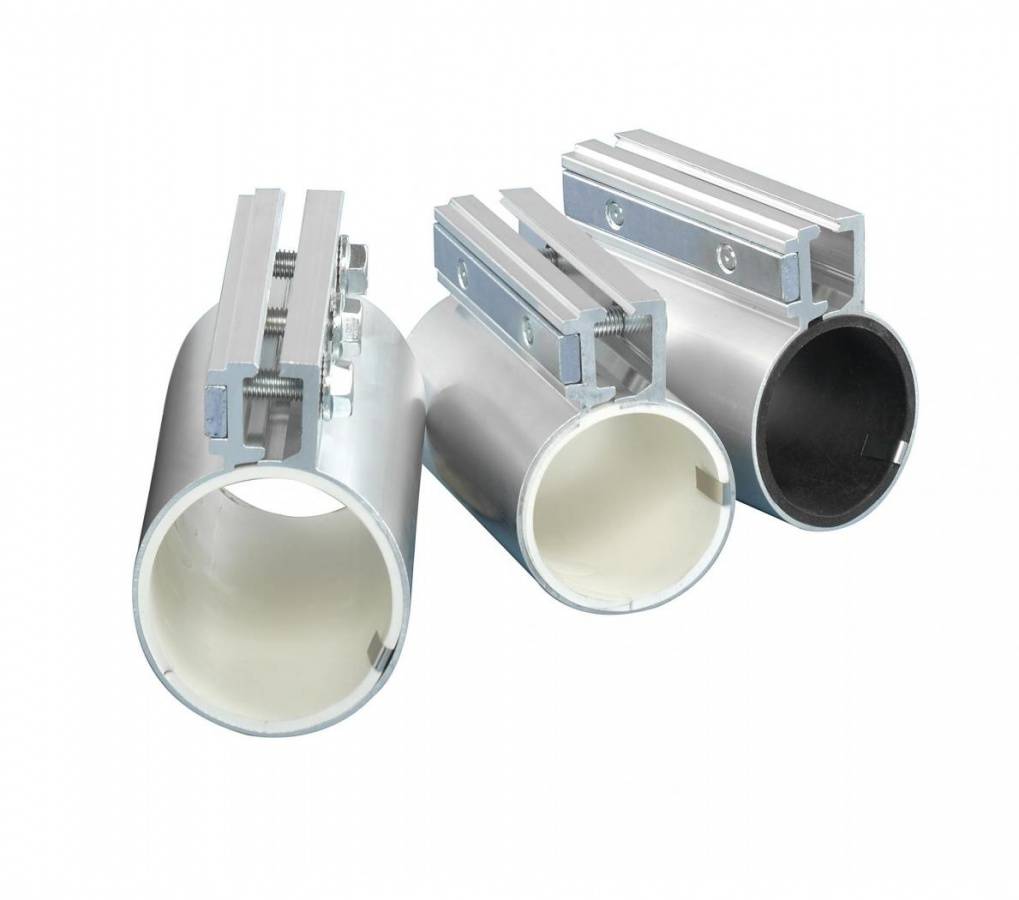

Pipe couplings type DVK 6

  • for suction conveying
  • Diameter: 33.7 mm - 110.0 mm

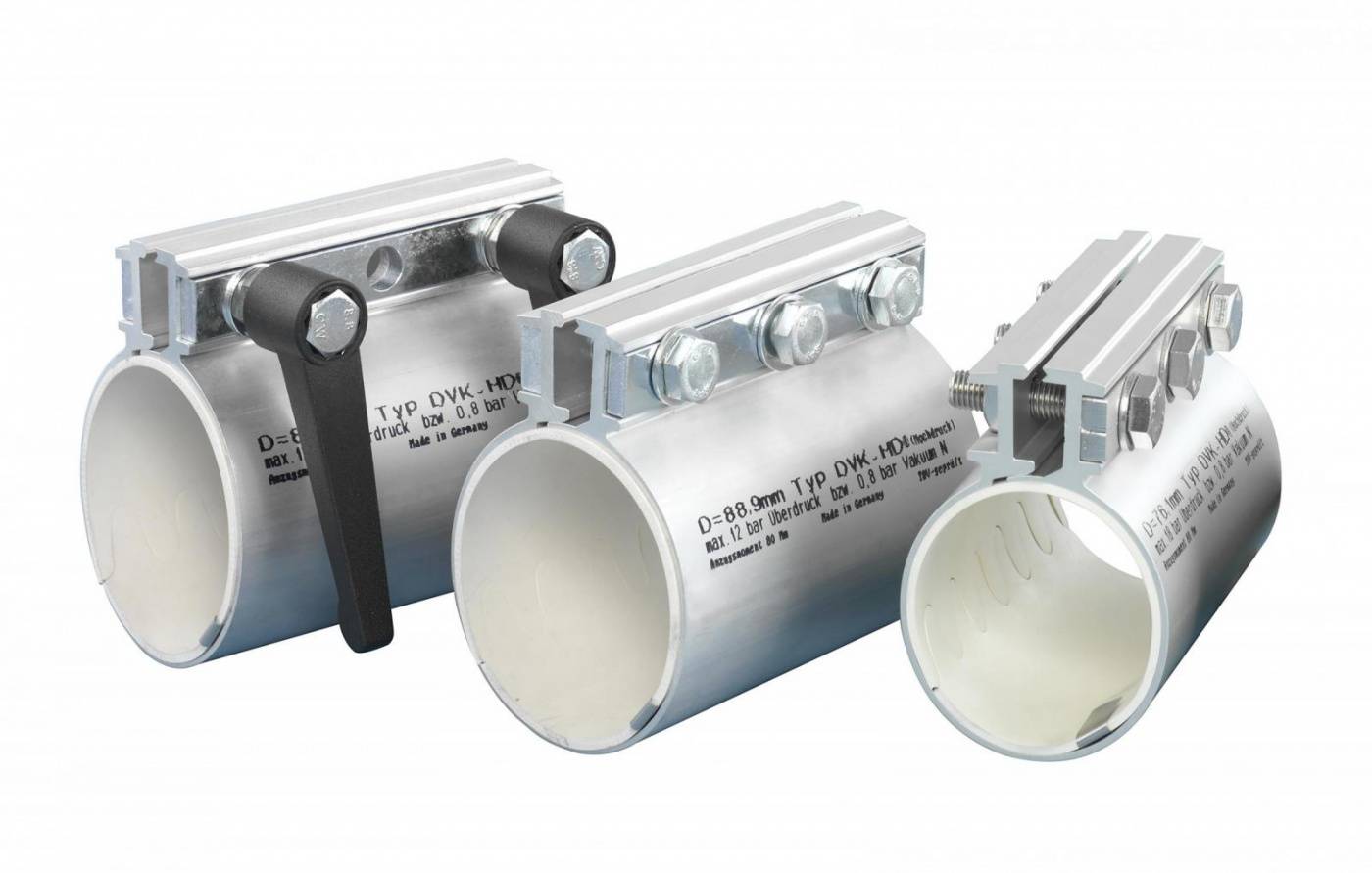

Pipe Couplings Type DVK-HD®

  • for pressure conveying
  • Diameter: 60.3 mm - 206.0 mm

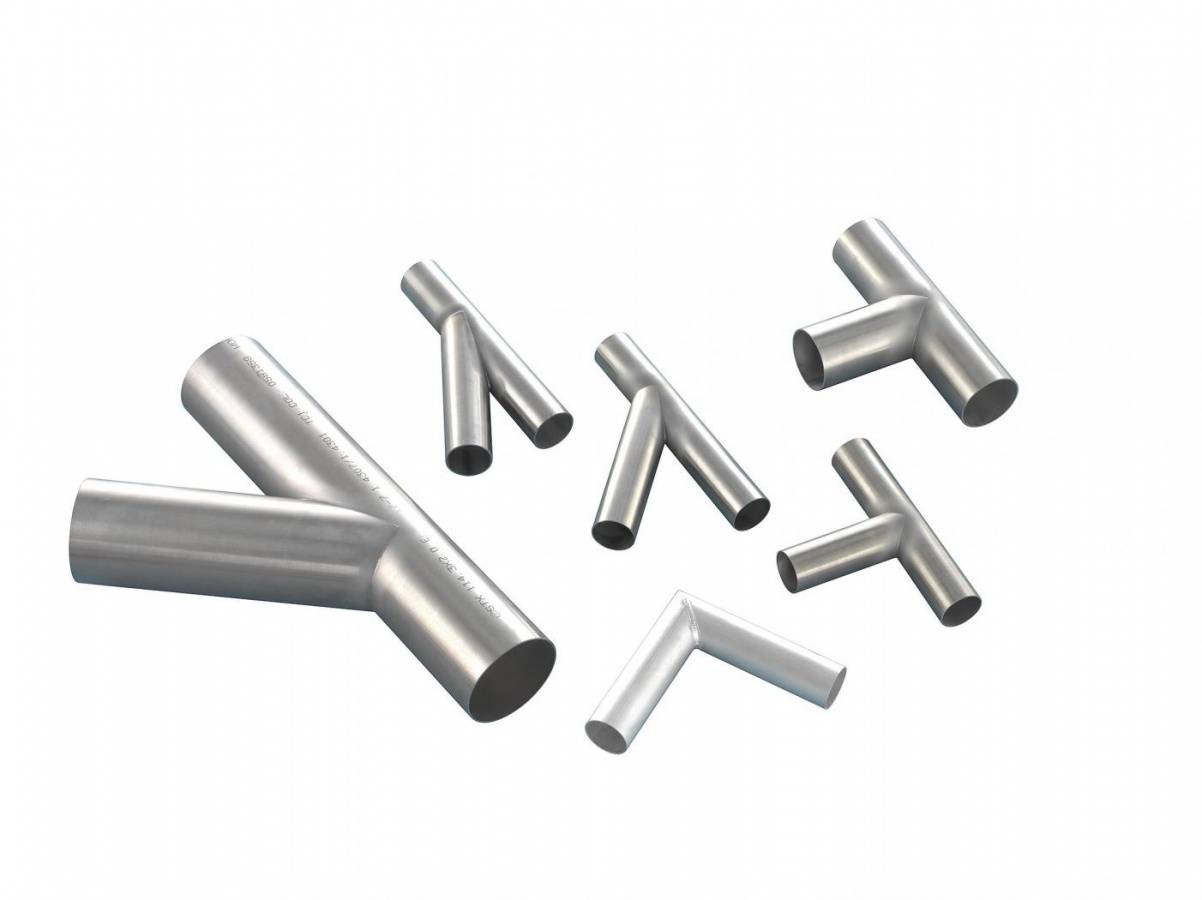

Stainless steel branch pipes, 30 °, 45 °, 90 °

  • Material: AISI 304 / 1.4301
  • also in highly wear-resistant version
  • Diameter: 38.0 mm - 206.0 mm

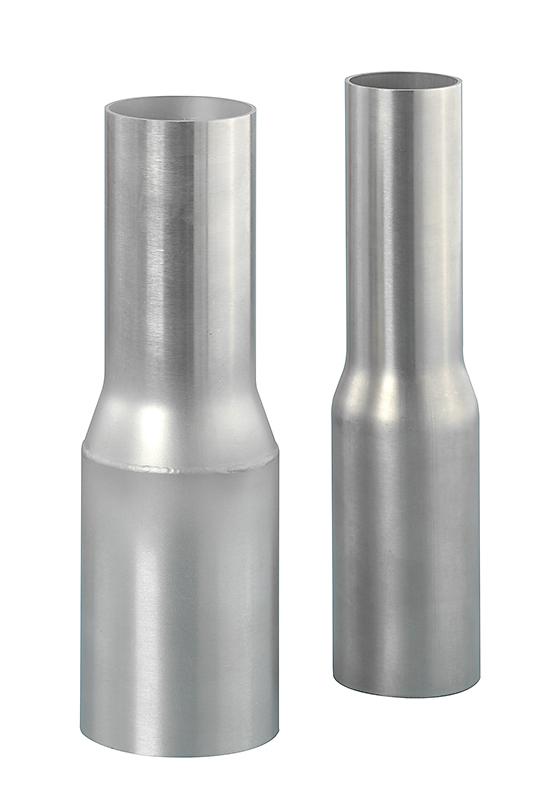

Stainless steel reducers

  • Material: AISI 304 / 1.4301
  • also in highly wear-resistant version
  • Diameter: 38.0 mm - 168.3 mm

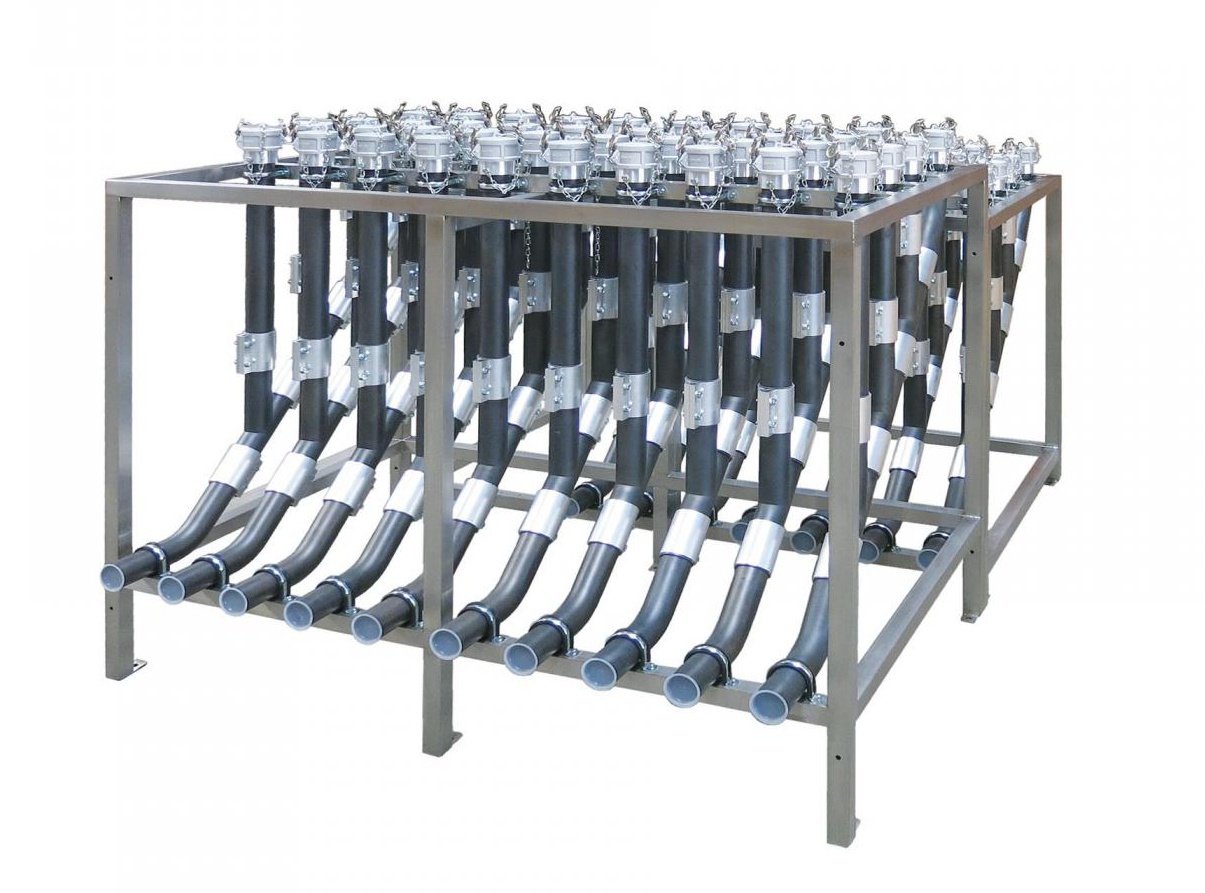

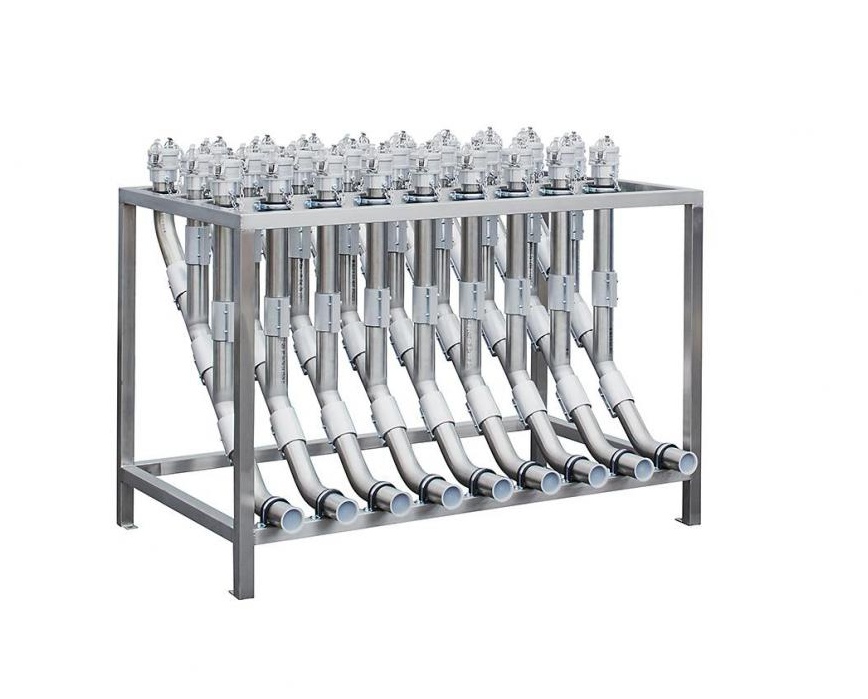

coupling stations

  • Material: AISI 304 / 1.4301
  • also in highly wear-resistant version
  • according to your information / your drawing
  • We also create a CAD drawing for you for release

suction lances

  • Material: stainless steel AISI 304 / 1.4301
  • with spacer and 45° chamfered
  • with spacer
  • with 45°chamfered

suction lances

  • made of aluminum AlMgSi 0.5 F22
  • inside, with stainless steel tube,
  • with spacer

Company information

Related trade show

More items

Coupling stations / Material distributors manufactured to your individual specifications
Coupling stations / Material distributors
manufactured to your individual specifications Coupling station - manufactured by HS Umformtechnik GmbH, stainless steel bends, branch parts, pipes with vacuum coplings DVK 6, Highly wear-resistant coupling stations produced by HS Umformtechnik GmbH
14.05.2019  |  8867x  |  Photo reportage  |
Stainless steel reducers material no. AISI 304 - ex stock with outer diameters from 38.0 mm till 168.3 mm
Stainless steel reducers material no. AISI 304 - ex stock
with outer diameters from 38.0 mm till 168.3 mm Stainless steel reducers from HS Umformtechnik - ex stock
15.04.2019  |  8439x  |  Photo reportage  |
DVK 6 - pipe couplings for suction conveying (light version)
DVK 6 - pipe couplings
for suction conveying (light version) for outer pipe diameters from 33.7 mm to 110.0 mm, Version: DVK 6 - Quick closure, length 150 mm, Version: DVK 6 - Quick closure, length 100 mm, pipe coupling for connecting glass pipe bends with stainless steel pipes
21.03.2019  |  10266x  |  Photo reportage  |
stainless steel branch parts robot welded
stainless steel branch parts
robot welded stainless steel branch parts 30° / 45° / 90° from D = 38.0 - 206.0 mm, robot welded, high quality, Material no.: AISI 304 / AISI 304 L, Wall thickness: 1.5 mm / 2.0 mm, form gas welded and special models - at request
19.03.2019  |  7304x  |  Photo reportage  |
Pipe couplings for pneumatic conveying systems DVK-HD high pressure pipe couplings
Pipe couplings for pneumatic conveying systems
DVK-HD high pressure pipe couplings - For outer pipe diameters from 60.3 mm to 206.0 mm - Length: 100, 150 and 200 mm - or longer - Pressure surge-resistant up to max. 12 bar, vacuum-resistant up to 0.8 bar
19.03.2019  |  10435x  |  Press release  |
Stainless steel pipe bends for pneumatic conveyors immediately, ex stock
Stainless steel pipe bends for pneumatic conveyors
immediately, ex stock radius 75 mm - 1500 mm / diameter 38.0 - 206.0 mm, Highly wear-resistant double-skin pipe bends - stainless steel, Hva niro highly wear-resistant pipe bends, pipe couplings and pipe bends for pneumatic conveying systems
14.02.2019  |  11538x  |  Photo reportage  |
