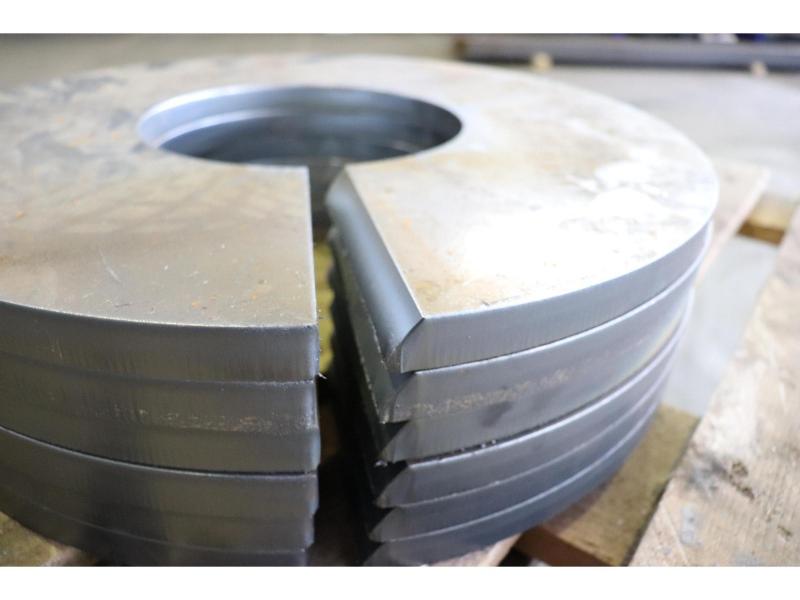

Reducing of working time by beveling cutting for auger flights Precision beveling cuttings, Variable beveling cutting from 20 to 45 degree

9700 x 435 mm - s/s 316 - Atex Vertical screw conveyor, Klinkenberg, ss 316, centre-to-centre distance 9700 mm, 435 mm diameter, pitch 350 mm, shaft 324 mm, screw welded at both sides, 9.5 kW Bauer drive, 160 rpm, ATEX Product no.: 24.55A2353 Visit our website for a complete overview of our used machinery in stock. Surplus Select is partner for the fluids and solids processing industry in CSR/re-use.

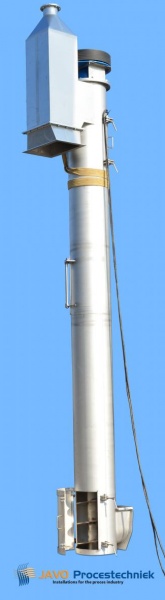

For vertical transport of humid, sticky and hot product a vertical screw conveyor is a good option. This vertical screw conveyor works on centrifugal force combined with the conveying of the screw. By this high speed execution the screw will be emptied, minimal product will be left in de screw conveyor. Alternative is low speed whereby the product by repression vertical is transported. Product is fed by a horizontal screw conveyor. The lift height of this conveyor is 5,5 mtr This conveyor is executed in stainless steel 1.4301 en executed with exhausting hood for release of vapour. JAVO Procestechniek builds on specification.
