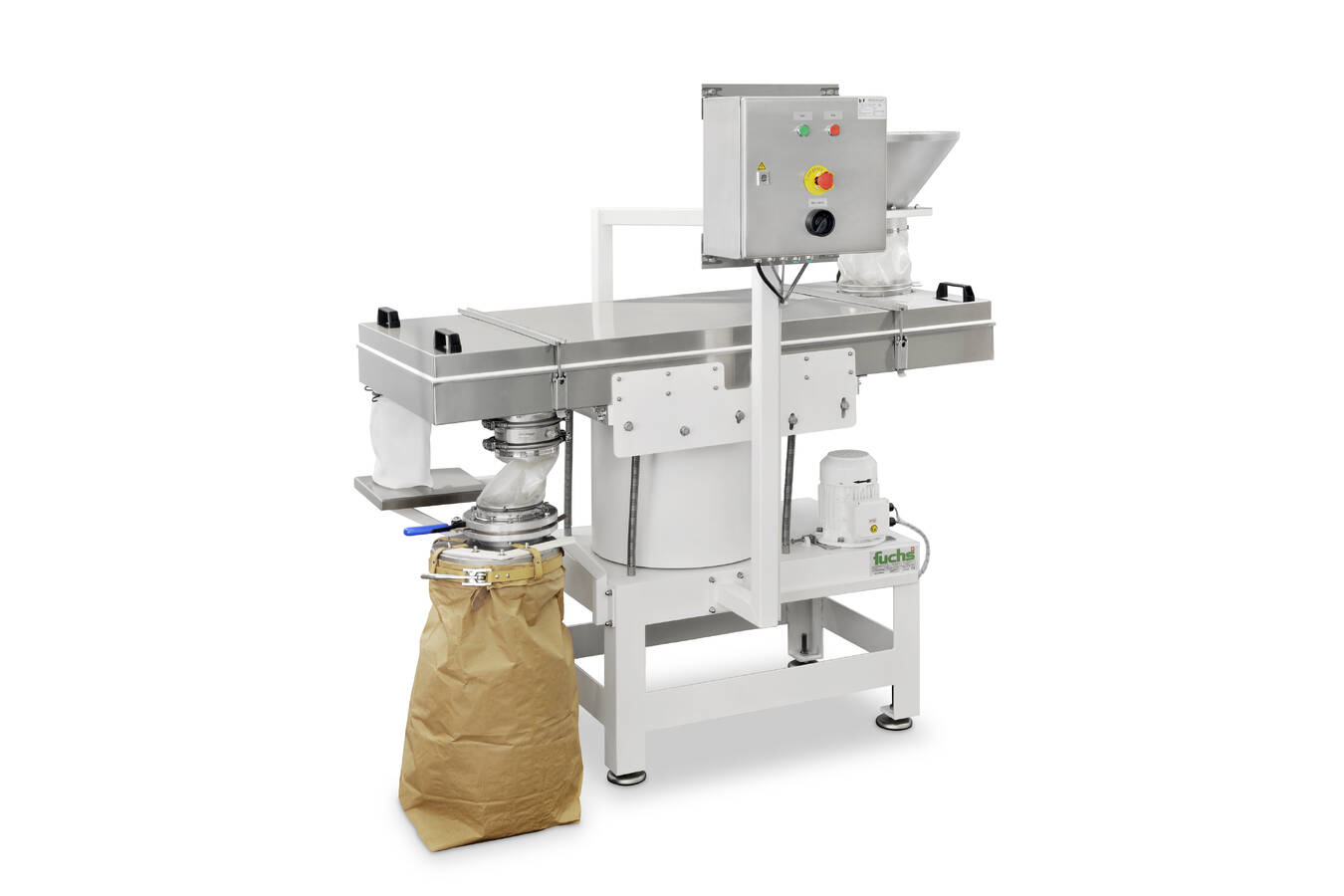

SIFTOMAT – Plansifters for general industrial applications
The SIFTOMAT is the standard model in the FUCHS range. It operates using an eccentric sifting movement, which enables gentle yet precise separation of bulk materials. Multiple sieve decks allow different fractions to be separated in a single pass – a benefit for companies seeking to optimise the efficiency of their production processes.
The SIFTOMAT plansifter is used in the plastics industry for granules, as well as in the food and pharmaceutical industries for powders and pellets. Its modular design allows for quick sieve changes and flexible adaptation to varying production batches.
The SIFTOMAT is for instance used in the pharmaceutical industry for pellets sizing. The sifting machine ensures consistent particle sizes and reduces downtime, thereby increasing the efficiency of the production line.

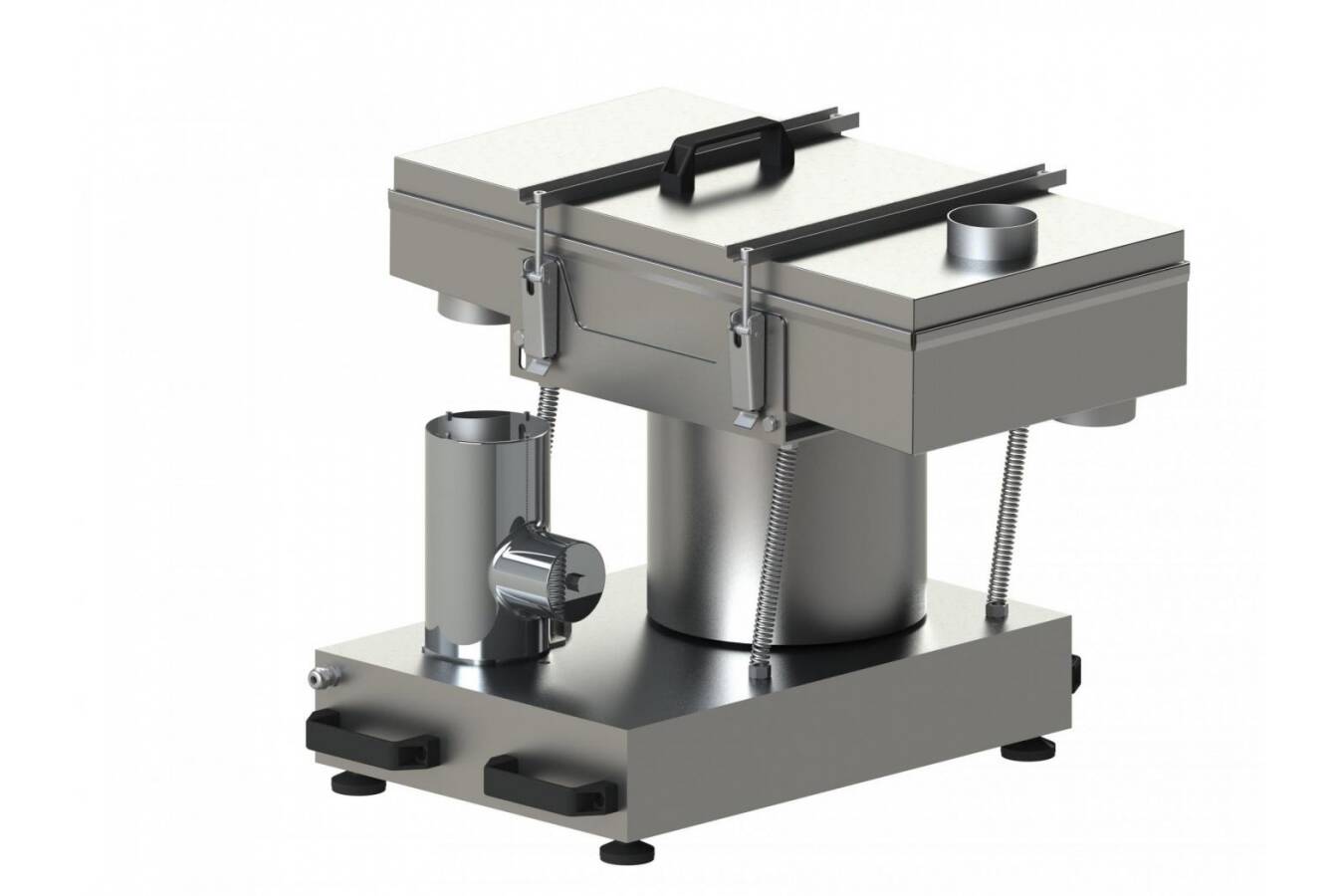

SIFTOMAT mini – the compact solution for laboratory & pilot production
For small batch sizes and pilot production runs, Fuchs offers the SIFTOMAT mini. This compact model offers the same precision as the standard machine and is de-signed for laboratory trials, pilot production and small-scale production, where flexibility and quick product changes are crucial.
Thanks to its space-saving design, the SIFTOMAT mini can be flexibly integrated into existing production lines without the need for major modifications.
It is easy to use and simple to clean, which is particularly important in the food and pharmaceutical industries. Typical applications include powder blending, processing herbs or plastic granules, where precise sifting is required.

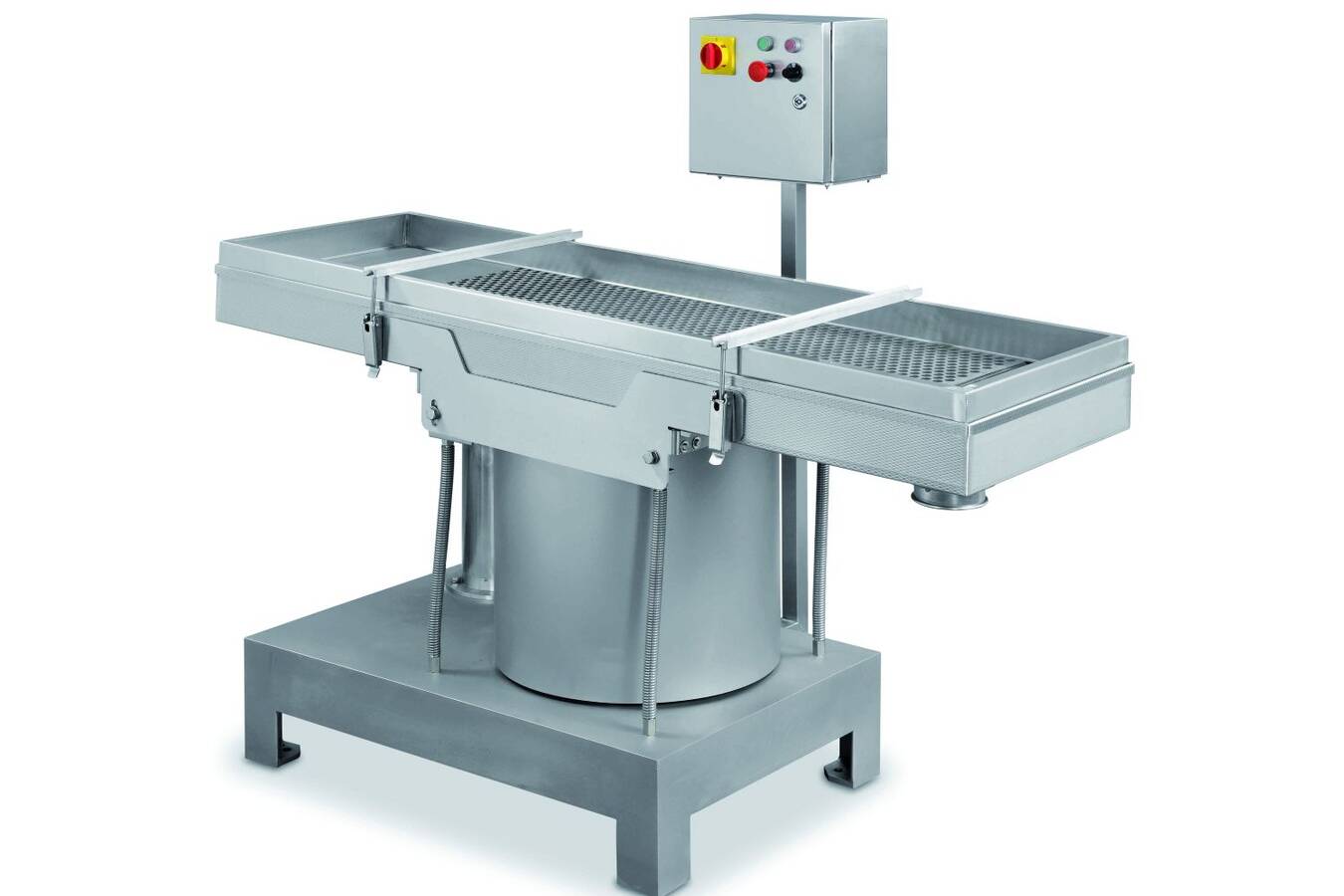

SIFTOMAT food – the hygienic food sifting technology
The SIFTOMAT food offers a specialised solution based on the proven SIFTOMAT plansifting technology, specifically designed to meet the requirements of food production – particularly in wet areas.
The machine impresses with its high level of flexibility in day-to-day production: thanks to its mobile design, the SIFTOMAT food can be easily moved using a pallet truck and quickly adapted to different locations. This offers significant advantages, particularly when dealing with seasonal agricultural products.
A key feature is the system’s all-stainless-steel construction – including the drive motor. As a result, the system meets the highest hygiene standards and can be easily and thoroughly cleaned with water after every production cycle.
The SIFTOMAT food is primarily used as a standalone unit and is therefore equipped with a fully integrated control system rated to protection class IP65. This also includes an integrated speed control system, which allows for optimal adaptation to different product requirements.
Typical applications include sizing and sorting foodstuffs by size, such as carrot sticks and diced potatoes or bacon. These are first cut to shape by machine, whilst the sifting technology reliably removes unwanted edge pieces, thereby contributing to quality assurance.
CONTROMAT – the control sifter for reliable quality assurance
The CONTROMAT complements the product range as a high-performance sifting machine designed to reliably check products for oversized material and foreign particles. It is used wherever it is necessary to ensure that defined quality standards are met before products proceed to the next stage of the process or are packaged.
The machine is available in two different designs and can be flexibly integrated into existing production lines. Thanks to its high-quality stainless steel construction, the CONTROMAT meets stringent hygiene requirements and is suitable for both the food and pharmaceutical industries. It thus plays a key role in ensuring product quality and process reliability.
Two designs for different requirements

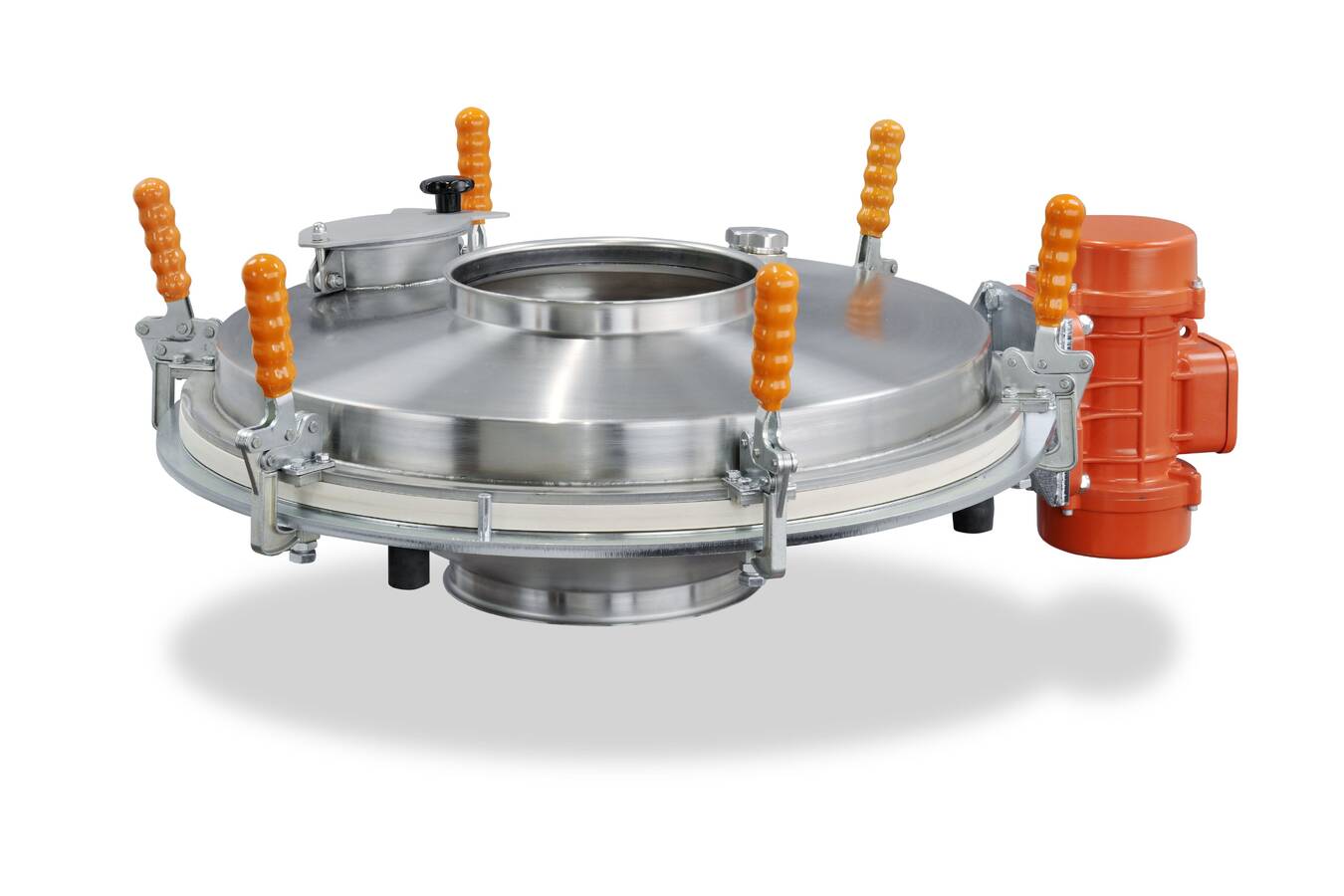

The round design is primarily used in applications where the product is expected to be largely free of foreign particles. Accordingly, this machine type is designed without an overflow. The sieve is checked at regular intervals for quality assurance purposes. Should foreign particles nevertheless be present, they can be easily removed manually via an inspection port.

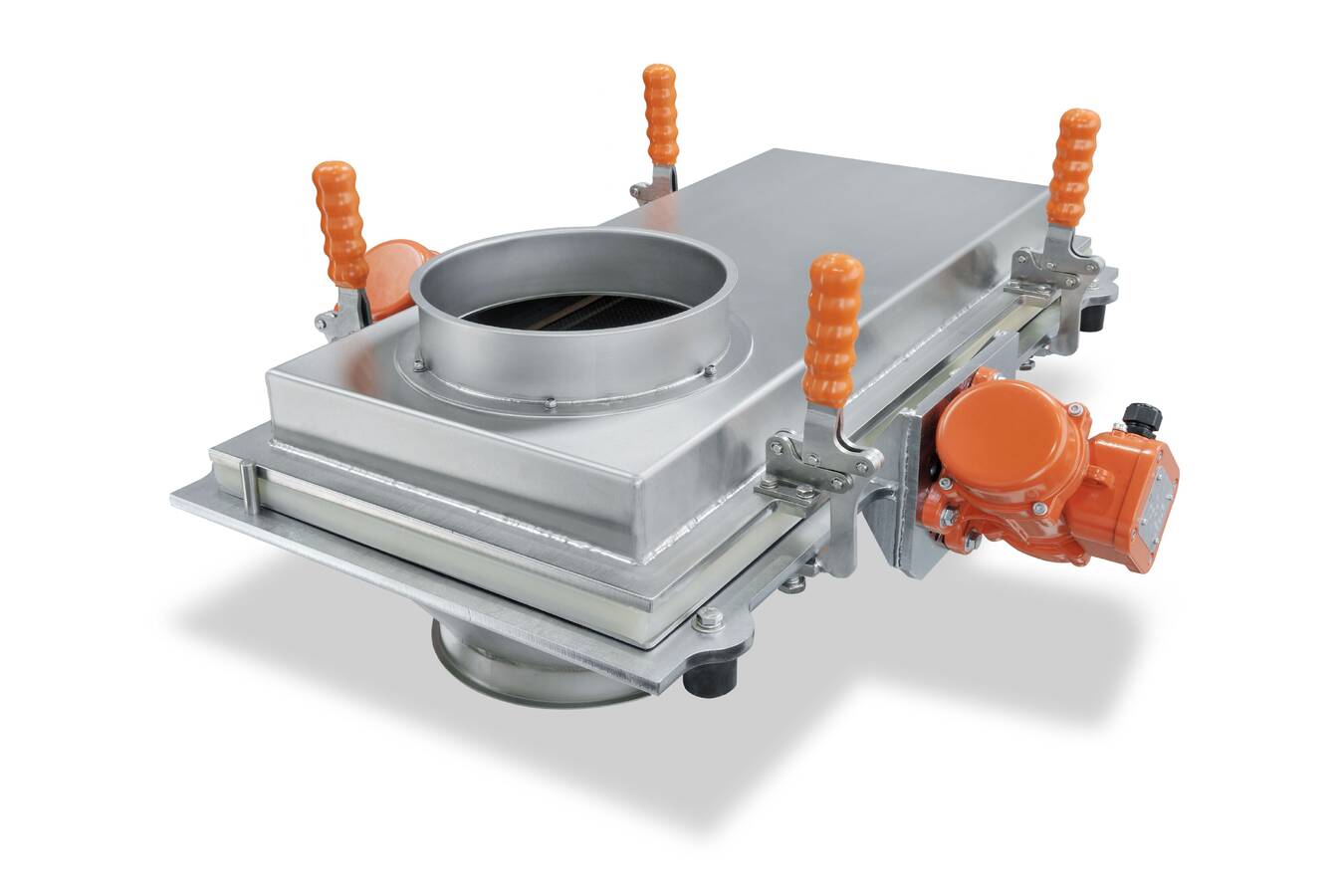

The square design, on the other hand, is used in processes where a certain proportion of coarse or foreign particles is to be expected. In such cases, unwanted particles are reliably removed via an integrated overflow. This variant also offers advantages for installations in hard-to-reach locations, as manual inspection or removal of foreign particles is only possible to a limited extent in such places.
Wide range of applications
FUCHS Maschinen AG’s sifting machines are used worldwide across a range of industries:
- Food industry: Separation of powders, spices and cereals
- Pharma industry: sizing and foreign particle control for pellets and granules
- Plastics industry: dedusting and fractionation of granules
The machines help to optimise production processes, quality control and effi-ciency. The modular design allows for adaptation to changing production conditions without compromising the machines’ performance.
Their design combines robust, durable construction with high flexibility, making them suitable for both laboratory and large-scale production.
Conclusion
With SIFTOMAT, SIFTOMAT mini, SIFTOMAT food and CONTROMAT, FUCHS Maschinen AG offers a comprehensive portfolio of solutions for precise, flexible and efficient sifting processes. Whether for laboratory use, pilot production or large-scale industrial applications, the machines meet the high demands of modern production and combine precision, flexibility and hygiene.
