Latest update: 13.12.2021
PMT Powder Maker Group GmbH
TEL: +43 (3844) 80350 0
Industriepark 1
A-8773   Kammern
Austria
Contact
+43 3844 803500
Mr. Erich Streibl
Toll Grinding & Classifying
+43 3844 803500
Mr. Jürgen Roth
Mills & Classifiers
Company brochure
Company brochure
PMT Powder Maker Group GmbH is one of the leading companies regarding dry grinding and classifying for ultra-fine particle sizes.

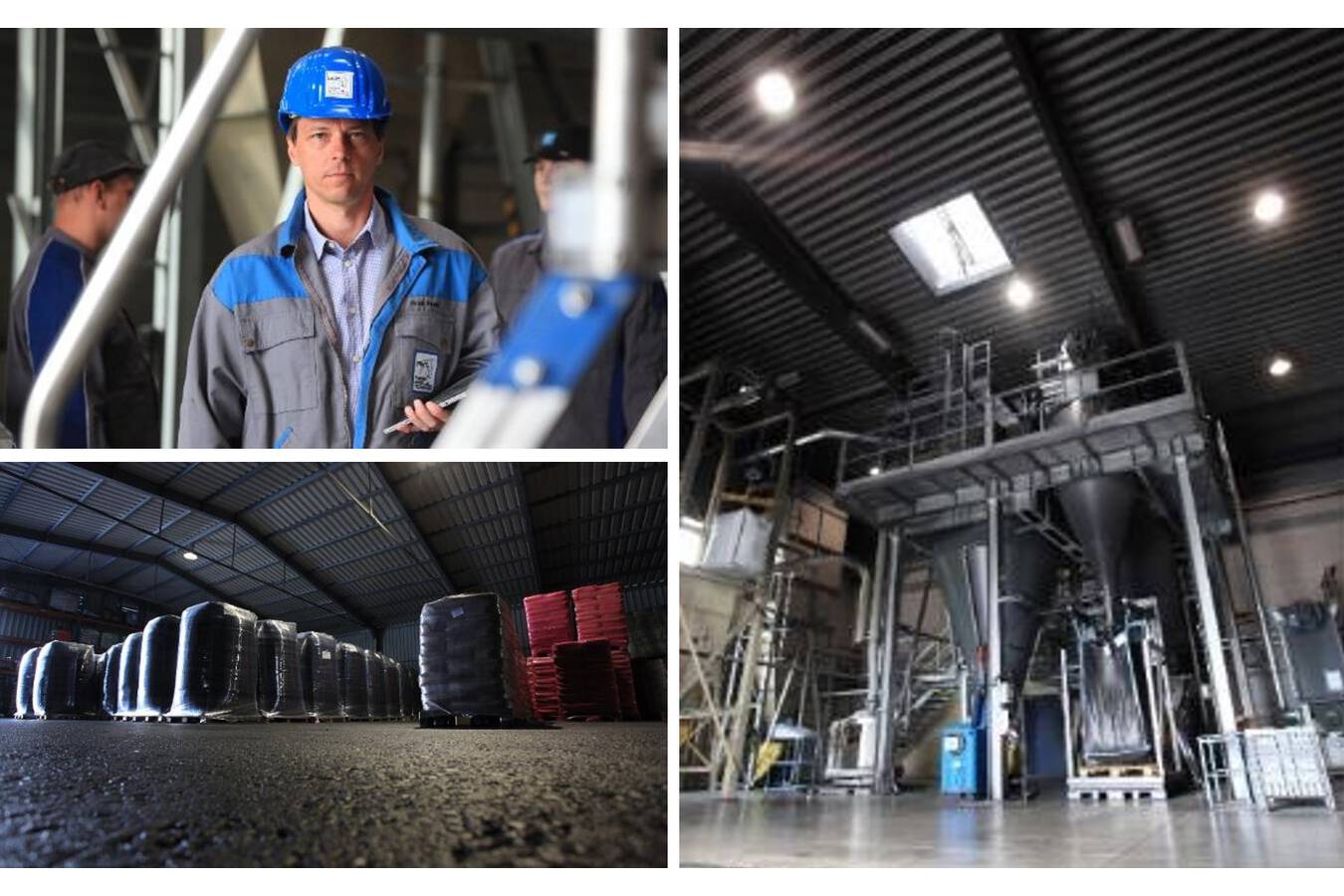

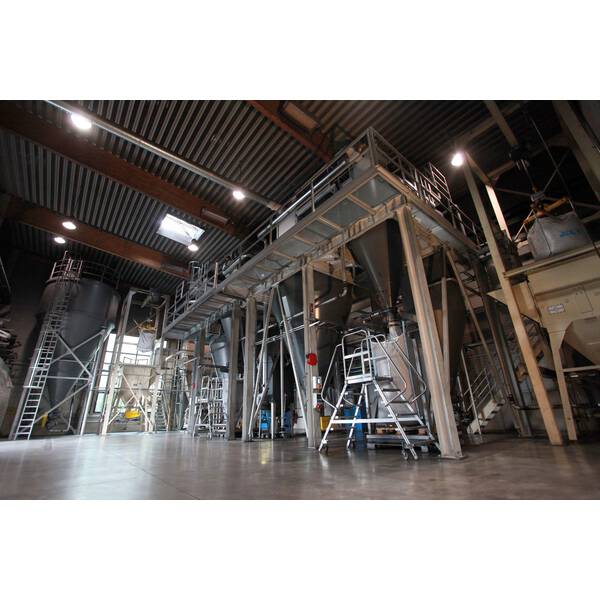

At the toll grinding center in Kammern/Austria PMT Powder Processing GmbH offers the possiblity to grind and classify soft to middle hard minerals, chemical and natural products.

To meet the industry’s need for high aspect ratios at extremely fine particle sizes, PMT developed the PMT spiral jetmill - in order to micronize materials down to particle sizes below 1 micron top cut.
Meet us at
We provide
Products, services
 Toll grinding - Flexible development of ultra-fine products
 Toll classifying - Cost overview for new products
 Toll manufacturing - Calculable market launch

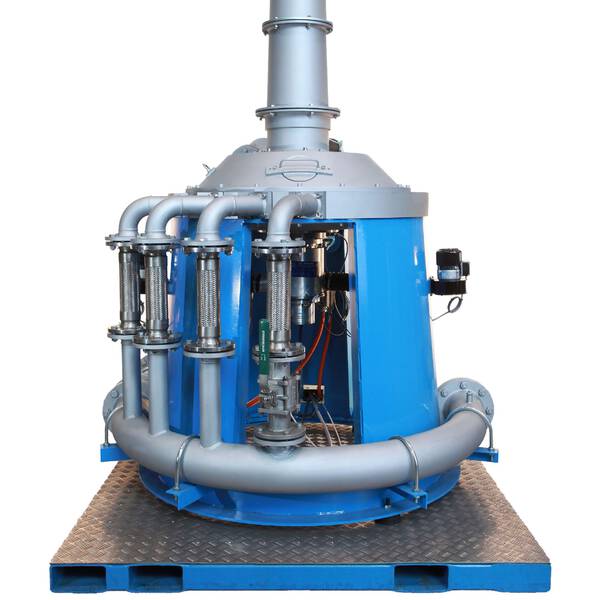

 Spiral jetmill - Highest product fineness and quality
 Jet classifiers - Ultra-fine separating-cut at positive pressure conditions
Categories
Particle size reduction - Crushers, mills - Air classifiers
Particle size reduction - Crushers, mills - Air jet mills
Services - Contracting, wage work
Packaging - Packaging in bags
Packaging - Packaging in boxes
Show more
Categories
Particle size reduction - Crushers, mills - Air classifiers
Particle size reduction - Crushers, mills - Air jet mills
Services - Contracting, wage work
Packaging - Packaging in bags
Packaging - Packaging in boxes
Packaging - Packaging in drums
Handling - Handling of big bags - Filling systems for big bags - Semi-automatic filling of big bags

Articles

Functional fillers with energy efficient jet mill EEU-System reduces specific energy consumption of dry ultrafine grinding.
Functional fillers with energy efficient jet mill
EEU-System reduces specific energy consumption of dry ultrafine grinding. Today functional fillers are confronted with steadily increasing requirements. Applications, e.g., in in polymer industry, used to be satisfied with extender fillers, which cheapened the compound. During the last decade the material profile has changed from pure volume filler to functional additives and fillers. But that is not good enough by half. Striving for sustainable ways of production and low carbon footprint begins in raw material processing and sets new standards. Modern spiral jet mills are the state of the art in the micronization of highly lamellar fillers. With their specific type of comminution based on shear forces, the particle shape significant for the downstream applications - whether in flake or needle form - can be preserved or even improved. With the development of the EEU (Enhanced Energy Utilization) system, the proven PMT spiral jet mill could be improved substantially in order to meet the ecological responsibility as well. Using functional
11.01.2022  |  1971x  |

Posts

 Ultra-fine grinding of Wollastonite Spiral jetmills enable ultra-fine products with dry processing. The Spiral Type Jetmill of PMT-Jetmill is specialized in optimizing air streams to improve efficiencies and to minimize energy consumption. One application example is Wollastonite.
Ultra-fine grinding of Wollastonite
Spiral jetmills enable ultra-fine products with dry processing. The Spiral Type Jetmill of PMT-Jetmill is specialized in optimizing air streams to improve efficiencies and to minimize energy consumption. One application example is Wollastonite. The material is fed pneumatically to the spiral jetmill and runs spirally through the milling chamber. Grinding media enters the area through the milling nozzles. Grinding media is either compressed air (3.5 to 15 bar and 240°C) or superheated steam (up to 24 bar and 400°C). The air stream fluidizes the material-bed and lifts as much particles as possible into the stream. Comminution is mainly based on shearing forces which result from velocity differences. The integrated dynamic classifier is capable to run at a maximum circumferential speed of 190 m/s. As soon as the particles reach a certain fineness, they can pass the classifier to the final product. The fineness can be easily adjusted by variation of the classifier speed. One application example is Wollastonite: Sample 1: * 7700 rpm classifier speed * Particle size: d50 = 2,5 µm (after Lasergranulometer Cilas 1064L) * Particle size: d97 = 10,5 µm (after Lasergranulometer Cilas 1064L) Sample 2: *
02.11.2022  |  251x  |  Product description  |
Ultra-fine grinding of Zeolite Spiral jetmills enable ultra-fine products with dry processing. The Spiral Type Jetmill of PMT-Jetmill is specialized in optimizing air streams to improve efficiencies and to minimize energy consumption. One application example is Zeolite.
Ultra-fine grinding of Zeolite
Spiral jetmills enable ultra-fine products with dry processing. The Spiral Type Jetmill of PMT-Jetmill is specialized in optimizing air streams to improve efficiencies and to minimize energy consumption. One application example is Zeolite. The material is fed pneumatically to the spiral jetmill and runs spirally through the milling chamber. Grinding media enters the area through the milling nozzles. Grinding media is either compressed air (3.5 to 15 bar and 240°C) or superheated steam (up to 24 bar and 400°C). The air stream fluidizes the material-bed and lifts as much particles as possible into the stream. Comminution is mainly based on shearing forces which result from velocity differences. The integrated dynamic classifier is capable to run at a maximum circumferential speed of 190 m/s. As soon as the particles reach a certain fineness, they can pass the classifier to the final product. The fineness can be easily adjusted by variation of the classifier speed. One application example is Zeolite: Sample 1: * 9700 rpm classifier speed * Particle size: d50 = 2,2 µm (after Sympatec Helos) * Particle size: d97 = 5,0 µm (after Sympatec Helos) Sample 2: * 7700 rpm classifier speed * Particle
27.09.2022  |  492x  |  Product description  |

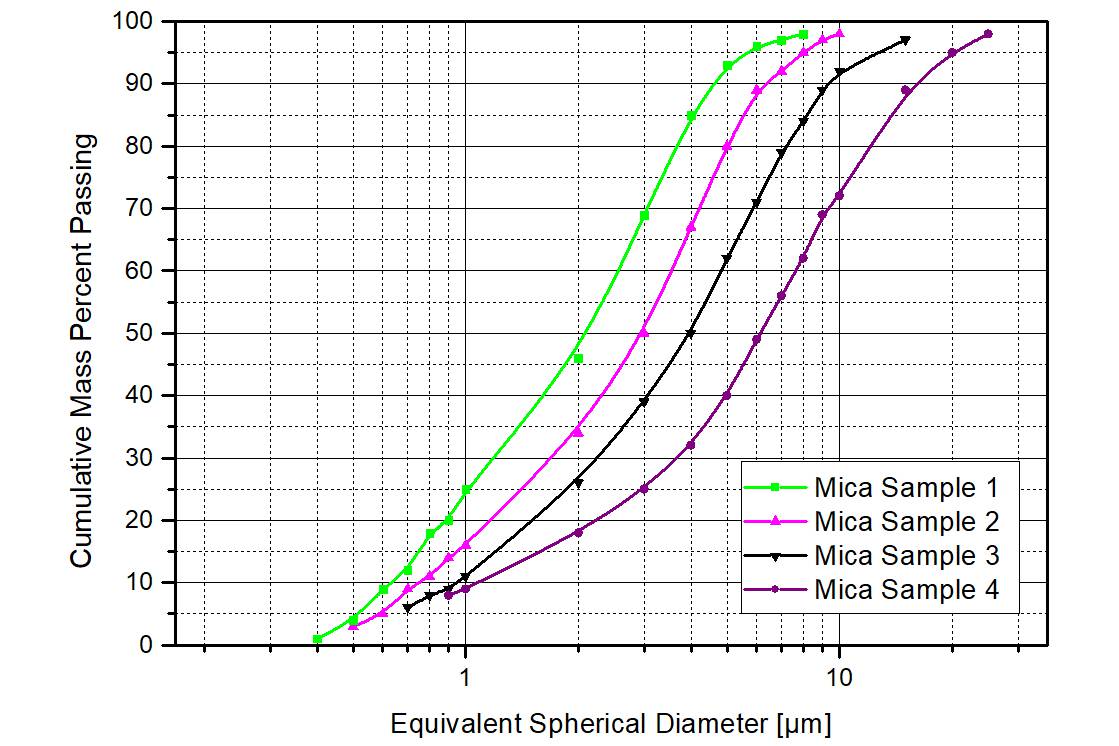

Ultra-fine grinding of Mica Spiral jetmills enable ultra-fine products with dry processing. The Spiral Type Jetmill of PMT-Jetmill is specialized in optimizing air streams to improve efficiencies and to minimize energy consumption. One application example is Mica
Ultra-fine grinding of Mica
Spiral jetmills enable ultra-fine products with dry processing. The Spiral Type Jetmill of PMT-Jetmill is specialized in optimizing air streams to improve efficiencies and to minimize energy consumption. One application example is Mica The material is fed pneumatically to the spiral jetmill and runs spirally through the milling chamber. Grinding media enters the area through the milling nozzles. Grinding media is either compressed air (3.5 to 15 bar and 240°C) or superheated steam (up to 24 bar and 400°C). The air stream fluidizes the material-bed and lifts as much particles as possible into the stream. Comminution is mainly based on shearing forces which result from velocity differences. The integrated dynamic classifier is capable to run at a maximum circumferential speed of 190 m/s. As soon as the particles reach a certain fineness, they can pass the classifier to the final product. The fineness can be easily adjusted by variation of the classifier speed. One application example is Mica: Sample 1: * 5700 rpm classifier speed * Particle size: d50 = 2,2 µm (Sedigraph) * Particle size: d97 = 7,6 µm (Sedigraph) Sample 2: * 4200 rpm classifier speed * Particle size: d50 = 3,0 µm (Sedigraph) *
18.08.2022  |  645x  |  Product description  |

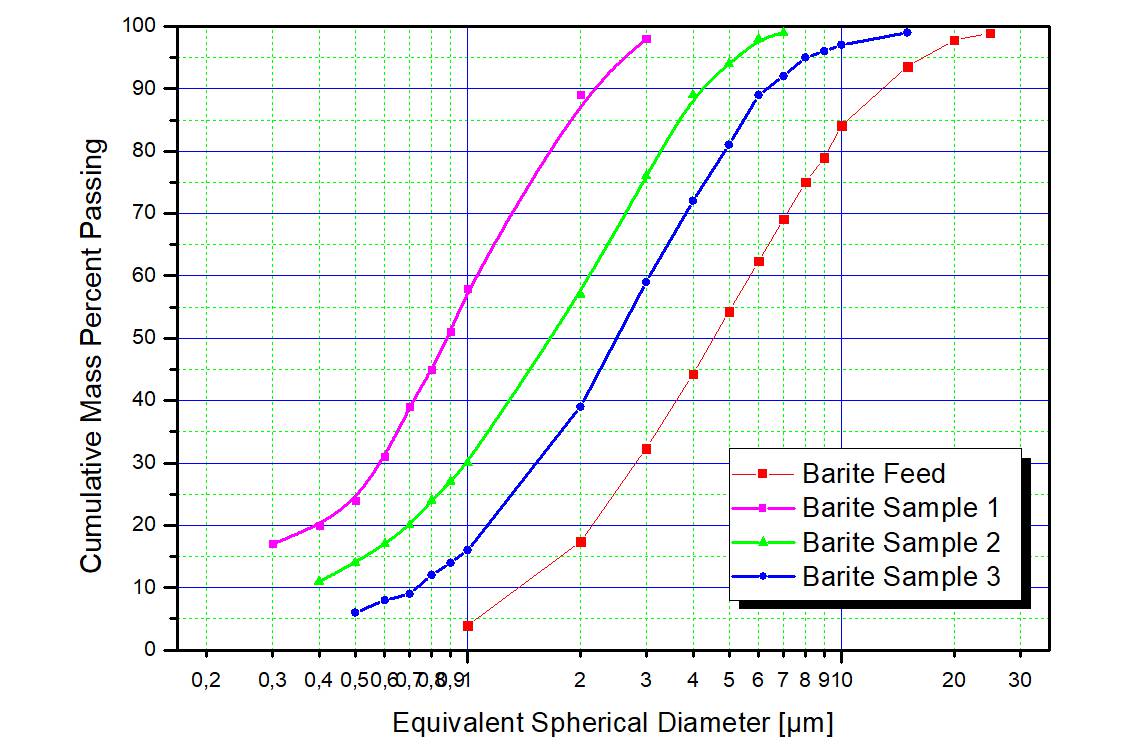

Application: Ultra-fine grinding of Baryte Spiral jetmills enable ultra-fine products with dry processing. The Spiral Type Jetmill of PMT-Jetmill is specialized in optimizing air streams to improve efficiencies and to minimize energy consumption. One application example is Baryte.
Application: Ultra-fine grinding of Baryte
Spiral jetmills enable ultra-fine products with dry processing. The Spiral Type Jetmill of PMT-Jetmill is specialized in optimizing air streams to improve efficiencies and to minimize energy consumption. One application example is Baryte. The material is fed pneumatically to the spiral jetmill and runs spirally through the milling chamber. Grinding media enters the area through the milling nozzles. Grinding media is either compressed air (3.5 to 15 bar and 240°C) or superheated steam (up to 24 bar and 400°C). The air stream fluidizes the material-bed and lifts as much particles as possible into the stream. Comminution is mainly based on shearing forces which result from velocity differences. The integrated dynamic classifier is capable to run at a maximum circumferential speed of 190 m/s. As soon as the particles reach a certain fineness, they can pass the classifier to the final product. The fineness can be easily adjusted by variation of the classifier speed. One application example is Baryte: Sample 1: * 7200 rpm classifier speed * Particle size: d50 = 0,9 µm (Sedigraph) * Particle size: d97 = 2,7 µm (Sedigraph) Sample 2: * 3200 rpm classifier speed * Particle size: d50 = 1,7 µm (Sedigraph) *
28.07.2022  |  515x  |  Product description  |

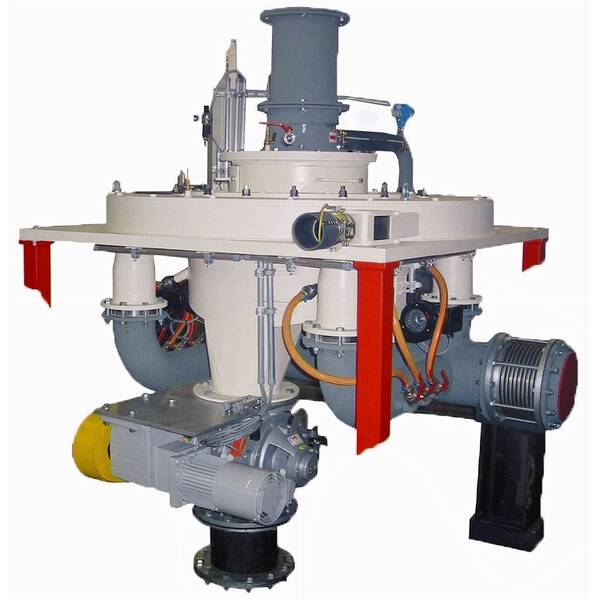

Efficient fine classifying: design of PMT Jet-classifier Classifying of finest powders at high recovery rate. Optimum dispersion because of positive pressure condition.
Efficient fine classifying: design of PMT Jet-classifier
Classifying of finest powders at high recovery rate. Optimum dispersion because of positive pressure condition. PMT-Jetmill has developed the Jet-Classifier JS operating in positive pressure condition. Based on this special operation these classifiers have the finest range of products in high content recovery. This can also be achieved on an industrial scale. All types of powders Classifying means separation in a coarse and a fine fraction. Basically all types of powdery raw materials can be processed. Caused by strong agglomerates due to high surface forces, common classifying systems achieve only low classifying efficiency. The PMT Jet-classifier JS operates under positive pressure in order to optimize dispersion of the feed material based on high shear forces. The first positive pressure classifier for the submicron range leads to high content recovery even in the finest cut-point range. The use of the Rotor-Motor-Unit enables final product cut-points in the low micrometer and even submicron range. Benefits: * operation in positive pressure condition * improved
09.05.2022  |  1049x  |  Product description  |

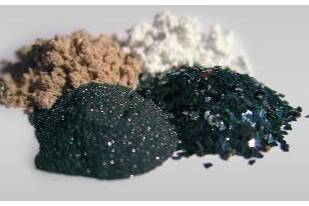

What materials we can grind at PMT Powder Maker Group  Smooth grinding of soft to middle hard materials with spiral jet mills in toll grinding center Kammern. PMT Powder Maker Group GmbH is specialized in dry grinding and classifying of ultra-fine particles.
What materials we can grind at PMT Powder Maker Group
Smooth grinding of soft to middle hard materials with spiral jet mills in toll grinding center Kammern. PMT Powder Maker Group GmbH is specialized in dry grinding and classifying of ultra-fine particles. Grindability depends on material structure and type. Our spiral jetmill grinds soft to middle hard materials (Mohshardness 1-6) in a smooth way. Ductile and elastic materials can be dispersed and deagglomerated if applicable, but not ground. Grindable materials cover industrial minerals (like Zeolite, Clay, Barite, Mica, Kaolin, Talc, Bentonite) and chemical products (like Petrol coke, pigments, melamin, glass) and natural products (like alga, seed, egg shells or cocoa). Grindability details are determined in a grinding trial with which achievable particle sizes, capacities and specific energy consumptions are found.
10.03.2022  |  1007x  |  Product description  |
Show more (3)
