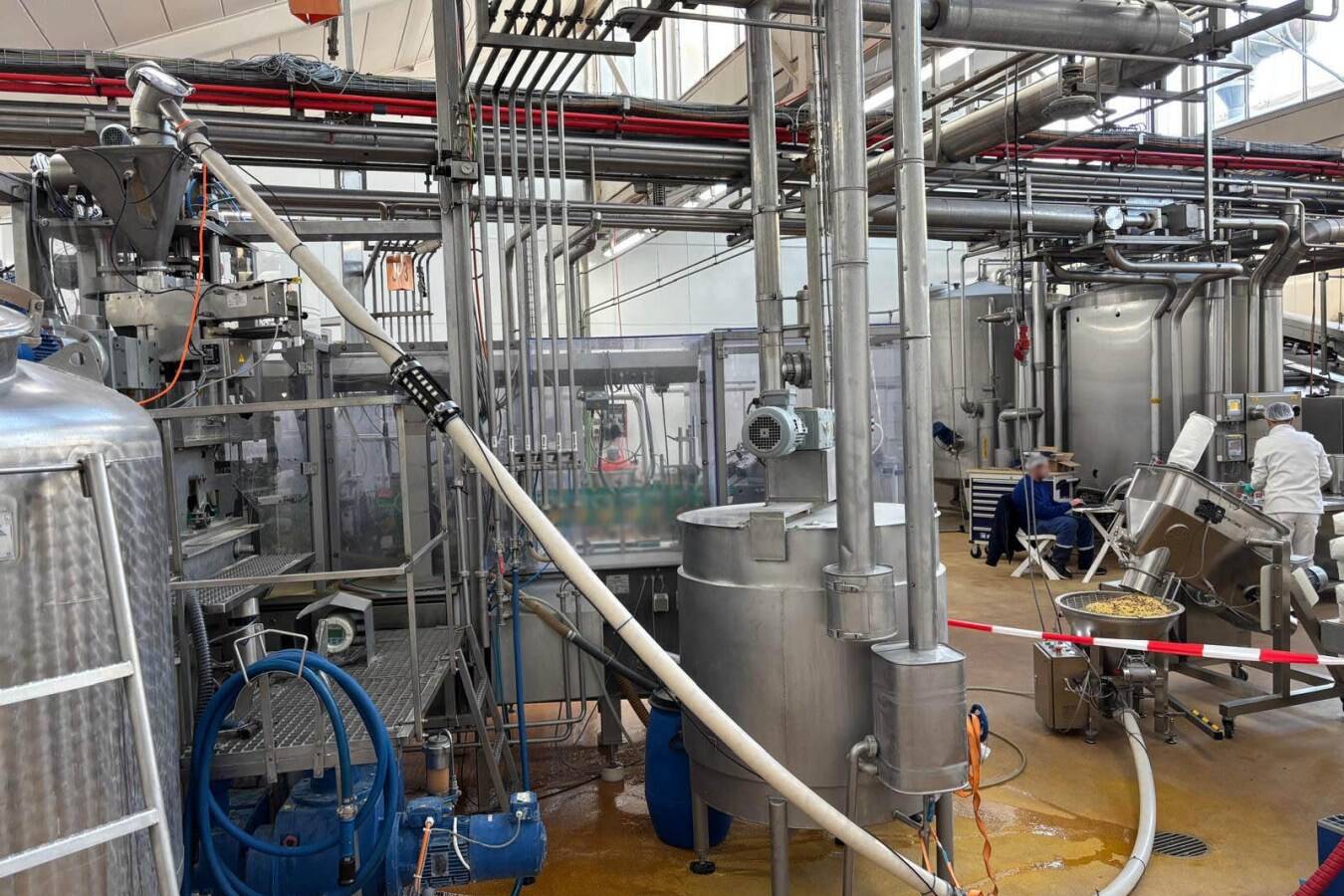

Modular system combining a Prodima mixer, hopper, and conveyor optimizes powder processing. It boosts efficiency, cuts downtime, and maintains high mixing quality for food, pharma, and chemical industries in a compact footprint. How can mixing quality, productivity, and flexibility be optimally combined in a compact production plant? This question was posed by a manufacturer of powder products across all industrial sectors as part of modernizing their production. After extensive mixing trials, the decision was made in favor of a modular system combination consisting of a mobile Prodima mixer MP-150 (mixing volume approx. 130 liters), an intermediate hopper, a flexible mechanical conveyor, and an existing filling system. The main factors influencing this system configuration were, in particular, the high mixing accuracy, short mixing times, the flexible useful volume of min. 10%, max. 90% of the mixer, as well as low energy consumption. Additionally, the mobility of the mobile mixer allows the same mixer to be used on multiple production lines if required. After the mixing process, the product is discharged into an intermediate hopper. While the flexible screw conveyor continuously transports…

For over five decades, Prodima Mixers SA has developed and sold high-quality mixers for powdered products. Our systems are used in nearly all industries, excelling in flexibility, short mixing times, and excellent accuracy. Key Features of Our Mixing Technology A three-part mixing system forms the core of our technology, consisting of a specially shaped mixing container, a mixing screw, and the ability to adjust the mixing container’s tilt angle to the flow behavior of the respective products. This allows for gentle or intensive mixing of diverse materials, depending on requirements. Optional accessories like high-frequency shear heads enable efficient comminution of agglomerates and ensure homogeneous distribution of liquid components during the mixing process. Our developments consistently align with the latest technological standards. Current innovations include: * Automatic opening and closing of the mixing container lid on large systems * Temperature monitoring…

The MP batch mixers series is complemented by a new development: less expensive, manual tilt angle adjustment and new drive system. When quality depends on mixing Prodima Mixers SA on the shores of Lake Geneva / Switzerland is a manufacturer of batch mixers for powders, granules, grains, herbs, granulates in all industrial sectors and offers a unique mixing technology of high mixing accuracy. Dry products of different bulk densities and grain sizes can be homogeneously mixed easily and quickly thanks to our special technology. Even liquid mixtures can be realised without introducing air into the mixing material. Compared to other mixing systems, our mixers are characterised in particular by: Prodima mixers - Variable useful volume from 10% to >90% of the gross volume - Very low energy consumption - Fast mixing - Gentle mixing - Easy cleaning - Mobile and space-saving - Mixing accuracy 1 : 100’000 Model MP-L The new PRODIMA mixer type ”MP-L” is currently available in the size 135 litres. It has the same special characteristics as all PRODIMA mixers, which distinguish our mixing technology. The type ”MP-L”…
