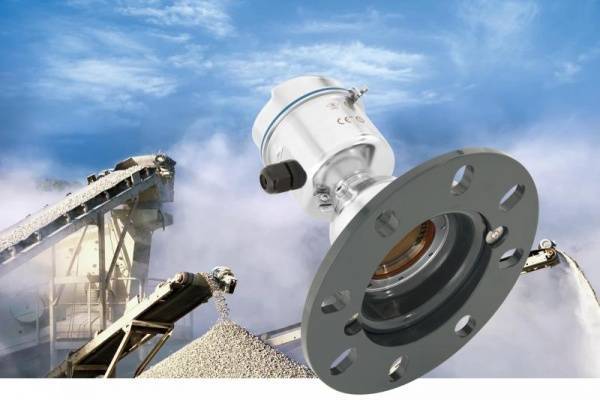

New NivoRadar® NR 3000

Innovative. Precise. For challenging conditions and material

The robust stainless steel construction makes the continuous non-contact level measurement
NivoRadar® NR 3000 extremely suitable for all kinds of industrial applications. The unit operates at a high frequency of 78 GHz. This delivers a very small beam angle of 4° which eliminates any signal interference at the flange but allows for optimum reflection of the bulk solids material.

You can measure distances up to 100 meters and the sensor can be used especially in very fine solids due to the high sensitivity.

The NivoRadar® offers a flat flange version and also an aiming flange version. Using the adjustable aiming flange, the radar is perfectly aligned since the probe can be fixed to the desired point. In other words, the angle of the beam can be set to a specific point; for example, at the outlet of the silo.

The lens antenna is highly resistant to material deposits and offers a self-clean function for extremely sticky solids using an air flush connection. Even within applications where condensation occurs, the flushing connection provides a functionally reliable measurement.

The device uses a two-wire technology and is made simple to operate via a local programmer with display and a Quick Start Wizard. The unshielded radar sensor has a completely dustproof design and provides reliable measurement results in high process temperatures up to 200°C.

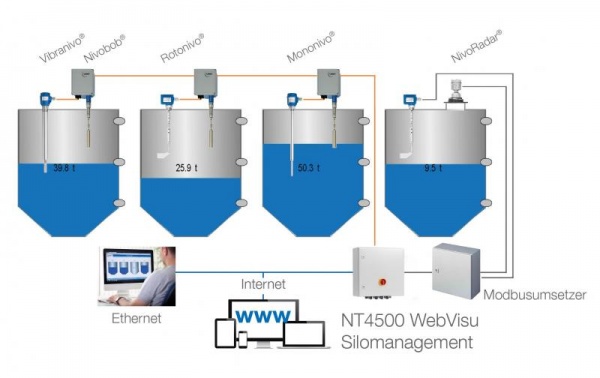

The radar sensor can also be easily connected to the silo management system Nivotec®.

Company information

UWT GmbH
UWT GmbH
UWT GmbH is one of the world’s leading manufacturers of measurement technology for the detection and monitoring of levels, limit levels in any kind of bulk materials, solids as well as in liquids, pastes and foam. Since the founding, the product portfolio has developed and offers solutions for a variety of industries. > Headquarter with development, production and sales department in Germany > Subsidiaries in USA, Great Britain, India, Mexico, Brazil and China plus a global net of exclusiv distributors > Over a million successfully solved applications in more than 90 countries > Variety of industry solutions according to individual requirements > UWT products represent quality, flexibility and reliability Our products are named under: Rotonivo® - Rotary paddle switch incl. SIL2 version Vibranivo® - Vibrating fork Mononivo® - Vibrating rod probe RFnivo® - Capacitive level switch also with anti-corrosive Teflon® coating for flue gas cleaning Capanivo® / NivoCapa® - Capacitive level switch NivoBob® - Electro-mechanical Plumb Bob as well for Interface NivoRadar® - Radar sensors NivoGuide® - TDR guided radar NivoTec® - Level monitoring and visualisation From development and production to final assembly and comprehensive technical advice, all services are provided from a single source. The focus is on the highest quality, technical know-how and good cooperation with customers, suppliers and partners. What is particularly important to the managing directors Uwe Niekrawietz, Markus Schalk and Andreas Haug is the well-being of the 200 employees worldwide: ”Healthy and happy employees can achieve incredible things”.  The product portfolio is developed further every year and enables holistic solution concepts for a variety of industries. In addition to level and point level measurement, UWT offers monitoring and visualisation systems and complete project planning. Well-known plant manufacturers and end customers worldwide appreciate the customised solutions as well as the easy handling and durability of UWT sensors. In order to be able to pass on the best possible added value to customers in the future, UWT’s corporate strategy is consistently geared towards steady and sustainable growth.
