Optimized for Limited Differential Pressure
The reintroduced rotary valves are specifically engineered for applications with limited differential pressure. These units ensure optimal performance in low-pressure pneumatic conveying systems, under cyclones and filters, and during big-bag discharging operations. Built with a robust and compact construction, they are equipped with dust-tight, sealed-for-life bearings that guarantee a long operational lifespan in continuous industrial production processes.
Distinct Flange Designs Ensure Application Flexibility

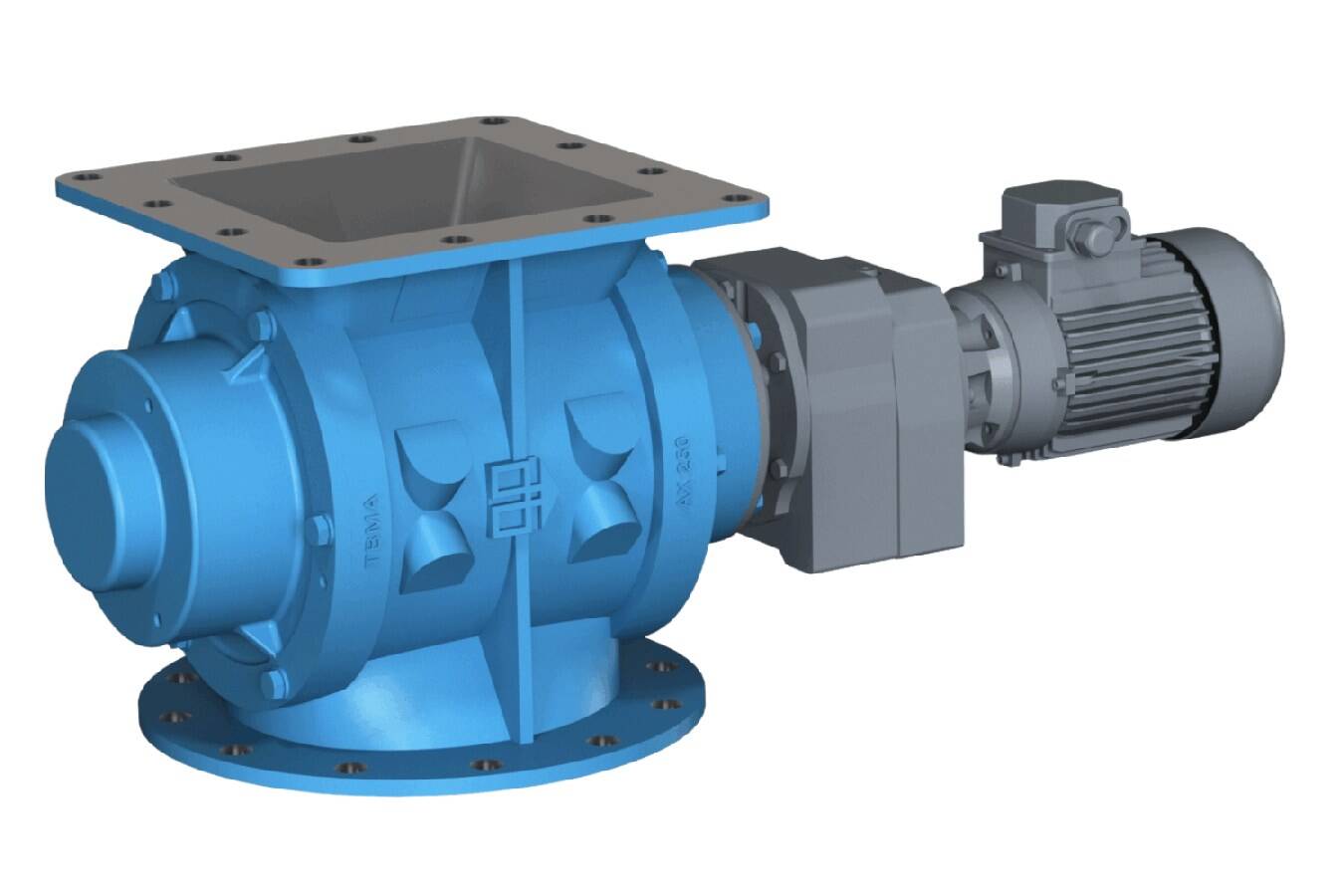

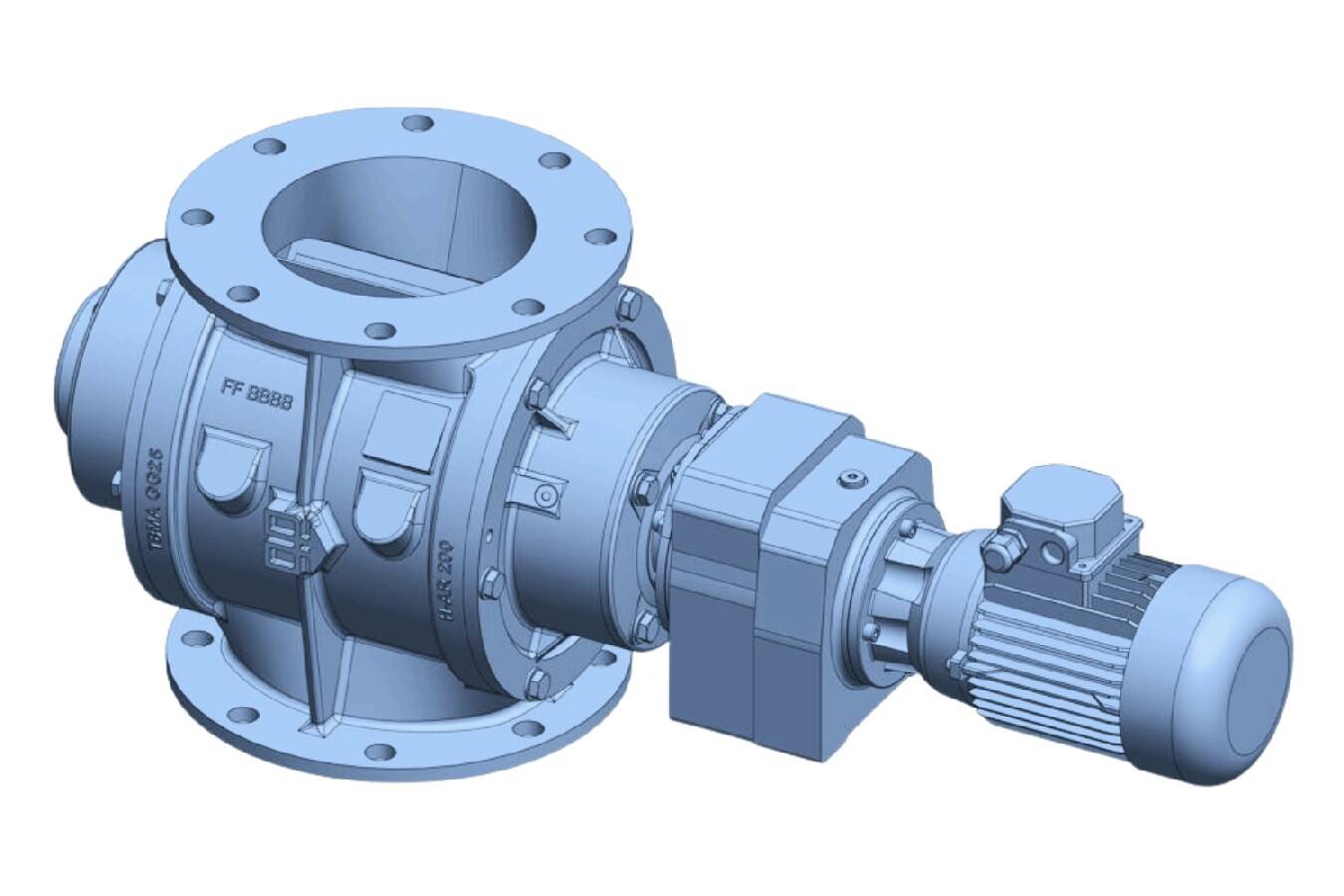

The product line offers distinct design variations to fit specific system integration needs. The MAX models feature standard round connecting flanges across four inlet sizes. Conversely, the RAX models are built with a relatively large flange diameter in comparison to their rotor capacity, serving as a practical solution when flange dimensions take priority. Featuring a combination of round and square flanges, the RAX can act as a direct transition piece, reducing installation height and eliminating extra mounting components.
Technical Specifications and Material Configurations
Both valve ranges incorporate design enhancements aimed at maximizing processing efficiency and equipment durability. Key performance features and available custom configurations include:
- Rotor capacity ranging from 5.5 up to 34 liters per revolution
- Double shearing edge on both the inlet and outlet
- Corrosion-resistant version with a stainless steel rotor
- Abrasion-resistant version with a hardened blade steel rotor
- Options for direct in-line drive or bare shaft execution
