In the era of Industry 4.0, digital material management is no longer a luxury—it is the baseline for reducing costs and staying competitive. Yet, for plant managers in cement, power, and mining, the ”inventory gap” remains a constant headache. You cannot manage what you cannot see, and in a 55-meter-deep silo filled with swirling dust, traditional sensors often leave you blind.

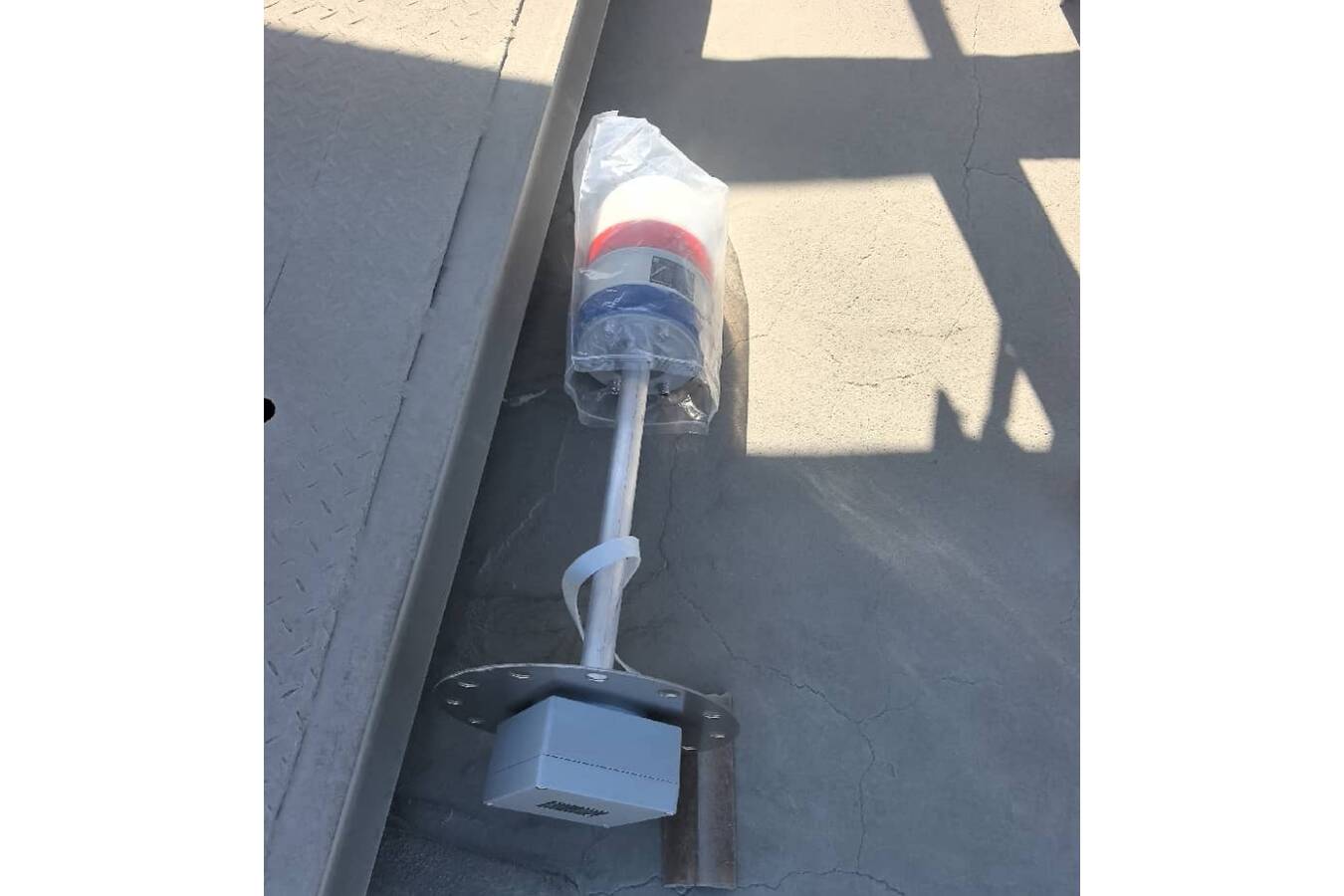

The 3DPro2300 Radar Scanner moves beyond simple distance measurement to provide complete 3D surface topology, turning ”invisible” bulk solids into actionable data.
The Reality of ”Blind” Material Management

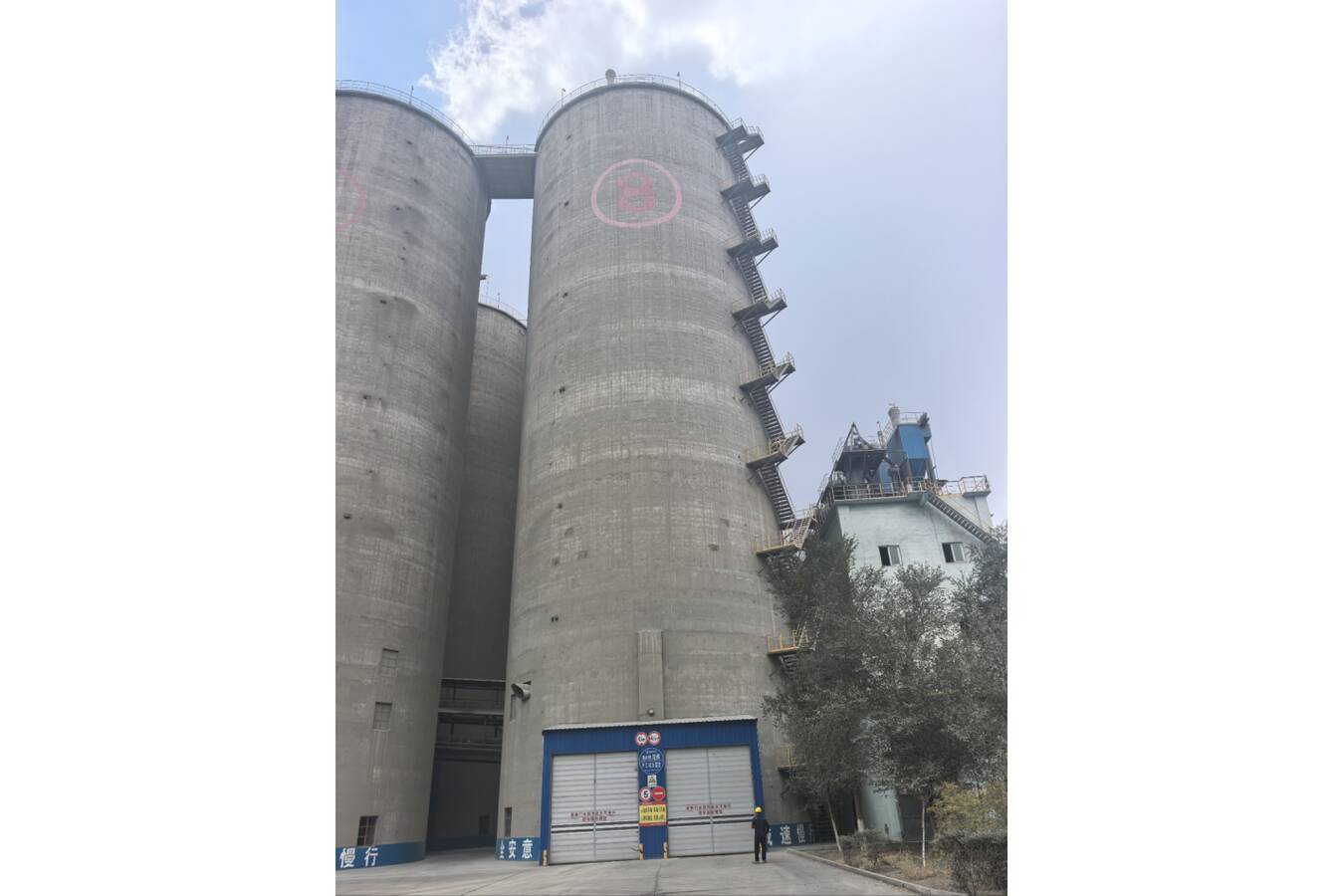

Traditional measurement methods frequently fail in heavy industrial settings characterized by high dust, large particle sizes, and extreme temperatures. For a typical large-scale cement silo, the operational ”pain points” are significant:
Extreme Dust Interference: Visibility inside silos is often near zero. Laser-based equipment is effectively useless here, as it cannot penetrate heavy dust to reach the material surface.
The Hazard of Manual Checks: Relying on workers to climb to a silo roof for manual estimations is a major safety liability. It’s slow, inaccurate, and puts lives at risk.
Legacy ”Single-Point” Limitations: Standard radar gauges only measure a single point. They fail to account for material peaks, valleys, or sidewall buildup, leading to severe distortions in volume and mass calculations.
80GHz FMCW Technology
The 3DPro2300 is designed to thrive where legacy tech fails. Utilizing millimeter-wave core technology (specifically Terahertz FMCW), this scanner offers ”dust immunity”.
Physical Penetration: Microwave signals possess exceptional penetration capabilities. The system maintains stable operation even when the equipment surface is coated in up to 1cm of dust, ensuring you never lose your echo.

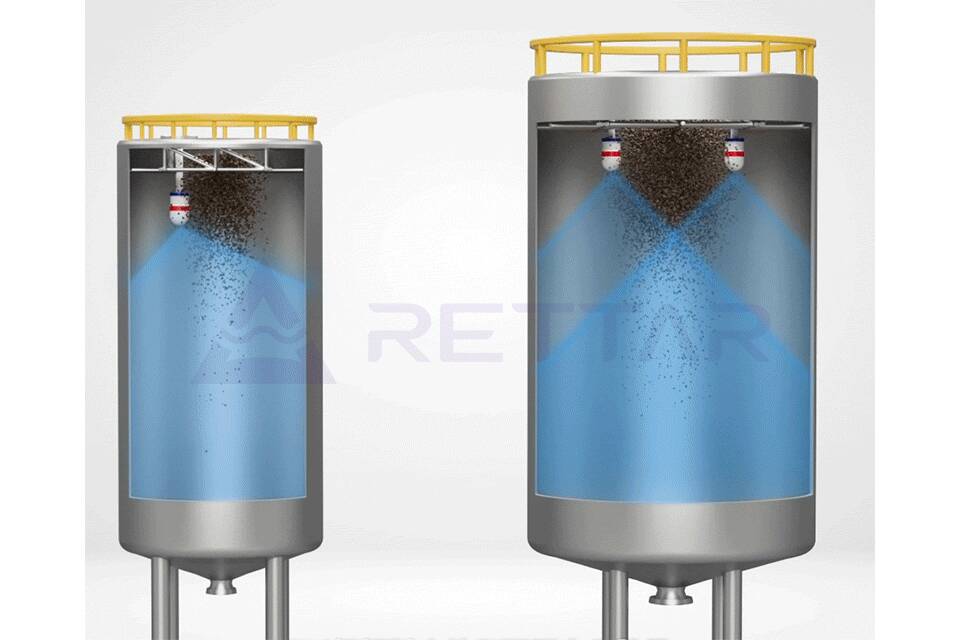

16,200-Point Spatial Mapping: Unlike static sensors, the 3D Radar Scanner uses an internal mechanical structure to combine a 360° horizontal rotation with a ±90° pitch. It captures data from thousands of angles, generating a dense point cloud that eliminates the ”blind spots” inherent in traditional multi-point measurement.
Precision Engineering for the Plant Floor
We didn’t just build a sensor; we built a ”data brain” for your procurement and production planning.

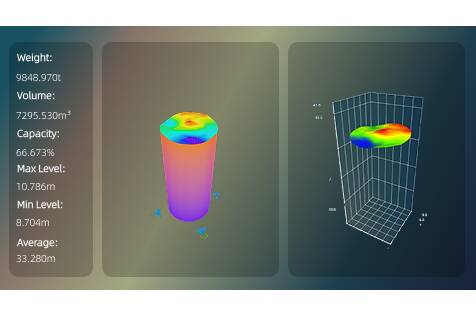

- High-Precision 3D Modeling: Raw data is processed via AI and 3D point cloud conversion to reconstruct the material’s form in real time. The system calculates min/max levels, volume, and mass with distance accuracy of ±2mm.
- Built-in Redundancy: To handle extreme industrial fluctuations, the 3DPro2300 features dual power and dual network redundancy. If one path fails, the other takes over seamlessly to ensure uninterrupted monitoring.
- Self-Correction & Intelligence: An internal 6-axis gyroscope automatically corrects for angular deviations if the device is mounted at a slight tilt. Furthermore, built-in sensors pause operations if temperatures exceed safe limits, protecting your hardware investment.
Results: From Vague Estimates to a ”Transparent Factory”
Implementing the 3DPro2300 transforms silo management from a guessing game into a precise science.
- Zero-Climb Safety: Completely eliminates the need for manual silo climbing, protecting your personnel.

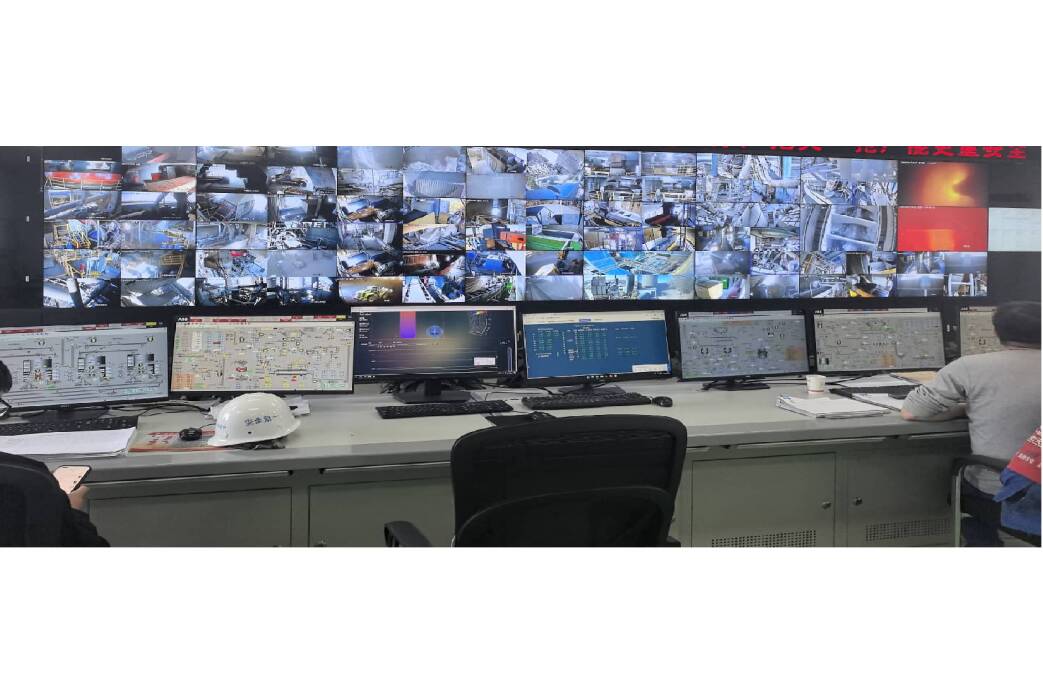

- Real-Time Insights: 3D images update instantly during loading and unloading. There is no more waiting for dust to settle before you can trust your data.
- Data-Driven Decision Making: Precise inventory counting—reduced from hours to minutes—provides the foundation for accurate procurement and scheduling, preventing costly production interruptions.
The 3DPro2300 proves that high-precision measurement can handle the most demanding tasks under the harshest conditions. Stop managing by estimation and start seeing the real shape of your inventory.
