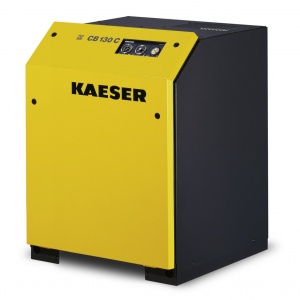

“Compact” series rotary blowers are equipped with flow-optimised “Omega profile” rotors and deliver pressures up to 1000 mbar (g), or 500 mbar (vacuum). The CB 110 C model has a maximum pressure of 800 mbar (g), whilst the CB 130 C can reach 1000 mbar (g) - they provide flow rates of 9.5 and 12.3 m³/min respectively. Both provide a maximum vacuum of 500 mbar (a) and, according to model, have volume flow rates of 9.6 and 12.4 m³/min.
Meticulous design and logical component layout make maintenance work simple, as these space-saving units are accessed from the front and all pipe connections as well as ventilation openings are located at the rear. This not only significantly reduces maintenance costs, but also means that they can be placed right next to each other to save even more space.
Both models are fitted with an energy-saving ‘EU-eff1’ rated motor* (18.5 or 30 kW max. rated power) as standard and feature “Omega Profile” rotors and a specially designed block casing to ensure low energy consumption, outstanding performance and minimal sound levels.
“Compact” series blowers are the ideal choice for use in filtration plants and filter flushing applications associated with water treatment, as well as for pneumatic conveying and processes requiring vacuum.
