Stainless steel drums are designed for a long service life. Nevertheless, damage is inevitable in industrial use. Dents caused by contact with forklifts, cracks in weld seams, worn sealing surfaces, or corrosion damage often result in containers being removed from the production process. However, not every instance of damage requires replacement. In many cases, the functionality of a stainless steel drum can be restored through professional repair.
Whether a repair is possible and economically feasible depends on the condition of the vessel and the requirements for its future use. A technical condition assessment therefore forms the basis for any decision.
Typical Signs of Damage in Industrial Use Transportation, cleaning, and daily handling leave their mark even on high-quality stainless steel drums.
The most common types of damage include:

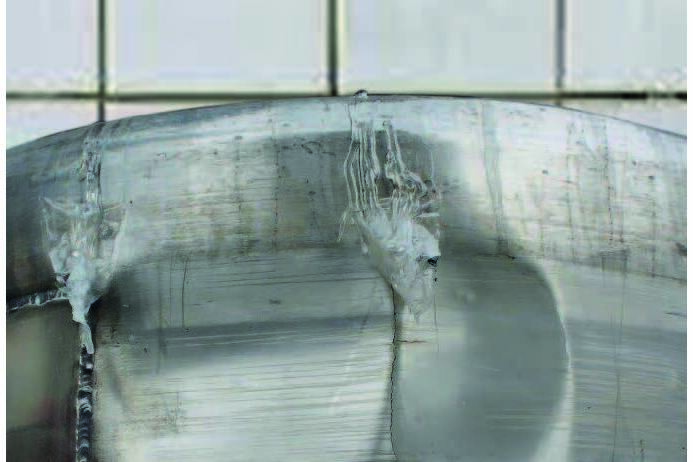

- Dents and deformations on the shell or bottom
- Damaged flanges and sealing surfaces
- Cracks in welds or in the tank body
- Pitting corrosion, rouging, and discoloration
- Worn gaskets, clamping rings, and fittings
- Illegible markings or missing test certificates
Not all of these types of damage permanently impair operational capability. In many cases, leak tightness, stability, and surface quality can be restored through appropriate repair measures.
Condition Assessment Before Repair
Before repairs begin, each vessel undergoes a technical assessment. This assessment takes into account, among other factors, the material, the nature of the damage, wall thicknesses, welds, and the requirements of the vessel’s future use. Only this assessment reveals which repair measures are appropriate and technically feasible.
Particularly in the chemical, pharmaceutical, food, and cosmetics industries, there are high requirements for material quality, surface finish, and cleanability. These aspects are factored into the assessment, as are existing approvals or testing requirements.
Drum Repair Measures
The work required depends on the type and extent of the damage. Typical repair measures include straightening deformations, welding repairs, grinding or electropolishing surfaces, and replacing worn gaskets, clamping rings, or fittings. Once the work is complete, the necessary inspections are conducted before the drum is returned to the production process.
Repair or replace?
In addition to the extent of the damage, age, material, application, and the cost of a new purchase play a decisive role. High-quality stainless steel drums made of materials such as 1.4301 or 1.4404, in particular, can often be repaired cost-effectively. At the same time, existing resources continue to be utilized and the service life of the containers is extended.
Drum Repair at BOLZ INTEC
BOLZ INTEC repairs stainless steel drums from various manufacturers. The range of services includes, among other things, welding, surface preparation, the replacement of gaskets and fittings, and the repair of damaged sealing surfaces. Each container is first subjected to a technical evaluation to determine the nature and scope of the necessary measures and to establish a sound basis for its continued use.
