Fine sieve meshes or grids can be used for the sieving process – depending on the characteristics of the material to be sieved.

Dissolving agglomerates efficiently

When processing bulk solids, agglomerates can occur that impair the production process. How can they be separated or dissolved as efficiently as possible?
Among other alternatives, agglomerates can either be separated with sieving technology or dissolved with the help of passing sieves. This depends mainly on how solid the agglomerates are or how difficult it is to separate the adhering product particles from each other.

Passing screens are used when the product to be processed tends to compact. This interferes with further processing in downstream production stages and has a quality-reducing effect.
These screening machine, such as the JEL PS passing screen, use a rotor with passing bars to pick up the lumpy product and pass it through the screen mesh. The product falls out below the screen in the desired degree of fragmentation and can be conveyed to the following processing stage.

Features of the JEL PS passing sieve machine:

Individual fine adjustment

In order to be even more flexible when screening and crushing agglomerated bulk solids, the rotating passing bars are adjustable. The distance between the bars and the sieve mesh can be reduced or increased – depending on the individual characteristics of the batch.

Easy handling

The entire sieve basket can be extracted from the front of the straining machine in a few easy steps. This makes it easier for the operator to access the inside of the housing for cleaning and maintenance.

Safety is a must

Safety has also been taken into account: the pull-out mechanism is secured with a limit switch. This prevents operators from extracting the screen basket while the machine is in operation.

Proper tightness

To reduce emissions to a minimum, the interfaces are equipped with PTFE seals. This keeps the process clean and the operating personnel are not exposed to dust.

Easy to clean

Air barrier rings with gap flushing were used for the rotor bearings. Product residues that negatively affect the service life of the rotor bearing and the seal can thus be easily flushed out.

Company information

More items

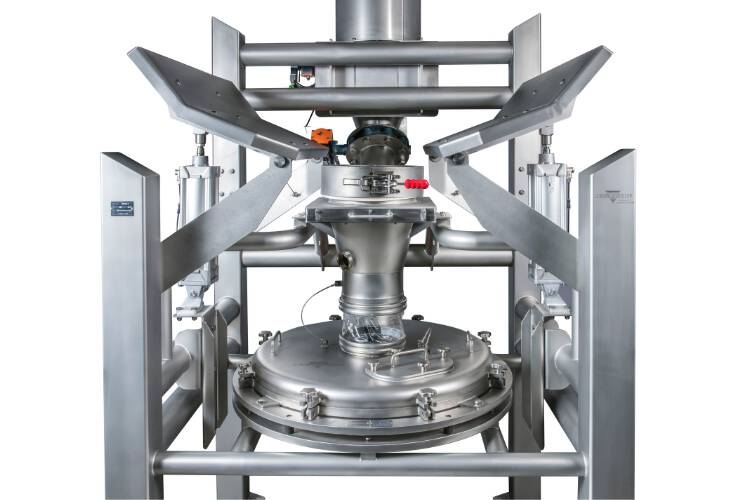

Leitfaden für hygienische Big Bag Entleerung
Leitfaden für hygienische Big Bag Entleerung

This item is only available in German
15.04.2024  |  208x  |  Press release  |
Containment Screening Machine in Action NEW: The function and operation of our containment screening machine JEL Konti II CTM, you can now also watch comfortably as a video.
Containment Screening Machine in Action
NEW: The function and operation of our containment screening machine JEL Konti II CTM, you can now also watch comfortably as a video. The JEL Konti II CTM can be used for containment applications up to OEB 4 and is particularly convincing due to its ease of operation. The sieve insert can also be changed quickly and without the use of protective suits or insulators. But: See for yourself. To illustrate the operation even more clearly, we have created a video for you to follow the individual operating, step by step.
10.10.2023  |  1067x  |  Product news  |   |
Sieving up to OEB 4: Engelsmann with new containment screening machine The new JEL Konti II CTM vibrating screen is suitable for almost all common screening tasks that have to be carried out under containment conditions. Also the change of the screen insert works without breakage of the containment.
Sieving up to OEB 4: Engelsmann with new containment screening machine
The new JEL Konti II CTM vibrating screen is suitable for almost all common screening tasks that have to be carried out under containment conditions. Also the change of the screen insert works without breakage of the containment. Products with a high hazard potential, such as highly active ingredients or toxic chemicals, can often only be processed under containment conditions. And protective screening, oversize and fine particle separation or classifying screening are also common practice for these products. In screening processes, the containment or the plant environment are always at risk when the machine has to be opened - as when changing the screen feeder. To enable screening processes beyond isolators and full protective suits to be carried out more economically, more simply and still safely under containment conditions, Engelsmann has developed a new containment screen in which the screen feeder can be changed without breakage of the containment and in just a few steps. The patent pending screen is now being launched on the market and will be demonstrated to the public for the first time at the Powtech trade show in Nuremberg. The JEL Konti II dust-tight all-round screening machine
19.09.2022  |  1866x  |  Product news  |
Vibration screening machines: versatile and highly effective Vibration screening is suitable for a wide range of bulk solids and tasks. Advantages of the JEL Konti II vibration screening machine: hygienic design; easy handling and fast screen change.
Vibration screening machines: versatile and highly effective
Vibration screening is suitable for a wide range of bulk solids and tasks. Advantages of the JEL Konti II vibration screening machine: hygienic design; easy handling and fast screen change. Vibration screening machines are suitable for a wide range of bulk solids and screening tasks. This is mainly due to the various adjustment options: The key parameters such as screen inclination, vibration motor tilt angle and vibration motor imbalance can be quickly and easily adjusted to the specific screening task and can also be documented. Despite the relatively low amplitudes, vibration screening machines achieve high accelerations which reduce stuck particles and guarantee outstanding screening performance. Laterally arranged vibration motors, as with the JEL Konti II, allow for very compact screening machines with a low installation height which can be easily integrated into tight conditions. Additionally, the vibration screening machine JEL Konti II is popular for its Hygienic Design, easy handling and extremely fast screen change. In our latest product video you can explore how the handling works in detail and what the further advantages of this screening machine are.
19.04.2021  |  3607x  |  Product description  |   |

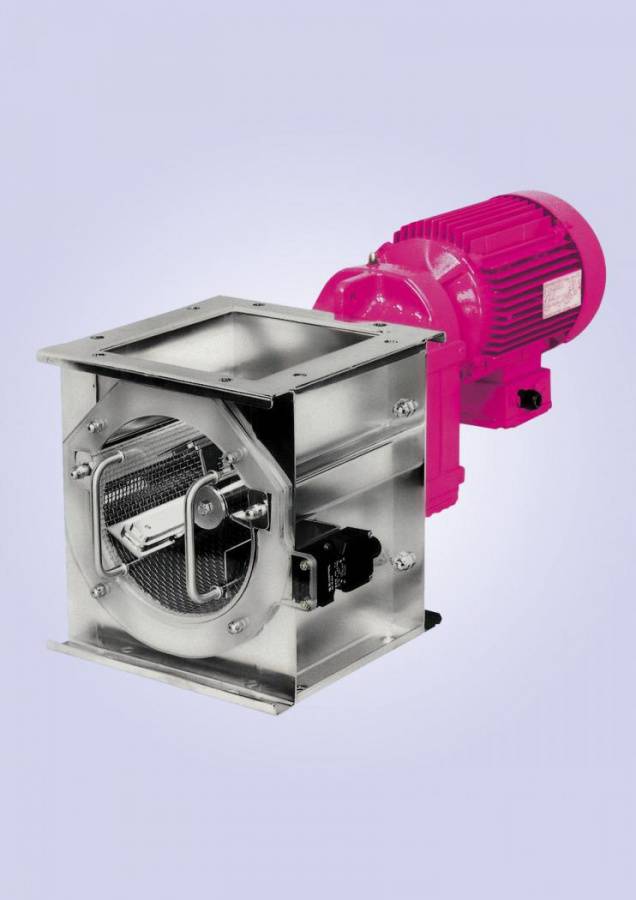

Agglomeriertes Produkt? Passiert
Agglomeriertes Produkt? Passiert

This item is only available in German
