Upgrade of level monitoring system in grain storage

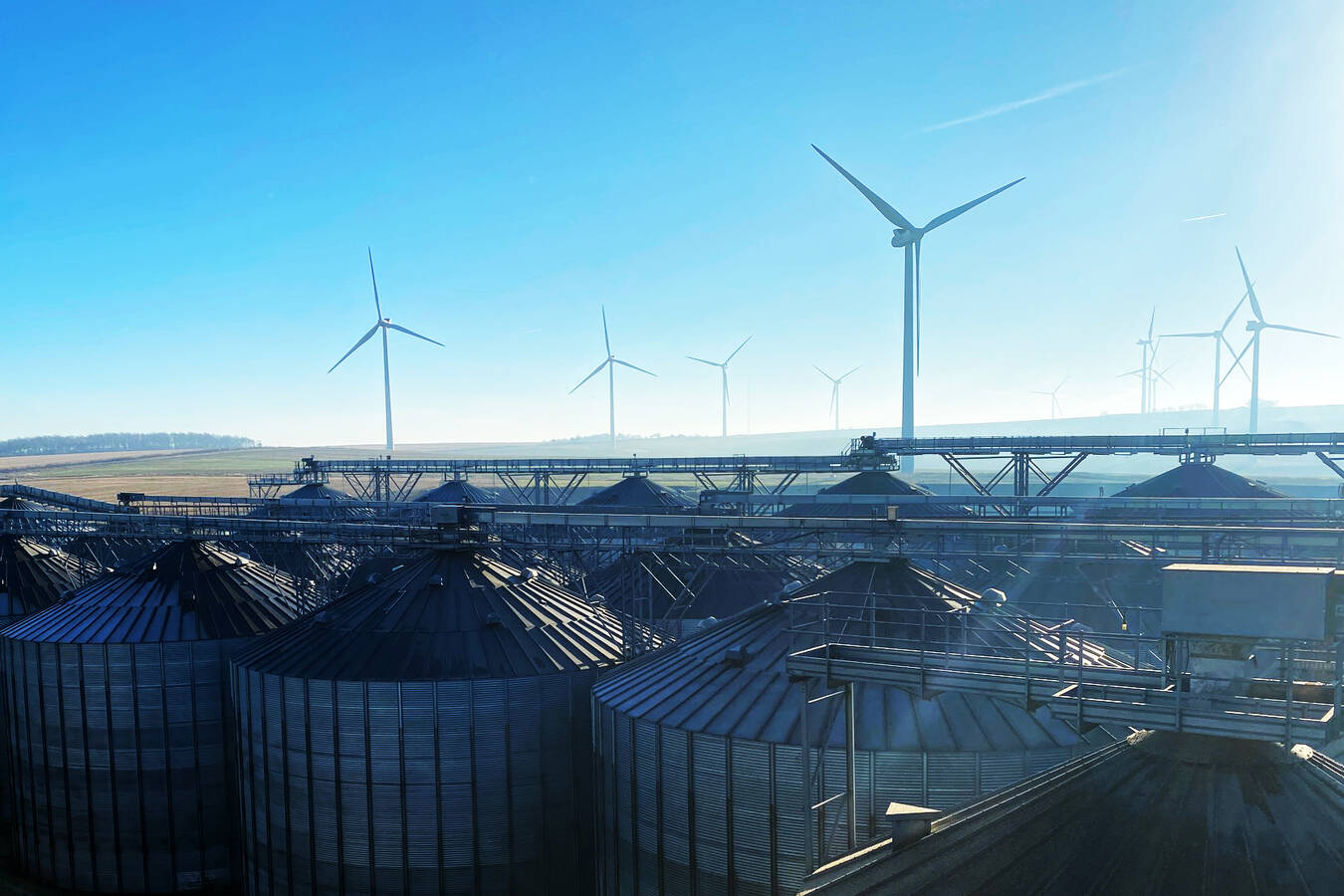

A large grain storage facility in the south of England required a reliable content measuring device to replace an old acoustic wave system which was no longer functioning.

Non-contact continuous level measurement

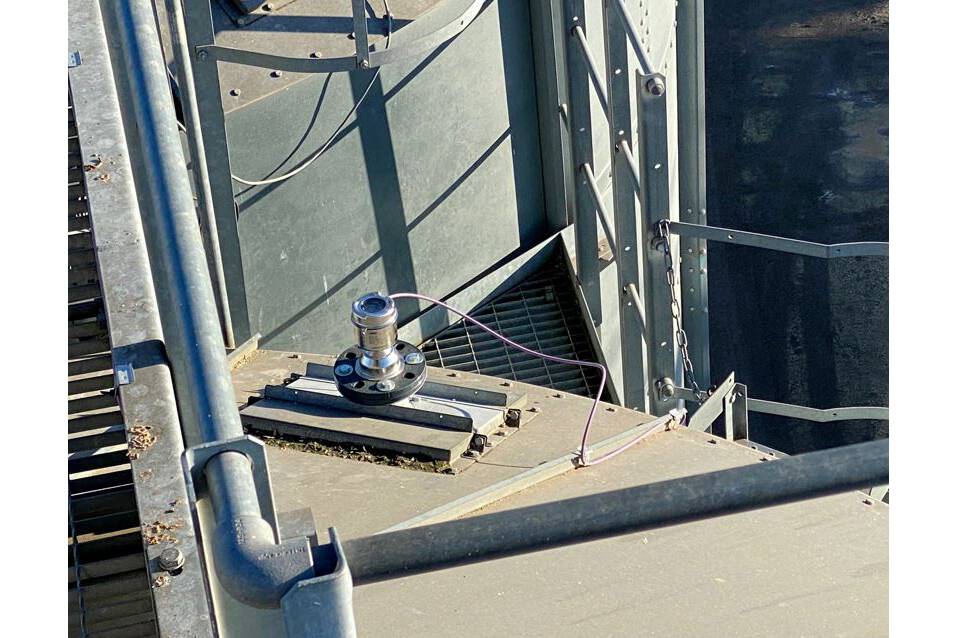

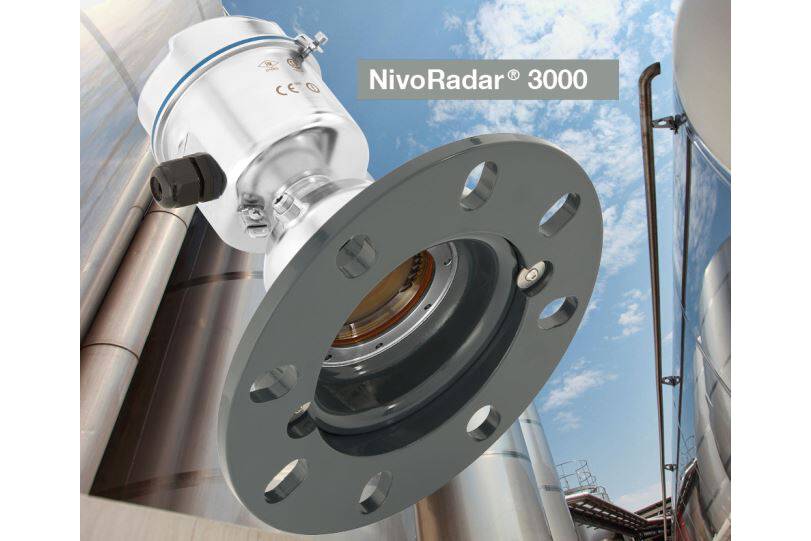

UWT (UK) Limited proposed the use of the free-radiating radar NivoRadar® NR 3100 which could be supplied with an aiming flange. The integrated aiming flange allowed the radar to be mounted in the same position as the previous acoustic wave device which was close to the silo side wall and which allowed for the narrow 4˚ beam to be aimed towards the lowest point of the silo. This saved the customer time and money as they didn’t need to move the mounting position towards the centre of the silo where the silo was filled from.

Bring the levels to where the planner needs them

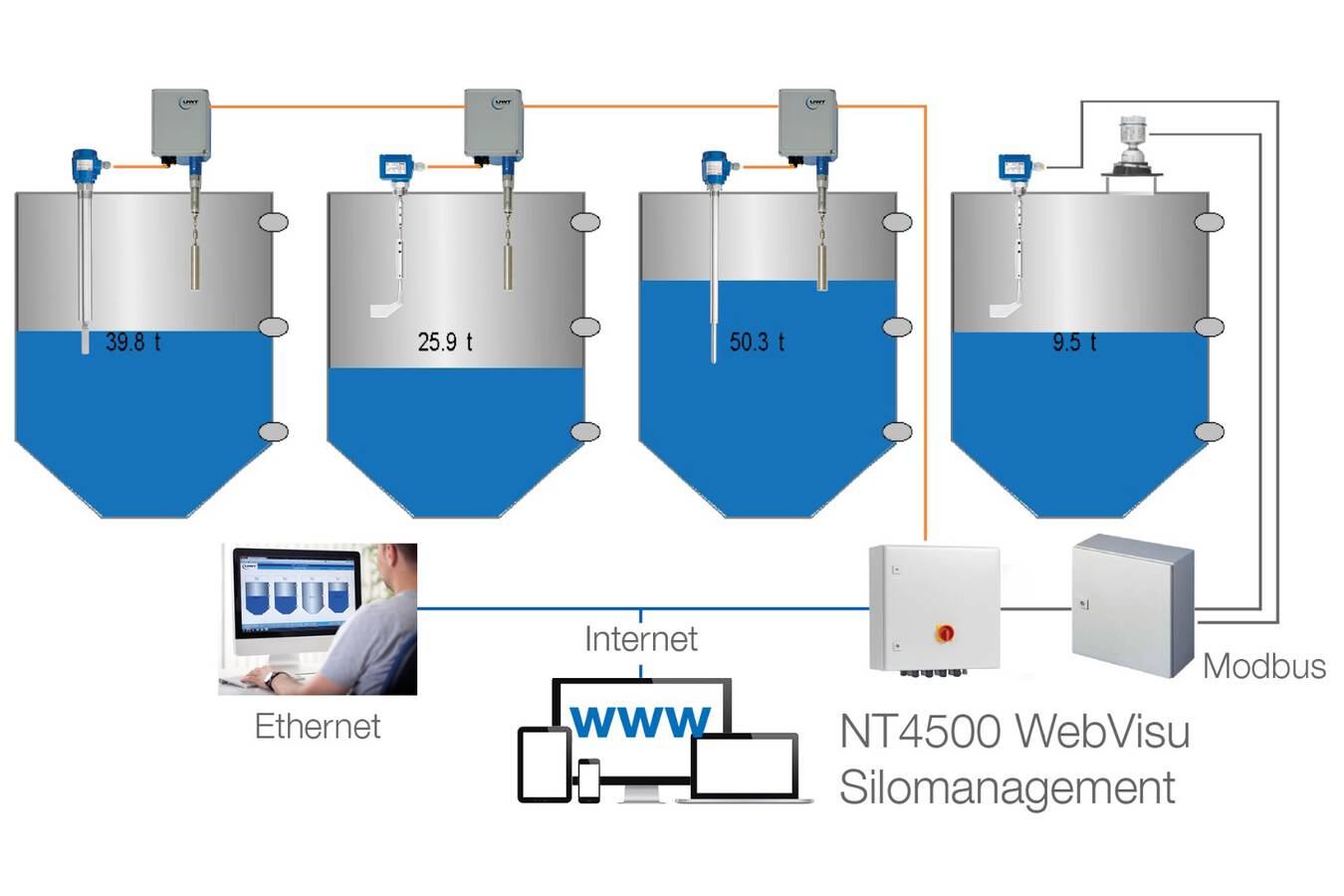

The visualising system that the customer had been using previously was very basic and limited and did not allow them to display the contents in any other way than the level of the material. The customer required the contents of the silo to be displayed in tonnes or percentage of fill. The NivoTec® NT 4600 with cabinet mounted digital display fulfilled the need by allowing the customer to choose which information they would like to see including level, tonnes, percentage, volume and a number of other options.

Satisfied customers

The customer was more than satisfied with the sensor solution: "Thank you Graeme Hughes and UWT (UK) Ltd. This upgrade to our level monitoring system has both improved worker safety and improved accuracy for our clean wheat plant bulk tank levels."

Company information

UWT GmbH
UWT GmbH
UWT GmbH is one of the world’s leading manufacturers of measurement technology for the detection and monitoring of levels, limit levels in any kind of bulk materials, solids as well as in liquids, pastes and foam. Since the founding, the product portfolio has developed and offers solutions for a variety of industries. > Headquarter with development, production and sales department in Germany > Subsidiaries in USA, Great Britain, India, Mexico, Brazil and China plus a global net of exclusiv distributors > Over a million successfully solved applications in more than 90 countries > Variety of industry solutions according to individual requirements > UWT products represent quality, flexibility and reliability Our products are named under: Rotonivo® - Rotary paddle switch incl. SIL2 version Vibranivo® - Vibrating fork Mononivo® - Vibrating rod probe RFnivo® - Capacitive level switch also with anti-corrosive Teflon® coating for flue gas cleaning Capanivo® / NivoCapa® - Capacitive level switch NivoBob® - Electro-mechanical Plumb Bob as well for Interface NivoRadar® - Radar sensors NivoGuide® - TDR guided radar NivoTec® - Level monitoring and visualisation From development and production to final assembly and comprehensive technical advice, all services are provided from a single source. The focus is on the highest quality, technical know-how and good cooperation with customers, suppliers and partners. What is particularly important to the managing directors Uwe Niekrawietz, Markus Schalk and Andreas Haug is the well-being of the 200 employees worldwide: ”Healthy and happy employees can achieve incredible things”.  The product portfolio is developed further every year and enables holistic solution concepts for a variety of industries. In addition to level and point level measurement, UWT offers monitoring and visualisation systems and complete project planning. Well-known plant manufacturers and end customers worldwide appreciate the customised solutions as well as the easy handling and durability of UWT sensors. In order to be able to pass on the best possible added value to customers in the future, UWT’s corporate strategy is consistently geared towards steady and sustainable growth.
