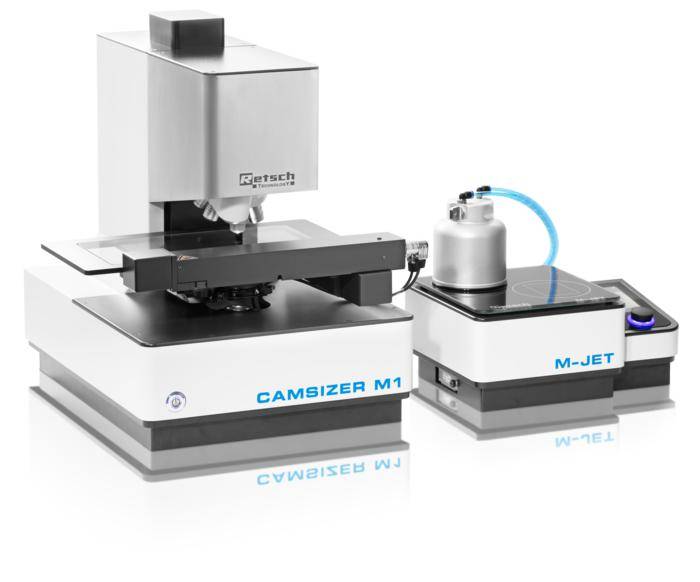

Very recently, Retsch technology has presented the new Camsizer m1 as the latest addition to their powerful range of optical particle analyzers.

The Camsizer m1 is the perfect choice to accurately characterize particles by static image analysis, providing excellent results for applications both in research & development and quality control.

The measuring principle (ISO 13322-1) is suitable for particle analysis of fine powders and suspensions in a size range from 0.5 µm to 1500 µm.

Typical sample materials include active pharmaceutical ingredients or fine grinding and polishing media. The optional dispersion unit M-Jet ensures effective dispersion of powder materials.

The high-precision, fully automated sample stage may be equipped with different inserts for the evaluation of an area corresponding to eight standard object slides.

Benefits at a glance:
•Up to 6 objective lenses from 1.25 x to 100 x available
•18.1 Megapixel color camera
•Maximum digital resolution: 35 nm
•Efficient dispersion unit M-Jet
•Fully automatic focus control
•Large measurement area
•Stitching algorithm and focus stacking
•Particle X-Plorer with versatile evaluation options
