Application
A manufacturer of wood pellets processes raw materials such as planing chips or wood chips (wood waste) to produce wood pellets.
After delivery of the wood waste, it is cleaned from extraneous material like metal and stones by a separator. Afterwards the material is crushed by a hammer mill and dried. The crushed material is then transported by a conveyor belt through a 90 °C convection oven. After leaving the oven a screw conveyor transports the wood chips to a storage silo. To assure the material quality, it is desirable for the moisture of the material to be measured during its transport to the storage silo. If the moisture is not correct, the drying process should be changed automatically.

Process data
Customer: manufacturer of wood pellets (Germany)
Material: chipped wood
Transport means: screw conveyor
Installation location: screw conveyor after oven
Moisture: 3 - 8 %


Solution
After the drying process the material‘s moisture needs to be measured.

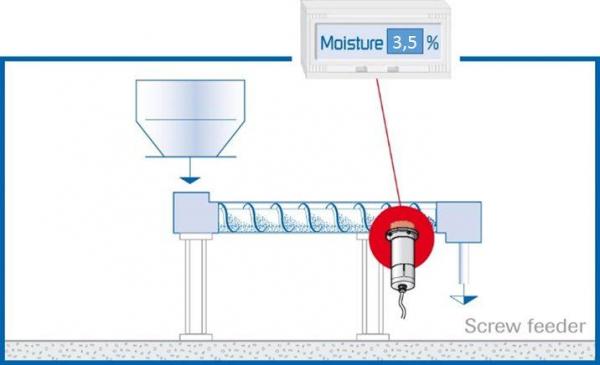

The moisture is measured while the material is transported by a screw conveyor from the oven to the storage silo.

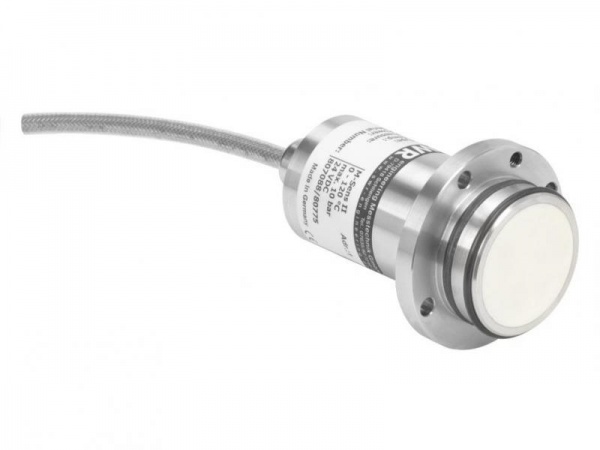

Therefore, the M-Sens 2 is located on the underside of the screw conveyor.
The detected value can be directly used to adapt the speed of the conveyor belt in the drying oven.
In this way the drying process can be directly regulated.


Customer benefit
• optimal adjustment of the drying process
• assurance of the product quality
