The Vortex Quantum Series Wye Line Diverter is specifically engineered to handle dry bulk solids in vacuum or dilute phase pneumatic conveying systems with pressures up to 15 psig (1 barg) depending on size. A full flow orifice provides unrestricted conveying of material. The live-loaded seals are shielded from abrasion by a metal insert, this create a positive sealing in both vacuum and pressure conveying systems.

The Challenge of Comparison:

The Vortex Quantum Series Wye Line Diverter provides a number of significant advantages over traditional diverter valves. The trouble spots inherent in conventional diverter valves have been designed out of the Vortex Quantum Series Wye Line Diverter, valves providing leak-tight design, low installation weight, automatic operation, totally enclosed actuating mechanisms and abrasion-resistant design for long term, reliable service.

Ordinary flapper-style diverter valves rely on elastic seals which are exposed to blast abrasion causing them to erode and tear away
in service. The Vortex Quantum Series Wye Line Diverter is designed so the seal plates are shielded from blast abrasion providing
long, reliable service.

Rotating tunnel diverter valves typically have seals which are exposed to excessive wear upon actuation and are prone to seizing and binding due to material build-up between the plug and the housing. The QUANTUM™ SERIES WYE LINE DIVERTER™ is self-cleaning on each actuation and is designed for high cycle service.

• Handles powders, granules and pellets

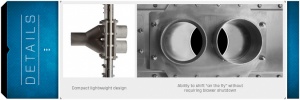

• Shifts “on the fly”
• Wear compensating hard polymer seals
• Unobstructed opening
• Positive seal through closed port

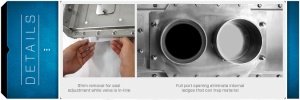

• Serviceable while in-line
• Diverts or converges material flow

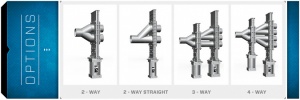

• Available in 2, 3, or 4-way configurations
• Material construction options available
• Standard sizes: 2″ -12″
• Contact us for custom sizes
