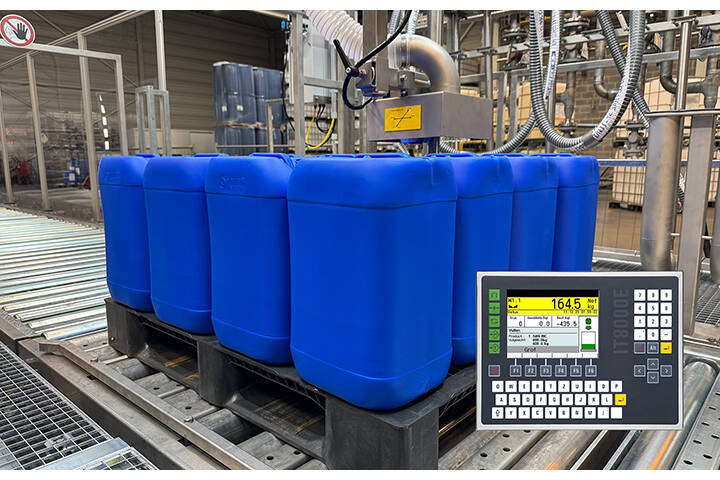

Automated liquid filling with SysTec weighing indicator
1 2
More information
  • Read the full case study
Contact
  • Contact SysTec

Automated Silane Filling for Evonik Antwerp with SysTec Indicators

Efficient Liquid Filling with W&M Approved IT8000E SysTec Weighing Indicators with FILL E Software

Evonik Antwerp produces highly functional silane liquids, such as Si363®, within its Smart Effects Business Line. These silanes combine with silica and rubber to form a chemical bridge, which is crucial for manufacturing “green tires” that deliver low rolling resistance, optimized wet grip, and enhanced durability. To ensure efficient filling of silane into various containers, Evonik uses, for example, automated filling systems from the scale manufacturer Kestermann, equipped with SysTec IT8000E weighing indicators and the proven FILL E application software.

Key Facts

  • W&M approved liquid filling

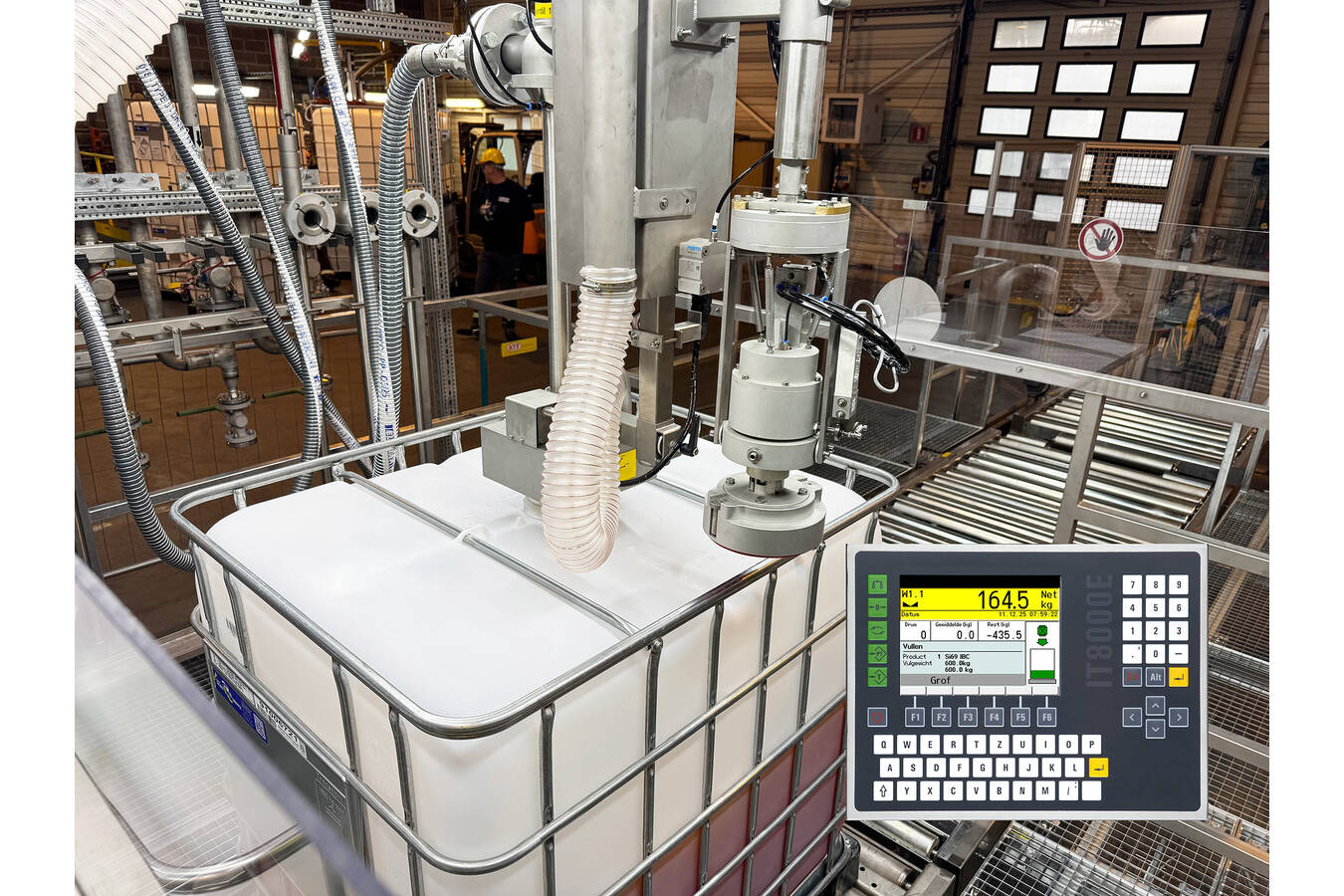

  • Automatic gravimetric filling instrument (AGFI) for various containers such as IBCs, canisters and barrels via roller conveyor
  • Control of the filling system with SysTec weighing electronics
  • A throughput of 15 IBCs per hour and a filling accuracy of up to 0.5% for 1,000-liter IBCs

Benefits

  1. Fast: Gravimetric filling method enables rapid and accurate filling of large quantities
  2. Precise: W&M approved liquid filling without overfilling or underfilling the containers
  3. Flexible: Easy product/container changeover and selection of unit of weight displayed (litres or kilograms)
  4. Easy data transfer: Weighing data is captured by the SysTec weighing indicator and transferred via the PROFINET interface to the customer‘s higher-level control system
  5. Efficient: Automatic transport of containers, automatic bunghole detection and filling
  6. Low maintenance and easy cleaning: The system has a modular design and is made of stainless steel

At a Glance: SysTec IT8000E Weighing Indicator

  • High ease of use: simple multilingual operator prompting, bright 5.7“ TFT color display with wide viewing angle and large-character weight display, alphanumeric keyboard
  • W&M approved use as a non-automatic and automatic weighing instrument is possible (approved in EU, USA, Canada, etc.)
  • Universal use: numerous standard application programs available
    Customizable: free programmability
  • Robust: stainless steel housing (ingress protection IP69K)
  • Ex-area: for hazardous areas SysTec offers the version IT8000E Ex2/22 and for zones 1/21 the IT8000Ex unit
  • Various designs: wall-mount / desk-top version as well as panel-mount version
  • Connection options: in relation to FILL E applications: 1 or 2 scales of different types with analog or digital load cells can be connected.
  • Connection options for IT8000E in general: 2 internal and up to 16 external scale connections (NMi approval), can be integrated into PC networks via Ethernet or wireless LAN, connection to label printers and network printers, PLC connection via fieldbus
  • High operational security: data storage power-fail safe, password protection, battery-backed real-time clock, remote diagnostics possible via Internet

Company information

SysTec Systemtechnik und Industrieautomation GmbH
SysTec Systemtechnik und Industrieautomation GmbH
Since 1994 SysTec has been developing and producing W&M approved industrial weighing terminals and filling controllers for static and dynamic scales. The innovative SysTec weighing systems work reliably in numerous applications: These include filling systems for liquids and bulk materials, shipping / receiving scales, beltweighers, vehicle scales, checkweighers, piece counting scales, mobile weighing systems and all kinds of customer-specific applications.
