With 21 breeding stations, 20 subsidiaries worldwide, and a commercial presence in 48 countries, RAGT from Spain stands out as one of Europe’s leading multi-species seed producers and researchers. Its diverse product portfolio includes corn, sorghum, cereals, oilseeds, protein crops, forages, cover crops, and fertilizers.
Bagging Line
- Fully automatic open-mouth bagger with easy bag size change and double labelling system.
- Low-level infeed palletizer.
- Pallet wrapper with labelling system.
- Big-Bag filling station.
Requirements
When the company planned the construction of a new plant in Northern Spain, they turned to PAYPER once more as the provider of the full packaging line for the setup.
RAGT had two main requirements. The first was a fully automatic bagging line capable of efficiently filling pre-made open-mouth bags of various sizes with seeds. The second was a Big-Bag filling station for the same product, seeds.
Alongside the two bagging systems, RAGT also required a palletizer and a protection system for the pallets and the large Big-Bag sacks.
Solution

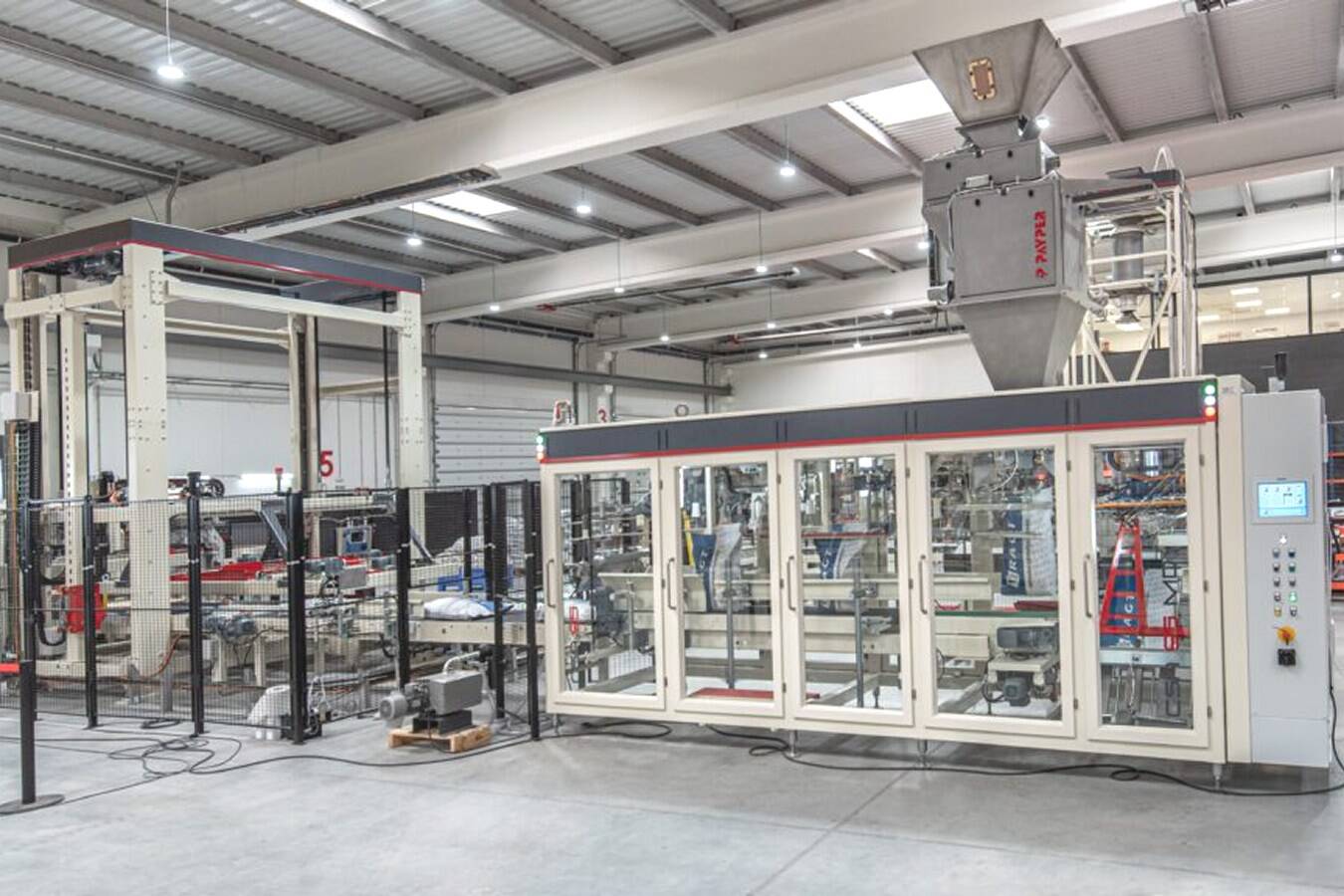

Engineers from both companies collaborated to develop the best solution that met all the requirements of RAGT’s new project. The final solution consisted of a fully automatic open-mouth bagger, model CSA-95, capable of easily switching between different bag sizes and equipped with a dual-labeling system.

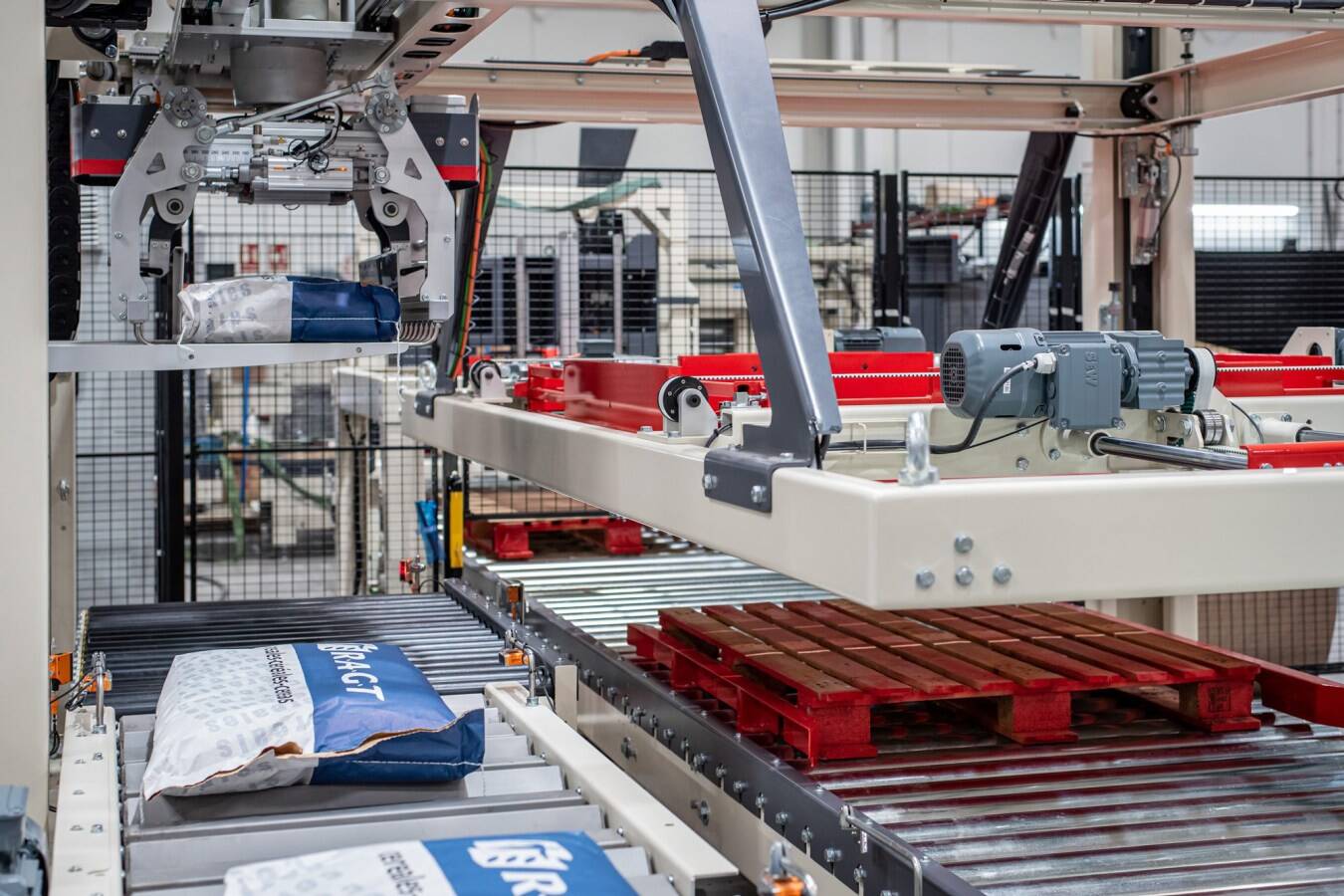

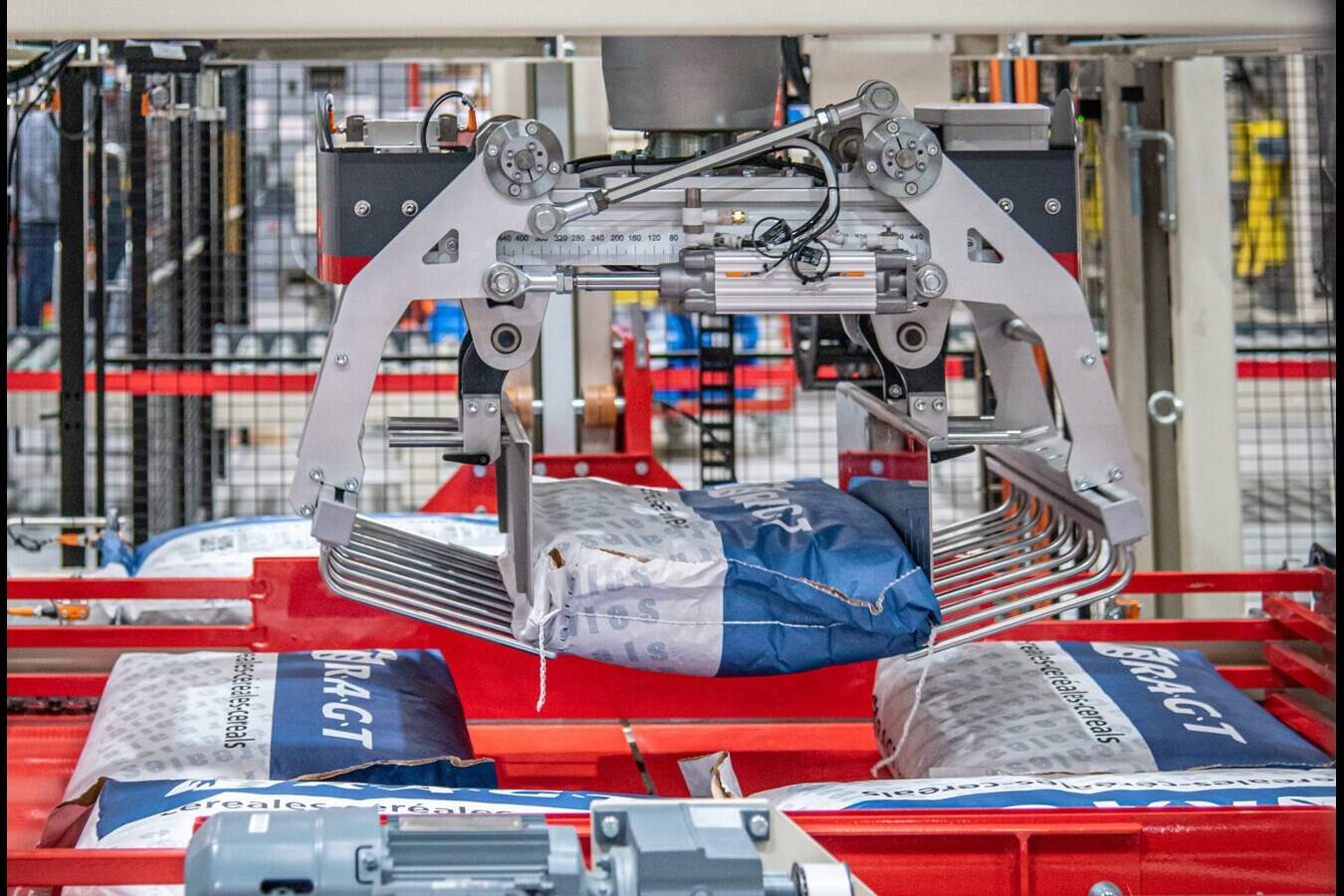

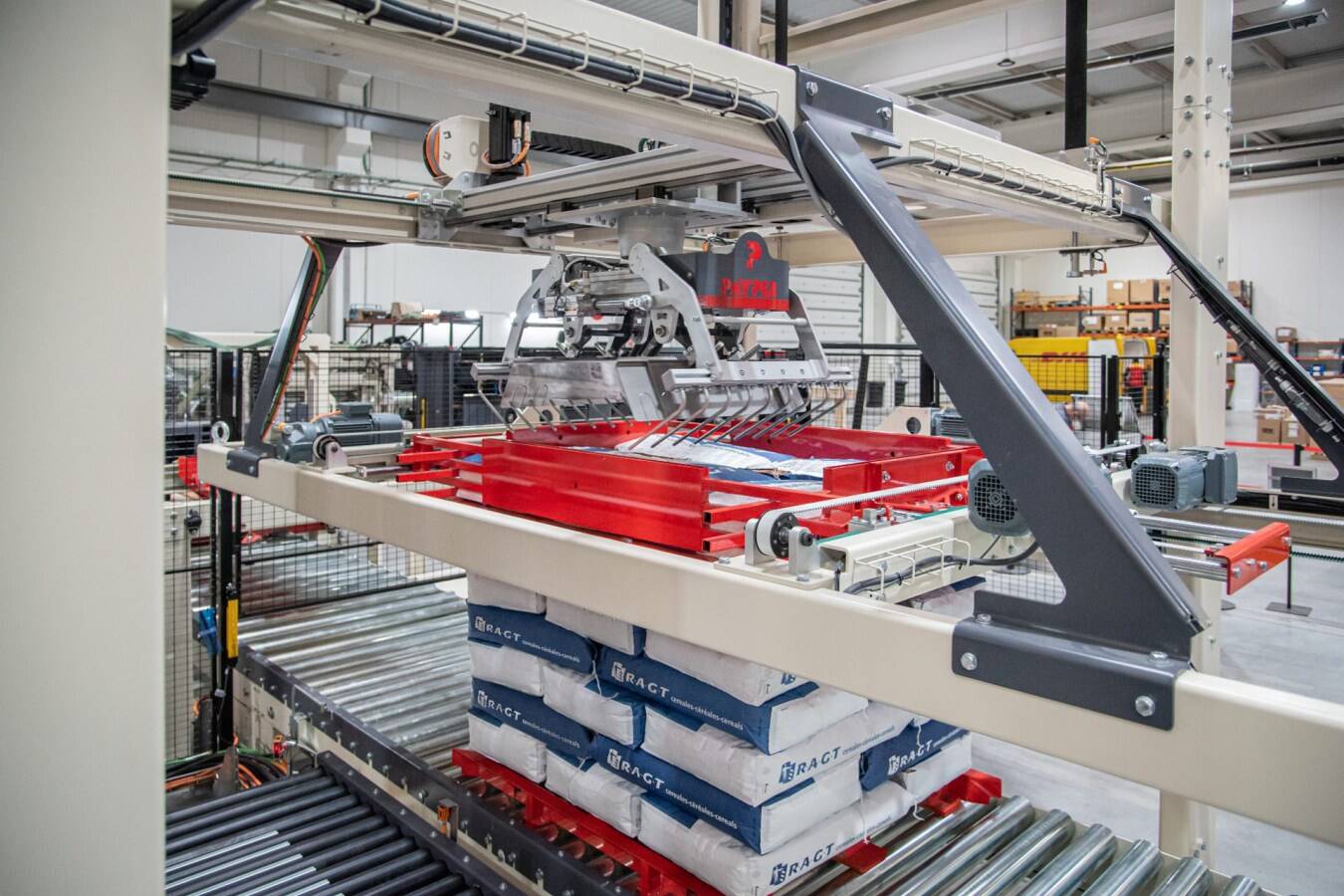

Alongside the bagger, a low-level infeed palletizer, model LLG-90, was installed. Its gripper head ensures perfect overlapping of the bags, resulting in a stable and perfectly finished pallet.
Additionally, a new Big-Bag filling station was installed, allowing for the stacking of bags.

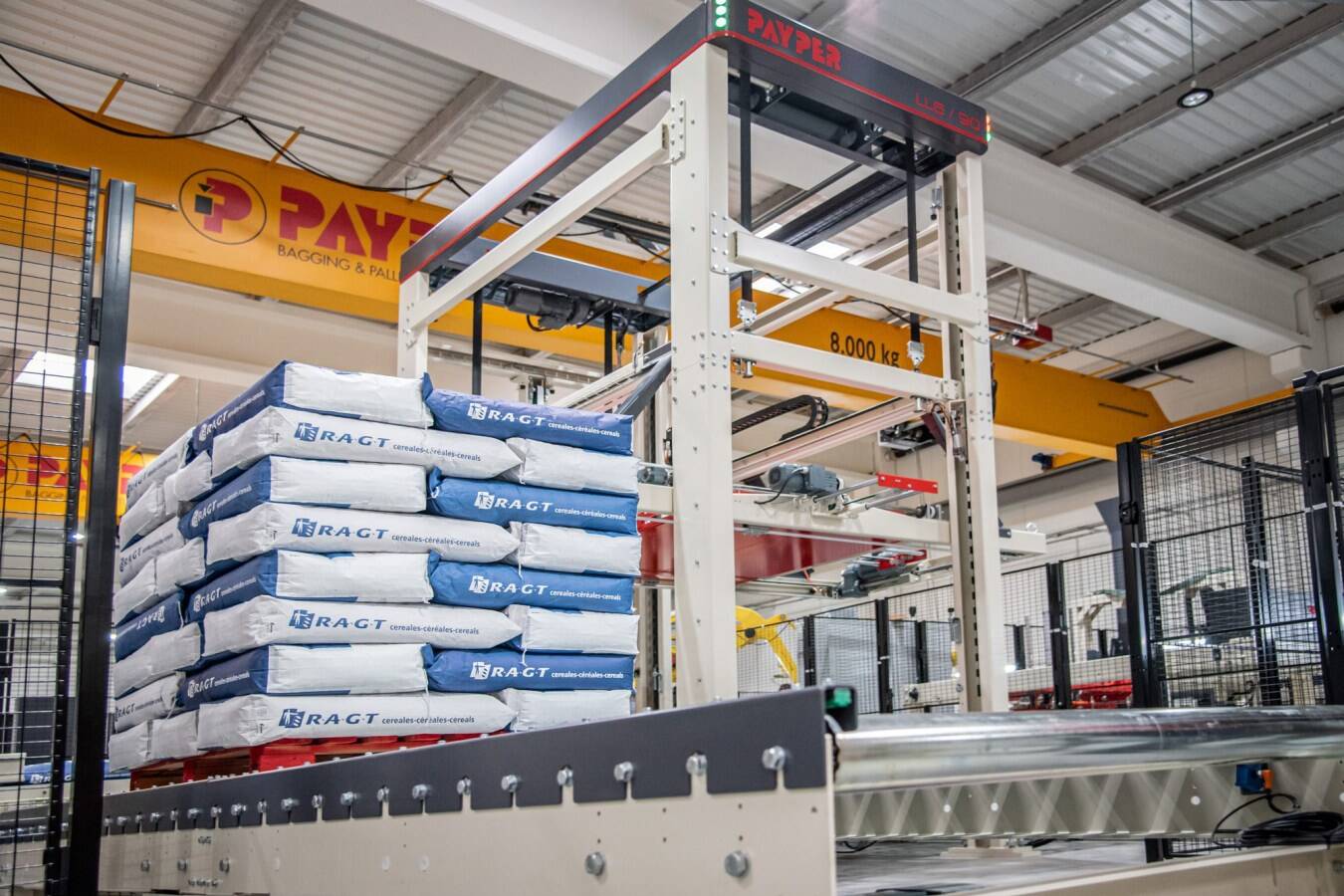

Both palletized bags and Big-Bags are directed to the pallet wrapping machine, ensuring impeccable protection against moisture and dust for the seed-filled bags. In this particular case, a labeling system was incorporated, capable of applying labels on all four sides of the wrapped pallet.
Technical details
Fully automatic open-mouth bagger: CSA-95
- Average desired production of the bagging machine: 400 bags/hour.
- Maximum production of the bagging machine: 900 bags/hour.
- Bag material: paper
- Bag weight: 25 kg

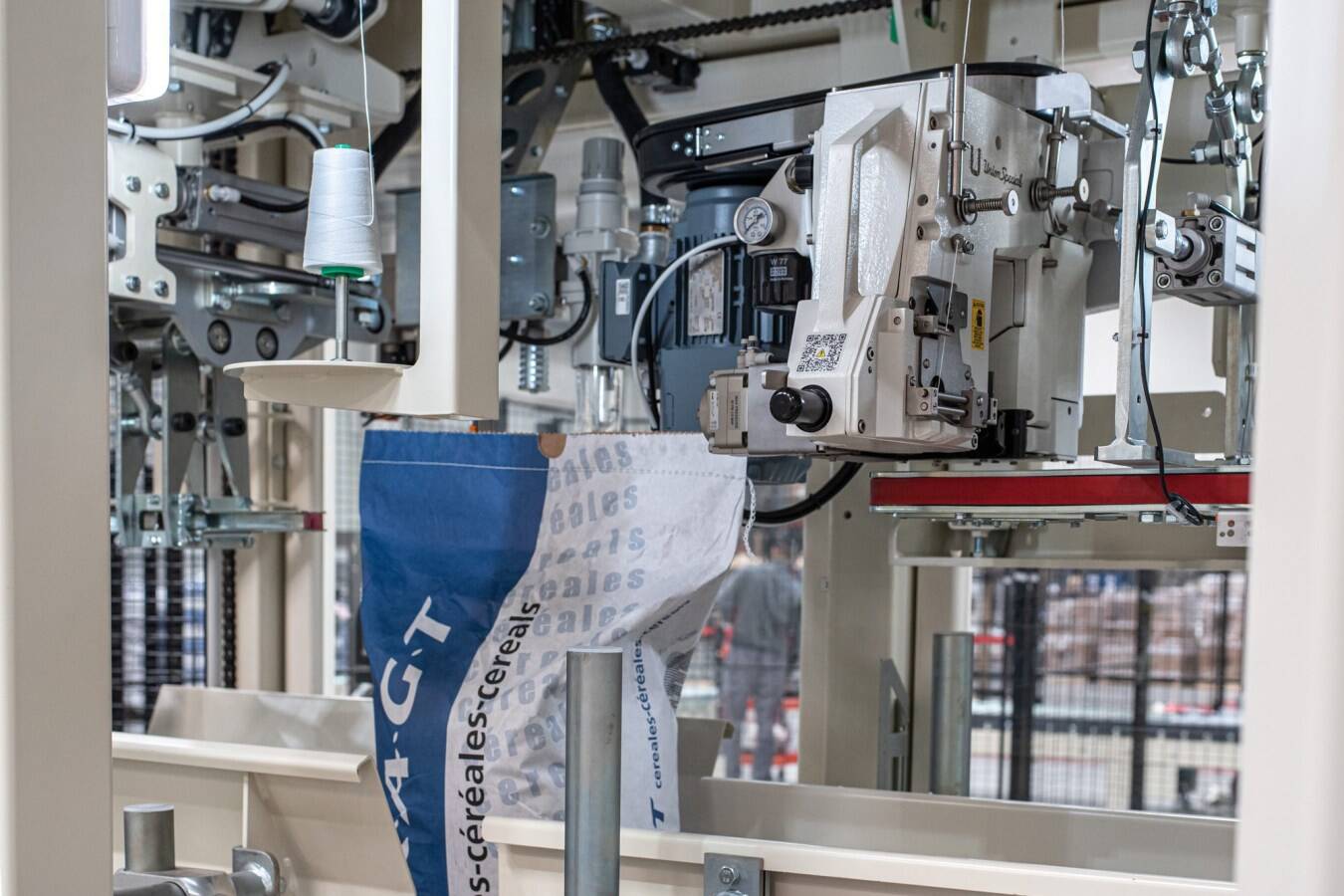

- Closing system: sewing
Low level-infeed palletizer: LLG-90
- Desired palletizer speed: 450 bags/hour.
- Maximum palletizer speed: 900 bags/hour.
- Palletizer type: conventional palletizer with gripper-head
- Squared rollers conveyor to accommodate the product inside the bag.
Big Bag Filling Station
- Production for 1,000 kg bags: 10 Big Bags/hour (average) and 11 Big Bags/hour (peak).
- Production for 500 kg bags: 17 Big Bags/hour (average) and 22 Big Bags/hour (peak).
- Labeling system that applies labels to all four sides of the Big Bag.
