KALDETECT wear protection monitoring
For critical applications, Kalenborn markets systems that indicate the possible wear of protective linings, thereby informing the operator in time to take necessary action.
This applies to pneumatic conveyor systems, for example, where measures must be taken to prevent the release of toxic or environmentally harmful substances.
KALDETECT electrical
The exterior of the wear protection lining is equipped with a low-voltage measuring conductor. If the wear protection layer inside the piping wears through due to abrasion at any point, the conductor will be interrupted there. This triggers an alarm and – in combination with suitable evaluation logic – indicates the affected section of piping or automatically shuts the plant down. Wear protection monitoring is available for all materials and even for combined linings.
KALDETECT electric is a good prerequisite for the smooth replacement of the wear protection lining in green pipes.
KALDETECT mechanical
Support structure and wear protection lining are fitted with a removable pin installed in a threaded hole. Upon removal, the length of the pin indicates the thickness and condition of the protective lining.
KALDETECT visual ..

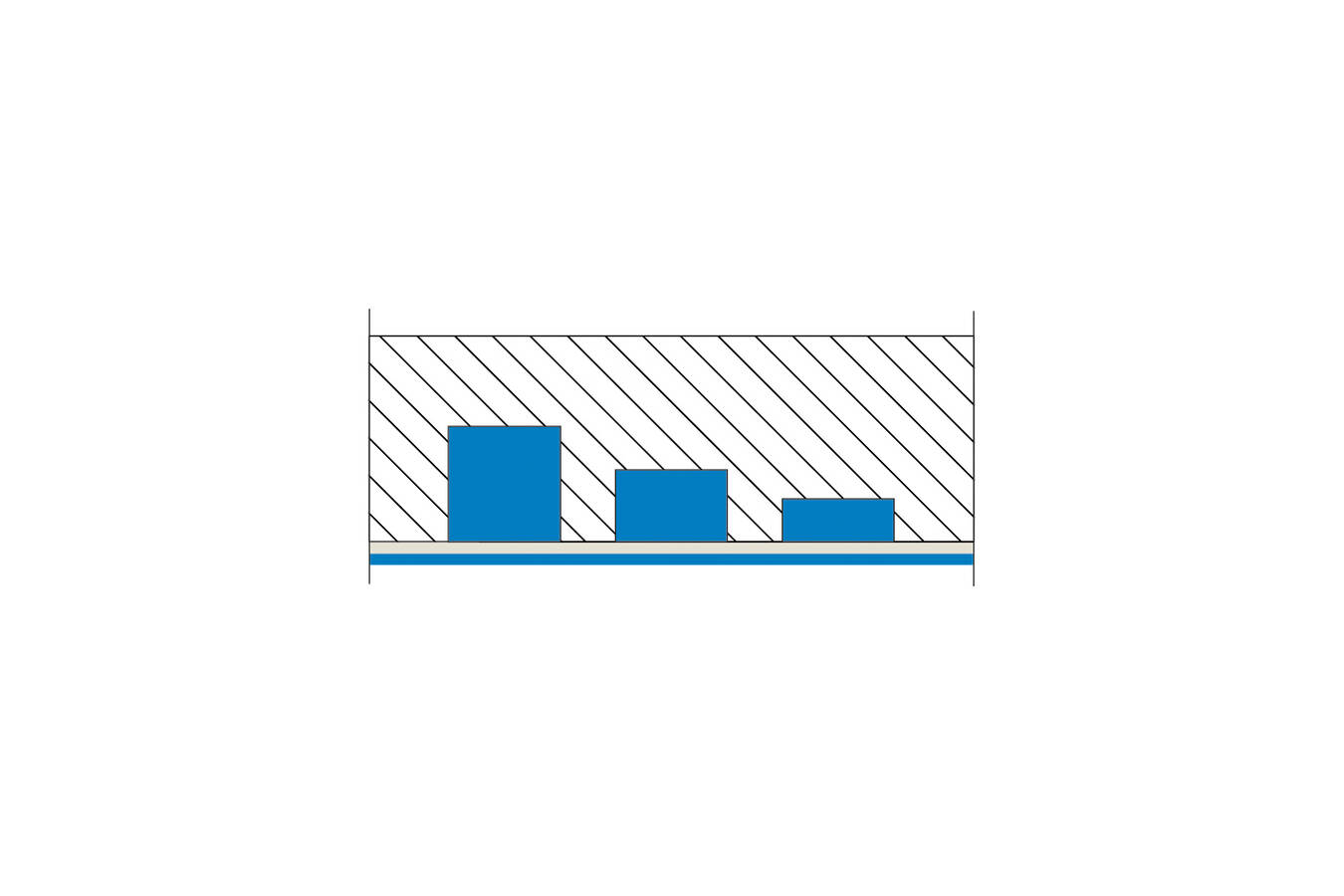

..is a wear protection monitoring system for industrial plant components which are lined with either the oxide ceramic KALOCER or the hard compound KALCRET. Indicator stones of different heights are integrated in the lining. With increasing wear, the indicator stones become visible one after the other and provide information about the remaining wear intensity and the condition of the protective lining.
