Halar Coated Vortex Seal Tite Diverter to Handle Acid Flake

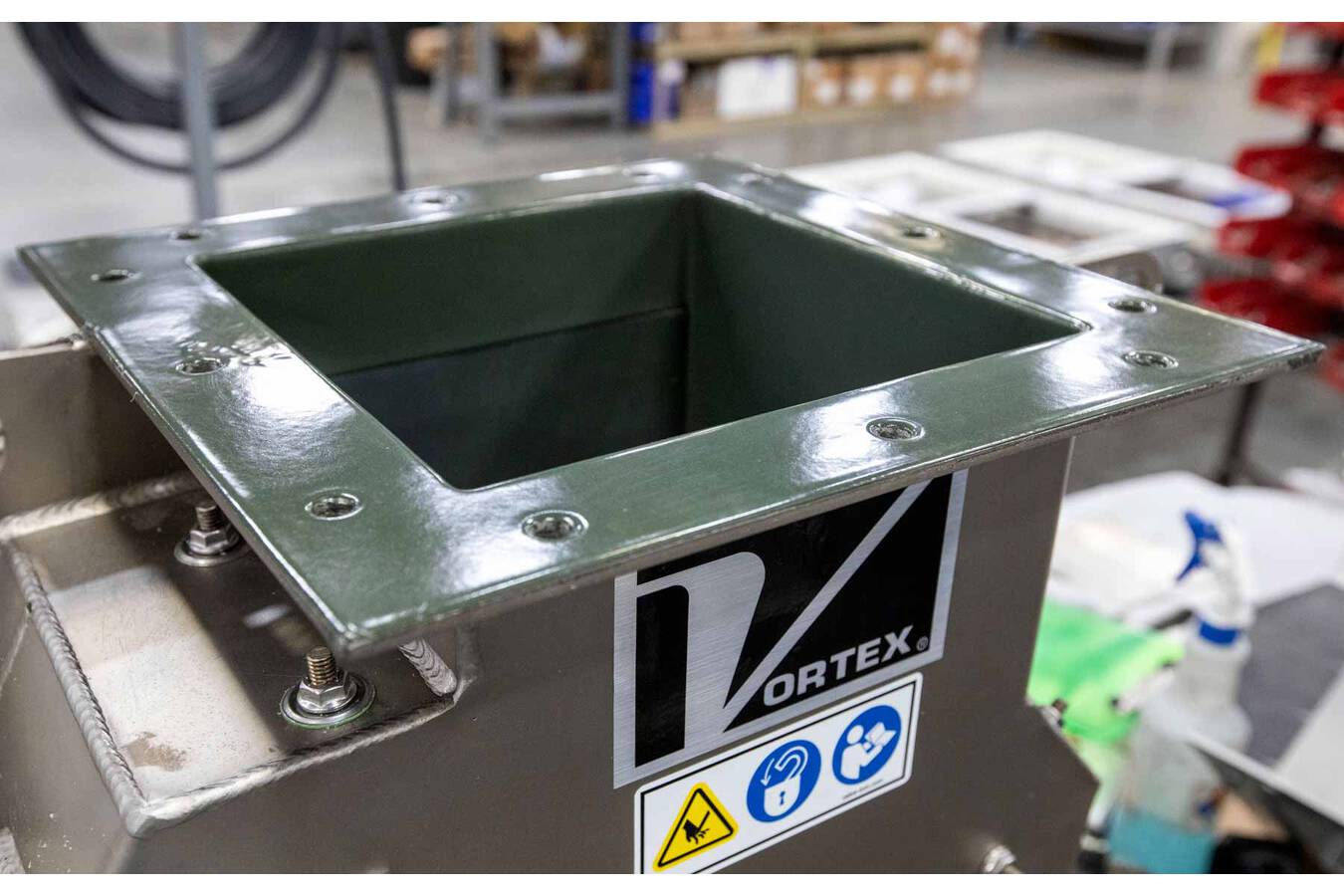

For the corrosive nature of the material handled all internal areas of the valve are Halar coated. Material contact is 316L stainless steel, polymer, and rubber.
In this application, the customer specified Halar coating on a 254 mm (10”) Vortex Seal Tite Diverter over other liner options due to past success with this product on chutes and other equipment they have in service.

All internal areas were Halar coated to address the corrosive nature of the material being handled. The valve body, with a straight through flow design and one offset leg, is made from 316L stainless steel. Material contact is 316L stainless steel, polymer, and rubber. The valve has a removable access cover for quick inline service or cleaning without removing the valve from the line.

The customer also requested an epoxy coated double acting air cylinder to protect from chemical corrosion. The epoxy coat is a more economical option and requires a shorter lead time than a stainless steel air cylinder. The piston rod, tie rod and tie rod nuts are stainless steel.
