The CTW batch scale is used to measure quantities of

bulk goods which flow either in a continuous or
interrupted manner. The individual batches are weighed,
and the measured weight is added to an overall quantity.
Upon instruction, the measurement ends and the
quantity is reset.

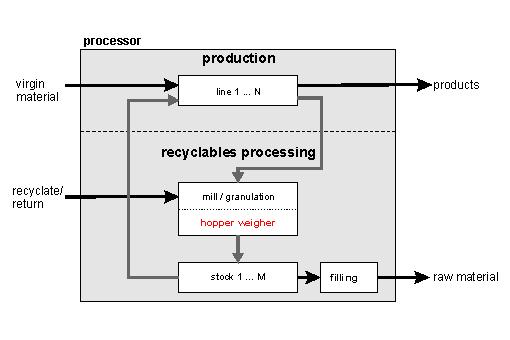

This allows material flows to be balanced and evaluated
from an economic point of view in the production
process. This is especially interesting for return material
that can be utilized in the production process as a
valuable regrind or recycled material.
The design of CTW is optimized for regrind of various
quality. The material discharge is generously
dimensioned so that even rough or bridge-building
material can be reliably removed. The scale also features
adaptive filling. This function ensures that material is
weighed reliably even when the bulk density changes.
The CTW batch scale is suitable as the centrepiece of a
batch blending system. As per recipe specifications, up
to eight components above the scale can added in
succession and weighed. A mixer below the scale
ensures the even the distribution of all components.
