Latest update: 05.11.2020
singold gerätetechnik gmbh
TEL: +49 8232 71036
FAX: +49 8232 71039
Siemensstr. 24
86830   Schwabmünchen
Germany
Contact
+49 8232 710 36
Mr. Oliver Lüer
As a manufacturer, singold gerätetechnik gmbh supplies pneumatic knockers, pneumatic distance-knockers and flap shutters for containers and silos. These are used in production and conveying systems in the building materials, chemical and food industries as well as in steel production and biomass plants all over the world.

singold gerätetechnik gmbh and its products stand for over 50 years experience in bulk material technology.
We deliver 100% quality made in Germany.
Meet us at
Visual representations
Products, services

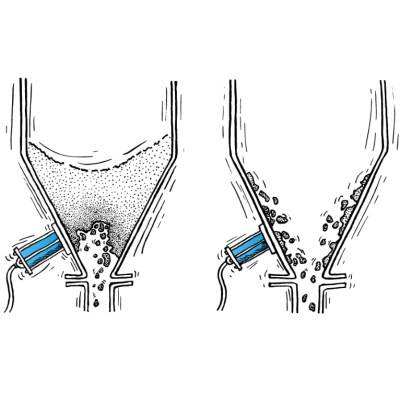

 Pneumatic knocker - The pneumatic knocker is used when high-speed shakers and vibrators with sinusoidal oscillations are not effective.

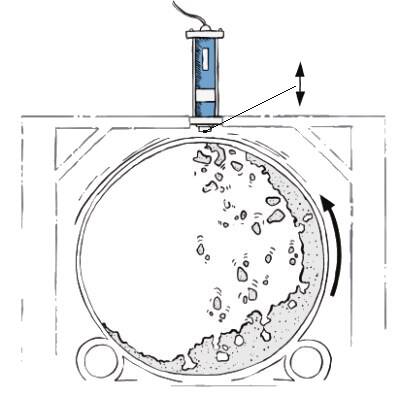

 Pneumatic distance-knocker - Pneumatic distance knockers are suitable for slowly rotating drums, filling or emptying stations with changing containers and for hot walls.

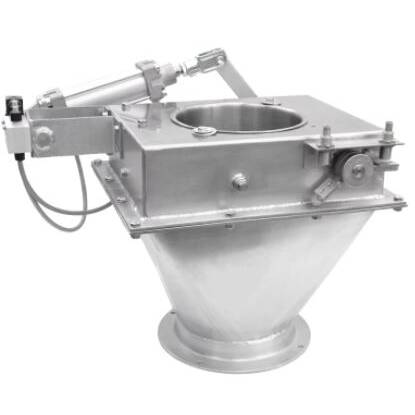

 Flap shutter - The flap lock is suitable for difficult products in hopper scales, containers, conical screw mixers and many more.

Posts

The wide range of singold knocker variants singold has the ideal pneumatic knocker for every system: high temperatures, special hygiene requirements, very large silos, etc. Even Distance-Knockers when direct mounting is not possible.
The wide range of singold knocker variants
singold has the ideal pneumatic knocker for every system: high temperatures, special hygiene requirements, very large silos, etc. Even Distance-Knockers when direct mounting is not possible. Just as the application scenarios for pneumatic knockers are diverse, so too are the requirements. Whether high temperatures, special hygiene requirements or very large silos, singold gerätetechnik gmbh offers a wide range of pneumatic knockers so you’ll have no problem finding one perfectly suited to your specific needs. Application temperature is crucial The most important factor in selecting the optimum knocker is the application temperature. For temperatures up to 60 °C, a standard version with a plastic piston can be used. For applications above 60 °C, the piston is made of aluminium. Cover and anchor plate, tube and striker are made of aluminium, steel or stainless steel, depending on the individual application situation. The pneumatic knocker can even be used with wall temperatures of over 140 °C. A T-shaped welding plate to increase the distance to the hot wall, a heat-dissipating plate and a heat insulation plate are available as accessories in this
18.10.2021  |  093x  |  Product description  |
K160: The Most Powerful Pneumatic Knocker in the World singold gerätetechnik gmbh produces and sells the world’s most powerful pneumatic knocker.
K160: The Most Powerful Pneumatic Knocker in the World
singold gerätetechnik gmbh produces and sells the world’s most powerful pneumatic knocker. While competitor models can at best cover a wall thickness of up to 12 mm, the K160 can knock walls with a thickness of up to 25 mm. This makes it suitable for massive, heavy-duty containers. For example, it is used in the mining industry for discharge chutes, in the building materials industry for gravel bunker outlets, in the chemical industry for mixing plants, in the lime industry for silos with a capacity of over 200 tonnes and in the fertiliser industry. Supernatural Strength The powerful model has an impact energy of 423 newton metres. This corresponds to the energy generated when a weight of 42.3 kg is dropped from a height of 1 metre. This high impact energy cannot be achieved with human forces, even if a 20 kg sledgehammer were used. The reason? The acceleration and, consequently, the final velocity of the impact weight in the knocker is far higher than the final velocity that a human being can generate. When the piston, which is designed as a magnet, is
13.09.2021  |  754x  |  Product description  |
singold gerätetechnik: New Sales Base in England The singold gerätetechnik gmbh has a new sales base for Great Britain and Ireland. Powder Process Design Services is now the point of contact for customers in the region.

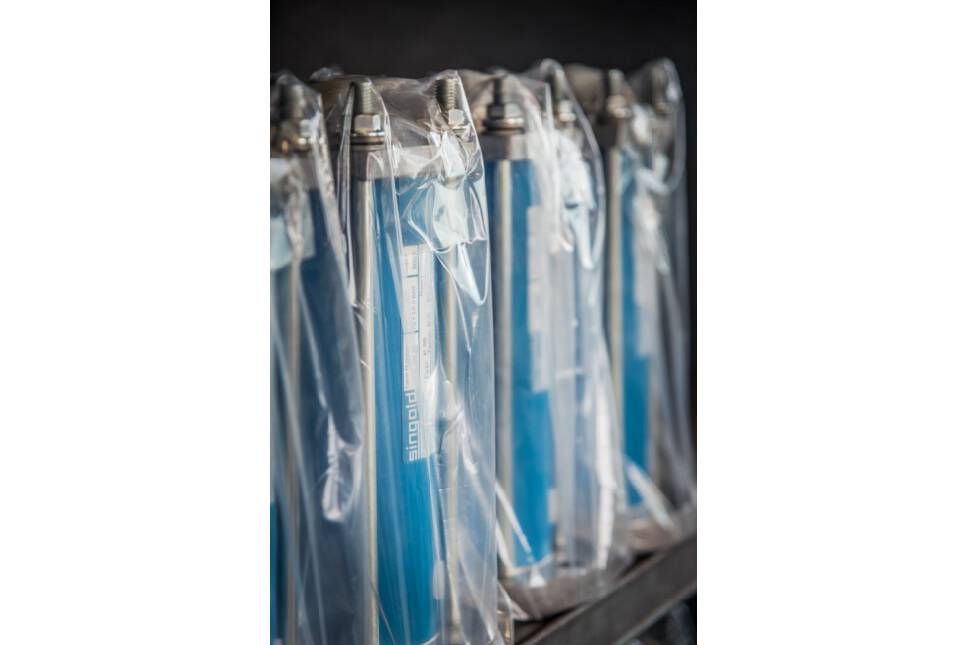

singold gerätetechnik: New Sales Base in England
The singold gerätetechnik gmbh has a new sales base for Great Britain and Ireland. Powder Process Design Services is now the point of contact for customers in the region. The continuing expansion of singold gerätetechnik as a manufacturer of pneumatic knockers and flap locks led to the decision to provide customers in Great Britain and Ireland with a personal contact on site. Powder Process Design Services was chosen for a good reason: “The company is specialized in plant engineering and process technology and has installed our knockers in the past,” explains the operation manager of singold gerätetechnik, Oliver Lüer. “Therefore, our contact person, Bradley Thomas, is familiar with and has an appreciation for our products.” singold gerätetechnik worldwide Powder Process Design Services compliments the network of singold gerätetechnik’s worldwide sales force. Additional business partners can be found internationally in Australia, Israel, Sweden, South Africa, and Switzerland.
18.05.2021  |  476x  |  Press release  |
Flap shutter from Singold: Lightning fast, enduring, low maintenance Singold introduces a flap shutter, a further development of the pendulum flap. It can be used for the complete unloading of containers and bulk material of all kinds.

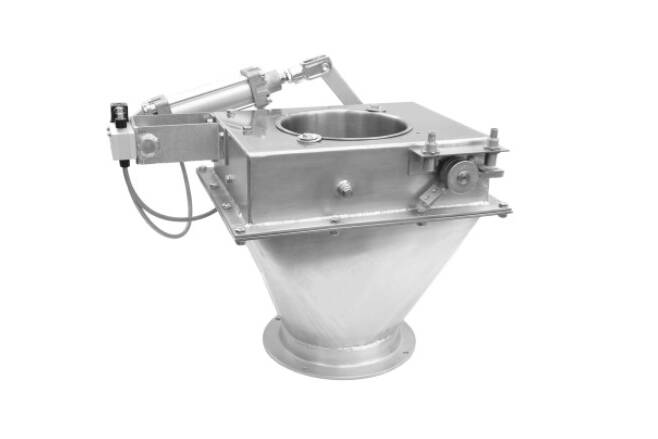

Flap shutter from Singold: Lightning fast, enduring, low maintenance
Singold introduces a flap shutter, a further development of the pendulum flap. It can be used for the complete unloading of containers and bulk material of all kinds. The flap shutter from singold gerätetechnik gmbh is an advanced version of the conventional pendulum flap. The flap shutter is used for the complete unloading of containers and bulk material of all kinds. Examples include hopper scales, primary and secondary vessels in mixing plants, wagons, reservoirs under filters and separators and cone worm mixers. Sophisticated mechanics The flap shutter from singold gerätetechnik gmbh was developed with the highest level of engineering. Thanks to its ingenious mechanics, the flap shutter first moves vertically downwards and then quickly swings completely to the side out of the product flow. This minimizes wear, especially with abrasive materials. The bulk material is neither damaged nor modified, nor is there wear on the flap shutter. This and its lubrication-free slide bearings make the flap shutter from singold an extremely enduring and low-maintenance device. Even with manually operated designs, large nominal widths with
13.04.2021  |  836x  |  Product news  |

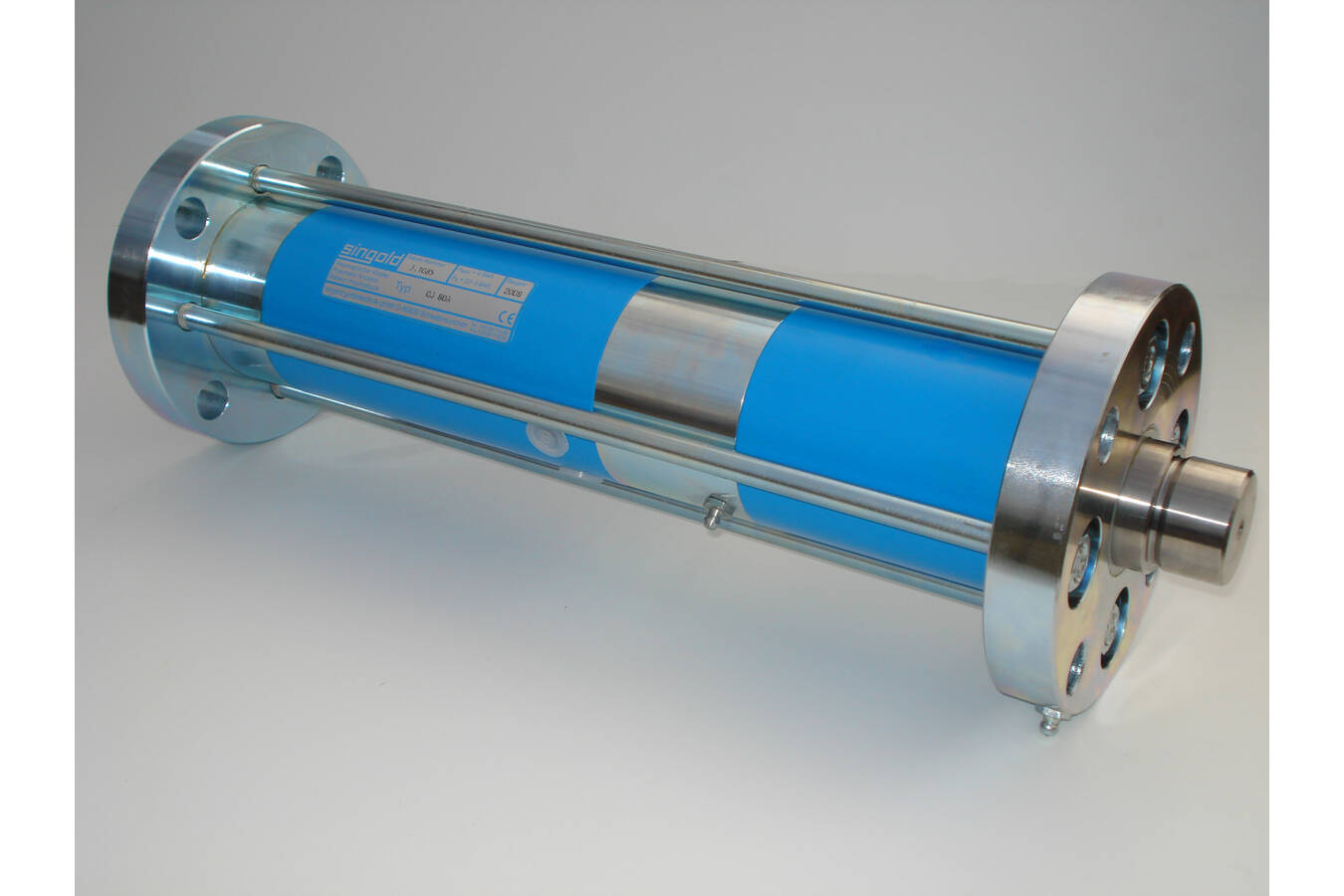

Distance-knocker QJ from singold: Engineering at its very best Distance-Knocker QJ - installed at a distance from the object to be knocked off
Distance-knocker QJ from singold: Engineering at its very best
Distance-Knocker QJ - installed at a distance from the object to be knocked off Distance-knocker QJ from singold: Engineering at its very best The pneumatic distance knocker from singold gerätetechnik gmbh is a unique product and the result of the highest level of engineering - well thought out down to the smallest detail. It was developed by the company’s founder Erwin Lüer, whose pneumatic knockers remain the most powerful on the market today. Mode of action The distance-knocker QJ is based on the simple, yet ingenious idea of the pneumatic knocker. Spontaneously released energy stored in the form of compressed air, accelerates the percussion piston, which is designed as a permanent magnet. The piston hits a mobile impulse part, which is strongly accelerated after the impulse set and transfers the energy to the element to be knocked off. This process occurs at such a high speed that it is barely visible to the human eye. Due to its additional impulse part, the distance-knocker QJ broadens the application possibilities when compared
15.12.2020  |  1036x  |  Product news  |

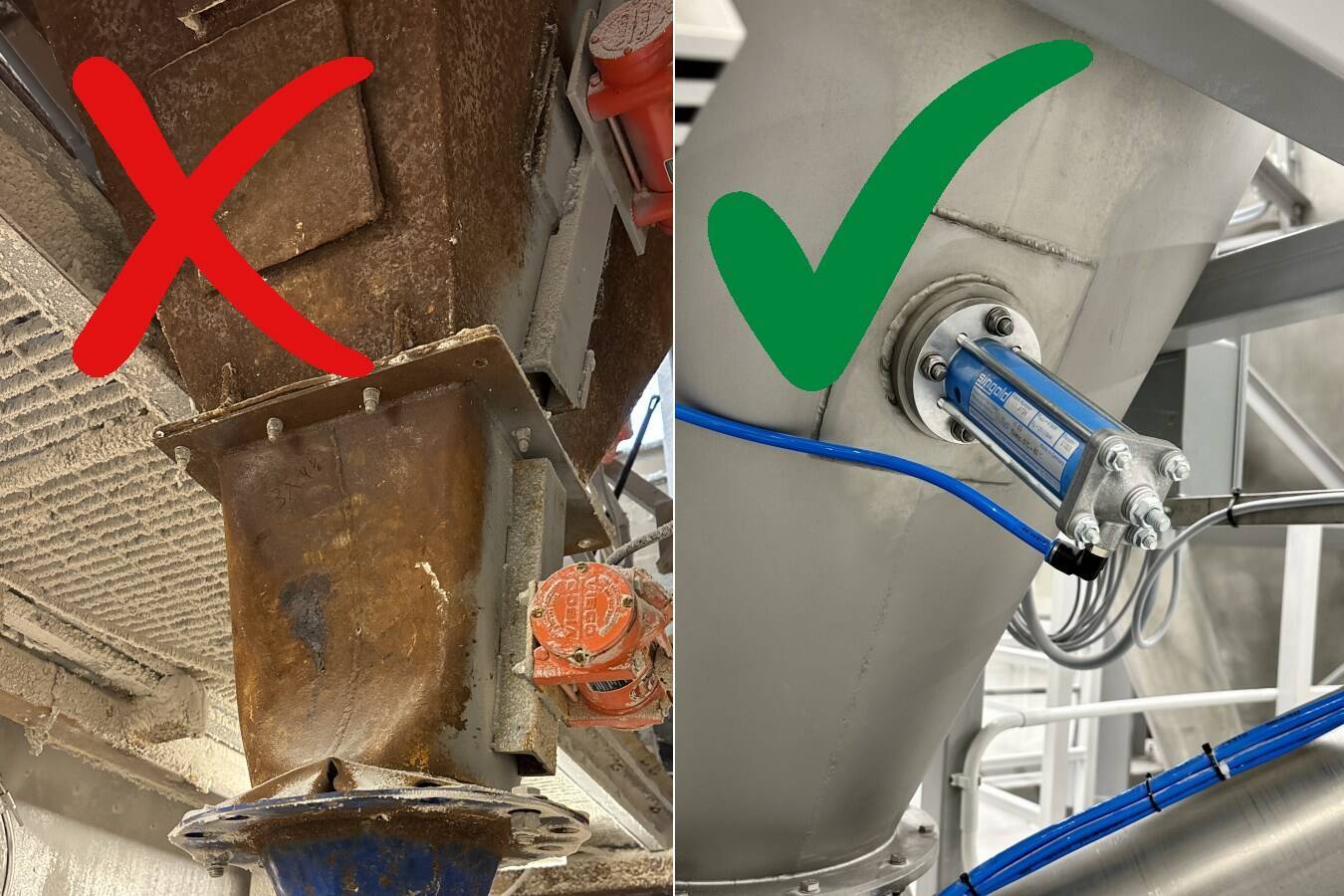

Pneumatic Knocker by singold Problems with flow? Bridging, funnel flow, stagnant zones can be counteracted with a pneumatic knocker, when vibration is not enough.

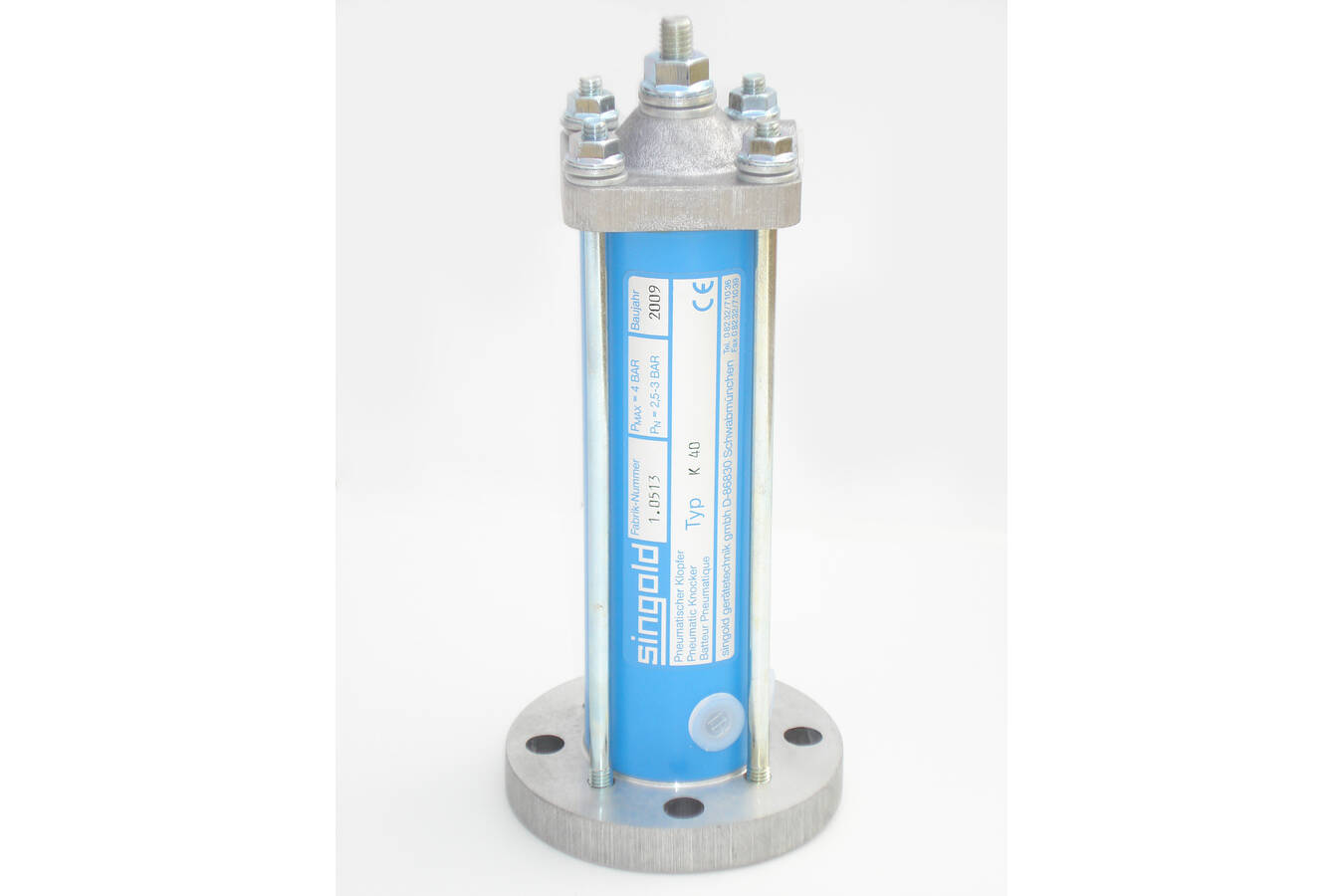

Pneumatic Knocker by singold
Problems with flow? Bridging, funnel flow, stagnant zones can be counteracted with a pneumatic knocker, when vibration is not enough. The pneumatic knocker is used for bulk goods with material flow problems for instance bridging, funnel flow and residue formations, when high speed shakers and vibrators with soft sine-shaped oscillations are no longer effective. The effect of the knocker is comparable to that of the famous “silo hammer”, but without distorted silo spouts additionally impeding the material flow. The knocker is normally controlled by an electrical control system with a solenoid valve. Within the area where the knocking takes place there should be enough space for the impact to expand in all directions. Reinforcements of the silo walls and additional ribs should be avoided, as this increases the weight and the strength of the silo walls and thus reduces the effect of the knocker. The Pneumatic Knocker produces an ideal elastic shock that is specified as the impact energy E = m/2 × v2 [kgm/s2 = Nm] and as impulse J = m × v [kgm/s = Ns]. There is no impact force or out-of-balance
09.11.2020  |  1381x  |  Product description  |   |
