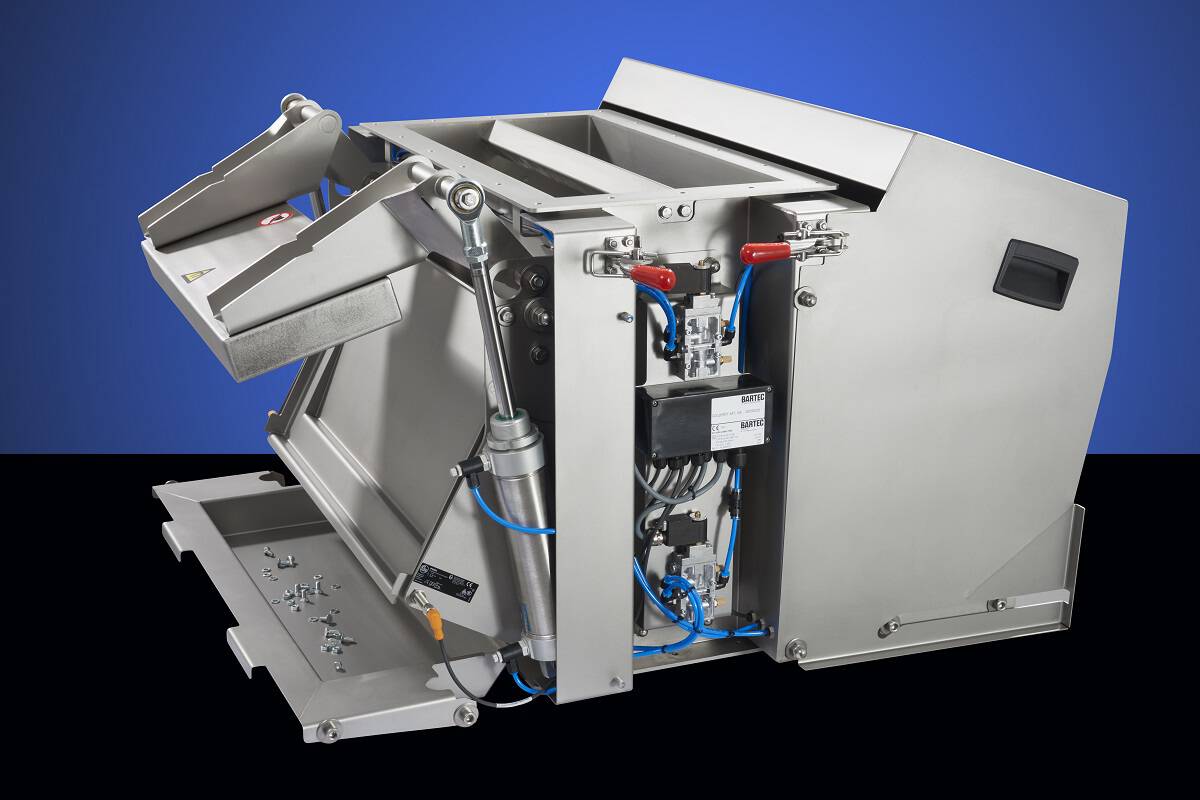

Automatic External pole magnet for feed capacities up to 200 m3/hour

The automatic external pole magnet, recently developed by Goudsmit Magnetics, is suitable for processing large capacities of feed and other bulk goods.
The magnet shown at the Victam stand 1351 can be used for intake in ship unloading installations and serves to protect the machinery. Moulds, grinding and mixing equipment can be damaged by undesired metal particles. The external pole magnet is intended for coarse separation and separates parts larger than 2 mm. Magnetic bars are suitable for the separation of finer metal particles. Fully automatic cleaning is integrated into the process system and takes place at the push of a button, without the intervention of an operator. The low built-in height of 500 mm makes the system easy to build into existing installations.

Free fall line

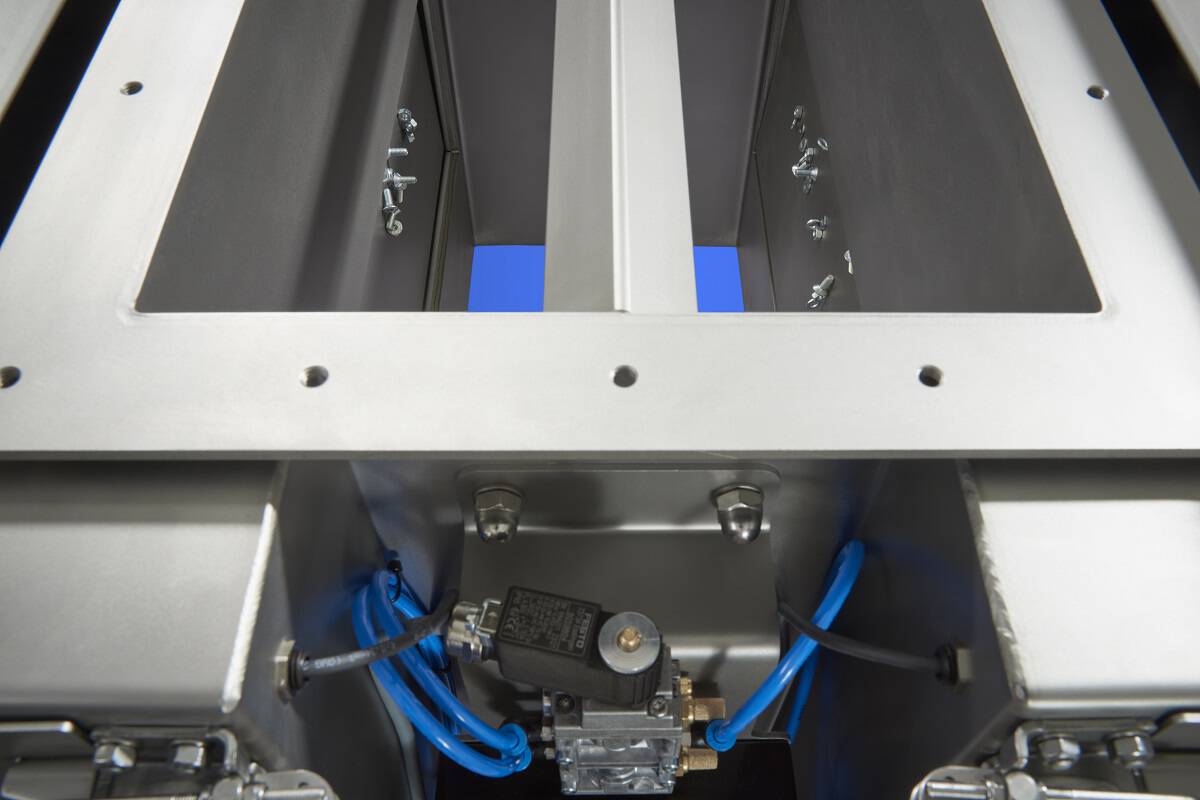

Two powerful capturing magnets are mounted on the outside of the completely smooth casing and, depending on the version, separate coarse or very fine iron particles from various material streams. The outer core magnet is fitted with Neodymium-Iron-Boron (NdFeB) magnets for mounting in free-fall lines. An advantage of this outer-core assembly is that no bridging or clogging of the material can take place on the inside. Since the valve box is fully integrated in the design, the installation height remains limited.

Application

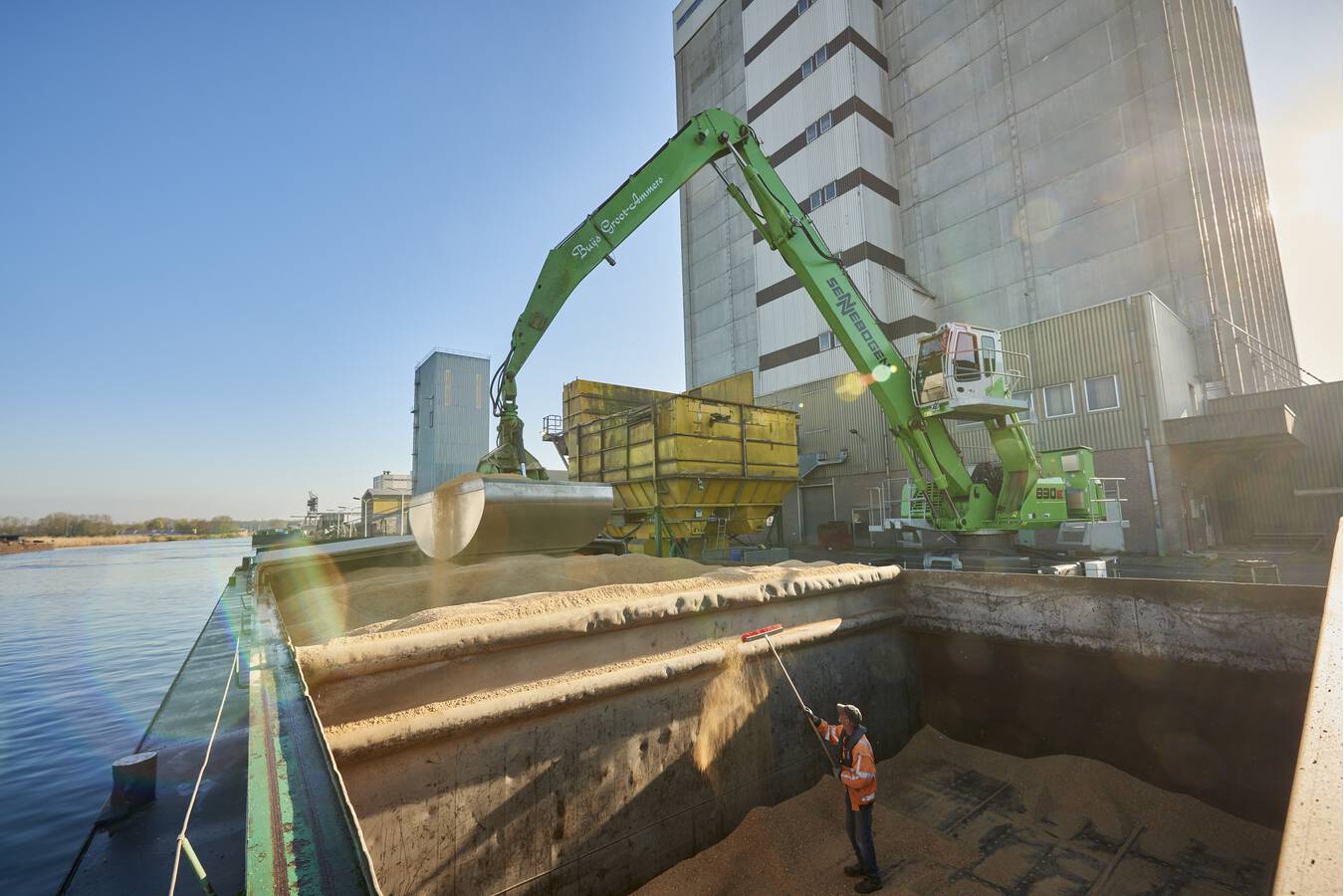

Application of such magnets is in ship unloading installations, at intake, in filling lines or for loading silos. A pneumatic controller ensures cleaning of the magnet. This is started via a 24V-DC signal and then runs fully automatically. The external pole magnet is available in various versions up to an inlet/outlet of 300x1000 mm. It is suitable for large capacities up to 200 m3/hour.
