Aero mechanical conveyor transfers spices from storage to production

The Aero mechanical conveyor is cost effective and capable of self-emptying to ensure that everything emptied into the inlet comes out the other end.

Customer Requirements

Patak’s Foods Ltd. of Leigh, Lancashire in the United Kingdom is a world leader in the production of Indian food. With more than 300 employees, products are distributed internationally to more than 40 countries.
The Leigh plant was a significant investment in state of the art food processing facilities which, at 164,000 sq. ft/ 50,000 sq. m, is believed to be the world’s largest Indian food plant. There was a need to improve the transfer of goods from storage to the processing area.
  • The plant uses 2,700 tons of spices from around the world.
  • Together with other ingredients, they produce over 1 million snacks and over 1.5 million ready-made meals and 30 million jars of sauce a year.
  • To achieve this, they are currently working 24/7.
To keep up with demand there was a need to improve the transfer of goods from storage to the processing area.

Spiroflow Solution

A Spiroflow Aero Mechanical Conveyor (AMC) was the natural choice for Patak’s Foods when they needed a conveyor to upgrade and expand their ingredients handling systems.
Projects Manager, Ray Brown, confirms: “We did our homework and concluded that an Aero Mechanical Conveyor was what we needed. We talked to several suppliers and chose Spiroflow because they offered us the best deal. We are very satisfied with the performance of the equipment and the support we got from Spiroflow.”

Specifications

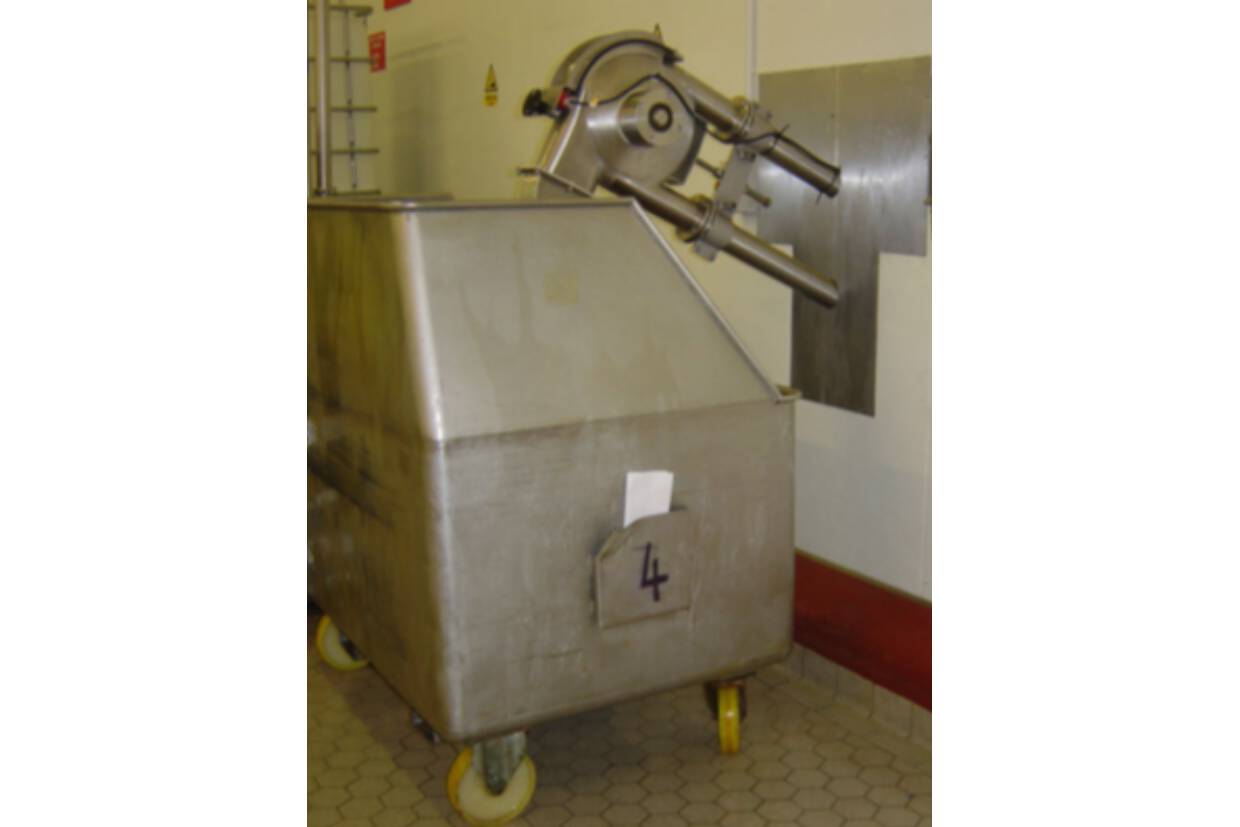

  • The 10’/ 3m long Spiroflow AMC is used to transfer a host of ingredients from the warehouse, through a wall and into wheeled bins in the cookhouse.
  • These ingredients range from coconut milk powder to dried onions. Ingredients were manually emptied from bags into boxes.
  • Over 100 bags of ingredients are emptied into the conveyor each day.
  • It is constructed of stainless steel and is complete with interlocked, quick-release hatches to the sprocket housings, which allow for easy cleaning.
  • The conveyor has an integral feed hopper with vibrating air pad to promote the flow of ingredients into the conveyor.
  • The top of the hopper has a shelf and mesh grill to enable bags of material to be opened and tipped with ease.

The conveyor is cost effective and capable of self-emptying to ensure that everything emptied into the inlet comes out the other end. This is an essential attribute when making up accurate batches of ingredients to guarantee the flavor and quality for which Patak’s are renowned.

Company information

More items

Spiroflow is pleased to welcome Frema Process as representative agents To continue to support our global customers, Spiroflow is pleased to announce that Frema Process will be representative agents in Denmark.

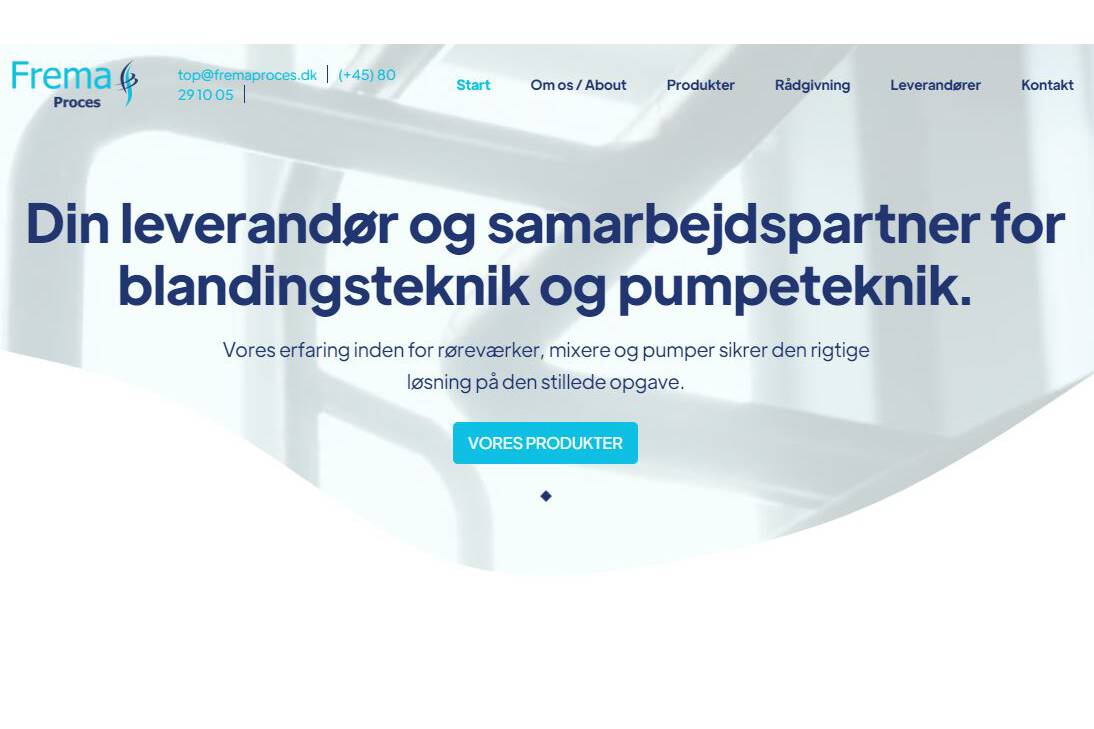

Spiroflow is pleased to welcome Frema Process as representative agents
To continue to support our global customers, Spiroflow is pleased to announce that Frema Process will be representative agents in Denmark. Frema Process will be offering local support to customers backed by Spiroflow engineering and manufacturing. Head of Export, Craig Suttle, coordinates with all our overseas agents to manage the project from enquiry to installation. Craig says, “Spiroflow is always keen to work with experienced partners and representatives. It’s clear from our discussions with Torben that he will only add to our expertise and ability to support our clients in Denmark.” The foundation of Frema Process is 30 years of experience in the design of agitators, mixers and pump systems. A global network has ensured collaboration with leading suppliers of agitators, mixers, pumps and process equipment. They offer solutions for all tasks within mixing, stirring and handling of liquids, gases, granules, powders and solids. Spiroflow has a network of highly skilled representatives across the world.
30.11.2021  |  2191x  |  Press release  |
New patented feature for Spiroflow’s iconic flexible screw conveyor To assist in the breakdown of conglomerated product during conveying, rotating cutter bars have been added to Spiroflow’s iconic flexible screw conveyor

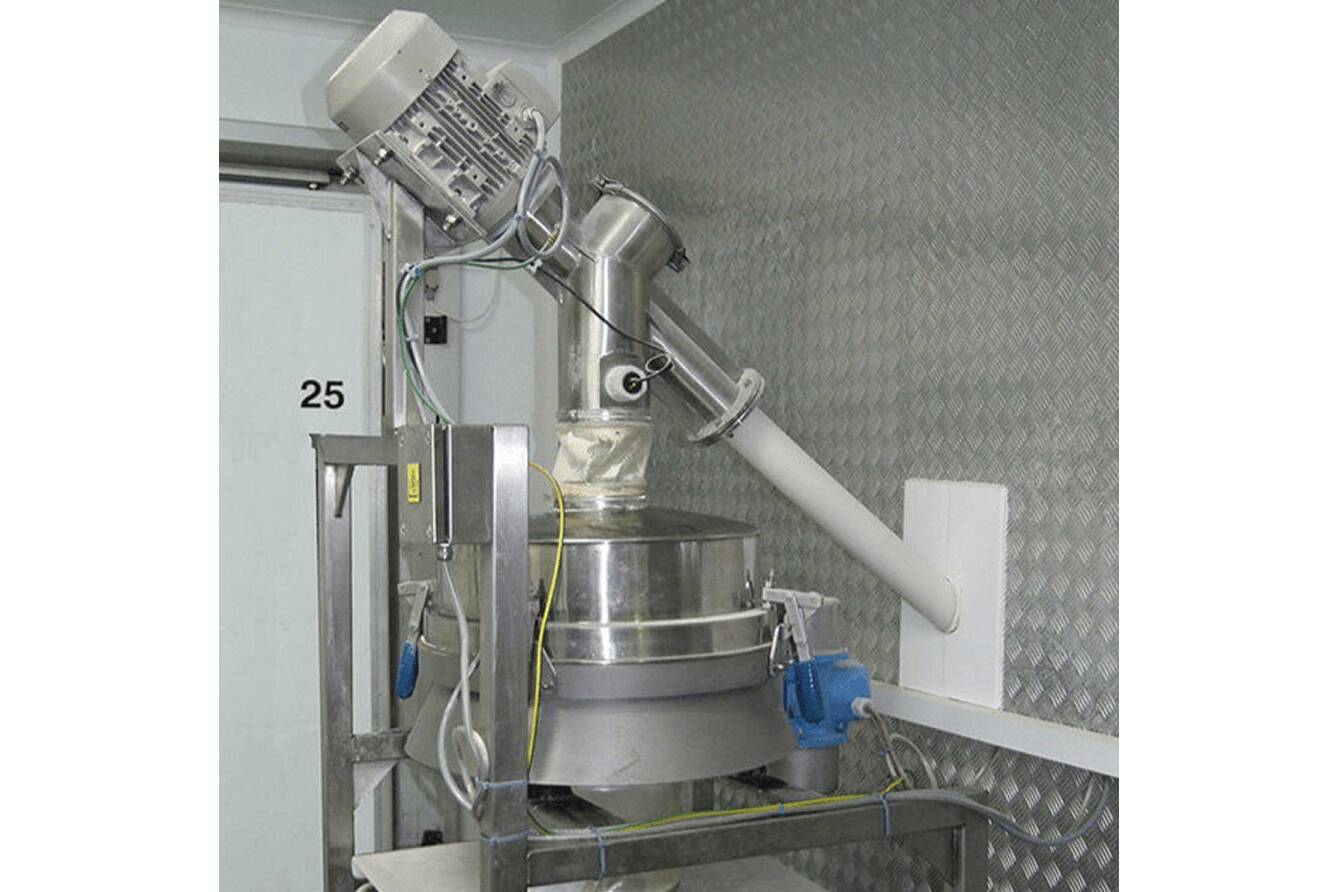

New patented feature for Spiroflow’s iconic flexible screw conveyor
To assist in the breakdown of conglomerated product during conveying, rotating cutter bars have been added to Spiroflow’s iconic flexible screw conveyor Spiroflow’s flexible screw conveyor (FSC), the mainstay of many global conveying operations, now includes a new patented feature. To assist in the breakdown of conglomerated product during conveying, rotating cutter bars have been added to the device, which are powered by the FSC’s drive motor. The addition will not only result in less agglomerated material in the end process, it will also prevent foreign objects from progressing through the conveyor and stalling or damaging the apparatus, thereby creating downtime. Spiroflow has been synonymous with flexible screw conveyors for over 45 years. The brainchild of Michel Podevyn, Spiroflow’s president, who pioneered its early development, the FSC continues to offer a system that’s hygienic, low on installation and maintenance costs and high on efficiency and performance. In explaining the FSC’s early development, Podevyn said: “We tried various systems such as a rigid screw, which deposited metal contaminants
06.10.2021  |  815x  |  Product news  |
Safe handling and containment solutions of titanium dioxide As a result of legislation changes made by the EC, Spiroflow advices customers on the safe handling and containment of titanium dioxide (TiO2) powder.

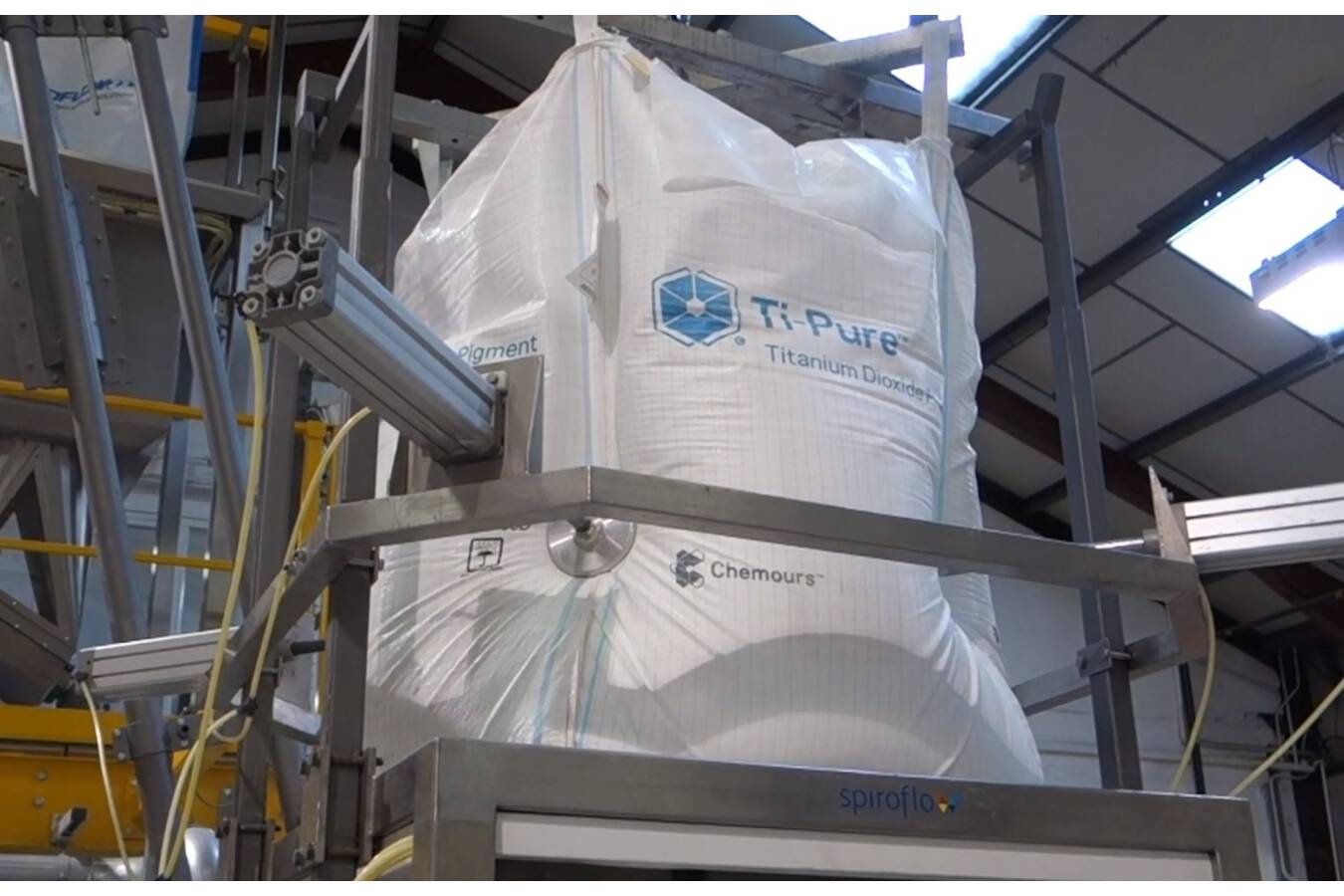

Safe handling and containment solutions of titanium dioxide
As a result of legislation changes made by the EC, Spiroflow advices customers on the safe handling and containment of titanium dioxide (TiO2) powder. TiO2 suspected carcinogen We are taking steps to advise our customers on our range of conveying solutions that are ideally suited to the safe handling and containment of titanium dioxide (TiO2) powder. The move comes as a result of legislation changes made by the European Commission in February 2020, in classifying titanium dioxide (TiO2) as a suspected carcinogen (cat 2) by inhalation. The regulation becomes official on 1 October 2021, meaning that businesses handling TiO2 will need to upgrade the containment of their processes, so that their operators are protected. Even products containing as little as 1% TiO2 will need to be included. Widespread use of TiO2 TiO2 is an inert inorganic compound that is used as a white pigment in many industrial applications. These applications include the manufacture of paints, coatings, printing inks and wall coverings where TiO2 plays a critical role in providing essential product properties: whiteness, covering power, brightness,
09.06.2021  |  1284x  |  Product news  |   |
