Utrafine grinding
The GRANOMAT JP Disk Mill is engineered for ultrafine grinding of a wide range of products and is suitable for both wet and dry milling applications.
he GRANOMAT JP Disk Mill is engineered for ultrafine grinding of a wide range of products and is suitable for both wet and dry milling applications.
Depending on the disk type employed, the mill can produce a variety of outputs, catering to diverse processing needs.
Design and Functionality

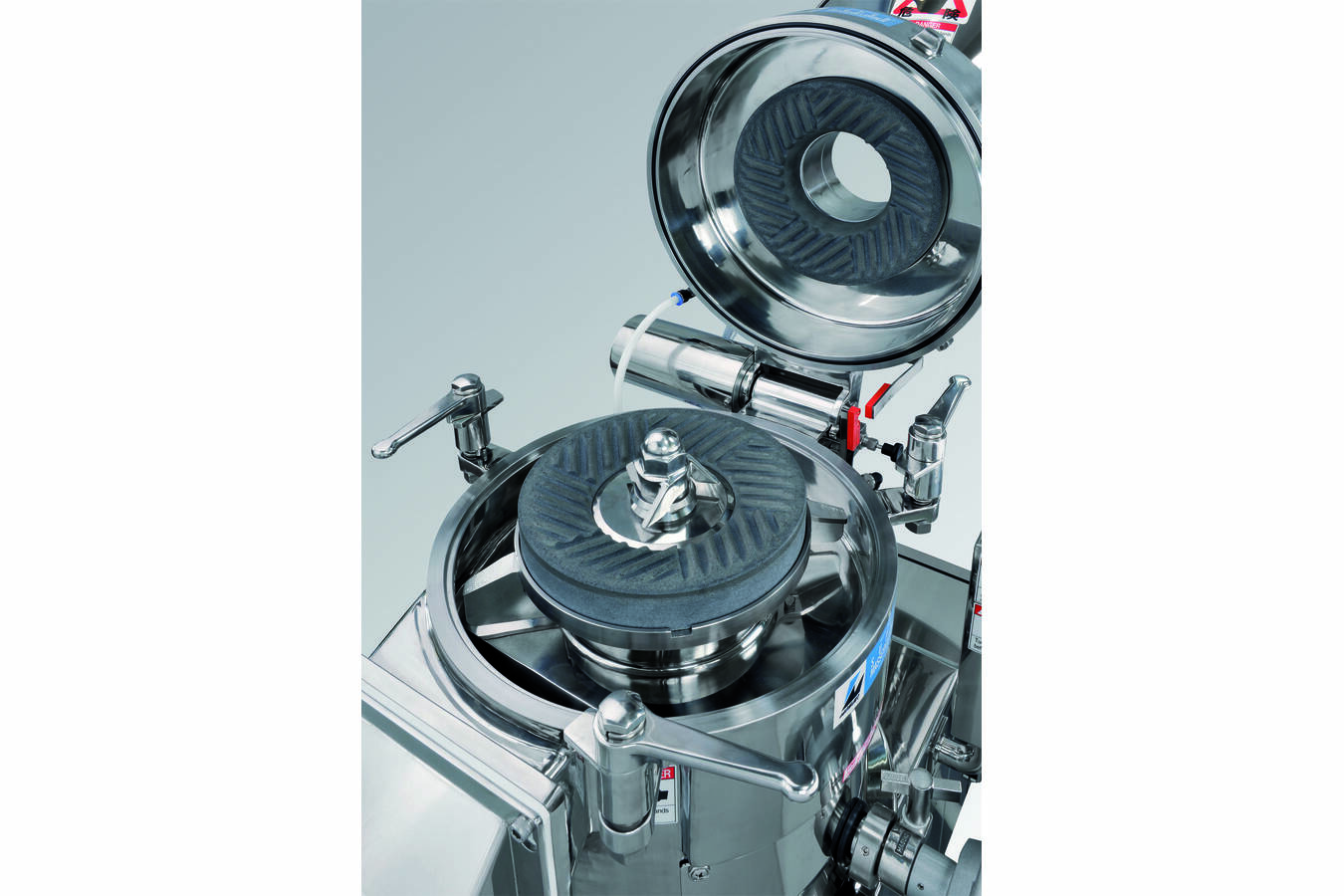

The GRANOMAT JP Disk Mill operates on the stator-rotor principle, featuring a fixed and a rotating disk. This design allows for efficient milling or rubbing of materials. The mill processes grains from 3 mm down to an ultrafine 10 μm, using appropriate disks. It offers a throughput capacity ranging from 1 to 3000 kg/h, depending on the input material, desired grinding fineness, and machine model.
Three machine variants are currently available, differing by disk size:

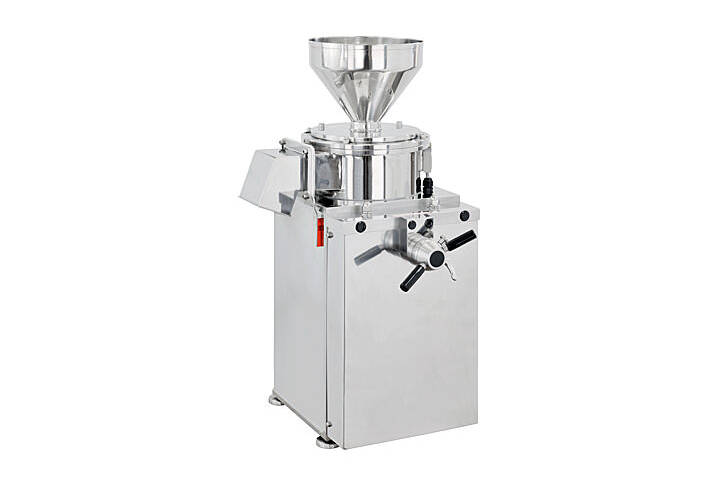

a. GRANOMAT JP 150
b. GRANOMAT JP 250
c. GRANOMAT JP 360
Applications
The GRANOMAT JP is highly versatile, making it suitable for a wide range of industries, including food, cosmetics, chemical, and pharmaceutical sectors. It can be used for:
1. Emulsifying: Fats and cosmetics.
2. Powdering or slurrying: Hard materials such as glass, minerals, bone, metal oxides, zeolite, pigments, and medical products.
3. Processing pastes: Vegetables, fruits, meat, sesame seeds, nuts, seaweeds, soybeans, rice, and more.
4. Pre-crushing: Materials like corn, ginger, mustard seeds, and almonds.
Serveral benefits of GRANOMAT JP Disk Mill:
1. Precise milling: Allows for exact control of the grinding process.
2. Adjustability: The grinding unit can be adjusted during operation.
3. Variety of grinding disks: Supports diverse processing needs.
4. Easy installation: User-friendly setup and operation.
5. bLow-noise and low-vibration: Ensures a quiet and stable work environment.
6. Easy to clean: Simplifies maintenance.
Available with optional cooling or heating systems
The GRANOMAT JP Disk Mill is a reliable and efficient solution for ultrafine grinding, catering to a broad spectrum of industrial applications.
