Sachtleben Technology GmbH
TEL: +49 7831 96859-0
Bahnhofstraße 21-39
D-37431   Bad Lauterberg im Harz
Germany
Contact
We are your partner and expert to digitize your warehouse. The Owl Eye system combined with the expertise of our team takes data acquisition and the analysis of bulk material volumes to a new outstanding level: digital, accurate, modern.

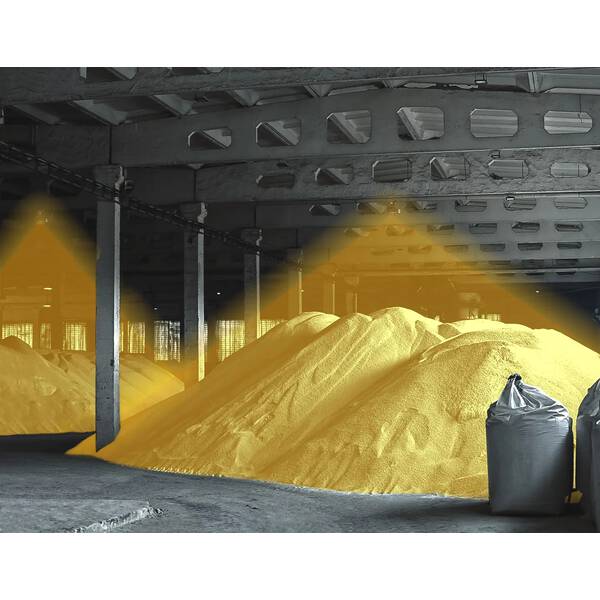

Volume measurement of bulk material with LiDAR

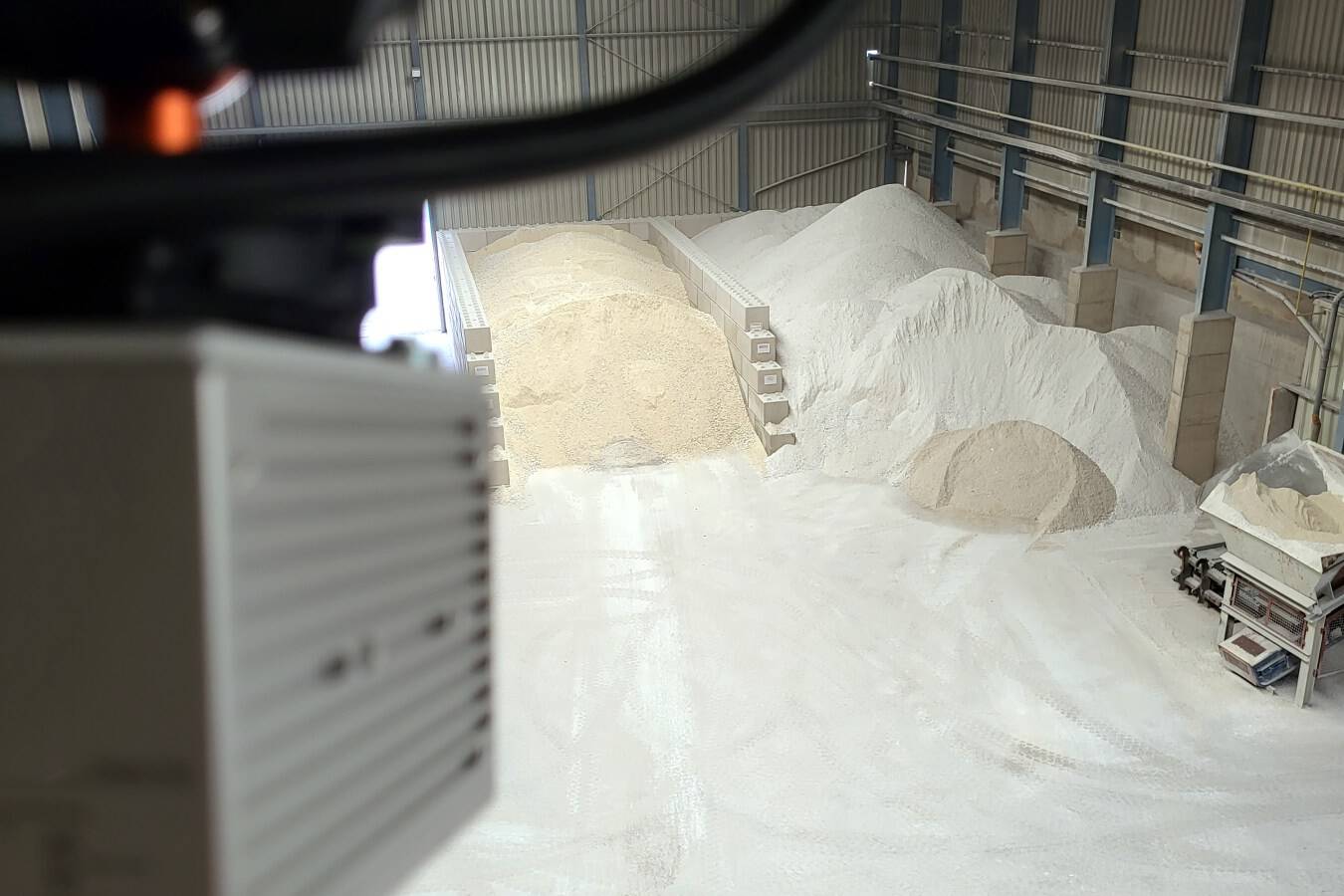

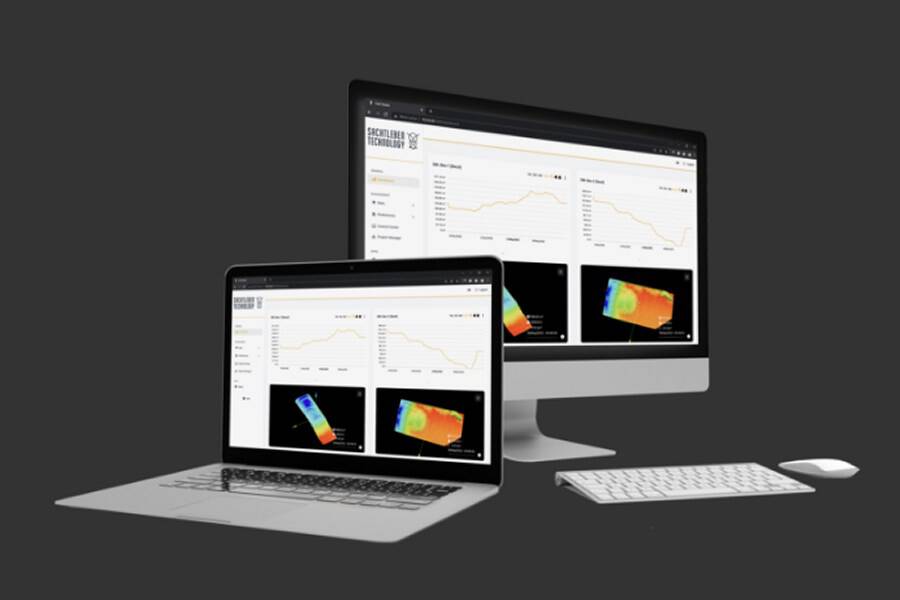

The Owl Eye system is a system for permanent volume measurement of bulk materials for continuous inventory. High-precision LiDAR sensors are installed in your storage facilities and survey your bulk material in 3D. With our Owl Eye Software, the data can be automatically recorded, evaluated and integrated into your existing ERP or operational data system via common interfaces.

Bulk material inventory.

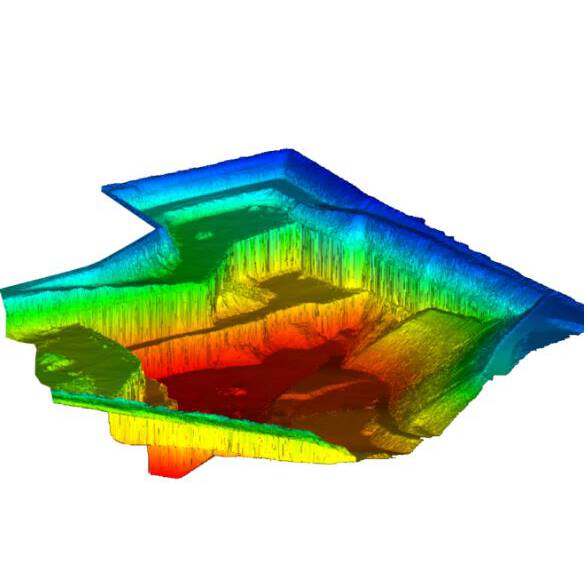

Terrestrial laser scanning is an efficient and highly precise surveying technique for the three-dimensional acquisition of any environment. This technology is used among others in mining, raw material processing, construction or rapid prototyping to generate detailed surface and terrain models.
The 3D laser scanner with a range of 1,200 meters and a distance accuracy of 8 millimeters is positioned in various locations to cover the object/ environment of interest. The individual point cloud scans are subsequently registered into a global or local common coordinate system and merged to a single object.
Products

Posts

Owl Eye: Record bulk stocks permanently, precisely and digitally With the Owl Eye System, Sachtleben Technology has developed a system for recording bulk material stocks as volumes. Accuracies of ±1% are achieved.
Owl Eye: Record bulk stocks permanently, precisely and digitally
With the Owl Eye System, Sachtleben Technology has developed a system for recording bulk material stocks as volumes. Accuracies of ±1% are achieved. The Owl Eye system uses innovative LiDAR sensors (Light Detection and Ranging). These 3D laser sensors record the environment and create a point cloud of the surrounding contour. This is a form of three-dimensional laser scanning. Using the known density of the bulk material, the volume can be converted into a mass. The measurement, evaluation and visualization is done via a web server application with a connected powerful database. Stockpile inventory as know-how Sachtleben Technology GmbH has a high-precision Riegl laser scanner with a range of up to 1.2 km. This is used to scan quarries, open-cast mines, bulk material stockpiles or buildings three-dimensionally as a service. For this purpose, the scanner is set up at various set-up points and the individual point clouds are merged into one large common point cloud. The data from the quarries and open pits are then analyzed for slope monitoring for the mining office. For inventory purposes such as year-end
28.10.2022  |  1494x  |  Product news  |
Technical specification of the Owl Eye system The Owl Eye system is a hardware independent system and  determines the volume of bulk solids with an accuracy of +- 1% for a good point cloud without measurement shadows
Technical specification of the Owl Eye system
The Owl Eye system is a hardware independent system and determines the volume of bulk solids with an accuracy of +- 1% for a good point cloud without measurement shadows For point clouds with measurement shadows, smart algorithms interpolate the contour and can provide a reliable result even then. The small modern LiDAR sensors have a range of up to 150m and the most widely used sensor has a field of view of about 80° x 70°. The IP 67 classification allows reliable indoor and outdoor use. The smart choice of materials for the sensor housing means that hardly any dust settles on the cover, allowing the sensor to be used in harsh environments. The Owl Eye system is a hardware independent system and can be used with different sensors from different manufacturers. Sachtleben Technology tests and benches the LiDAR market and is thus always at the cutting edge of technology. Accuracy, temperature resistance, measurement sensitivity with different materials and other various quality characteristics are tested. With the Owl Eye System, Sachtleben Technology has developed a system for permanently, precisely and digitally recording bulk
27.10.2022  |  1472x  |  Product description  |
