COMPANY PAGE

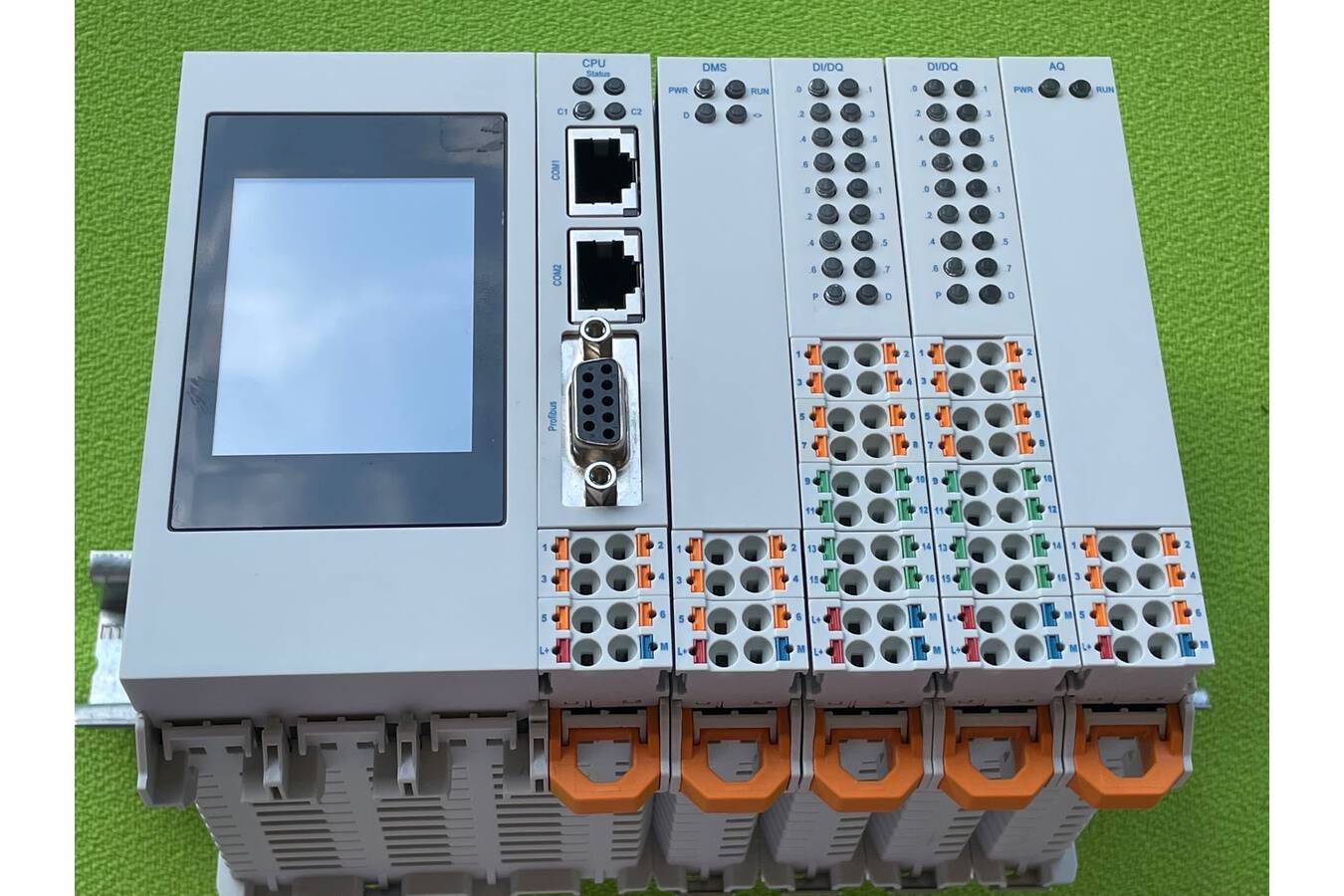

Scheurich GmbH has a new generation of weighing electronics in its program that provides all common Ethernet-based interfaces Equipped with a touchscreen and the latest ARM processors, weighing electronics are now available for the Siemens world (PROFINET) as well as for Rockwell (Ethernet-IP) and other Ethernet interfaces. Easy to configure on the touchscreen or remote maintenance using a web server means that special software is unnecessary. Fast and high-resolution weighing signals, language switching, manuals stored on the web server and SD flash memory make maintenance and device replacement easy. Configuration changes are stored in a log file. As well as a backup file of the parameterization. Applications for container scales, loss-in-weight scales and belt scales are available. Special applications are created on request and provided with the customer’s logo as OEM devices. In addition to strain gauge sensors, 8x digital inputs/outputs 24VDC, analog inputs and analog outputs can also be fitted modularly. A kit for OEM devices and weighing applications from the weighing electronics

A new spirit is blowing, with new managers at Scheurich GmbH in Wolfegg. The service provider in control engineering and supplier of weighing electronics, scales and dosing technology has successfully completed the generational change Scheurich GmbH in Wolfegg supplies plant manufacturers in the plastics, rubber and glass industries worldwide with control solutions. An all-round service is provided, from small control cabinets to database-supported order and recipe management and from electrical planning to commissioning. Matthias Müller, as the new department head, will be responsible for the tasks of automation customers in the future. The weighing electronics and scales & dosing screw department will be represented by Alfred Weber in the future, who will develop solutions and offers for customers. Mr. Andreas Stehmer has been promoted to management since 2024 and will take over the reins after Bruno Häfele retires.

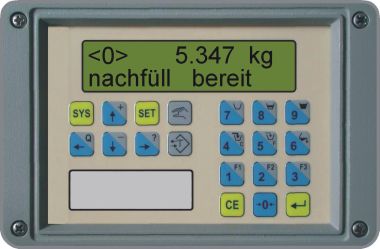

The MWS300 device family has now received additional communication options with POFINET-IO and Ethernet / IP. In addition to the integrated web server, display and keyboard, there are also expansion stages available with Analog IN and Analog OUT, 24 DI / 24DO and customized labeling and firmware for special customer applications.

MWS300-BW belt scale direct connection to DCS/PLS This weighing electronic for belt scales is suitable to almost all mechanical belt scales with load cell sensoric. modern interfaces like Profibus-DP and Modbus/TCP allow direct link to PLC/ PLS/ DCS systems. Stay with your mechanical belt scale and add new MWS300-BW electronic to your system, or chose belt scale mechanic independent from electronic supplier to have a powerful weighing solution. An impulse output scalable x kg/imp. is still available to fit old system requirements. Besides belt scale this hardware can fullfil also loss-in-weight and hopper scale functions.

Universal for all sensor types and brands Do you want full visualisation of silo content & status of all silos on any PC on the LAN? The ICS22 webserver system gives full accesss to all Silos on any PC an the LAN! for new installation and extentions of exisitng silos independent of sensor brand and type of sensor (radar, microwave, silot, weighing system min max sensors) are attached. No application licence required,due to browser technology linked via ethernet to the server. alarm indication by email or SMS reporting. Level history is available for any silo attached. Useful for VMI services or remote readout of silo level over distances. Easy to install even extention of the webserver to existing silo monitoring systems is reasonable!

PLC systems to modernize from S5 to S7 PLC systems is possible within shortest time, by using special adapters to reuse the S5 connectors with special adaptation to S7 connectors! The adapters are available and they prevent re-cabelling of the cabinets. Only change the S5-rack by the S7-rack and connect the S5 connectors to the new PLC system -ready! We will assist you with transfering the software to S7 and create new visualisation system to have a new PLC system available in commissioning within one day in work! Send us your request!
